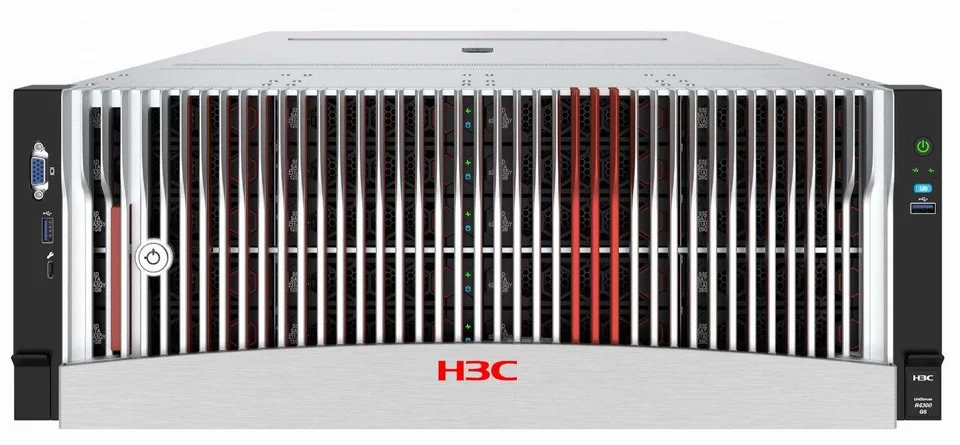

H3C UN-R4300-G5-C Uni Server R4300 G5 CTOServers
Brand H3C
N/AVerified
H3C UN-R4300-G5-C
Model (MPN)
0235A2UB
Condition
Factory Sealed
Out of Stock
H3C UN-R4300-G5-C Uni Server R4300 G5 CTOServers. GPU Supports: Optional up to 2 dual-width or 8 single-width GPU cards*. Memory: 32 x DDR4 memory slots, up to 3200MT/s; supports RDIMM or LRDIMM; supports 16 x Intel® Optane™ PMem200 data center-class persistent memory. Storage Controller: Comes with an onboard array controller; supports SATA RAID 0/1/10/5. Optional PCIe 4.0/3.0-based HBA and smart array card options
Key Specifications
DescriptionH3C Uni Server R4300 G5 CTOServers
InterfaceComes with 2x VGA (1 front, 1 rear), serial port, 6x USB 3.0 (2 front, 2 rear, 2 internal), 1x Type C (HDM dedicated)
Dimensions/Chassis Size4U chassis; 174.8mm (H) x 447mm (W) x 781mm (D) (excluding bezel panel) 174.8mm (H) x 447mm (W) x 809mm (D) (including bezel panel)
ComputingSupports up to 2 x Intel® Xeon® Scalable processor series or Tsing Tao? processor series. Up to 40 cores per processor; maximum power 270W
ChipsetIntel® C621A
Memory32 x DDR4 memory slots, up to 3200MT/s; supports RDIMM or LRDIMM; supports 16 x Intel® Optane™ PMem200 data center-class persistent memory
Your Price
Best Value
$211.40
List Price: $2,114.00Save 90%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C Uni Server R4300 G5 CTOServers |
| Key Specifications | |
| Interface | Comes with 2x VGA (1 front, 1 rear), serial port, 6x USB 3.0 (2 front, 2 rear, 2 internal), 1x Type C (HDM dedicated) |
| Dimensions/Chassis Size | 4U chassis; 174.8mm (H) x 447mm (W) x 781mm (D) (excluding bezel panel) 174.8mm (H) x 447mm (W) x 809mm (D) (including bezel panel) |
| Computing | Supports up to 2 x Intel® Xeon® Scalable processor series or Tsing Tao? processor series. Up to 40 cores per processor; maximum power 270W |
| Chipset | Intel® C621A |
| Memory | 32 x DDR4 memory slots, up to 3200MT/s; supports RDIMM or LRDIMM; supports 16 x Intel® Optane™ PMem200 data center-class persistent memory |
| Storage Controller | Comes with an onboard array controller; supports SATA RAID 0/1/10/5. Optional PCIe 4.0/3.0-based HBA and smart array card options support NVMe RAID |
| Product Specifications | |
| Computing | Supports up to 2 x Intel® Xeon® Scalable processor series or Tsing Tao? processor series. Up to 40 cores per processor; maximum power 270W |
| Chipset | Intel® C621A |
| Memory | 32 x DDR4 memory slots, up to 3200MT/s; supports RDIMM or LRDIMM; supports 16 x Intel® Optane™ PMem200 data center-class persistent memory |
| Storage Controller | Comes with an onboard array controller; supports SATA RAID 0/1/10/5. Optional PCIe 4.0/3.0-based HBA and smart array card options support NVMe RAID |
| FBWC | Supports up to 8GB cache* |
| Storage | Storage media front panel supports 24LFF with SAS/SATA/NVMe U.2 interfaces; rear panel supports 12LFF+4LFF (2LFF)+4SFF; all drives support hot-swappable maintenance without opening the chassis cover. Optional up to 16 NVMe SSDs* Supports 2 SATA M.2 as boot drives |
| Network | Onboard 1x 1Gbps HDM management Ethernet port; supports 1x x16 OCP 3.0 network card, supports NCSI, supports hot-swap. Supports standard PCIe 4.0/3.0 network adapter options: 10G, 25G, 100G Ethernet cards and 56G, 100G IB cards; |
| extended slot | Up to 10x PCIe 4.0 standard expansion slots*, 1 dedicated OCP 3.0 slot |
| Interface | Comes with 2x VGA (1 front, 1 rear), serial port, 6x USB 3.0 (2 front, 2 rear, 2 internal), 1x Type C (HDM dedicated) |
| GPU Supports | Optional up to 2 dual-width or 8 single-width GPU cards* |
| Optical Drive | Supports an external USB optical drive |
| Management | HDM agentless management tool (with a rear independent management Ethernet port and a front dedicated Type C port) and H3C FIST management software. Optional LCD smart diagnostic panel* |
| Security | Supports chassis intrusion detection; Optional TCM/TPM security module |
| Power Supply and Cooling | Optional power modules: up to 2x 800W/800W (supports 336VHDC)/1300W/1600W/800W (Titanium)*, or 2x 800W/1600W* -48VDC power modules. Supports 1+1 redundancy, 80 Plus certification, up to 96% efficiency conversion; supports up to 4 N+1 redundant hot-swappable fans |
| Authentication | Supports CCC, SEPAetc.Authentication |
| operating temperature | Operating environment temperature: 5~40ºC (operating temperature support is affected by different configurations; for details, refer to the detailed product technical documentation); storage environment temperature: -40~85ºC |
| Dimensions/Chassis Size | 4U chassis; 174.8mm (H) x 447mm (W) x 781mm (D) (excluding bezel panel) 174.8mm (H) x 447mm (W) x 809mm (D) (including bezel panel) |
| Warranty | 3-year 5x9 support, next business day response (NBD) |
| Ordering Information | |
| CPU with a heat sink | |
| 0231AGRY | 0231AGRY - H3C Uni Server R4900 G5 4309Y (2.8GHz/8-core/12MB/105W) CPU module (CTO&BTO) |
| 0231AGRP | 0231AGRP - H3C Uni Server R4900 G5 4310 (2.1GHz/12-core/18MB/120W) CPU module (CTO&BTO) |
| 0231AJ8B | 0231AJ8B - H3C Uni Server R4900 G5/R4300 G5 4310 (2.1GHz/12-core/18MB/120W) CPU module (ODM-T) (CTO&BTO) |
| 0231AGS6 | 0231AGS6 - H3C Uni Server R4900 G5 4314 (2.4GHz/16-core/24MB/135W) CPU module (CTO&BTO) |
| 0231AHA4 | 0231AHA4 - H3C Uni Server R4900 G5 4314 (2.4GHz/16-core/24MB/135W) CPU module (ODM-A) (CTO&BTO) |
| 0231AKX9 | 0231AKX9 - H3C Uni Server R4900 G5 4314 (2.4GHz/16-core/24MB/135W) CPU module (ODM-J) (CTO&BTO) |
| 0231AGRQ | 0231AGRQ - H3C Uni Server R4900 G5 4316 (2.3GHz/20-core/30MB/150W) CPU module (CTO&BTO) |
| 0231AHTC | 0231AHTC - H3C Uni Server R4900 G5 5315Y (3.2GHz/8-core/12MB/140W) CPU module (CTO&BTO) |
| 0231AGS5 | 0231AGS5 - H3C Uni Server R4900 G5 5317 (3.0GHz/12-core/18MB/150W) CPU module (CTO&BTO) |
| 0231AHT2 | 0231AHT2 - H3C Uni Server R4900 G5 5318N (2.1GHz/24-core/36MB/150W) CPU module (CTO&BTO) |
| 0231AHAQ | 0231AHAQ - H3C Uni Server R4900 G5 5318Y (2.1GHz/24-core/36MB/165W) CPU module (ODM-A) (CTO&BTO) |
| 0231AJ8H | 0231AJ8H - H3C Uni Server R4900 G5/R4300 G5 5318Y (2.1GHz/24-core/36MB/165W) CPU module (ODM-T) (CTO&BTO) |
| 0231AGUC | 0231AGUC - H3C Uni Server R4900 G5 5320 (2.2GHz/26-core/39MB/185W) CPU module (CTO&BTO) |
| 0231AGS2 | 0231AGS2 - H3C Uni Server R4900 G5 6326 (2.9GHz/16-core/24MB/185W) CPU module (CTO&BTO) |
| 0231AG83 | 0231AG83 - H3C Uni Server R4900 G5 6330 (2.0GHz/28-core/42MB/205W) CPU module (CTO&BTO) |
| 0231AFVR | 0231AFVR - H3C Uni Server R4900 G5 6330N (2.2GHz/28-core/42MB/165W) CPU module (CTO&BTO) |
| 0231AHRP | 0231AHRP - H3C Uni Server R4900 G5 6334 (3.6GHz/8-core/18MB/165W) CPU module (CTO&BTO) |
| 0231AJDN | 0231AJDN - H3C Uni Server R4900 G5 6336Y (2.4GHz/24-core/36MB/185W) CPU module (CTO&BTO) |
| 0231AG81 | 0231AG81 - H3C Uni Server R4900 G5 6338 (2.0GHz/32-core/48MB/205W) CPU module (CTO&BTO) |
| 0231AHRS | 0231AHRS - H3C Uni Server R4900 G5 6342(2.8GHz/24 cores/36MB/230W)CPU module(CTO&BTO) |
| 0231AGM2 | 0231AGM2 - H3C Uni Server R4900 G5 6346(3.1GHz/16 cores/36MB/205W)CPU module(CTO&BTO) |
| 0231AJ2Y | 0231AJ2Y - H3C Uni Server R4900 G5 8336C(2.3GHz/32 cores/54MB/230W)CPU module(ODM-Z)(CTO&BTO) |
| 0231AG98 | 0231AG98 - H3C Uni Server R4900 G5 8352Y(2.2GHz/32 cores/48MB/205W)CPU module(CTO&BTO) |
| 0231AGPX | 0231AGPX - H3C Uni Server R4900 G5 8358(2.6GHz/32 cores/48MB/250W)CPU module(CTO&BTO) |
| 0231AFVT | 0231AFVT - H3C Uni Server R4900 G5 8358P(2.6GHz/32 cores/48MB/240W) CPU module(CTO&BTO) |
| 0231AFVW | 0231AFVW - H3C Uni Server R4900 G5 8360Y(2.4GHz/36 cores/54MB/250W) CPU module(CTO&BTO) |
| 0231AHSU | 0231AHSU - H3C Uni Server R4900 G5 8362(2.8GHz/32 cores/48MB/265W)CPU module(CTO&BTO) |
| CPU without heatsink | |
| 0231AKS2 | 0231AKS2 - 4309Y (2.8GHz/8 cores/12MB/105W) CPU module (CTO&BTO) |
| 0231AKSY | 0231AKSY - 4310 (2.1GHz/12 cores/18MB/120W) CPU module (CTO&BTO) |
| 0231AL1S | 0231AL1S - 4310(2.1GHz/12 cores/18MB/120W)CPU module(ODM-B)(CTO&BTO) |
| 0231AKSW | 0231AKSW - 4310(2.1GHz/12 cores/18MB/120W)CPU module(ODM-T)(CTO&BTO) |
| 0231AKT0 | UN-CPU-INTEL-4314 - 4314 (2.4GHz/16 cores/24MB/135W) CPU module (CTO & BTO) |
| 0231AL19 | 0231AL19 - 4314(2.4GHz/16 cores/24MB/135W)CPU module(ODM-B)(CTO&BTO) |
| 0231AKT4 | 0231AKT4 - 4314(2.4GHz/16 cores/24MB/135W)CPU module(ODM-Z)(CTO&BTO) |
| 0231AKSA | 0231AKSA - 4316 (2.3GHz/20 cores/30MB/150W) CPU module (CTO&BTO) |
| 0231AKR4 | 0231AKR4 - 5315Y(3.2GHz/8 cores/12MB/140W)CPU module(CTO&BTO) |
| 0231AKSE | 0231AKSE - 5317(3.0GHz/12 cores/18MB/150W)CPU module(CTO&BTO) |
| 0231AKTJ | 0231AKTJ - 5318N(2.1GHz/24 cores/36MB/150W)CPU module(CTO&BTO) |
| 0231AKTR | UN-CPU-INTEL-5318Y - 5318Y (2.1GHz/24-core/36MB/165W) CPU module (CTO&BTO) |
| 0231AL28 | 0231AL28 - 5318Y(2.1GHz/24 cores/36MB/165W)CPU module(ODM-B)(CTO&BTO) |
| 0231AKSG | 0231AKSG - 5318Y(2.1GHz/24 cores/36MB/165W)CPU module(ODM-T)(CTO&BTO) |
| 0231AKRM | UN-CPU-INTEL-5320 - 5320 (2.2GHz/26-core/39MB/185W) CPU module (CTO&BTO) |
| 0231AKRP | UN-CPU-INTEL-6326 - 6326 (2.9GHz/16-core/24MB/185W) CPU module (CTO&BTO) |
| 0231AKTV | UN-CPU-INTEL-6330 - 6330 (2.0GHz/28-core/42MB/205W) CPU module (CTO&BTO) |
| 0231AKRJ | 0231AKRJ - 6330N(2.2GHz/28 cores/42MB/165W)CPU module(CTO&BTO) |
| 0231AKTU | 0231AKTU - 6334(3.6GHz/8-core/18MB/165W)CPU module(CTO&BTO) |
| 0231AKT5 | 0231AKT5 - 6338(2.0GHz/32-core/48MB/205W)CPU module(CTO&BTO) |
| 0231AKT8 | 0231AKT8 - 6342(2.8GHz/24 cores/36MB/230W)CPU module(CTO&BTO) |
| 0231AL2E | 0231AL2E - R4300 G5 Server |
| 0231AKT9 | 0231AKT9 - 6346(3.1GHz/16 cores/36MB/205W)CPU module(CTO&BTO) |
| 0231AL1T | 0231AL1T - R4300 G5 Server |
| 0231AKSQ | UN-CPU-INTEL-6348 - 6348 (2.6GHz/28-core/42MB/235W) CPU module (CTO&BTO) |
| 0231AKST | 0231AKST - 6354(3.0GHz/18-core/39MB/205W)CPU module(CTO&BTO) |
| 0231AM7G | 0231AM7G - 8336C(2.3GHz/32-cores/54MB/230W)CPU module (BS)(ODM-Z)(CTO&BTO) |
| 0231AKR0 | 0231AKR0 - R4300 G5 Server |
| 0231AKRB | 0231AKRB - 8352Y(2.2GHz/32-cores/48MB/205W)CPU module(CTO&BTO) |
| 0231AKSS | 0231AKSS - 8358(2.6GHz/32-cores/48MB/250W)CPU module(CTO&BTO) |
| 0231AKRN | 0231AKRN - 8358P(2.6GHz/32-cores/48MB/240W)CPU module(CTO&BTO) |
| 0231AKSP | 0231AKSP - 8360Y(2.4GHz/36-cores/54MB/250W)CPU module(CTO&BTO) |
| 0231AKRX | 0231AKRX - 8362(2.8GHz/32-cores/48MB/265W)CPU module(CTO&BTO) |
| 0231AL2A | 0231AL2A - 8368(2.4GHz/38-cores/57MB/270W)CPU module(ODM-B)(CTO&BTO) |
| 0231AKRQ | 0231AKRQ - 6336Y(2.4GHz/24-cores/36MB/185W)CPU module(CTO&BTO) |
| Memory | |
| 0231AF6N | 0231AF6N - R4300 G5 Server |
| 0231AF6R | 0231AF6R - 16GB 2Rx8 DDR4-3200 CAS-22-22-22 RDIMMMemory Module(CTO&BTO) |
| 0231AM1W | 0231AM1W - 16GB 2Rx8 DDR4-3200AA(CAS-22-22-22)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AM21 | 0231AM21 - R4300 G5 Server |
| 0231AF76 | UN-DDR4-3200AA-32G-2Rx4-R - 32GB 2Rx4 DDR4-3200 CAS-22-22-22 RDIMMMemory Module(CTO&BTO) |
| 0231AG95 | UN-DDR4-3200AA-32G-2Rx8-R - 32GB 2Rx8 DDR4-3200 CAS-22-22-22 RDIMMMemory Module(CTO&BTO) |
| 0231AJQK | 0231AJQK - R4300 G5 Server |
| 0231AJQU | 0231AJQU - R4300 G5 Server |
| 0231AJQX | 0231AJQX - R4300 G5 Server |
| 0231AJQY | 0231AJQY - R4300 G5 Server |
| 0231AJWG | 0231AJWG - 32GB 2Rx4 DDR4-3200 CXMT RDIMMMemory Module(for SA)(CTO&BTO) |
| 0231AM1T | UN-DDR4-3200AA-32G-2Rx8-R-2 - 32GB 2Rx8 DDR4-3200AA(CAS-22-22-22)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AM25 | UN-DDR4-3200AA-32G-2Rx4-R-2 - 32GB 2Rx4 DDR4-3200AA(CAS-22-22-22)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AQ2J | 0231AQ2J - R4300 G5 Server |
| 0231AJQL | 0231AJQL - R4300 G5 Server |
| 0231AJQQ | 0231AJQQ - R4300 G5 Server |
| 0231AJQR | 0231AJQR - R4300 G5 Server |
| 0231AJQV | 0231AJQV - R4300 G5 Server |
| Hard Drive Expansion Module. | |
| 0231AF55 | UN-HDDCage-2SFF-2UniBay-2U-G5 - G5 2U rear 2Uni Bay disk cage module (CTO&BTO) |
| 0231AF5C | UN-HDDCage-4SFF-4UniBay-2U-G5 - G5 2U rear 4x Uni Bay drive cage module (CTO & BTO) |
| 0231AF5K | UN-HDDCage-4LFF-2U-G5 - H3C Uni Server G5 2U rear 4x LFF drive cage module (CTO & BTO) |
| 0231AF5R | UN-HDDCage-2LFF-2U-G5 - G5 2U rear 2LFF disk cage module (CTO&BTO) |
| 0231AFTJ | UN-HDDCage-2SFF-2U-G5 - H3C Uni Server G5 2U rear 2x SFF drive cage module (CTO & BTO) |
| 0231AGHX | UN-PCA-BP-12LFF-R4300G5 - H3C Uni Server R4300 G5 12LFF disk expansion module (CTO&BTO) |
| 0231AHW2 | UN-BP-24LFF-L36-G5 - G5 24LFF disk expansion module (CTO&BTO) |
| 0231AJCW | UN-BP-24LFF-P48-G5 - G5 24LFF disk expansion module (CTO&BTO) |
| 0231AJCX | UN-BP-24LFF-P36-G5 - G5 24LFF disk expansion module (CTO&BTO) |
| 0231AJCY | UN-BP-24LFF-P68-G5 - G5 24LFF disk expansion module (CTO&BTO) |
| 2SFF drive cage RAID wiring method confirmation | |
| RA2SFFCK | RA2SFFCK - R4300 G5 Server |
| 4SFF drive cage RAID wiring method confirmation | |
| RA4SFFCK | RA4SFFCK - R4300 G5 Server |
| M.2 Adapter Card | |
| 0231AF5Q | UN-RC-2M2-G5 - G5 front 2*M.2 2280/22110 Riser module(CTO&BTO) |
| M.2 SSD | |
| 0231AK1R | 0231AK1R - 480GB 6G SATA RI 5400PRO M.2 SSDHard Drive Module(CTO&BTO) |
| 0231AES6 | 0231AES6 - R4300 G5 Server |
| 0231AHCQ | UN-SSD-480G-SATA-S4520-M.2 - 480GB SATA RI S4520 M.2 SSDHard Drive Module(CTO&BTO) |
| 0231AES4 | 0231AES4 - R4300 G5 Server |
| SD card | |
| 0231A6RC | UN-SD-32G-Micro-F - 32G microSD mainstream flash drive module (FIO) |
| 0231A7KC | 0231A7KC - R4300 G5 Server |
| SD card expansion module | |
| 0231A8L1 | UN-DSD-EX-F1 - Dual SD card expansion module (CTO & BTO) |
| Fan | |
| 0231AGYV | UN-FAN-L-4UG5-M - G5 4U standard fan module (CTO & BTO) |
| Power Supply | |
| 0231ALYS | UN-CRPS-1300W-AC-12V-94%-M2 - 1300W AC & 240V HVDC power supply (Platinum - light-load high efficiency) (CMCTO) |
| 0231AGUP | UN-GW-CRPS1300D3 - 1300W AC&240V HVDC power Module (GW-R1-Platinum-low load high efficiency) (CTO&BTO) |
| 0231AKDP | UN-PAC1K3D12-B2 - 1300W AC & 240V HVDC power Supply Module (HW-R1- Platinum) (CTO&BTO) |
| 0231AJYB | UN-PS-2132-5L5 - 1300W AC & 240V HVDC power Supply Module (LT-R1- Platinum - light-load high efficiency) (CTO&BTO) |
| 0231ACT9 | DPS-1300AB-6 R-M - 1300W AC & 240V High-Voltage DC power Supply Module (DT-R1-Platinum) (CMCTO) |
| 0231AHRV | UN-DD-2162-3L5 - 1600W 48V DC power Supply Module (LT-R1- Platinum) (CTO&BTO) |
| 0231AMKU | UN-GW-CRPS1600C2 - 1600W AC & 240V HVDC power Supply Module (GW-R1- Titanium) (CTO&BTO) |
| 0231AMPJ | UN-CRPS-1600W-AC-12V-94%-M - 1600W AC & 240V HVDC power supply (Platinum) (CMCTO) |
| 0231AGUN | UN-GW-CRPS1600D2 - 1600W AC & 240V HVDC power Supply Module (GW-R1- Platinum) (CTO&BTO) |
| 0231ACTA | DPS-1600AB-13 R-M - 1600W AC & 240V High-Voltage DC power Supply Module (DT-R1-Platinum) (CMCTO) |
| 0231A7KH | 0231A7KH - 1600W AC & 240V HVDC power Supply Module (FP-R1-Platinum) (CMCTO) |
| 0231AMQ7 | UN-CRPS-2000W-AC-12V-94%-M - 2000W AC & 240V HVDC power supply (Platinum - light-load high efficiency) (CMCTO) |
| 0231AFSS | UN-GW-CRPS2000D - 2000W AC & 240V HVDC power Supply Module (GW-R2- Platinum - light-load high efficiency) (CTO&BTO) |
| 0231AHRU | UN-PS-2202-11L - 2000W AC & 240V HVDC power Supply Module (LT-R1- Platinum - light-load high efficiency) (CTO&BTO) |
| 0231AHNS | UN-PAC800D12-B2 - 800W AC & 240V HVDC power supply (HW-R1-Platinum-Light-load efficiency) (CTO & BTO) |
| 0231AMPQ | UN-CRPS-800W-AC-12V-94%-M - 800W AC & 240V HVDC power supply (Platinum) (CTO) |
| 0231AGUQ | UN-GW-CRPS800N2 - 800W AC & 240V HVDC power Supply Module (GW-R2-Platinum-Efficient at Light Load) (CTO&BTO) |
| 0231A6UG | PSR800-12AHD-FIO - 800W 336V HVDC power Supply Module (dedicated power cable) (FP-R1, Platinum) (CMCTO) |
| 0231A9CJ | DPS-850W-12A-F - 850W AC & 240V High-Voltage DC power Module (DT-R1-Platinum) (CMCTO) |
| 0231A9CF | DPS-800W-12A-48V-F - 800W (-48V)-(-60V) DC power Supply Module (DT-R1, Gold) (CMCTO) |
| Power Supply Cable | |
| 0404A0K4 | CAB-PDU-2.0m-C14-C13-MUL-50598 - PDU Power Supply Cable - 2.0 m - 1.0 mm² - Black - (C14 Connector (3P) Straight Male 250V 10A) - (227 IEC 53 (RVV) & H05VV-F & SJT) - (C13) - Chinese Standard + U.S. Standard + European Standard + Korean Standard |
| 0404A19Y | CAB-AC Pwr-3m-C19-CHE - R4300 G5 Server |
| 0404A06Q | CAB-AC Pwr CHI-1.8m - Wall-mounted AC power cord—1.8 m—3 × 0.75 mm²—black—(GB1002 plug (3P), straight male, 250 V, 10 A)—(227 IEC 53 (RVV))—(C13 connector (3P), straight female, 250 V, 10 A)—Chinese National Standard |
| 04040890 | CAB-AC Pwr EN&SI-3m - Wall power outlet AC power cable - 3.0m - 1.0mm^2 - black - (BS1363A plug (3P) right-angle male 250V13A) - (H05VV-F) - (C13 connector (3P) straight female 250V10A) - UK standard |
| Slot 1 & 2 Adapter Card | |
| 0231AF52 | UN-RC-3FHFL-2U-SW-G5 - G5 2U 3X16 Riser (slot 1/2) (supports 2 FHFL and 1 FHHL, supports 2x 150W GPU) (CTO&BTO) |
| 0231AF5A | UN-RC-3FHFL-2U-G5 - G5 2U X16X8X8 Riser (slot 1/2) (supports 2 FHFL and 1 FHHL, supports 1 300W GPU) (CTO&BTO) |
| Slot 3 Adapter Card | |
| 0231AF5L | UN-RC-2HHHL-R3-2U-G5 - G5 2U X8X8 Riser(Slot3)(Supports 2 x HHHL)(CTO&BTO) |
| 3X16 Adapter Card Slot Confirmation | |
| RISSLCHK | RISSLCHK - R4300 G5 Server |
| Standard Control Card (PCIe Standard Card) | |
| 0231A8JY | 0231A8JY - LSI 9361-8i 12G SAS RAID card module (supports 8 x SAS Ports, with 1GB cache, PCIe, excluding power-loss protection module) (CMCTO) |
| 0231A8K4 | 0231A8K4 - LSI 9361-8i 12G SAS RAID card module (supports 8 x SAS Ports, with 2GB cache, PCIe, excluding power-loss protection module) (CMCTO) |
| 0231A8KA | UN-HBA-LSI-9300-8i-A1 - LSI 9300-8i 12G SAS HBA card module (supports 8 x SAS Ports, PCIe) (CMCTO) |
| 0231AB06 | UN-HBA-LSI-9311-8i-F - LSI 9311-8i 12G SAS HBA card module (supports 8 x SAS Ports, PCIe) (CMCTO) |
| 0231A8AY | UN-RAID-LSI-9460-8i(4G)-F - LSI 9460-8i 12G SAS RAID controller module (supports 8 x SAS Ports, includes 4GB cache, PCIe, excluding supercapacitor) (CMCTO) |
| 0231A8B5 | UN-RAID-LSI-9460-8i(2G)-F - LSI 9460-8i 12G SAS RAID card module (supports 8 SAS Ports, with 2GB cache, PCIe, without supercapacitor) (CMCTO) |
| 0231A8B0 | UN-HBA-LSI-9440-8i-F - LSI 9440-8i 12G SAS HBA card module (supports 8 x SAS Ports, PCIe) (CMCTO) |
| 0231AG62 | UN-RAID-LSI-9560-LP-8i-4GB - LSI 9560-8i 12G SAS RAID card module (supports 8 SAS Ports, with 4GB cache, PCIe, without supercapacitor) (CTO&BTO) |
| 0231AJ69 | UN-HBA-LSI-9540-LP-8i - LSI 9540-8i 12G SAS HBA card module (supports 8 SAS Ports, PCIe) (CTO&BTO) |
| 0231AJ6E | UN-HBA-LSI-9500-LP-8i - LSI 9500-8i 12G SAS HBA card module (supports 8x SAS Ports, PCIe) (CTO&BTO) |
| 0231AEVL | UN-RAID-LSI-9560-LP-16i-8GB-M - LSI 9560-16i 12G SAS RAID card module (supports 16x SAS Ports, with 8GB cache, PCIe, excludes supercapacitor) (CMCTO) |
| 0231AJ6M | UN-HBA-LSI-9500-LP-16i - LSI 9500-16i 12G SAS HBA card module (supports 16x SAS Ports, PCIe) (CTO&BTO) |
| 0231A8P1 | UN-RAID-P460-B4-F - P460-B4 12G SAS RAID card module (supports 8 SAS Ports, with 4GB cache, excluding supercapacitor) (CMCTO) |
| Battery | |
| 0231AEYS | UN-BAT-LSI-G2-A - LSI G2 supercapacitor module (CTO&BTO) |
| 0231AEYR | UN-BAT-LSI-G3-A - LSI G3 supercapacitor module (CTO&BTO) |
| 0231AFA4 | UN-BAT-PMC-G3-2U - PMC G3 Supercapacitor Module (for 2U Standard Chassis) (CTO & BTO) |
| VROCModule(Supports NVMe Hard DriveRAID) | |
| 0231A6R6 | UN-NVMe-VROC-Key-S-F - Intel NVMe VROC module - Standard edition (FIO) |
| 0231A6R8 | UN-NVMe-VROC-Key-P-F - Intel NVMe VROC module - Advanced edition (FIO) |
| 0231A7LJ | UN-NVMe-VROC-Key-i-F - Intel NVMe VROC module - Intel edition (FIO) |
| Graphics Card | |
| 0231ALL7 | 0231ALL7 - R4300 G5 Server |
| 0231ABT8 | UN-GPU-T4-F - T4 Display Acceleration Card (FIO) |
| Network Adapter | |
| 0231AFUR | 0231AFUR - R4300 G5 Server |
| Optical Module | |
| 0231AFUP | UN-CAB-IB-DAC-MCP7H50-V002R26-2m - Mellanox 2m HDR100 100G DAC breakout cable (CTO&BTO) |
| 0231AC16 | QSFP-100G-SR4-MM850-CM - 100G QSFP28 optical module (850nm, 100m OM4, SR4, MPO) (FIO) |
| 0231ADWS | 0231ADWS - 2-Port100GEoptical interface Network Adapter(QSFP28)(CTO&BTO) |
| 0231AFUS | UN-IB-MCX653106A-ECAT-100Gb-2P - 100Gb 2-Port Infiniband HDR/Ethernet Adapter Card (Supports QSFP56 Optical Modules) (CTO&BTO) |
| 0231AGJA | UN-NIC-ETH-MCX623106AN-CDAT-2P - 2-Port100Gb QSFP56optical interfaceMCX623106AN-CDATNetwork Adapter(CTO&BTO) |
| 0231A7PW | UN-NIC-BCM957412-F-B-10Gb-2P-F - 2-Port10GEoptical interface Network Adapter(BCM957412)(FIO) |
| 0231A8KB | UN-SFP-XG-SX-MM850-E1 - SFP+ 10GModule(850nm,300m,LC) |
| 0231AC0T | SFP-XG-LX-SM1310-CM - SFP+ 10GModule(1310nm,10km,LC)(FIO) |
| 0231A8K2 | UN-CNA-10GE-2P-560F-B2-1 - 2-Port10Goptical interface Network Adapter(SFP+)-560F-B2 |
| 0231AC0Y | SFP-GE-SX-MM850-CM - Optical module - SFP-GE-multimode optical module (850nm, 0.55km, LC) (FIO) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A8K9 | UN-NIC-10GE-2P-530F-B2-1 - 2-Port10Goptical interface Network Adapter(SFP+)-530F-B2 |
| 0231A9AU | UN-NIC-X710DA2-F-B-10Gb-2P-F2 - 2-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231AFH4 | 0231AFH4 - R4300 G5 Server |
| 0231AFRV | UN-NIC-ETH531F-LP-2P - 2-Port10GEoptical interface Network Adapter(CTO&BTO) |
| 0231ANJD | UN-NIC-ETH-RP1000P2SFP-LP-2P - 2-Port10GEoptical interface Network Adapter(RP1000P2SFP)(CTO&BTO) |
| 0231A7WC | UN-NIC-X710DA4-F-B-10Gb-4P-F - 4-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231A7PX | UN-NIC-BCM957416-T-B-10Gb-2P-F - 2-Port10GEelectrical interface Network Adapter(BCM957416)(FIO) |
| 0231A8K1 | UN-NIC-GE-4P-360T-B2-1 - 4-Port Gigabitelectrical interface Network Adapter-360T-B2 |
| 0231AB04 | 0231AB04 - R4300 G5 Server |
| 0231ANJJ | UN-NIC-ETH-SF400T-LP-4P-GE - 4-Port1GEelectrical interface Network Adapter(SF400T)(CTO&BTO) |
| 0231AFN8 | UN-IB-MCX653105A-HDAT-200Gb-1P - 200Gb 1-Port Infini Band HDR/Ethernet Adapter Card (Supports QSFP56 Optical Modules) (CTO&BTO) |
| 0231A7G6 | UN-NIC-MCX4121A-F-B-25Gb-2P-F - 2-Port25Gboptical interface Network Adapter(SFP28)(FIO) |
| 0231A7N6 | SFP-25G-SR-MM850-1 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231A7NH | UN-NIC-620F-B2-25Gb-2P-1 - 2-Port25Gboptical interface Network Adapter(SFP+)-620F-B2 |
| 0231A7Q2 | UN-NIC-BCM957414-F-B-25Gb-2P-F - 2-Port25GEoptical interface Network Adapter(BCM957414)(FIO) |
| 0231AB5W | UN-NIC-MCX512A-ACAT-F-2*25Gb-F - 2-Port25Gboptical interface Network Adapter(SFP28)(MCX512A-ACAT)(FIO) |
| 0231ACRC | 0231ACRC - 2-Port25Gboptical interface Network Adapter(SFP28)(MCX4121A-ACAT)(ODM-T)(CMCTO) |
| 0231ACTW | 0231ACTW - R4300 G5 Server |
| 0231AFGV | 0231AFGV - R4300 G5 Server |
| 0231AFH5 | UN-NIC-ETH630F-LP-2P - 2-Port25GEoptical interface Network Adapter (ETH630F)(CTO&BTO) |
| 0231AFUG | UN-NIC-ETH-MCX631102AN-ADAT - 2-port 25Gb SFP28 Optical Interface MCX631102AN-ADAT Ethernet card (CTO&BTO) |
| 0231AG88 | UN-NIC-ETH-E810XXVDA2G1P5-2P - 2-port 25Gb SFP28 Optical Interface E810XXVDA2G1P5 Ethernet card (CTO&BTO) |
| 0231ALXR | UN-NIC-ETH641F-LP-2P - 2-Port25GEoptical interface Network Adapter (ETH641F)(CTO&BTO) |
| OCPNetwork Adapter | |
| 0231AEBU | UN-NIC-ETH360T-3S-4P - 4-Port1GEelectrical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AEBV | UN-NIC-ETH565T-3S-2P - 2-Port10GEelectrical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AEBX | 0231AEBX - R4300 G5 Server |
| 0231AEBY | UN-NIC-ETH561F-3S-2P - 2-Port10GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AN1D | UN-NIC-ETH531F-3S-2P - 2-Port10GEoptical interfaceOCP3.0Network Adapter (ETH531F)(CTO&BTO) |
| 0231ABWF | UN-NIC-MCX4621A-ACAB-2*25G-M - 2-Port25G OCP3.0Network Adapter(MCX4621A-ACAB)(FIO) |
| 0231AEBW | UN-NIC-ETH640F-3S-2P - 2-Port25GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AEUL | 0231AEUL - R4300 G5 Server |
| 0231AG96 | UN-NIC-ETH-MCX631432AN-ADAB-2P - 2-Port25Gb SFP28optical interfaceMCX631432AN OCP3.0Network Adapter(CTO&BTO) |
| 0231AHVM | 0231AHVM - R4300 G5 Server |
| Fibre Channel controller | |
| 0231A7LN | UN-FC-HBA-LPe32002-32Gb-2P - 2-port 32Gb optical fiber channel HBA card (with two SFP+ optical modules) |
| 0231A7NF | UN-HBA-16Gb-LPe31002-2P-1 - 2-port 16Gb Fibre Channel HBA card (with two SFP+ modules) |
| 0231A7PV | UN-FC-HBA-QLE2742-32Gb-2P-F - 32Gb-2-port-PCIe Fibre Channel HBA card (with two SFP+ optical modules) (FIO) |
| 0231A7Q1 | UN-FC-HBA-QLE2740-32Gb-1P-F - 32Gb-1-port-PCIe optical fiber channel HBA card (with one SFP+ optical module) (FIO) |
| 0231A8JV | UN-FC-HBA-QLE2692-16Gb-2P-1 - 2-port 16Gb Fibre Channel HBA card (with two SFP+ modules) |
| 0231AM7K | UN-FC-HBA-LPe31000-LP-16G-1P - 1-port 16Gb Optical Interface LPe31000 FC HBA card (PCIe 3.0) (with one SFP+ optical module) (CTO&BTO) |
| 0231AM7L | UN-FC-HBA-LPe31002-LP-16G-2P - 2-port 16Gb Optical Interface LPe31002 FC HBA card (PCIe 3.0) (with two SFP+ optical modules) (CTO&BTO) |
| SSD Acceleration Card | |
| 0231AHWE | UN-SSD-3.2T-NVMe-PB6536-AIC - 3.2T NVMe SSD PB6 6536 SSD PCIe acceleration card module (CTO&BTO) |
| 0231AEY1 | UN-SSD-3.2T-NVME-PB926-AIC-M - 3.2T NVMe SSD MU PBlaze5 926 PCIe accelerator card (CMCTO) |
| 0231AN26 | UN-SSD-3.2T-NVMe-PB6537-AIC - 3.2TB NVMe SSD MU PB6 6537 SSD PCIe acceleration card module (CTO&BTO) |
| 0231AJ64 | UN-SSD-6.4T-NVMe-PB6536-AIC - 6.4T NVMe SSD PB6 6536 SSD PCIe acceleration card module (CTO&BTO) |
| 0231AN23 | UN-SSD-6.4T-NVMe-PB6537-AIC - 6.4TB NVMe SSD MU PB6 6537 SSD PCIe acceleration card module (CTO&BTO) |
| Optical Drive | |
| 0231A6R9 | 0231A6R9 - Mobile USB 2.0 interface read/write optical drive module (FIO) |
| Rack Rail | |
| 0231AEYD | UN-BB-4U-B - 4U Ball-Bearings Slides (CTO & BTO) |
| Cable Management Tray | |
| 2150A0FU | UN-R5300-CMA-M - 1U Cable Management Rack |
| Security Panel | |
| 0231AGHW | UN-SEC-Panel-R4300G5 - H3C Uni Server R4300 G5 intelligent security front panel (CTO&BTO) |
| Tag | |
| 0231AGWU | UN-Label-Shock&Tilt Monitor - Anti-tilt label and 37G anti-vibration label (CTO&BTO) |
| Is customization Required? | |
| CUSTNEED | CUSTNEED - R4300 G5 Server |
| Customized module | |
| 0231A8A6 | UN-CTM-G3-F - H3C customer-specific customization module (1H) (FIO) |
| Installing Services | |
| 8814A0KV | SV-PS-US-INST - H3C Server first-time basic installation service - for overseas business only |
| Operating System Compatibility Verification | |
| BATJOSXX | BATJOSXX - R4300 G5 Server |
| OSCHECKX | OSCHECKX - R4300 G5 Server |
| Distributed storage software | |
| ONESTOS5 | ONESTOS5 - R4300 G5 Server |
| Cloud and intelligent software | |
| CLDSTOR5 | CLDSTOR5 - R4300 G5 Server |
| Windows | |
| 2016R0HY | 2016R0HY - R4300 G5 Server |
| 2019R0HY | 2019R0HY - R4300 G5 Server |
| WNDS2016 | WNDS2016 - R4300 G5 Server |
| 2019R0XX | 2019R0XX - R4300 G5 Server |
| 2022R0XX | 2022R0XX - R4300 G5 Server |
| linux | |
| BGCLE221 | BGCLE221 - R4300 G5 Server |
| ORACLN79 | ORACLN79 - R4300 G5 Server |
| ORACLN82 | ORACLN82 - R4300 G5 Server |
| ORACLN83 | ORACLN83 - R4300 G5 Server |
| ORACLN84 | ORACLN84 - R4300 G5 Server |
| ORACLN89 | ORACLN89 - R4300 G5 Server |
| 79ENTHAT | 79ENTHAT - R4300 G5 Server |
| 82ENTHAT | 82ENTHAT - R4300 G5 Server |
| 83ENTHAT | 83ENTHAT - R4300 G5 Server |
| 84ENTHAT | 84ENTHAT - R4300 G5 Server |
| 85ENTHAT | 85ENTHAT - R4300 G5 Server |
| 86ENTHAT | 86ENTHAT - R4300 G5 Server |
| 87ENTHAT | 87ENTHAT - R4300 G5 Server |
| 88ENTHAT | 88ENTHAT - R4300 G5 Server |
| 89ENTHAT | 89ENTHAT - R4300 G5 Server |
| 90ENTHAT | 90ENTHAT - R4300 G5 Server |
| 91ENTHAT | 91ENTHAT - R4300 G5 Server |
| 92ENTHAT | 92ENTHAT - R4300 G5 Server |
| ROCKYL84 | ROCKYL84 - R4300 G5 Server |
| ROCKYL86 | ROCKYL86 - R4300 G5 Server |
| ROCKYL87 | ROCKYL87 - R4300 G5 Server |
| ROCKYL88 | ROCKYL88 - R4300 G5 Server |
| ROCKYL89 | ROCKYL89 - R4300 G5 Server |
| ROCKYL90 | ROCKYL90 - R4300 G5 Server |
| ROCKYL91 | ROCKYL91 - R4300 G5 Server |
| ROCKYL92 | ROCKYL92 - R4300 G5 Server |
| SLE12SP5 | SLE12SP5 - R4300 G5 Server |
| SLE15SP2 | SLE15SP2 - R4300 G5 Server |
| SLE15SP3 | SLE15SP3 - R4300 G5 Server |
| UB1845HK | UB1845HK - R4300 G5 Server |
| UBSE204X | UBSE204X - R4300 G5 Server |
| UBSE2041 | UBSE2041 - R4300 G5 Server |
| UBSE2042 | UBSE2042 - R4300 G5 Server |
| UBSE2044 | UBSE2044 - R4300 G5 Server |
| UBSE2245 | UBSE2245 - R4300 G5 Server |
| HyperVisors | |
| CASE0706 | CASE0706 - R4300 G5 Server |
| CTXS82XX | CTXS82XX - R4300 G5 Server |
| VMES67U3 | VMES67U3 - R4300 G5 Server |
| VMES70U2 | VMES70U2 - R4300 G5 Server |
| VMES70U3 | VMES70U3 - R4300 G5 Server |
| Community/Regional Enabled Oss | |
| CENTOS79 | CENTOS79 - R4300 G5 Server |
| CENTOS82 | CENTOS82 - R4300 G5 Server |
| CENTOS83 | CENTOS83 - R4300 G5 Server |
| CENTOS84 | CENTOS84 - R4300 G5 Server |
| CENTOS85 | CENTOS85 - R4300 G5 Server |
| Zhongbiao Kylin | |
| HNQL32XX | HNQL32XX - R4300 G5 Server |
| ZBQL10X1 | ZBQL10X1 - R4300 G5 Server |
| ZBQL10X2 | ZBQL10X2 - R4300 G5 Server |
| ZBQLGF76 | ZBQLGF76 - R4300 G5 Server |
| Zhongke Hongqi | |
| ZKHQAS79 | ZKHQAS79 - R4300 G5 Server |
| ZKHQA7U8 | ZKHQA7U8 - R4300 G5 Server |
| ZKHQAS80 | ZKHQAS80 - R4300 G5 Server |
| Other Operating Systems | |
| NINGV312 | NINGV312 - R4300 G5 Server |
| OTHERSOS | OTHERSOS - R4300 G5 Server |
| Product Identity | |
| Brand | H3C |
| Series | H3C R4300 G5 rack server |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the GPU Supports specification for UN-R4300-G5-C?
UN-R4300-G5-C lists GPU Supports as Supports up to 2 double-width or 8 single-width GPU cards*. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Chipset specification for UN-R4300-G5-C?
UN-R4300-G5-C lists Chipset as Intel® C621A. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the FBWC specification for UN-R4300-G5-C?
UN-R4300-G5-C lists FBWC as Supports up to 8 GB of cache*. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Optical Drive specification for UN-R4300-G5-C?
UN-R4300-G5-C lists Optical Drive as Supports external USB optical drives. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
