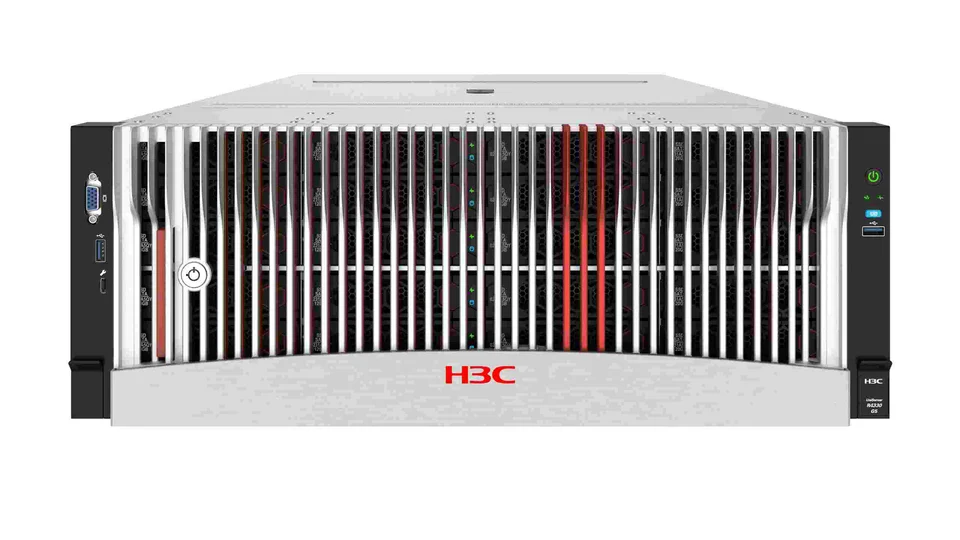

H3C UN-R4330-G5-H3-C Uni Server R4330 G5 H3Chassis
Brand H3C
N/AVerified
H3C UN-R4330-G5-H3-C
Model (MPN)
0235A4GF
Condition
Factory Sealed
Out of Stock
H3C UN-R4330-G5-H3-C Uni Server R4330 G5 H3Chassis. Interface: Front VGA, rear VGA and five USB 3.0 ports, one USB front 2.0 port. Processor: Supports up to 2 Hi Silicon third-generation/second-generation series high-performance processors, with each processor supporting up to 32 cores. Memory: Supports up to 32 DDR4 memory slots, with a speed up to 2666MT/s; supports RDIMM or LRDIMM; maximum capacity 4TB
Key Specifications
DescriptionH3C Uni Server R4330 G5 H3Chassis
InterfaceFront VGA, rear VGA and five USB 3.0 ports, one USB front 2.0 port
Power Supply and CoolingOptional Platinum-level redundant power supplies: 800W/850W/1200W/1600W/2000W; supports 4 hot-swappable redundant fans
operating temperatureUnder allowed configuration conditions, supports 5~40ºC (operating temperature support is affected by different configurations; for details, refer to the detailed product technical documentation)
ProcessorSupports up to 2 Hi Silicon third-generation/second-generation series high-performance processors, with each processor supporting up to 32 cores
MemorySupports up to 32 DDR4 memory slots, with a speed up to 2666MT/s; supports RDIMM or LRDIMM; maximum capacity 4TB
Your Price
Best Value
$185.70
List Price: $1,857.00Save 90%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C Uni Server R4330 G5 H3Chassis |
| Key Specifications | |
| Interface | Front VGA, rear VGA and five USB 3.0 ports, one USB front 2.0 port |
| Power Supply and Cooling | Optional Platinum-level redundant power supplies: 800W/850W/1200W/1600W/2000W; supports 4 hot-swappable redundant fans |
| operating temperature | Under allowed configuration conditions, supports 5~40ºC (operating temperature support is affected by different configurations; for details, refer to the detailed product technical documentation) |
| Processor | Supports up to 2 Hi Silicon third-generation/second-generation series high-performance processors, with each processor supporting up to 32 cores |
| Memory | Supports up to 32 DDR4 memory slots, with a speed up to 2666MT/s; supports RDIMM or LRDIMM; maximum capacity 4TB |
| Storage Controller | RAID controller, supports RAID 0/1/5/6/10/50/60 |
| Product Specifications | |
| Processor | Supports up to 2 Hi Silicon third-generation/second-generation series high-performance processors, with each processor supporting up to 32 cores |
| Memory | Supports up to 32 DDR4 memory slots, with a speed up to 2666MT/s; supports RDIMM or LRDIMM; maximum capacity 4TB |
| Storage Controller | RAID controller, supports RAID 0/1/5/6/10/50/60 |
| FBWC | Supports up to 2GB |
| Storage | Front: up to 24 LFF; Rear: 12 LFF + Rear: 4 SFF + Rear: 2 LFF |
| Network | Built-in 1x 1Gbps management Ethernet port supports 1 OCP 3.0 card (Optional: Gigabit, 10GbE, or 25G NIC). Optional: Gigabit, 10GbE, 25G NIC, 40G NIC |
| extended slot | Maximum expandable to 10 PCIe 4.0 usable slots* |
| Interface | Front VGA, rear VGA and five USB 3.0 ports, one USB front 2.0 port |
| Management | HDM agentless management tool (with a dedicated management port) and the H3C FIST management software |
| Power Supply and Cooling | Optional Platinum-level redundant power supplies: 800W/850W/1200W/1600W/2000W; supports 4 hot-swappable redundant fans |
| Authentication | Supports CCC, CECP, SEPAetc.Authentication |
| operating temperature | Under allowed configuration conditions, supports 5~40ºC (operating temperature support is affected by different configurations; for details, refer to the detailed product technical documentation) |
| Form factor/chassis depth | 814mm×447mm×178mm (excluding the safety panel) |
| Warranty | 3-year 5x9 support, next business day response (NBD) |
| Ordering Information | |
| Use Cases | |
| PZCQYDZY | PZCQYDZY - R4330 G5 H3 Server |
| Processor | |
| 0231AJGY | 0231AJGY - Hygon C86-3G 5380 (2.5GHz/16 cores/32MB/135W) CPU module (CTO&BTO) |
| 0231AJH9 | 0231AJH9 - Hygon C86-3G 7360 (2.2GHz/24 cores/64MB/180W) CPU module (CTO&BTO) |
| 0231AJHD | 0231AJHD - Hygon C86-3G 7380 (2.2GHz/32 cores/64MB/220W) CPU module (CTO&BTO) |
| 0231AJHE | 0231AJHE - R4330 G5 H3 Server |
| 0231AJLE | 0231AJLE - R4330 G5 H3 Server |
| 0231AJLH | 0231AJLH - R4330 G5 H3 Server |
| 0231AK8W | UN-CPU-HG-5390-2Ub-G5 - HYGON dedicated CPU module Haiguang C86-3G 5390 (2.9GHz/16 cores/32MB/185W) (CTO&BTO) |
| 0231AKD7 | 0231AKD7 - R4330 G5 H3 Server |
| 0231AKKX | 0231AKKX - Hygon C86-3G 7375 (2.0GHz/32 cores/64MB/208W) CPU module (CTO&BTO) |
| 0231ANJS | 0231ANJS - R4330 G5 H3 Server |
| 0231ANND | 0231ANND - Hygon C86-3G 7390 D0 (2.7GHz/32 cores/64MB/225W) CPU module (CTO&BTO) |
| 0231APVG | 0231APVG - Hygon C86-3G 7390-V2 (2.7GHz/32 cores/64MB/260W) CPU module (CTO&BTO) |
| Memory | |
| 0231AF6R | 0231AF6R - 16GB 2Rx8 DDR4-3200 CAS-22-22-22 RDIMMMemory Module(CTO&BTO) |
| 0231AFXJ | 0231AFXJ - 16GB 1Rx8 DDR4-3200 CAS-22-22-22 RDIMM UniICMemory Module(CTO&BTO) |
| 0231AFXK | UN-DDR4-3200AA-64G-2Rx4-R-U - 64GB 2Rx4 DDR4-3200 CAS-22-22-22 RDIMM UniICMemory Module(CTO&BTO) |
| 0231AFXU | UN-DDR4-3200AA-32G-2Rx8-R-U - 32GB 2Rx8 DDR4-3200 CAS-22-22-22 RDIMM UniICMemory Module(CTO&BTO) |
| 0231AJWG | 0231AJWG - 32GB 2Rx4 DDR4-3200 CXMT RDIMMMemory Module(for SA)(CTO&BTO) |
| 0231AM1W | 0231AM1W - 16GB 2Rx8 DDR4-3200AA(CAS-22-22-22)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AM25 | UN-DDR4-3200AA-32G-2Rx4-R-2 - 32GB 2Rx4 DDR4-3200AA(CAS-22-22-22)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AM6A | UN-DDR4-3200AA-64G-2Rx4-R-ns - 64GB 2Rx4 DDR4-3200 CAS-22-22-22 RDIMM HYGON dedicated memory module (CTO&BTO) |
| 0231AQMX | 0231AQMX - 64GB 2Rx4 DDR4-3200AA(CAS-22-22-22)CXMT M-Die RDIMMMemory Module(CXMQ4A464R7MJN)(for SA)(CTO&BTO) |
| 0231AQN0 | UN-DDR4-3200-32G-2Rx8-R-C - 32GB 2Rx8 DDR4-3200AA(CAS-22-22-22) M-Die CXMT RDIMMMemory Module(CXMQ4A832R7MJN)(for SA)(CTO&BTO) |
| Front Hard Drive Cage | |
| 0231AJET | 0231AJET - R4330 G5 H3 Server |
| 0231AJER | 0231AJER - R4330 G5 H3 Server |
| 0231AJEQ | UN-BP-24LFF-P36-HG-G5 - G5 24LFF hard disk expansion module HG (CTO&BTO) |
| 0231AJCY | UN-BP-24LFF-P68-G5 - G5 24LFF disk expansion module (CTO&BTO) |
| Rear Hard Drive Cage | |
| 0231AF5R | UN-HDDCage-2LFF-2U-G5 - G5 2U rear 2LFF disk cage module (CTO&BTO) |
| 0231AF55 | UN-HDDCage-2SFF-2UniBay-2U-G5 - G5 2U rear 2Uni Bay disk cage module (CTO&BTO) |
| 0231AF5C | UN-HDDCage-4SFF-4UniBay-2U-G5 - G5 2U rear 4x Uni Bay drive cage module (CTO & BTO) |
| 0231AGHX | UN-PCA-BP-12LFF-R4300G5 - H3C Uni Server R4300 G5 12LFF disk expansion module (CTO&BTO) |
| M.2 SSD | |
| 0231AK1R | 0231AK1R - 480GB 6G SATA RI 5400PRO M.2 SSDHard Drive Module(CTO&BTO) |
| 0231AES6 | 0231AES6 - R4330 G5 H3 Server |
| 0231AHCQ | UN-SSD-480G-SATA-S4520-M.2 - 480GB SATA RI S4520 M.2 SSDHard Drive Module(CTO&BTO) |
| M.2 Adapter Card | |
| 0231AKB0 | UN-RAID-MARVELL-M.2 - MARVELL SATA M.2 RAID card (supports 2 M.2 SATA Ports, supports M.2 hot-swap, PCIe) (CTO&BTO) |
| 0231AF5Q | UN-RC-2M2-G5 - G5 front 2*M.2 2280/22110 Riser module(CTO&BTO) |
| PCIe Adapter Card | |
| 0231AF5A | UN-RC-3FHFL-2U-G5 - G5 2U X16X8X8 Riser (slot 1/2) (supports 2 FHFL and 1 FHHL, supports 1 300W GPU) (CTO&BTO) |
| 0231AF5L | UN-RC-2HHHL-R3-2U-G5 - G5 2U X8X8 Riser(Slot3)(Supports 2 x HHHL)(CTO&BTO) |
| 0231AFUD | UN-RC-2LP-SlimSAS-2U - SlimSAS LP adapter card (slot 3) (supports 2 x X8 HHHL) (CTO&BTO) |
| 0231AGHB | UN-RC-3FHFL-PCIE3-2U-G5 - G5 2U X8X16X8 PCIE3 Riser(Slot1/2)Module(CTO&BTO) |
| Hard Disk Array Controller Card (Requires a PCIe Adapter Card) | |
| 0231A7HB | UN-RAID-LSI-9460-16i(4G)-F - LSI 9460-16i 12G SAS RAID card module (supports 16 SAS Ports, with 4GB cache, PCIe, excludes supercapacitors) (CMCTO) |
| 0231A8AY | UN-RAID-LSI-9460-8i(4G)-F - LSI 9460-8i 12G SAS RAID controller module (supports 8 x SAS Ports, includes 4GB cache, PCIe, excluding supercapacitor) (CMCTO) |
| 0231A8B0 | UN-HBA-LSI-9440-8i-F - LSI 9440-8i 12G SAS HBA card module (supports 8 x SAS Ports, PCIe) (CMCTO) |
| 0231A8B5 | UN-RAID-LSI-9460-8i(2G)-F - LSI 9460-8i 12G SAS RAID card module (supports 8 SAS Ports, with 2GB cache, PCIe, without supercapacitor) (CMCTO) |
| 0231A8JY | 0231A8JY - LSI 9361-8i 12G SAS RAID card module (supports 8 x SAS Ports, with 1GB cache, PCIe, excluding power-loss protection module) (CMCTO) |
| 0231A8K4 | 0231A8K4 - LSI 9361-8i 12G SAS RAID card module (supports 8 x SAS Ports, with 2GB cache, PCIe, excluding power-loss protection module) (CMCTO) |
| 0231A8ND | UN-HBA-H460-B1-F - H460-B1 12G SAS HBA card module (supports 8 SAS ports, PCIe) (CMCTO) |
| 0231A8P1 | UN-RAID-P460-B4-F - P460-B4 12G SAS RAID card module (supports 8 SAS Ports, with 4GB cache, excluding supercapacitor) (CMCTO) |
| 0231AAUF | 0231AAUF - P460-B2 12G SAS RAID card module (supports 8 SAS ports, with 2GB cache, excluding supercapacitor) (CMCTO) |
| 0231AE6E | UN-HBA-LSI-9400-16i-M - LSI 9400-16i 12G SAS HBA card module (supports 16 SAS Ports, PCIe) (CMCTO) |
| 0231AEVL | UN-RAID-LSI-9560-LP-16i-8GB-M - LSI 9560-16i 12G SAS RAID card module (supports 16x SAS Ports, with 8GB cache, PCIe, excludes supercapacitor) (CMCTO) |
| 0231AG62 | UN-RAID-LSI-9560-LP-8i-4GB - LSI 9560-8i 12G SAS RAID card module (supports 8 SAS Ports, with 4GB cache, PCIe, without supercapacitor) (CTO&BTO) |
| 0231AJ69 | UN-HBA-LSI-9540-LP-8i - LSI 9540-8i 12G SAS HBA card module (supports 8 SAS Ports, PCIe) (CTO&BTO) |
| 0231AJ6E | UN-HBA-LSI-9500-LP-8i - LSI 9500-8i 12G SAS HBA card module (supports 8x SAS Ports, PCIe) (CTO&BTO) |
| Battery | |
| 0231AEYS | UN-BAT-LSI-G2-A - LSI G2 supercapacitor module (CTO&BTO) |
| 0231AEYR | UN-BAT-LSI-G3-A - LSI G3 supercapacitor module (CTO&BTO) |
| 0231AFA4 | UN-BAT-PMC-G3-2U - PMC G3 Supercapacitor Module (for 2U Standard Chassis) (CTO & BTO) |
| OCP3.0 Network Adapter | |
| 0231AEBU | UN-NIC-ETH360T-3S-4P - 4-Port1GEelectrical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AEBV | UN-NIC-ETH565T-3S-2P - 2-Port10GEelectrical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AEBW | UN-NIC-ETH640F-3S-2P - 2-Port25GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| Optical Module | |
| 0231A8KB | UN-SFP-XG-SX-MM850-E1 - SFP+ 10GModule(850nm,300m,LC) |
| 0231A7N6 | SFP-25G-SR-MM850-1 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231AEBY | UN-NIC-ETH561F-3S-2P - 2-Port10GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AC0T | SFP-XG-LX-SM1310-CM - SFP+ 10GModule(1310nm,10km,LC)(FIO) |
| Network Card (Requires PCIe Adapter Card) | |
| 0231A7G6 | UN-NIC-MCX4121A-F-B-25Gb-2P-F - 2-Port25Gboptical interface Network Adapter(SFP28)(FIO) |
| 0231A7NA | UN-CNA-560T-B2-10Gb-2P-1 - 2-Port10Gbelectrical interface Network Adapter-560T-B2 |
| 0231A7NH | UN-NIC-620F-B2-25Gb-2P-1 - 2-Port25Gboptical interface Network Adapter(SFP+)-620F-B2 |
| 0231A7PW | UN-NIC-BCM957412-F-B-10Gb-2P-F - 2-Port10GEoptical interface Network Adapter(BCM957412)(FIO) |
| 0231A7Q2 | UN-NIC-BCM957414-F-B-25Gb-2P-F - 2-Port25GEoptical interface Network Adapter(BCM957414)(FIO) |
| 0231A7WC | UN-NIC-X710DA4-F-B-10Gb-4P-F - 4-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231A8K1 | UN-NIC-GE-4P-360T-B2-1 - 4-Port Gigabitelectrical interface Network Adapter-360T-B2 |
| 0231A8K2 | UN-CNA-10GE-2P-560F-B2-1 - 2-Port10Goptical interface Network Adapter(SFP+)-560F-B2 |
| 0231AC0Y | SFP-GE-SX-MM850-CM - Optical module - SFP-GE-multimode optical module (850nm, 0.55km, LC) (FIO) |
| 0231A8K9 | UN-NIC-10GE-2P-530F-B2-1 - 2-Port10Goptical interface Network Adapter(SFP+)-530F-B2 |
| 0231A9AU | UN-NIC-X710DA2-F-B-10Gb-2P-F2 - 2-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231AABV | 0231AABV - R4330 G5 H3 Server |
| 0231AB5W | UN-NIC-MCX512A-ACAT-F-2*25Gb-F - 2-Port25Gboptical interface Network Adapter(SFP28)(MCX512A-ACAT)(FIO) |
| 0231ADWS | 0231ADWS - 2-Port100GEoptical interface Network Adapter(QSFP28)(CTO&BTO) |
| 0231AC16 | QSFP-100G-SR4-MM850-CM - 100G QSFP28 optical module (850nm, 100m OM4, SR4, MPO) (FIO) |
| 0231AEC7 | 0231AEC7 - 1-port 100Gb QSFP28 Optical Interface MCX515A-CCAT Ethernet NIC (CMCTO) |
| 0231AEC8 | UN-NIC-ETH-MCX516A-CCAT-2P-M - 100Gb 2-Port QSFP28 Optical Interface MCX516A-CCAT Ethernet Card (CMCTO) |
| 0231AF8A | UN-NIC-X2522-25Gb-2P-M - 2-port 25Gb SFP28 Optical Interface X2522-25G-PLUS low-latency network card (CTO&BTO) |
| 0231AFH4 | 0231AFH4 - R4330 G5 H3 Server |
| 0231AFH5 | UN-NIC-ETH630F-LP-2P - 2-Port25GEoptical interface Network Adapter (ETH630F)(CTO&BTO) |
| 0231AFR5 | 0231AFR5 - 1-port 100G QSFP28 Optical Interface MCX515A-CCUT Ethernet card (CTO&BTO) |
| 0231AFRV | UN-NIC-ETH531F-LP-2P - 2-Port10GEoptical interface Network Adapter(CTO&BTO) |
| 0231AFUG | UN-NIC-ETH-MCX631102AN-ADAT - 2-port 25Gb SFP28 Optical Interface MCX631102AN-ADAT Ethernet card (CTO&BTO) |
| 0231AFUS | UN-IB-MCX653106A-ECAT-100Gb-2P - 100Gb 2-Port Infiniband HDR/Ethernet Adapter Card (Supports QSFP56 Optical Modules) (CTO&BTO) |
| 0231AFUP | UN-CAB-IB-DAC-MCP7H50-V002R26-2m - Mellanox 2m HDR100 100G DAC breakout cable (CTO&BTO) |
| 0231AG88 | UN-NIC-ETH-E810XXVDA2G1P5-2P - 2-port 25Gb SFP28 Optical Interface E810XXVDA2G1P5 Ethernet card (CTO&BTO) |
| 0231AGJA | UN-NIC-ETH-MCX623106AN-CDAT-2P - 2-Port100Gb QSFP56optical interfaceMCX623106AN-CDATNetwork Adapter(CTO&BTO) |
| 0231ANJD | UN-NIC-ETH-RP1000P2SFP-LP-2P - 2-Port10GEoptical interface Network Adapter(RP1000P2SFP)(CTO&BTO) |
| 0231ANJJ | UN-NIC-ETH-SF400T-LP-4P-GE - 4-Port1GEelectrical interface Network Adapter(SF400T)(CTO&BTO) |
| SSD Acceleration Card (Requires a PCIe Adapter Card) | |
| 0231AHWE | UN-SSD-3.2T-NVMe-PB6536-AIC - 3.2T NVMe SSD PB6 6536 SSD PCIe acceleration card module (CTO&BTO) |
| 0231AN26 | UN-SSD-3.2T-NVMe-PB6537-AIC - 3.2TB NVMe SSD MU PB6 6537 SSD PCIe acceleration card module (CTO&BTO) |
| 0231AJ64 | UN-SSD-6.4T-NVMe-PB6536-AIC - 6.4T NVMe SSD PB6 6536 SSD PCIe acceleration card module (CTO&BTO) |
| 0231AN23 | UN-SSD-6.4T-NVMe-PB6537-AIC - 6.4TB NVMe SSD MU PB6 6537 SSD PCIe acceleration card module (CTO&BTO) |
| Fiber Channel HBA card (requires PCIe adapter card) | |
| 0231A7LG | UN-FC-HBA-LPe32000-32Gb-1P - 1-port 32Gb Fibre Channel HBA card (with one SFP+ optical module) |
| 0231A7LN | UN-FC-HBA-LPe32002-32Gb-2P - 2-port 32Gb optical fiber channel HBA card (with two SFP+ optical modules) |
| 0231A7NB | UN-HBA-16Gb-LPe31000-1P-1 - 1-port 16Gb Fibre Channel HBA card (with one SFP+ module) |
| 0231A7PV | UN-FC-HBA-QLE2742-32Gb-2P-F - 32Gb-2-port-PCIe Fibre Channel HBA card (with two SFP+ optical modules) (FIO) |
| 0231A8JV | UN-FC-HBA-QLE2692-16Gb-2P-1 - 2-port 16Gb Fibre Channel HBA card (with two SFP+ modules) |
| 0231AGHH | UN-FC-HBA-LPe35000-LP-32Gb-1P - 1-port 32Gb Optical Interface LPe35000 AIC FC HBA card (PCIe 4.0) (comes with one SFP+ optical module) (CTO&BTO) |
| 0231AGHJ | UN-FC-HBA-LPe35002-LP-32Gb-2P - 2-port 32Gb Optical Interface LPe35002 AIC FC HBA card (PCIe 4.0) (comes with two SFP+ optical modules) (CTO&BTO) |
| 0231AMKF | UN-FC-HBA-QLe2770-LP-32G-1P - 1-port 32Gb PCIe4.0 X8 SFP+ Optical Interface QLe2770 LP FC HBA card (with one SFP+ optical module) (CTO&BTO) |
| 0231AMKP | UN-FC-HBA-QLe2772-LP-32G-2P - 2-port 32Gb PCIe4.0 X8 SFP+ Optical Interface QLe2772 LP FC HBA card (with two SFP+ optical modules) (CTO&BTO) |
| SD card | |
| 0231A6RC | UN-SD-32G-Micro-F - 32G microSD mainstream flash drive module (FIO) |
| SD card expansion module | |
| 0231A8L1 | UN-DSD-EX-F1 - Dual SD card expansion module (CTO & BTO) |
| Power Supply | |
| 0231A8KP | 0231A8KP - R4330 G5 H3 Server |
| 0231AGUP | UN-GW-CRPS1300D3 - 1300W AC&240V HVDC power Module (GW-R1-Platinum-low load high efficiency) (CTO&BTO) |
| 0231AKDP | UN-PAC1K3D12-B2 - 1300W AC & 240V HVDC power Supply Module (HW-R1- Platinum) (CTO&BTO) |
| 0231ACTG | FSP1600-20FH-M - 1600W 336V HVDC power Supply Module (dedicated power cable) (FP-R1- Platinum) (CMCTO) |
| 0231AHRV | UN-DD-2162-3L5 - 1600W 48V DC power Supply Module (LT-R1- Platinum) (CTO&BTO) |
| 0231AGUN | UN-GW-CRPS1600D2 - 1600W AC & 240V HVDC power Supply Module (GW-R1- Platinum) (CTO&BTO) |
| 0231A7KH | 0231A7KH - 1600W AC & 240V HVDC power Supply Module (FP-R1-Platinum) (CMCTO) |
| 0231AFSS | UN-GW-CRPS2000D - 2000W AC & 240V HVDC power Supply Module (GW-R2- Platinum - light-load high efficiency) (CTO&BTO) |
| 0231AHNS | UN-PAC800D12-B2 - 800W AC & 240V HVDC power supply (HW-R1-Platinum-Light-load efficiency) (CTO & BTO) |
| 0231A8L0 | 0231A8L0 - R4330 G5 H3 Server |
| 0231A6UG | PSR800-12AHD-FIO - 800W 336V HVDC power Supply Module (dedicated power cable) (FP-R1, Platinum) (CMCTO) |
| 0231A9CF | DPS-800W-12A-48V-F - 800W (-48V)-(-60V) DC power Supply Module (DT-R1, Gold) (CMCTO) |
| Fan | |
| 0231AGYV | UN-FAN-L-4UG5-M - G5 4U standard fan module (CTO & BTO) |
| 0231AGYW | UN-FAN-H-4UG5-M - H3C Uni Server G5 high-performance fan module (CTO&BTO) |
| Optical Drive | |
| 0231AFUB | 0231AFUB - R4330 G5 H3 Server |
| Security Hardware | |
| 0231A8K8 | 0231A8K8 - R4330 G5 H3 Server |
| 0231A8KD | UN-TCM-1 - Server series trusted platform module (TCM) |
| Rack Rail | |
| 0231AEYD | UN-BB-4U-B - 4U Ball-Bearings Slides (CTO & BTO) |
| 2150A0JT | SL-4U-BB-S - 4U-S Ball-Bearings Slides |
| Cable Management Tray | |
| 0231AB0E | UN-CMA-4U - H3C Uni Server R4300 G3 4U cable management rack (FIO) |
| Tag | |
| 0231AGWU | UN-Label-Shock&Tilt Monitor - Anti-tilt label and 37G anti-vibration label (CTO&BTO) |
| Is customization Required? | |
| CUSTNEED | CUSTNEED - R4330 G5 H3 Server |
| Customized module | |
| 0231A8A6 | UN-CTM-G3-F - H3C customer-specific customization module (1H) (FIO) |
| Installing Services | |
| 8814A0CP | SV-PS-UN - H3C server first basic installation service |
| 8814A0VA | SV-PS-OEM-SERV-ISS - OEM server initial basic installation service |
| Operating System Compatibility Verification | |
| BATJOSXX | BATJOSXX - R4330 G5 H3 Server |
| OSCHECKX | OSCHECKX - R4330 G5 H3 Server |
| Windows | |
| 2019R0XX | 2019R0XX - R4330 G5 H3 Server |
| linux | |
| ANOS86Q1 | ANOS86Q1 - R4330 G5 H3 Server |
| ALIN88K5 | ALIN88K5 - R4330 G5 H3 Server |
| ALIN89K5 | ALIN89K5 - R4330 G5 H3 Server |
| H3LX202S | H3LX202S - R4330 G5 H3 Server |
| H3LXV202 | H3LXV202 - R4330 G5 H3 Server |
| ROCKYL90 | ROCKYL90 - R4330 G5 H3 Server |
| ROCKYL93 | ROCKYL93 - R4330 G5 H3 Server |
| SLE12SP5 | SLE12SP5 - R4330 G5 H3 Server |
| SLE15SP2 | SLE15SP2 - R4330 G5 H3 Server |
| UOS2050D | UOS2050D - R4330 G5 H3 Server |
| UOS2050E | UOS2050E - R4330 G5 H3 Server |
| UOSSVV20 | UOSSVV20 - R4330 G5 H3 Server |
| UOS2020E | UOS2020E - R4330 G5 H3 Server |
| UOS2040D | UOS2040D - R4330 G5 H3 Server |
| UBSE204X | UBSE204X - R4330 G5 H3 Server |
| UBSE224X | UBSE224X - R4330 G5 H3 Server |
| O2003LTS | O2003LTS - R4330 G5 H3 Server |
| O203LTS3 | O203LTS3 - R4330 G5 H3 Server |
| O2003SP4 | O2003SP4 - R4330 G5 H3 Server |
| O2203LTS | O2203LTS - R4330 G5 H3 Server |
| O223LTS1 | O223LTS1 - R4330 G5 H3 Server |
| O223LTS3 | O223LTS3 - R4330 G5 H3 Server |
| UOS206AK | UOS206AK - R4330 G5 H3 Server |
| UOS207AK | UOS207AK - R4330 G5 H3 Server |
| UOS2070K | UOS2070K - R4330 G5 H3 Server |
| HyperVisors | |
| CASE0706 | CASE0706 - R4330 G5 H3 Server |
| CASE0760 | CASE0760 - R4330 G5 H3 Server |
| CASE0780 | CASE0780 - R4330 G5 H3 Server |
| Community/Regional Enabled Oss | |
| CENTOS76 | CENTOS76 - R4330 G5 H3 Server |
| CENTOS78 | CENTOS78 - R4330 G5 H3 Server |
| CENTOS79 | CENTOS79 - R4330 G5 H3 Server |
| CENTOS82 | CENTOS82 - R4330 G5 H3 Server |
| CENTOS83 | CENTOS83 - R4330 G5 H3 Server |
| Zhongbiao Kylin | |
| HNQL336B | HNQL336B - R4330 G5 H3 Server |
| NSAQ6060 | NSAQ6060 - R4330 G5 H3 Server |
| NSPS6080 | NSPS6080 - R4330 G5 H3 Server |
| ZBQLGF10 | ZBQLGF10 - R4330 G5 H3 Server |
| ZBQL10X1 | ZBQL10X1 - R4330 G5 H3 Server |
| ZBQL10X2 | ZBQL10X2 - R4330 G5 H3 Server |
| ZBQLGF76 | ZBQLGF76 - R4330 G5 H3 Server |
| NSAQ6010 | NSAQ6010 - R4330 G5 H3 Server |
| ZBQL10X3 | ZBQL10X3 - R4330 G5 H3 Server |
| ZBQL1023 | ZBQL1023 - R4330 G5 H3 Server |
| ZBQL10S3 | ZBQL10S3 - R4330 G5 H3 Server |
| Other Operating Systems | |
| NINGV312 | NINGV312 - R4330 G5 H3 Server |
| OTHERSOS | OTHERSOS - R4330 G5 H3 Server |
| Product Identity | |
| Brand | H3C |
| Series | H3C R4330 G5 H3 rack server (Hi Silicon) |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the Authentication specification for UN-R4330-G5-H3-C?
UN-R4330-G5-H3-C lists Authentication as Supports CCC, CECP, SEPAetc. Authentication. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Warranty specification for UN-R4330-G5-H3-C?
UN-R4330-G5-H3-C lists Warranty as 3-year 5x9 support, next business day response (NBD). Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Model specification for UN-R4330-G5-H3-C?
UN-R4330-G5-H3-C lists Model as UN-R4330-G5-H3-C. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Product Code specification for UN-R4330-G5-H3-C?
UN-R4330-G5-H3-C lists Product Code as 0235A4GF. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
