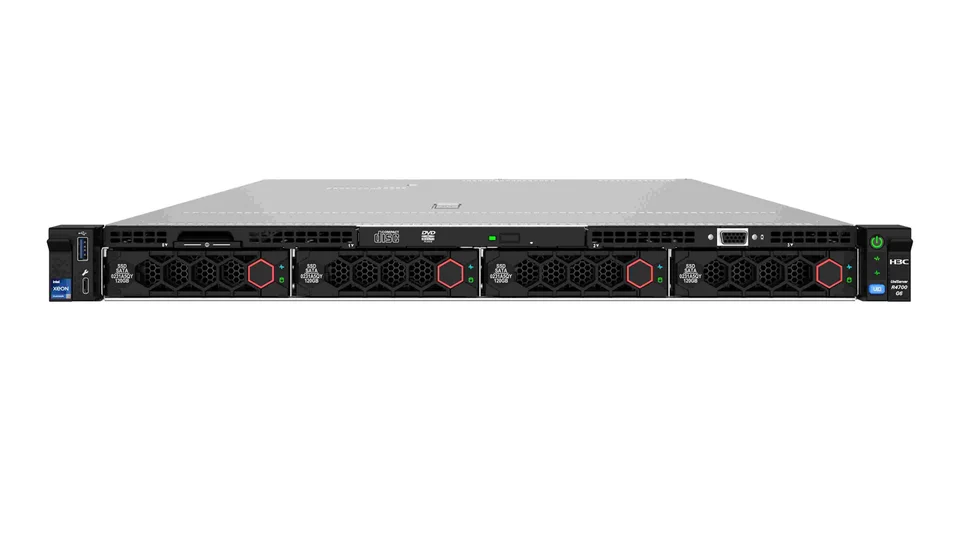

H3C UN-R4700-G6-LFF-C Uni Server R4700 G6 LFF Air-cooled CTO server
Brand H3C
N/AVerified
H3C UN-R4700-G6-LFF-C
Model (MPN)
0235A4FW
Condition
Factory Sealed
Out of Stock
H3C UN-R4700-G6-LFF-C Uni Server R4700 G6 LFF Air-cooled CTO server. Interface: Standard: 1× front VGA (except E1.S models), 1× rear VGA, 4× USB ports, and 1× front Type-C dedicated management interface; Optional 1× management serial liquid-cooling interface: UQD04 male at the rear window of the chassis or tube + UQD04 female connector. Processor: Supports 2× Intel Xeon Scalable 4th Gen Sapphire Rapids CPUs or 5th Ge
Key Specifications
DescriptionH3C Uni Server R4700 G6 LFF Air-cooled CTO server
operating temperatureAir-cooled model: 5°C～45°C; Liquid-cooled model: 5°C～50°C (operating temperature supported is affected by different configurations; refer to the detailed product technical documentation for details)
ProcessorSupports 2× Intel Xeon Scalable 4th Gen Sapphire Rapids CPUs or 5th Gen Emerald Rapids CPUs, up to 64 cores per processor, maximum power 385W; supports HBM technology for H3C (Luanqi) Jintuo processors
ChipsetIntel® C741
MemorySupports up to 32 DDR5 memory slots, speeds up to 5600MT/s, supports RDIMM; maximum capacity 8TB for dual-processor configurations
Storage ControllerStandard onboard array controller; supports SATA RAID 0/1/10/5; Optional HBA cards and array cards based on dedicated slots or standard PCIe slots
Your Price
Best Value
$171.40
List Price: $1,714.00Save 90%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C Uni Server R4700 G6 LFF Air-cooled CTO server |
| Key Specifications | |
| operating temperature | Air-cooled model: 5°C～45°C; Liquid-cooled model: 5°C～50°C (operating temperature supported is affected by different configurations; refer to the detailed product technical documentation for details) |
| Processor | Supports 2× Intel Xeon Scalable 4th Gen Sapphire Rapids CPUs or 5th Gen Emerald Rapids CPUs, up to 64 cores per processor, maximum power 385W; supports HBM technology for H3C (Luanqi) Jintuo processors |
| Chipset | Intel® C741 |
| Memory | Supports up to 32 DDR5 memory slots, speeds up to 5600MT/s, supports RDIMM; maximum capacity 8TB for dual-processor configurations |
| Storage Controller | Standard onboard array controller; supports SATA RAID 0/1/10/5; Optional HBA cards and array cards based on dedicated slots or standard PCIe slots |
| FBWC | Optional support for up to 8GB cache; supports supercapacitor protection |
| Product Specifications | |
| Processor | Supports 2× Intel Xeon Scalable 4th Gen Sapphire Rapids CPUs or 5th Gen Emerald Rapids CPUs, up to 64 cores per processor, maximum power 385W; supports HBM technology for H3C (Luanqi) Jintuo processors |
| Chipset | Intel® C741 |
| Memory | Supports up to 32 DDR5 memory slots, speeds up to 5600MT/s, supports RDIMM; maximum capacity 8TB for dual-processor configurations |
| Storage Controller | Standard onboard array controller; supports SATA RAID 0/1/10/5; Optional HBA cards and array cards based on dedicated slots or standard PCIe slots |
| FBWC | Optional support for up to 8GB cache; supports supercapacitor protection |
| Storage | Supports up to 12× 2.5-inch hard drives (10 front + 2 rear expansion); supports up to 4× 3.5-inch hard drives (4 front); supports SAS/SATA HDD/SSD; supports up to 12× NVMe U.2 drive slots; supports up to 32× E1.S slots 1; Optional SATA/NVMe M.2 option; DSD module |
| Network | Onboard 1× 1Gbps dedicated management Ethernet port; up to 2× OCP 3.0 network card slots; Optional expansion of 4× 1GE copper ports or 2× 10GE copper ports/optical ports or 2× 25GE optical ports or 2×100GE optical ports; Optional network adapters based on standard PCIe slots; supports 1/10/25/100GE network cards, Infini Band cards, smart network cards |
| Expansion Slots | Supports up to 6× PCIe 4.0 slots; supports CXL 1.1 |
| Interface | Standard: 1× front VGA (except E1.S models), 1× rear VGA, 4× USB ports, and 1× front Type-C dedicated management interface; Optional 1× management serial liquid-cooling interface: UQD04 male at the rear window of the chassis or tube + UQD04 female connector |
| GPU Support | Supports up to 4× single-width GPU cards |
| Management | HDM agentless management tool (with dedicated management port) and H3C Uni System management software; supports an LCD touchable intelligent management module; Optional U-Center data center management platform |
| Security | Supports a secure chassis, TCM/TPM security module, two-factor authentication, and supports Intel PFR3.0 and SGX2.0 technologies |
| Power Supply and Cooling | Supports CPU liquid-cooling heat dissipation; Optional 800W/1300W/1600W/2000W/2400W 1+1 redundant power supplies; Optional -48V/336V DC power supply modules, supports 1+1 redundancy; Optional Platinum-level/Titanium-level power supplies; supports up to 8× hot-swappable redundant fans |
| Authentication | Supports CCC, UL, CEetc.Authentication |
| operating temperature | Air-cooled model: 5°C～45°C; Liquid-cooled model: 5°C～50°C (operating temperature supported is affected by different configurations; refer to the detailed product technical documentation for details) |
| Dimensions/Chassis Size | 1U chassis 42.9mm (height) × 434.6mm (width) × 777mm (depth) (excluding the security panel) (E1.S model depth 835mm) 42.9mm (height) × 434.6mm (width) × 805mm (depth) (including the security panel) (E1.S model depth 863mm) |
| Warranty | 3 years, 5×9, Next Business Day (NBD) response |
| Ordering Information | |
| Processor | |
| 0231AMMM | UN-CPU-INTEL-3508U - 3508U (2.1GHz/8 cores/22.5MB/125W) CPU module (CTO&BTO) |
| 0231AMLT | UN-CPU-INTEL-4509Y - 4509Y (2.6GHz/8-core/22.5MB/125W) CPU module (CTO&BTO) |
| 0231AMML | UN-CPU-INTEL-4510 - 4510 (2.4GHz/12-core/30MB/150W) CPU module (CTO&BTO) |
| 0231AMM8 | 0231AMM8 - 4510T (2.0GHz/12 cores/30MB/115W) CPU module (CTO&BTO) |
| 0231AMMD | 0231AMMD - 4514Y(2.0GHz/16-core/30MB/150W)CPU module(CTO&BTO) |
| 0231AMLG | UN-CPU-INTEL-4516Y+ - 4516Y+ (2.2GHz/24-core/45MB/185W) CPU module (CTO&BTO) |
| 0231AMMV | UN-CPU-INTEL-5512U - 5512U (2.1GHz/28-core/52.5MB/185W) CPU module (CTO&BTO) |
| 0231AMMA | UN-CPU-INTEL-5515+ - 5515+ (3.2GHz/8-core/22.5MB/165W) CPU module (CTO&BTO) |
| 0231AMMC | UN-CPU-INTEL-5520+ - 5520+ (2.2GHz/28-core/52.5MB/205W) CPU module (CTO&BTO) |
| 0231AMLX | UN-CPU-INTEL-6526Y - 6526Y (2.8GHz/16-core/37.5MB/195W) CPU module (CTO&BTO) |
| 0231AMMB | UN-CPU-INTEL-6530 - 6530 (2.1GHz/32-core/160MB/270W) CPU module (CTO&BTO) |
| 0231AMMR | 0231AMMR - 6534(3.9GHz/8-core/22.5MB/195W)CPU module(CTO&BTO) |
| 0231AMMW | UN-CPU-INTEL-6538N - 6538N (2.1GHz/32-core/60MB/205W) CPU module (CTO&BTO) |
| 0231AMLF | UN-CPU-INTEL-6538Y+ - 6538Y+ (2.2GHz/32-core/60MB/225W) CPU module (CTO&BTO) |
| 0231AMMP | UN-CPU-INTEL-6542Y - 6542Y (2.9GHz/24-core/60MB/250W) CPU module (CTO&BTO) |
| 0231AMLW | UN-CPU-INTEL-6544Y - 6544Y (3.6GHz/16-core/45MB/270W) CPU module (CTO&BTO) |
| 0231AMM3 | UN-CPU-INTEL-6548N - 6548N (2.8GHz/32-core/60MB/250W) CPU module (CTO&BTO) |
| 0231AMLU | UN-CPU-INTEL-6548Y+ - 6548Y+ (2.5GHz/32-core/60MB/250W) CPU module (CTO&BTO) |
| 0231AMLQ | UN-CPU-INTEL-6554S - 6554S (2.2GHz/36-core/180MB/270W) CPU module (CTO&BTO) |
| 0231AMMF | UN-CPU-INTEL-6558Q - 6558Q (3.2GHz/32 cores/60MB/350W) CPU module (CTO&BTO) |
| 0231AMLE | UN-CPU-INTEL-8558 - 8558 (2.1GHz/48-core/260MB/330W) CPU module (CTO&BTO) |
| 0231AMLN | UN-CPU-INTEL-8558P - 8558P (2.7GHz/48 cores/260MB/350W) CPU module (CTO&BTO) |
| 0231AMM2 | UN-CPU-INTEL-8558U - 8558U (2.0GHz/48 cores/260MB/300W) CPU module (CTO&BTO) |
| 0231AMMN | UN-CPU-INTEL-8562Y+ - 8562Y+ (2.8GHz/32 cores/60MB/300W) CPU module (CTO&BTO) |
| 0231AMLR | UN-CPU-INTEL-8568Y+ - 8568Y+ (2.3GHz/48 cores/300MB/350W) CPU module (CTO&BTO) |
| 0231AMMK | UN-CPU-INTEL-8570 - 8570 (2.1GHz/56 cores/300MB/350W) CPU module (CTO&BTO) |
| 0231AMM4 | UN-CPU-INTEL-8571N - 8571N (2.4GHz/52 cores/300MB/300W) CPU module (CTO&BTO) |
| 0231AMLP | UN-CPU-INTEL-8580 - 8580 (2.0GHz/60 cores/300MB/350W) CPU module (CTO&BTO) |
| 0231AMMJ | UN-CPU-INTEL-8581V - 8581V (2.0GHz/60 cores/300MB/270W) CPU module (CTO&BTO) |
| 0231AMMH | UN-CPU-INTEL-8592+ - 8592+ (1.9GHz/64 cores/320MB/350W) CPU module (CTO&BTO) |
| 0231AMMY | UN-CPU-INTEL-8592V - 8592V (2.0GHz/64 cores/320MB/330W) CPU module (CTO&BTO) |
| 0231AMLH | UN-CPU-INTEL-8593Q - 8593Q (2.2GHz/64 cores/320MB/385W) CPU module (CTO&BTO) |
| 0231AL0A | 0231AL0A - C4410Y(2.0GHz/12 Cores/30MB/150W)CPU module(CTO&BTO) |
| 0231AKYQ | 0231AKYQ - R4700G6 Server |
| 0231AL10 | 0231AL10 - R4700G6 Server |
| 0231AL03 | 0231AL03 - R4700G6 Server |
| 0231AKYA | 0231AKYA - R4700G6 Server |
| 0231AKYS | 0231AKYS - R4700G6 Server |
| 0231AKYD | 0231AKYD - R4700G6 Server |
| 0231AL0M | 0231AL0M - R4700G6 Server |
| 0231AKY7 | 0231AKY7 - C8458P(2.7GHz/44 Cores/82.5MB/350W)CPU module(CTO&BTO) |
| 0231AL0G | 0231AL0G - C8462Y+(2.8GHz/32 Cores/60MB/300W)CPU module(CTO&BTO) |
| 0231AL04 | 0231AL04 - R4700G6 Server |
| 0231AKYT | 0231AKYT - 3408U(1.8GHz/8 Cores/22.5MB/125W)CPU module(CTO&BTO) |
| 0231AL0L | 0231AL0L - 4410T(2.7GHz/10 Cores/26.25MB/150W)CPU module(CTO&BTO) |
| 0231AKYL | 0231AKYL - 4416+ (2.0GHz/20 cores/37.5MB/165W) CPU module (CTO&BTO) |
| 0231AL0F | UN-CPU-INTEL-5411N - 5411N (1.9GHz/24 cores/45MB/165W) CPU module (CTO&BTO) |
| 0231AL0Y | 0231AL0Y - 5412U(2.1GHz/24-core/45MB/185W)CPU module (CTO&BTO) |
| 0231AL0X | 0231AL0X - 5415+(2.9GHz/8-core/22.5MB/150W)CPU module (CTO&BTO) |
| 0231AL0W | 0231AL0W - 5416S(2.0GHz/16-core/30MB/150W)CPU module (CTO&BTO) |
| 0231AKYH | 0231AKYH - 5418N(1.8GHz/24-core/45MB/165W)CPU module (CTO&BTO) |
| 0231AL06 | UN-CPU-INTEL-5418Y - 5418Y (2.0GHz/24 cores/45MB/185W) CPU module (CTO&BTO) |
| 0231AKY8 | 0231AKY8 - 5420+(2.0GHz/28-core/52.5MB/205W)CPU module (CTO&BTO) |
| 0231AL0J | UN-CPU-INTEL-6414U - 6414U (2.0GHz/32 cores/60MB/250W) CPU module (CTO&BTO) |
| 0231AL07 | UN-CPU-INTEL-6416H - 6416H (2.2GHz/18 cores/45MB/165W) CPU module (CTO&BTO) |
| 0231AKYC | UN-CPU-INTEL-6418H - 6418H (2.1GHz/24 cores/60MB/185W) CPU module (CTO&BTO) |
| 0231AKYF | 0231AKYF - 6421N(1.8GHz/32-core/60MB/185W)CPU module (CTO&BTO) |
| 0231AL0H | UN-CPU-INTEL-6426Y - 6426Y (2.5GHz/16-core/37.5MB/185W) CPU module (CTO&BTO) |
| 0231AKYY | 0231AKYY - 6428N(1.8GHz/32-core/60MB/185W)CPU module (CTO&BTO) |
| 0231AK80 | UN-CPU-INTEL-6430 - 6430 (2.1GHz/32 cores/60MB/270W) CPU module (CTO&BTO) |
| 0231AKYM | 0231AKYM - 6434(3.7GHz/8-core/22.5MB/195W)CPU module(CTO&BTO) |
| 0231AL0Q | 0231AL0Q - 6434H(3.7GHz/8-core/22.5MB/195W)CPU module (CTO&BTO) |
| 0231AKYP | 0231AKYP - 6438M(2.2GHz/32-core/60MB/205W)CPU module (CTO&BTO) |
| 0231AL0R | 0231AL0R - 6438N(2.0GHz/32-core/60MB/205W)CPU module (CTO&BTO) |
| 0231AL0K | 0231AL0K - 6438Y+(2.0GHz/32-core/60MB/205W)CPU module(CTO&BTO) |
| 0231AL0B | 0231AL0B - 6442Y(2.6GHz/24-core/60MB/225W)CPU module(CTO&BTO) |
| 0231AL0T | 0231AL0T - 6444Y(3.6GHz/16-core/45MB/270W)CPU module (CTO&BTO) |
| 0231AL0P | 0231AL0P - 6448H(2.4GHz/32-core/60MB/250W)CPU module (CTO&BTO) |
| 0231AKYK | 0231AKYK - 6448Y(2.1GHz/32-core/60MB/225W)CPU module(CTO&BTO) |
| 0231AL02 | 0231AL02 - 6454S(2.2GHz/32-core/60MB/270W)CPU module (CTO&BTO) |
| 0231AL05 | 0231AL05 - 8444H(2.9GHz/16-core/45MB/270W)CPU module (CTO&BTO) |
| 0231AKYB | 0231AKYB - 8450H(2.0GHz/28-core/75MB/250W)CPU module (CTO&BTO) |
| 0231AKYU | 0231AKYU - 8452Y(2.0GHz/36 cores/67.5MB/300W) CPU module (CTO&BTO) |
| 0231AL0N | 0231AL0N - 8454H(2.1GHz/32 cores/82.5MB/270W) CPU module (CTO&BTO) |
| 0231AKYG | 0231AKYG - 8458P(2.7GHz/44 cores/82.5MB/350W) CPU module (CTO&BTO) |
| 0231AKYV | 0231AKYV - 8460H(2.2GHz/40 cores/105MB/330W) CPU module (CTO&BTO) |
| 0231AK82 | 0231AK82 - 8460Y+(2.0GHz/40 cores/105MB/300W) CPU module (CTO&BTO) |
| 0231AL0E | 0231AL0E - 8461V(2.2GHz/48 cores/97.5MB/300W) CPU module (CTO&BTO) |
| 0231AKYE | 0231AKYE - 8462Y+(2.8GHz/32 cores/60MB/300W) CPU module (CTO&BTO) |
| 0231AL0V | 0231AL0V - 8463B (2.6GHz/48 cores/105MB/350W) CPU module (ODM-B) (CTO&BTO) |
| 0231AL0D | 0231AL0D - 8468(2.1GHz/48 cores/105MB/350W) CPU module (CTO&BTO) |
| 0231AKY9 | 0231AKY9 - 8468H(2.1GHz/48 cores/105MB/330W) CPU module (CTO&BTO) |
| 0231AL09 | 0231AL09 - 8468V(2.4GHz/48 cores/97.5MB/330W) CPU module (CTO&BTO) |
| 0231AL01 | 0231AL01 - 8470(2.0GHz/52 cores/105MB/350W) CPU module (CTO&BTO) |
| 0231AKYX | 0231AKYX - 8470N(1.7GHz/52 cores/97.5MB/300W) CPU module (CTO&BTO) |
| 0231AL08 | 0231AL08 - 8471N(1.8GHz/52 cores/97.5MB/300W) CPU module (CTO&BTO) |
| 0231AKYJ | UN-CPU-INTEL-8480+ - 8480+ (2.0GHz/56 cores/105MB/350W) CPU module (CTO&BTO) |
| 0231AK87 | 0231AK87 - 8490H(1.9GHz/60 cores/112.5MB/350W) CPU module (CTO&BTO) |
| 0231ALJF | 0231ALJF - 9460 (2.2GHz/40 cores/97.5MB/350W) CPU module (CTO&BTO) |
| 0231ALJD | 0231ALJD - 9462 (2.7GHz/32 cores/75MB/350W) CPU module (CTO&BTO) |
| 0231ALJC | 0231ALJC - 9468 (2.1GHz/48 cores/105MB/350W) CPU module (CTO&BTO) |
| 0231ALJB | 0231ALJB - 9470 (2.0GHz/52 cores/105MB/350W) CPU module (CTO&BTO) |
| 0231ALJA | 0231ALJA - 9480 (1.9GHz/56 cores/112.5MB/350W) CPU module (CTO&BTO) |
| Memory | |
| 0231ALVA | 0231ALVA - 16GB 1Rx8 DDR5-4800B CAS-40-39-39 RDIMMMemory Module(CTO&BTO) |
| 0231AM23 | UN-DDR5-4800B-16G-1Rx8-R-2 - 16GB 1Rx8 DDR5-4800B(CAS-40-39-39)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AK7X | 0231AK7X - 64GB 2RX4 DDR5-4800 RDIMMMemory Module(CTO&BTO) |
| 0231AM1X | UN-DDR5-4800B-64G-2Rx4-R-2 - 64GB 2Rx4 DDR5-4800B(CAS-40-39-39)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AM4C | UN-DDR5-4800B-96G-2Rx4-R-2 - 96GB 2RX4 DDR5-4800B CAS-40-39-39 SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AM4E | UN-DDR5-4800B-96G-2Rx4-R - 96GB 2RX4 DDR5-4800B CAS-40-39-39 RDIMMMemory Module(CTO&BTO) |
| 0231ALV9 | UN-DDR5-4800B-128G-4Rx4-R - 128GB 4Rx4 DDR5-4800B 3DS CAS-46-39-39 RDIMMMemory Module(CTO&BTO) |
| 0231AMM0 | 0231AMM0 - 16GB 1Rx8 DDR5-5600B(CAS-46-45-45)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AMM9 | 0231AMM9 - 16GB 1Rx8 DDR5-5600B(CAS-46-45-45)RDIMMMemory Module(CTO&BTO) |
| 0231AMLD | UN-DDR5-5600B-32G-1Rx4-R - 32GB 1Rx4 DDR5-5600B(CAS-46-45-45)RDIMMMemory Module(CTO&BTO) |
| 0231AMM1 | UN-DDR5-5600B-32G-2Rx8-R-2 - 32GB 2Rx8 DDR5-5600B(CAS-46-45-45)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AMMS | UN-DDR5-5600B-32G-2Rx8-R - 32GB 2Rx8 DDR5-5600B(CAS-46-45-45)RDIMMMemory Module(CTO&BTO) |
| 0231AMMU | UN-DDR5-5600B-32G-1Rx4-R-2 - 32GB 1Rx4 DDR5-5600B(CAS-46-45-45)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AP4X | 0231AP4X - R4700G6 Server |
| 0231AMLJ | UN-DDR5-5600B-64G-2Rx4-R-2 - 64GB 2Rx4 DDR5-5600B(CAS-46-45-45)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AMLY | UN-DDR5-5600B-64G-2Rx4-R - 64GB 2Rx4 DDR5-5600B(CAS-46-45-45)RDIMMMemory Module(CTO&BTO) |
| 0231AMME | UN-DDR5-5600B-96G-2Rx4-R-2 - 96GB 2Rx4 DDR5-5600B(CAS-46-45-45)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AMMT | UN-DDR5-5600B-96G-2Rx4-R - 96GB 2Rx4 DDR5-5600B(CAS-46-45-45)RDIMMMemory Module(CTO&BTO) |
| 0231APKA | UN-DDR5-5600B-128G-2Rx4-R - 128GB 2Rx4 DDR5-5600B (CAS-46-45-45) RDIMMMemory Module(CTO&BTO) |
| Dummy Memory | |
| 0231AK76 | UN-DUMMY-DIMM-DDR5-M - DDR5 dummy memory module (CMCTO) |
| Expansion Module | |
| 0231AK7Q | UN-PCA-BP-4LFF-1U-G6 - G6 1U front 4LFF hard drive backplane module (CTO&BTO) |
| M.2 Adapter Card | |
| 0231AF5Q | UN-RC-2M2-G5 - G5 front 2*M.2 2280/22110 Riser module(CTO&BTO) |
| M.2 SSD | |
| 0231AK1R | 0231AK1R - 480GB 6G SATA RI 5400PRO M.2 SSDHard Drive Module(CTO&BTO) |
| 0231AHCQ | UN-SSD-480G-SATA-S4520-M.2 - 480GB SATA RI S4520 M.2 SSDHard Drive Module(CTO&BTO) |
| SD card | |
| 0231A6RC | UN-SD-32G-Micro-F - 32G microSD mainstream flash drive module (FIO) |
| SD card expansion module | |
| 0231AJQE | UN-RC-DSD-UART-G6 - G6 serial port & DSD interface board (CTO&BTO) |
| Fan | |
| 0231AJV7 | UN-FAN-4056-1U-G6 - G6 1U 4056Fan Module(CTO&BTO) |
| Power Supply | |
| 0231AGUP | UN-GW-CRPS1300D3 - 1300W AC&240V HVDC power Module (GW-R1-Platinum-low load high efficiency) (CTO&BTO) |
| 0231AJYB | UN-PS-2132-5L5 - 1300W AC & 240V HVDC power Supply Module (LT-R1- Platinum - light-load high efficiency) (CTO&BTO) |
| 0231ACT9 | DPS-1300AB-6 R-M - 1300W AC & 240V High-Voltage DC power Supply Module (DT-R1-Platinum) (CMCTO) |
| 0231AHRV | UN-DD-2162-3L5 - 1600W 48V DC power Supply Module (LT-R1- Platinum) (CTO&BTO) |
| 0231AMKU | UN-GW-CRPS1600C2 - 1600W AC & 240V HVDC power Supply Module (GW-R1- Titanium) (CTO&BTO) |
| 0231AMPJ | UN-CRPS-1600W-AC-12V-94%-M - 1600W AC & 240V HVDC power supply (Platinum) (CMCTO) |
| 0231AGUN | UN-GW-CRPS1600D2 - 1600W AC & 240V HVDC power Supply Module (GW-R1- Platinum) (CTO&BTO) |
| 0231ACTA | DPS-1600AB-13 R-M - 1600W AC & 240V High-Voltage DC power Supply Module (DT-R1-Platinum) (CMCTO) |
| 0231AMQ7 | UN-CRPS-2000W-AC-12V-94%-M - 2000W AC & 240V HVDC power supply (Platinum - light-load high efficiency) (CMCTO) |
| 0231AFSS | UN-GW-CRPS2000D - 2000W AC & 240V HVDC power Supply Module (GW-R2- Platinum - light-load high efficiency) (CTO&BTO) |
| 0231AHRU | UN-PS-2202-11L - 2000W AC & 240V HVDC power Supply Module (LT-R1- Platinum - light-load high efficiency) (CTO&BTO) |
| Power Supply Cable | |
| 0404A0X6 | CAB-DC PWR-3.0m-3V3 - (-48V) DC power cable-3.0m-(P3W-3V3 female connector)-(UL2464 12AWG/3C black)-(3*T2510 blue) |
| 0404A0K4 | CAB-PDU-2.0m-C14-C13-MUL-50598 - PDU Power Supply Cable - 2.0 m - 1.0 mm² - Black - (C14 Connector (3P) Straight Male 250V 10A) - (227 IEC 53 (RVV) & H05VV-F & SJT) - (C13) - Chinese Standard + U.S. Standard + European Standard + Korean Standard |
| 0404A19Y | CAB-AC Pwr-3m-C19-CHE - R4700G6 Server |
| 0404A06Q | CAB-AC Pwr CHI-1.8m - Wall-mounted AC power cord—1.8 m—3 × 0.75 mm²—black—(GB1002 plug (3P), straight male, 250 V, 10 A)—(227 IEC 53 (RVV))—(C13 connector (3P), straight female, 250 V, 10 A)—Chinese National Standard |
| 04040890 | CAB-AC Pwr EN&SI-3m - Wall power outlet AC power cable - 3.0m - 1.0mm^2 - black - (BS1363A plug (3P) right-angle male 250V13A) - (H05VV-F) - (C13 connector (3P) straight female 250V10A) - UK standard |
| 0404A0MW | CAB-AC-16A-PDU-3m-Eu - PDU Power Supply Cable - 3.0 m - 1.5 mm² - Black - (C20 Connector (3P) Straight Male 250 V 16 A) - (H05VV-F) - (C19 Connector (3P) Straight Female 250 V 16 A) - European Standard |
| Adapter Card | |
| 0231AJV4 | UN-RC-2FHFL-1U-SW-G6 - G6 1U Riser1 X16X16 Riser (Butterfly Card) (CTO & BTO) |
| 0231AJVB | UN-RC-1HHHL-R3-1U-SW-G6 - G6 1U Riser3 X16 Riser(CTO&BTO) |
| M.2 PCIe Card | |
| 0231AGT9 | UN-RAID-MARVELL-SANTACRUZ-LP-2i - MARVELL Santa Cruz M.2 RAID card (supports 2 M.2 NVMe Ports, PCIe) (CTO&BTO) |
| 0231AKB0 | UN-RAID-MARVELL-M.2 - MARVELL SATA M.2 RAID card (supports 2 M.2 SATA Ports, supports M.2 hot-swap, PCIe) (CTO&BTO) |
| Fibre Channel controller | |
| 0231A7LG | UN-FC-HBA-LPe32000-32Gb-1P - 1-port 32Gb Fibre Channel HBA card (with one SFP+ optical module) |
| 0231A7LN | UN-FC-HBA-LPe32002-32Gb-2P - 2-port 32Gb optical fiber channel HBA card (with two SFP+ optical modules) |
| 0231A7NB | UN-HBA-16Gb-LPe31000-1P-1 - 1-port 16Gb Fibre Channel HBA card (with one SFP+ module) |
| 0231A7NF | UN-HBA-16Gb-LPe31002-2P-1 - 2-port 16Gb Fibre Channel HBA card (with two SFP+ modules) |
| 0231A7PV | UN-FC-HBA-QLE2742-32Gb-2P-F - 32Gb-2-port-PCIe Fibre Channel HBA card (with two SFP+ optical modules) (FIO) |
| 0231A7Q1 | UN-FC-HBA-QLE2740-32Gb-1P-F - 32Gb-1-port-PCIe optical fiber channel HBA card (with one SFP+ optical module) (FIO) |
| 0231A8JQ | UN-FC-HBA-QLE2690-16Gb-1P-1 - 1-port 16Gb Fibre Channel HBA card (with one SFP+ module) |
| 0231A8JV | UN-FC-HBA-QLE2692-16Gb-2P-1 - 2-port 16Gb Fibre Channel HBA card (with two SFP+ modules) |
| 0231AGHH | UN-FC-HBA-LPe35000-LP-32Gb-1P - 1-port 32Gb Optical Interface LPe35000 AIC FC HBA card (PCIe 4.0) (comes with one SFP+ optical module) (CTO&BTO) |
| 0231AGHJ | UN-FC-HBA-LPe35002-LP-32Gb-2P - 2-port 32Gb Optical Interface LPe35002 AIC FC HBA card (PCIe 4.0) (comes with two SFP+ optical modules) (CTO&BTO) |
| 0231AM7K | UN-FC-HBA-LPe31000-LP-16G-1P - 1-port 16Gb Optical Interface LPe31000 FC HBA card (PCIe 3.0) (with one SFP+ optical module) (CTO&BTO) |
| 0231AM7L | UN-FC-HBA-LPe31002-LP-16G-2P - 2-port 16Gb Optical Interface LPe31002 FC HBA card (PCIe 3.0) (with two SFP+ optical modules) (CTO&BTO) |
| 0231ANQ1 | UN-FC-HBA-LPe36002-LP-64G-2P - 2-port 64Gb PCIe4.0 X8 SFP+ Optical Interface LPe36002 LP FC HBA card (with two SFP+ optical modules) (CTO&BTO) |
| 0231ANQ2 | UN-FC-HBA-LPe36000-LP-64G-1P - 1-port 64Gb PCIe4.0 X8 SFP+ Optical Interface LPe36000 LP FC HBA card (with one SFP+ optical module) (CTO&BTO) |
| 0231APSM | UN-FC-HBA-QLE2870-LP-64G-1P - 1-port 64Gb PCIe4.0 x8 SFP+ Optical Interface QLE2870 LP FC HBA card (with one SFP+ optical module) (CTO&BTO) |
| 0231APSU | UN-FC-HBA-QLE2872-LP-64G-2P - 2-port 64Gb PCIe4.0 x8 SFP+ Optical Interface QLE2872 LP FC HBA card (with two SFP+ optical modules) (CTO&BTO) |
| Standard Control Card (PCIe Standard Card) | |
| 0231AG62 | UN-RAID-LSI-9560-LP-8i-4GB - LSI 9560-8i 12G SAS RAID card module (supports 8 SAS Ports, with 4GB cache, PCIe, without supercapacitor) (CTO&BTO) |
| 0231AJ69 | UN-HBA-LSI-9540-LP-8i - LSI 9540-8i 12G SAS HBA card module (supports 8 SAS Ports, PCIe) (CTO&BTO) |
| 0231AJ6E | UN-HBA-LSI-9500-LP-8i - LSI 9500-8i 12G SAS HBA card module (supports 8x SAS Ports, PCIe) (CTO&BTO) |
| 0231A8P1 | UN-RAID-P460-B4-F - P460-B4 12G SAS RAID card module (supports 8 SAS Ports, with 4GB cache, excluding supercapacitor) (CMCTO) |
| 0231AAUF | 0231AAUF - P460-B2 12G SAS RAID card module (supports 8 SAS ports, with 2GB cache, excluding supercapacitor) (CMCTO) |
| 0231A8ND | UN-HBA-H460-B1-F - H460-B1 12G SAS HBA card module (supports 8 SAS ports, PCIe) (CMCTO) |
| Battery | |
| 0231AEYR | UN-BAT-LSI-G3-A - LSI G3 supercapacitor module (CTO&BTO) |
| 0231AFA4 | UN-BAT-PMC-G3-2U - PMC G3 Supercapacitor Module (for 2U Standard Chassis) (CTO & BTO) |
| VROCModule(Supports NVMe Hard DriveRAID) | |
| 0231A6R6 | UN-NVMe-VROC-Key-S-F - Intel NVMe VROC module - Standard edition (FIO) |
| 0231A6R8 | UN-NVMe-VROC-Key-P-F - Intel NVMe VROC module - Advanced edition (FIO) |
| 0231A7LJ | UN-NVMe-VROC-Key-i-F - Intel NVMe VROC module - Intel edition (FIO) |
| Graphics Card | |
| 0231ANMC | 0231ANMC - Nvidia L2 24G PCIe4.0 X16 HHHL GPUModule(CTO&BTO) |
| 0231AJWA | UN-GPU-A2-16GB-NoCEC - Nvidia Tesla A2 16GB Non-CEC GPUModule(CTO&BTO) |
| Network Adapter | |
| 0231AEC7 | 0231AEC7 - 1-port 100Gb QSFP28 Optical Interface MCX515A-CCAT Ethernet NIC (CMCTO) |
| Optical Module | |
| 0231AC16 | QSFP-100G-SR4-MM850-CM - 100G QSFP28 optical module (850nm, 100m OM4, SR4, MPO) (FIO) |
| 0231AFUR | 0231AFUR - R4700G6 Server |
| 0231AFUP | UN-CAB-IB-DAC-MCP7H50-V002R26-2m - Mellanox 2m HDR100 100G DAC breakout cable (CTO&BTO) |
| 0231ADWS | 0231ADWS - 2-Port100GEoptical interface Network Adapter(QSFP28)(CTO&BTO) |
| 0231AEC8 | UN-NIC-ETH-MCX516A-CCAT-2P-M - 100Gb 2-Port QSFP28 Optical Interface MCX516A-CCAT Ethernet Card (CMCTO) |
| 0231AFUS | UN-IB-MCX653106A-ECAT-100Gb-2P - 100Gb 2-Port Infiniband HDR/Ethernet Adapter Card (Supports QSFP56 Optical Modules) (CTO&BTO) |
| 0231AGJA | UN-NIC-ETH-MCX623106AN-CDAT-2P - 2-Port100Gb QSFP56optical interfaceMCX623106AN-CDATNetwork Adapter(CTO&BTO) |
| 0231AC0U | QSFP-40G-SR4-MM850-CM - QSFP+ 40G optical module (850nm, 100m, SR4, supports 1 to 4) (FIO) |
| 0231AH2Y | UN-NIC-BCM957508-P2100G-2P - 2-port 100Gb QSFP56 Optical Interface BCM957508-P2100G Ethernet card (CTO&BTO) |
| 0231A7PW | UN-NIC-BCM957412-F-B-10Gb-2P-F - 2-Port10GEoptical interface Network Adapter(BCM957412)(FIO) |
| 0231A8KB | UN-SFP-XG-SX-MM850-E1 - SFP+ 10GModule(850nm,300m,LC) |
| 0231AC0T | SFP-XG-LX-SM1310-CM - SFP+ 10GModule(1310nm,10km,LC)(FIO) |
| 0231A8K2 | UN-CNA-10GE-2P-560F-B2-1 - 2-Port10Goptical interface Network Adapter(SFP+)-560F-B2 |
| 0231AC0Y | SFP-GE-SX-MM850-CM - Optical module - SFP-GE-multimode optical module (850nm, 0.55km, LC) (FIO) |
| 0231A9AU | UN-NIC-X710DA2-F-B-10Gb-2P-F2 - 2-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231AFRV | UN-NIC-ETH531F-LP-2P - 2-Port10GEoptical interface Network Adapter(CTO&BTO) |
| 0231A7WC | UN-NIC-X710DA4-F-B-10Gb-4P-F - 4-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231A7NA | UN-CNA-560T-B2-10Gb-2P-1 - 2-Port10Gbelectrical interface Network Adapter-560T-B2 |
| 0231A8K1 | UN-NIC-GE-4P-360T-B2-1 - 4-Port Gigabitelectrical interface Network Adapter-360T-B2 |
| 0231AJG0 | UN-NIC-BCM95719A1904AC-LP-4P - R4700G6 Server |
| 0231AFN6 | UN-NIC-ETH-MCX623105AN-VDAT-1P - 1-port 200Gb QSFP56 Optical Interface MCX623105AN-VDAT Ethernet network adapter (CTO&BTO) |
| 0231AFN8 | UN-IB-MCX653105A-HDAT-200Gb-1P - 200Gb 1-Port Infini Band HDR/Ethernet Adapter Card (Supports QSFP56 Optical Modules) (CTO&BTO) |
| 0231AM5N | UN-IB-MCX75310AAS-HEAT-200Gb-1P - 1-port 200Gb Infiniband NDR/Ethernet adapter card (supports OSFP optical modules) (CTO&BTO) |
| 0231ANGH | UN-OSFP-RHS-400G-VR4-MM850 - 400G OSFP RHS optical module (850nm, 50m OM4, VR4, MPO12/APC) |
| 0231AM5P | UN-IB-MCX755106AS-HEAT-200Gb-2P - 2-port 200Gb Infiniband NDR/Ethernet adapter card (supports QSFP112 optical modules) (CTO&BTO) |
| 0231A7G6 | UN-NIC-MCX4121A-F-B-25Gb-2P-F - 2-Port25Gboptical interface Network Adapter(SFP28)(FIO) |
| 0231A7N6 | SFP-25G-SR-MM850-1 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231A7NH | UN-NIC-620F-B2-25Gb-2P-1 - 2-Port25Gboptical interface Network Adapter(SFP+)-620F-B2 |
| 0231A7Q2 | UN-NIC-BCM957414-F-B-25Gb-2P-F - 2-Port25GEoptical interface Network Adapter(BCM957414)(FIO) |
| 0231AB5W | UN-NIC-MCX512A-ACAT-F-2*25Gb-F - 2-Port25Gboptical interface Network Adapter(SFP28)(MCX512A-ACAT)(FIO) |
| 0231AF8A | UN-NIC-X2522-25Gb-2P-M - 2-port 25Gb SFP28 Optical Interface X2522-25G-PLUS low-latency network card (CTO&BTO) |
| 0231AFGV | 0231AFGV - R4700G6 Server |
| 0231AFH5 | UN-NIC-ETH630F-LP-2P - 2-Port25GEoptical interface Network Adapter (ETH630F)(CTO&BTO) |
| 0231AFUG | UN-NIC-ETH-MCX631102AN-ADAT - 2-port 25Gb SFP28 Optical Interface MCX631102AN-ADAT Ethernet card (CTO&BTO) |
| 0231AG88 | UN-NIC-ETH-E810XXVDA2G1P5-2P - 2-port 25Gb SFP28 Optical Interface E810XXVDA2G1P5 Ethernet card (CTO&BTO) |
| 0231ALXR | UN-NIC-ETH641F-LP-2P - 2-Port25GEoptical interface Network Adapter (ETH641F)(CTO&BTO) |
| OCPNetwork Adapter | |
| 0231AGFL | UN-NIC-ETH-MCX623436AN-CDAB-2P - 2-Port100Gb optical interfaceMCX623436AN-CDAB OCP3.0Network Adapter(CTO&BTO) |
| 0231AKMH | UN-NIC-BCM957508-N2100G-3S-2P - 2-Port100Gb QSFP56optical interfaceBCM957508-N2100G OCP3.0Network Adapter(CTO&BTO) |
| 0231AEBU | UN-NIC-ETH360T-3S-4P - 4-Port1GEelectrical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AEBV | UN-NIC-ETH565T-3S-2P - 2-Port10GEelectrical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AEBY | UN-NIC-ETH561F-3S-2P - 2-Port10GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AN1D | UN-NIC-ETH531F-3S-2P - 2-Port10GEoptical interfaceOCP3.0Network Adapter (ETH531F)(CTO&BTO) |
| 0231ANSH | UN-NIC-ETH-SF400T-C201-3S-4P - 4-Port1GEelectrical interfaceOCP3.0Network AdapterSF400T-C201(for SA)(CTO&BTO) |
| 0231ABWF | UN-NIC-MCX4621A-ACAB-2*25G-M - 2-Port25G OCP3.0Network Adapter(MCX4621A-ACAB)(FIO) |
| 0231AEBW | UN-NIC-ETH640F-3S-2P - 2-Port25GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AFH3 | UN-NIC-ETH660F-3S-2P - 2-Port25GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AG96 | UN-NIC-ETH-MCX631432AN-ADAB-2P - 2-Port25Gb SFP28optical interfaceMCX631432AN OCP3.0Network Adapter(CTO&BTO) |
| 0231AGL9 | 0231AGL9 - R4700G6 Server |
| SSD Acceleration Card | |
| 0231AHWE | UN-SSD-3.2T-NVMe-PB6536-AIC - 3.2T NVMe SSD PB6 6536 SSD PCIe acceleration card module (CTO&BTO) |
| 0231AN26 | UN-SSD-3.2T-NVMe-PB6537-AIC - 3.2TB NVMe SSD MU PB6 6537 SSD PCIe acceleration card module (CTO&BTO) |
| 0231AJ64 | UN-SSD-6.4T-NVMe-PB6536-AIC - 6.4T NVMe SSD PB6 6536 SSD PCIe acceleration card module (CTO&BTO) |
| 0231AN23 | UN-SSD-6.4T-NVMe-PB6537-AIC - 6.4TB NVMe SSD MU PB6 6537 SSD PCIe acceleration card module (CTO&BTO) |
| i Fist Module | |
| 0231AJQ5 | UN-IFIST-EX-G6 - G6 iFISTModule(CTO&BTO) |
| Security Hardware | |
| 0231AKEY | UN-TCM-SPI-B - H3C server platform trusted module SPI TCM (CTO&BTO) |
| 0231AKEX | UN-TPM-SPI-B - H3C server series trusted platform module SPI TPM (CTO&BTO) |
| Optical Drive | |
| 0231A6R9 | 0231A6R9 - Mobile USB 2.0 interface read/write optical drive module (FIO) |
| Rack Rail | |
| 0231APX9 | UN-RL-G-G6 - G6 2U/1U Ball Screw Guide Rails (CTO & BTO) |
| 0231AFT2 | UN-RL-B-G5 - G5 2U/1U Standard Slides (CTO & BTO) |
| 0231AF5B | UN-RL-G-G5 - G5 2U/1U Ball-Bearings Slides (CTO & BTO) |
| Cable Management Tray | |
| 2150A0EF | CMA-1U-A - 1U Cable Management Rack |
| 0231AQCN | UN-CMA-1U-G6 - G6 1U Cable Management Rack (CTO & BTO) |
| Security Panel | |
| 0231AFLS | UN-SEC-Panel-1U-G5 - H3C Uni Server G5 1U intelligent security panel (CTO&BTO) |
| Tag | |
| 0231AGWU | UN-Label-Shock&Tilt Monitor - Anti-tilt label and 37G anti-vibration label (CTO&BTO) |
| Is customization Required? | |
| CUSTNEED | CUSTNEED - R4700G6 Server |
| Customized module | |
| 0231A8A6 | UN-CTM-G3-F - H3C customer-specific customization module (1H) (FIO) |
| Installing Services | |
| 8814A0KV | SV-PS-US-INST - H3C Server first-time basic installation service - for overseas business only |
| License Fees | |
| 3130A66X | LIS-HDM-FORMAL-SERVER - H3C advanced feature license fee (CTO&BTO) |
| Operating System Compatibility Verification | |
| BATJOSXX | BATJOSXX - R4700G6 Server |
| OSCHECKX | OSCHECKX - R4700G6 Server |
| Windows | |
| 2019R0HY | 2019R0HY - R4700G6 Server |
| 2019R0XX | 2019R0XX - R4700G6 Server |
| 2022R0XX | 2022R0XX - R4700G6 Server |
| linux | |
| H3LX202S | H3LX202S - R4700G6 Server |
| ORACLN86 | ORACLN86 - R4700G6 Server |
| ORACLN88 | ORACLN88 - R4700G6 Server |
| ORACLN89 | ORACLN89 - R4700G6 Server |
| ORACLN90 | ORACLN90 - R4700G6 Server |
| ORACLN92 | ORACLN92 - R4700G6 Server |
| ORACLN93 | ORACLN93 - R4700G6 Server |
| 86ENTHAT | 86ENTHAT - R4700G6 Server |
| 87ENTHAT | 87ENTHAT - R4700G6 Server |
| 88ENTHAT | 88ENTHAT - R4700G6 Server |
| 89ENTHAT | 89ENTHAT - R4700G6 Server |
| 90ENTHAT | 90ENTHAT - R4700G6 Server |
| 91ENTHAT | 91ENTHAT - R4700G6 Server |
| 92ENTHAT | 92ENTHAT - R4700G6 Server |
| ROCKYL86 | ROCKYL86 - R4700G6 Server |
| ROCKYL87 | ROCKYL87 - R4700G6 Server |
| ROCKYL88 | ROCKYL88 - R4700G6 Server |
| ROCKYL89 | ROCKYL89 - R4700G6 Server |
| ROCKYL90 | ROCKYL90 - R4700G6 Server |
| ROCKYL91 | ROCKYL91 - R4700G6 Server |
| ROCKYL92 | ROCKYL92 - R4700G6 Server |
| ROCKYL93 | ROCKYL93 - R4700G6 Server |
| SLE15SP4 | SLE15SP4 - R4700G6 Server |
| UB2045HK | UB2045HK - R4700G6 Server |
| UBSE224X | UBSE224X - R4700G6 Server |
| UBSE2245 | UBSE2245 - R4700G6 Server |
| HyperVisors | |
| CASE0783 | CASE0783 - R4700G6 Server |
| CTXS82XX | CTXS82XX - R4700G6 Server |
| VMES70U3 | VMES70U3 - R4700G6 Server |
| VMES8064 | VMES8064 - R4700G6 Server |
| VMES80U1 | VMES80U1 - R4700G6 Server |
| VMES80U2 | VMES80U2 - R4700G6 Server |
| Other Operating Systems | |
| NINGV312 | NINGV312 - R4700G6 Server |
| OTHERSOS | OTHERSOS - R4700G6 Server |
| Product Identity | |
| Brand | H3C |
| Series | H3C R4700 G6 rack server |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the GPU Support specification for UN-R4700-G6-LFF-C?
UN-R4700-G6-LFF-C lists GPU Support as Supports up to 4 single-width GPU cards. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Expansion Slots specification for UN-R4700-G6-LFF-C?
UN-R4700-G6-LFF-C lists Expansion Slots as Supports up to 6 PCIe 4.0 slots; supports CXL 1.1. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Chipset specification for UN-R4700-G6-LFF-C?
UN-R4700-G6-LFF-C lists Chipset as Intel® C741. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Security specification for UN-R4700-G6-LFF-C?
UN-R4700-G6-LFF-C lists Security as Supports secure chassis, TCM/TPM security modules, two-factor authentication, and Intel PFR 3.0 and SGX 2.0 technologies. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
