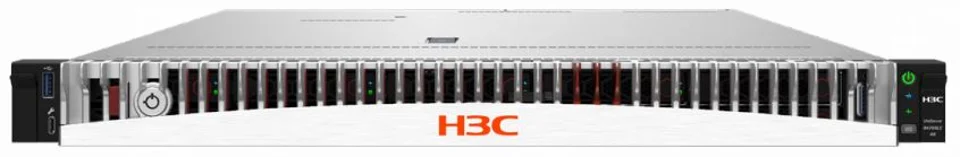

H3C UN-R4700LC-G5-LFF-C Uni Server R4700LC G5 LFF liquid-cooled server
Brand H3C
N/AVerified
H3C UN-R4700LC-G5-LFF-C
Model (MPN)
0235A4PF
Condition
Factory Sealed
Out of Stock
H3C UN-R4700LC-G5-LFF-C Uni Server R4700LC G5 LFF liquid-cooled server. GPU Support: supports up to 3 single-width GPU cards. Processor: Supports up to 2 Intel® Xeon® 3rd Gen Scalable family processors or Tyanxijun® Zhenye processor series, up to 40 cores per processor, maximum power 270W. Memory: Supports up to 32 DDR4 memory slots, speed up to 3200MT/s, supports RDIMM or LRDIMM; up to 16 Intel® Optane® Persistent M
Key Specifications
DescriptionH3C Uni Server R4700LC G5 LFF liquid-cooled server
Dimensions/Chassis Size1U chassis: 42.9mm (H) * 434.6mm (W) * 780mm (D) (excluding the security panel); 42.9mm (H) * 434.6mm (W) * 808mm (D) (including the security panel)
operating temperature5°C - 45°C (working temperature depends on different configurations; for details, refer to the detailed product technical documentation)
ProcessorSupports up to 2 Intel® Xeon® 3rd Gen Scalable family processors or Tyanxijun® Zhenye processor series, up to 40 cores per processor, maximum power 270W
ChipsetIntel® C621A
MemorySupports up to 32 DDR4 memory slots, speed up to 3200MT/s, supports RDIMM or LRDIMM; up to 16 Intel® Optane® Persistent Memory PMem 200 Series with a maximum capacity of 6TB per single-processor
Your Price
Best Value
$192.80
List Price: $1,928.00Save 90%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C Uni Server R4700LC G5 LFF liquid-cooled server |
| Key Specifications | |
| Dimensions/Chassis Size | 1U chassis: 42.9mm (H) * 434.6mm (W) * 780mm (D) (excluding the security panel); 42.9mm (H) * 434.6mm (W) * 808mm (D) (including the security panel) |
| operating temperature | 5°C - 45°C (working temperature depends on different configurations; for details, refer to the detailed product technical documentation) |
| Processor | Supports up to 2 Intel® Xeon® 3rd Gen Scalable family processors or Tyanxijun® Zhenye processor series, up to 40 cores per processor, maximum power 270W |
| Chipset | Intel® C621A |
| Memory | Supports up to 32 DDR4 memory slots, speed up to 3200MT/s, supports RDIMM or LRDIMM; up to 16 Intel® Optane® Persistent Memory PMem 200 Series with a maximum capacity of 6TB per single-processor |
| Storage Controller | Standard onboard array controller; supports SATA RAID 0/1/10/5; Optional HBA cards and array cards based on standard PCIe slots |
| Product Specifications | |
| Processor | Supports up to 2 Intel® Xeon® 3rd Gen Scalable family processors or Tyanxijun® Zhenye processor series, up to 40 cores per processor, maximum power 270W |
| Chipset | Intel® C621A |
| Memory | Supports up to 32 DDR4 memory slots, speed up to 3200MT/s, supports RDIMM or LRDIMM; up to 16 Intel® Optane® Persistent Memory PMem 200 Series with a maximum capacity of 6TB per single-processor |
| Storage Controller | Standard onboard array controller; supports SATA RAID 0/1/10/5; Optional HBA cards and array cards based on standard PCIe slots |
| FBWC | Optional support for up to 8GB cache; supports supercapacitor protection |
| Storage | Supports up to 12 2.5-inch drives (10 front + 2 rear expansion); supports up to 4 3.5-inch hard drives (4 front); supports SAS/SATA HDD/SSD drives; supports up to 12 NVMe U.2 drive bays; supports PCIe NVMe storage acceleration cards. Supports SATA and PCIe M.2 options; supports a dual Micro SD card kit |
| Network | Onboard 1x 1Gbps dedicated management Ethernet port; supports 1 OCP 3.0 network card; Optional expansion: 4×1GE electrical ports or 2×10GE electrical/optical ports or 2×25GE optical ports. Optional network adapter based on standard PCIe slots. Supports 1/10/25/40/100 GE network cards, IB cards |
| extended slot | supports up to 3 PCIe 4.0 standard slots and 1 OCP 3.0 slot |
| Interface | standard includes 1 front VGA, 1 rear VGA, and 1 serial port; 5 USB 3.0 ports (1 front, 2 rear, 2 internal); 1 front dedicated management interface; liquid cooling interface: UQD04 male at the rear-chassis window outlet or soft pipe + UQD04 female |
| GPU Support | supports up to 3 single-width GPU cards |
| Optical Drive | Supports external optical drive |
| Management | HDM agentless management tool (with a dedicated management port) and H3C Uni System management software; supports LCD touch intelligent management module; supports an Optional U-Center data center management platform with 64M local display memory |
| Security | Supports secure chassis, TCM/TPM security modules, and two-factor authentication |
| Power Supply and Cooling | Optional Platinum-grade 550W/800W/850W/1200W/1300W/1600W 1+1 redundant power supplies; Optional Titanium-grade power supplies; Optional 800W -48V/336V DC power supply modules; supports 1+1 redundancy; hot-swappable redundant fans; supports CPU liquid cooling heat dissipation |
| Authentication | Supports CCCetc.Authentication |
| operating temperature | 5°C - 45°C (working temperature depends on different configurations; for details, refer to the detailed product technical documentation) |
| Dimensions/Chassis Size | 1U chassis: 42.9mm (H) * 434.6mm (W) * 780mm (D) (excluding the security panel); 42.9mm (H) * 434.6mm (W) * 808mm (D) (including the security panel) |
| Warranty | 3 years, 5×9, Next Business Day (NBD) response |
| Ordering Information | |
| processors without heat sinks | |
| 0231AKTJ | 0231AKTJ - 5318N(2.1GHz/24 cores/36MB/150W)CPU module(CTO&BTO) |
| 0231AKTU | 0231AKTU - 6334(3.6GHz/8-core/18MB/165W)CPU module(CTO&BTO) |
| 0231AKT8 | 0231AKT8 - 6342(2.8GHz/24 cores/36MB/230W)CPU module(CTO&BTO) |
| 0231AKT9 | 0231AKT9 - 6346(3.1GHz/16 cores/36MB/205W)CPU module(CTO&BTO) |
| 0231AKST | 0231AKST - 6354(3.0GHz/18-core/39MB/205W)CPU module(CTO&BTO) |
| 0231AKRB | 0231AKRB - 8352Y(2.2GHz/32-cores/48MB/205W)CPU module(CTO&BTO) |
| 0231AKSS | 0231AKSS - 8358(2.6GHz/32-cores/48MB/250W)CPU module(CTO&BTO) |
| 0231AKRX | 0231AKRX - 8362(2.8GHz/32-cores/48MB/265W)CPU module(CTO&BTO) |
| 0231AKS0 | 0231AKS0 - 8368(2.4GHz/38 cores/57MB/270W)CPU module (CTO&BTO) |
| 0231AKSR | 0231AKSR - 8368Q(2.6GHz/38c/57MB/270W)CPUModule(CTO&BTO) |
| 0231AKS3 | 0231AKS3 - 8380(2.3GHz/40 cores/60MB/270W)CPU module (CTO&BTO) |
| 0231AKRC | 0231AKRC - C4310(2.1GHz/12 cores/18MB/120W)CPU module (CTO&BTO) |
| 0231AKRF | 0231AKRF - C4314(2.4GHz/16 cores/24MB/135W)CPU module (CTO&BTO) |
| 0231AKSH | 0231AKSH - C5318Y(2.1GHz/24 cores/36MB/165W)CPU module (CTO&BTO) |
| 0231AKT6 | 0231AKT6 - C6330(2.0GHz/28 cores/42MB/205W)CPU module (CTO&BTO) |
| 0231AKT7 | 0231AKT7 - C6342(2.8GHz/24 cores/36MB/230W)CPU module (CTO&BTO) |
| CPU Cooler | |
| 0231ALY4 | 0231ALY4 - R4700LCG5 Server |
| 0231ALYB | 0231ALYB - R4700LCG5 Server |
| 0231ALYE | UN-2P-G5-LC-CPU-UQD04 - R4700/4900LC G5 CPU immersion liquid cooling heat dissipation module (soft pipe direct outlet UQD04)(CTO & BTO) |
| 0231ALYF | 0231ALYF - R4700LCG5 Server |
| 0231ALYM | 0231ALYM - R4700LCG5 Server |
| Processor | |
| 0231AFVQ | 0231AFVQ - H3C Uni Server R4700 G5 6330N (2.2GHz/28 cores/42MB/165W) CPU module (CTO & BTO) |
| 0231AFVS | 0231AFVS - H3C Uni Server R4700 G5 8360Y (2.4GHz/36 cores/54MB/250W) CPU module (CTO & BTO) |
| 0231AFVV | 0231AFVV - H3C Uni Server R4700 G5 8358P (2.6GHz/32 cores/48MB/240W) CPU module (CTO & BTO) |
| 0231AG80 | 0231AG80 - H3C Uni Server R4700 G5 6330 (2.0GHz/28 cores/42MB/205W) CPU module (CTO & BTO) |
| 0231AG82 | 0231AG82 - H3C Uni Server R4700 G5 6338 (2.0GHz/32 cores/48MB/205W) CPU module (CTO & BTO) |
| 0231AGRN | 0231AGRN - H3C Uni Server R4700 G5 4309Y(2.8GHz/8 cores/12MB/105W)CPU module (CTO&BTO) |
| 0231AGS0 | 0231AGS0 - H3C Uni Server R4700 G5 4310(2.1GHz/12 cores/18MB/120W)CPU module (CTO&BTO) |
| 0231AGS4 | 0231AGS4 - H3C Uni Server R4700 G5 4314(2.4GHz/16 cores/24MB/135W)CPU module (CTO&BTO) |
| 0231AGRU | 0231AGRU - H3C Uni Server R4700 G5 4316(2.3GHz/20 cores/30MB/150W)CPU module (CTO&BTO) |
| 0231AGRT | 0231AGRT - H3C Uni Server R4700 G5 5317(3.0GHz/12 cores/18MB/150W)CPU module (CTO&BTO) |
| 0231AGS1 | 0231AGS1 - H3C Uni Server R4700 G5 5318Y(2.1GHz/24 cores/36MB/165W)CPU module (CTO&BTO) |
| 0231AGUB | 0231AGUB - H3C Uni Server R4700 G5 5320(2.2GHz/26 cores/39MB/185W)CPU module (CTO&BTO) |
| 0231AGRW | 0231AGRW - H3C Uni Server R4700 G5 6326(2.9GHz/16 cores/24MB/185W)CPU module (CTO&BTO) |
| 0231AK1H | 0231AK1H - H3C Uni Server R4700 G5 6336Y(2.4GHz/24 cores/36MB/185W)CPU module (CTO&BTO) |
| 0231AG84 | 0231AG84 - H3C Uni Server R4700 G5 6348(2.6GHz/28 cores/42MB/235W)CPU module (CTO&BTO) |
| 0231AKMP | 0231AKMP - R4700LCG5 Server |
| Memory | |
| 0231AF6N | 0231AF6N - R4700LCG5 Server |
| 0231AF6R | 0231AF6R - 16GB 2Rx8 DDR4-3200 CAS-22-22-22 RDIMMMemory Module(CTO&BTO) |
| 0231AM1W | 0231AM1W - 16GB 2Rx8 DDR4-3200AA(CAS-22-22-22)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AM21 | 0231AM21 - R4700LCG5 Server |
| 0231AF76 | UN-DDR4-3200AA-32G-2Rx4-R - 32GB 2Rx4 DDR4-3200 CAS-22-22-22 RDIMMMemory Module(CTO&BTO) |
| 0231AG95 | UN-DDR4-3200AA-32G-2Rx8-R - 32GB 2Rx8 DDR4-3200 CAS-22-22-22 RDIMMMemory Module(CTO&BTO) |
| 0231AM1T | UN-DDR4-3200AA-32G-2Rx8-R-2 - 32GB 2Rx8 DDR4-3200AA(CAS-22-22-22)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AM25 | UN-DDR4-3200AA-32G-2Rx4-R-2 - 32GB 2Rx4 DDR4-3200AA(CAS-22-22-22)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AJ2D | 0231AJ2D - 128GB 4Rx4 DDR4-3200 CAS-26-22-22 3DS SAMSUNG RDIMMMemory Module(CTO&BTO) |
| Expansion Module | |
| 0231AF12 | UN-PCA-BP-4LFF-1U-G5 - H3C Uni Server G5 1U front 4LFF hard drive backplane module (CTO&BTO) |
| M.2 Adapter Card | |
| 0231AF5Q | UN-RC-2M2-G5 - G5 front 2*M.2 2280/22110 Riser module(CTO&BTO) |
| M.2 SSD | |
| 0231ABTD | 0231ABTD - R4700LCG5 Server |
| 0231AGTA | 0231AGTA - R4700LCG5 Server |
| 0231AK1R | 0231AK1R - 480GB 6G SATA RI 5400PRO M.2 SSDHard Drive Module(CTO&BTO) |
| 0231AES6 | 0231AES6 - R4700LCG5 Server |
| 0231AHCQ | UN-SSD-480G-SATA-S4520-M.2 - 480GB SATA RI S4520 M.2 SSDHard Drive Module(CTO&BTO) |
| 0231ABTE | 0231ABTE - R4700LCG5 Server |
| 0231AES4 | 0231AES4 - R4700LCG5 Server |
| SD card | |
| 0231A6RC | UN-SD-32G-Micro-F - 32G microSD mainstream flash drive module (FIO) |
| 0231A7KC | 0231A7KC - R4700LCG5 Server |
| SD card expansion module | |
| 0231A8L1 | UN-DSD-EX-F1 - Dual SD card expansion module (CTO & BTO) |
| Power Supply | |
| 0231A8KP | 0231A8KP - R4700LCG5 Server |
| 0231AGUP | UN-GW-CRPS1300D3 - 1300W AC&240V HVDC power Module (GW-R1-Platinum-low load high efficiency) (CTO&BTO) |
| 0231AJYB | UN-PS-2132-5L5 - 1300W AC & 240V HVDC power Supply Module (LT-R1- Platinum - light-load high efficiency) (CTO&BTO) |
| 0231ACT9 | DPS-1300AB-6 R-M - 1300W AC & 240V High-Voltage DC power Supply Module (DT-R1-Platinum) (CMCTO) |
| 0231AHRV | UN-DD-2162-3L5 - 1600W 48V DC power Supply Module (LT-R1- Platinum) (CTO&BTO) |
| 0231ACTA | DPS-1600AB-13 R-M - 1600W AC & 240V High-Voltage DC power Supply Module (DT-R1-Platinum) (CMCTO) |
| 0231AE25 | GW-CRPS550N-M - 550W AC & 240V HVDC power Module (GW-R1-platinum) (CMCTO) |
| 0231A9CE | 0231A9CE - 550W AC & 240V HVDC power Supply Module (DT-R1-Platinum) (CMCTO) |
| 0231A8KX | 0231A8KX - R4700LCG5 Server |
| 0231AE22 | 0231AE22 - R4700LCG5 Server |
| 0231AGUQ | UN-GW-CRPS800N2 - 800W AC & 240V HVDC power Supply Module (GW-R2-Platinum-Efficient at Light Load) (CTO&BTO) |
| 0231A8L0 | 0231A8L0 - R4700LCG5 Server |
| 0231A6UG | PSR800-12AHD-FIO - 800W 336V HVDC power Supply Module (dedicated power cable) (FP-R1, Platinum) (CMCTO) |
| 0231A8AX | PSR850-12A-FIO - 850W AC & 240V HVDC power Supply Module (DT-R1- Titanium) (CMCTO) |
| 0231A9CJ | DPS-850W-12A-F - 850W AC & 240V High-Voltage DC power Module (DT-R1-Platinum) (CMCTO) |
| 0231A9CF | DPS-800W-12A-48V-F - 800W (-48V)-(-60V) DC power Supply Module (DT-R1, Gold) (CMCTO) |
| Fan | |
| 0231AF10 | UN-FAN-4056-1U-G5 - H3C Uni Server G5 1U 4056Fan Module(CTO&BTO) |
| Adapter Card | |
| 0231AF0Y | UN-RC-2FHFL-1U-SW-G5 - H3C Uni Server G5 1U Riser1 X16X16 Riser (butterfly card) module (CTO&BTO) |
| Fibre Channel controller | |
| 0231A7LG | UN-FC-HBA-LPe32000-32Gb-1P - 1-port 32Gb Fibre Channel HBA card (with one SFP+ optical module) |
| 0231A7LN | UN-FC-HBA-LPe32002-32Gb-2P - 2-port 32Gb optical fiber channel HBA card (with two SFP+ optical modules) |
| 0231A7NB | UN-HBA-16Gb-LPe31000-1P-1 - 1-port 16Gb Fibre Channel HBA card (with one SFP+ module) |
| 0231A7NF | UN-HBA-16Gb-LPe31002-2P-1 - 2-port 16Gb Fibre Channel HBA card (with two SFP+ modules) |
| 0231A7PV | UN-FC-HBA-QLE2742-32Gb-2P-F - 32Gb-2-port-PCIe Fibre Channel HBA card (with two SFP+ optical modules) (FIO) |
| 0231A7Q1 | UN-FC-HBA-QLE2740-32Gb-1P-F - 32Gb-1-port-PCIe optical fiber channel HBA card (with one SFP+ optical module) (FIO) |
| 0231A8JQ | UN-FC-HBA-QLE2690-16Gb-1P-1 - 1-port 16Gb Fibre Channel HBA card (with one SFP+ module) |
| 0231A8JV | UN-FC-HBA-QLE2692-16Gb-2P-1 - 2-port 16Gb Fibre Channel HBA card (with two SFP+ modules) |
| 0231AGHH | UN-FC-HBA-LPe35000-LP-32Gb-1P - 1-port 32Gb Optical Interface LPe35000 AIC FC HBA card (PCIe 4.0) (comes with one SFP+ optical module) (CTO&BTO) |
| 0231AGHJ | UN-FC-HBA-LPe35002-LP-32Gb-2P - 2-port 32Gb Optical Interface LPe35002 AIC FC HBA card (PCIe 4.0) (comes with two SFP+ optical modules) (CTO&BTO) |
| Standard Control Card (PCIe Standard Card) | |
| 0231A8JY | 0231A8JY - LSI 9361-8i 12G SAS RAID card module (supports 8 x SAS Ports, with 1GB cache, PCIe, excluding power-loss protection module) (CMCTO) |
| 0231A8K4 | 0231A8K4 - LSI 9361-8i 12G SAS RAID card module (supports 8 x SAS Ports, with 2GB cache, PCIe, excluding power-loss protection module) (CMCTO) |
| 0231A8KA | UN-HBA-LSI-9300-8i-A1 - LSI 9300-8i 12G SAS HBA card module (supports 8 x SAS Ports, PCIe) (CMCTO) |
| 0231AB06 | UN-HBA-LSI-9311-8i-F - LSI 9311-8i 12G SAS HBA card module (supports 8 x SAS Ports, PCIe) (CMCTO) |
| 0231A8B5 | UN-RAID-LSI-9460-8i(2G)-F - LSI 9460-8i 12G SAS RAID card module (supports 8 SAS Ports, with 2GB cache, PCIe, without supercapacitor) (CMCTO) |
| 0231A8B0 | UN-HBA-LSI-9440-8i-F - LSI 9440-8i 12G SAS HBA card module (supports 8 x SAS Ports, PCIe) (CMCTO) |
| 0231AG62 | UN-RAID-LSI-9560-LP-8i-4GB - LSI 9560-8i 12G SAS RAID card module (supports 8 SAS Ports, with 4GB cache, PCIe, without supercapacitor) (CTO&BTO) |
| 0231A8P1 | UN-RAID-P460-B4-F - P460-B4 12G SAS RAID card module (supports 8 SAS Ports, with 4GB cache, excluding supercapacitor) (CMCTO) |
| 0231AAUF | 0231AAUF - P460-B2 12G SAS RAID card module (supports 8 SAS ports, with 2GB cache, excluding supercapacitor) (CMCTO) |
| 0231A8ND | UN-HBA-H460-B1-F - H460-B1 12G SAS HBA card module (supports 8 SAS ports, PCIe) (CMCTO) |
| M.2 Array Card | |
| 0231AGT9 | UN-RAID-MARVELL-SANTACRUZ-LP-2i - MARVELL Santa Cruz M.2 RAID card (supports 2 M.2 NVMe Ports, PCIe) (CTO&BTO) |
| Battery | |
| 0231A6R5 | UN-Flash-LSI-G2-1U-A-F - LSI G2 power-loss protection module A (including supercapacitor) (1U standard RAID card) (FIO) |
| 0231A8B1 | UN-BAT-LSI-G3-1U-A-F - LSI G3 supercapacitor module (for 1U models) (FIO) |
| 0231A8AW | UN-BAT-PMC-G3-1U-A-F - PMC G3 supercapacitor module (for 1U on-board/standard cards) (FIO) |
| VROCModule(Supports NVMe Hard DriveRAID) | |
| 0231A6R6 | UN-NVMe-VROC-Key-S-F - Intel NVMe VROC module - Standard edition (FIO) |
| 0231A6R8 | UN-NVMe-VROC-Key-P-F - Intel NVMe VROC module - Advanced edition (FIO) |
| 0231A7LJ | UN-NVMe-VROC-Key-i-F - Intel NVMe VROC module - Intel edition (FIO) |
| Graphics Card | |
| 0231AJWA | UN-GPU-A2-16GB-NoCEC - Nvidia Tesla A2 16GB Non-CEC GPUModule(CTO&BTO) |
| 0231ABT8 | UN-GPU-T4-F - T4 Display Acceleration Card (FIO) |
| Network Adapter | |
| 0231A7GL | 0231A7GL - R4700LCG5 Server |
| 0231A7GM | 0231A7GM - R4700LCG5 Server |
| Optical Module | |
| 0231AFUN | UN-CAB-IB-DAC-MCP1600-E003E26-3m - Mellanox 3m EDR 100G DAC Cable (CTO&BTO) |
| 0231AC16 | QSFP-100G-SR4-MM850-CM - 100G QSFP28 optical module (850nm, 100m OM4, SR4, MPO) (FIO) |
| 0231A9VY | 0231A9VY - R4700LCG5 Server |
| 0231AEC7 | 0231AEC7 - 1-port 100Gb QSFP28 Optical Interface MCX515A-CCAT Ethernet NIC (CMCTO) |
| 0231AFUR | 0231AFUR - R4700LCG5 Server |
| 0231AFUP | UN-CAB-IB-DAC-MCP7H50-V002R26-2m - Mellanox 2m HDR100 100G DAC breakout cable (CTO&BTO) |
| 0231ADWS | 0231ADWS - 2-Port100GEoptical interface Network Adapter(QSFP28)(CTO&BTO) |
| 0231AEC8 | UN-NIC-ETH-MCX516A-CCAT-2P-M - 100Gb 2-Port QSFP28 Optical Interface MCX516A-CCAT Ethernet Card (CMCTO) |
| 0231AF89 | 0231AF89 - R4700LCG5 Server |
| 0231AFUS | UN-IB-MCX653106A-ECAT-100Gb-2P - 100Gb 2-Port Infiniband HDR/Ethernet Adapter Card (Supports QSFP56 Optical Modules) (CTO&BTO) |
| 0231AGJA | UN-NIC-ETH-MCX623106AN-CDAT-2P - 2-Port100Gb QSFP56optical interfaceMCX623106AN-CDATNetwork Adapter(CTO&BTO) |
| 0231AC0U | QSFP-40G-SR4-MM850-CM - QSFP+ 40G optical module (850nm, 100m, SR4, supports 1 to 4) (FIO) |
| 0231AH2Y | UN-NIC-BCM957508-P2100G-2P - 2-port 100Gb QSFP56 Optical Interface BCM957508-P2100G Ethernet card (CTO&BTO) |
| 0231A7PW | UN-NIC-BCM957412-F-B-10Gb-2P-F - 2-Port10GEoptical interface Network Adapter(BCM957412)(FIO) |
| 0231A8KB | UN-SFP-XG-SX-MM850-E1 - SFP+ 10GModule(850nm,300m,LC) |
| 0231AC0T | SFP-XG-LX-SM1310-CM - SFP+ 10GModule(1310nm,10km,LC)(FIO) |
| 0231A7Q0 | 0231A7Q0 - R4700LCG5 Server |
| 0231A8K2 | UN-CNA-10GE-2P-560F-B2-1 - 2-Port10Goptical interface Network Adapter(SFP+)-560F-B2 |
| 0231AC0Y | SFP-GE-SX-MM850-CM - Optical module - SFP-GE-multimode optical module (850nm, 0.55km, LC) (FIO) |
| 0231A8K9 | UN-NIC-10GE-2P-530F-B2-1 - 2-Port10Goptical interface Network Adapter(SFP+)-530F-B2 |
| 0231A9AU | UN-NIC-X710DA2-F-B-10Gb-2P-F2 - 2-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231A9B7 | UN-NIC-X520DA2-F-B-10Gb-2P-F - 2-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231AABV | 0231AABV - R4700LCG5 Server |
| 0231AES1 | 0231AES1 - R4700LCG5 Server |
| 0231AFRV | UN-NIC-ETH531F-LP-2P - 2-Port10GEoptical interface Network Adapter(CTO&BTO) |
| 0231A7WC | UN-NIC-X710DA4-F-B-10Gb-4P-F - 4-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231A7NA | UN-CNA-560T-B2-10Gb-2P-1 - 2-Port10Gbelectrical interface Network Adapter-560T-B2 |
| 0231A7PX | UN-NIC-BCM957416-T-B-10Gb-2P-F - 2-Port10GEelectrical interface Network Adapter(BCM957416)(FIO) |
| 0231A8K1 | UN-NIC-GE-4P-360T-B2-1 - 4-Port Gigabitelectrical interface Network Adapter-360T-B2 |
| 0231AB04 | 0231AB04 - R4700LCG5 Server |
| 0231AJG0 | UN-NIC-BCM95719A1904AC-LP-4P - R4700LCG5 Server |
| 0231AJWJ | UN-NIC-X550T2G1P5-LP-2P - 2-Port10GEelectrical interface Network Adapter(X550T2)(for SA)(CTO&BTO) |
| 0231AK5Y | UN-NIC-ETH330T-LP-4P - 4-PortGEelectrical interface Network Adapter(CTO&BTO) |
| 0231AFN8 | UN-IB-MCX653105A-HDAT-200Gb-1P - 200Gb 1-Port Infini Band HDR/Ethernet Adapter Card (Supports QSFP56 Optical Modules) (CTO&BTO) |
| 0231A7G6 | UN-NIC-MCX4121A-F-B-25Gb-2P-F - 2-Port25Gboptical interface Network Adapter(SFP28)(FIO) |
| 0231A7N6 | SFP-25G-SR-MM850-1 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231A7GN | 0231A7GN - 2-Port25GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231A7NH | UN-NIC-620F-B2-25Gb-2P-1 - 2-Port25Gboptical interface Network Adapter(SFP+)-620F-B2 |
| 0231A7Q2 | UN-NIC-BCM957414-F-B-25Gb-2P-F - 2-Port25GEoptical interface Network Adapter(BCM957414)(FIO) |
| 0231AB5W | UN-NIC-MCX512A-ACAT-F-2*25Gb-F - 2-Port25Gboptical interface Network Adapter(SFP28)(MCX512A-ACAT)(FIO) |
| 0231AF8A | UN-NIC-X2522-25Gb-2P-M - 2-port 25Gb SFP28 Optical Interface X2522-25G-PLUS low-latency network card (CTO&BTO) |
| 0231AFGV | 0231AFGV - R4700LCG5 Server |
| 0231AFUG | UN-NIC-ETH-MCX631102AN-ADAT - 2-port 25Gb SFP28 Optical Interface MCX631102AN-ADAT Ethernet card (CTO&BTO) |
| 0231AG88 | UN-NIC-ETH-E810XXVDA2G1P5-2P - 2-port 25Gb SFP28 Optical Interface E810XXVDA2G1P5 Ethernet card (CTO&BTO) |
| 0231AB60 | 0231AB60 - R4700LCG5 Server |
| 0231AB61 | 0231AB61 - R4700LCG5 Server |
| 0231A9C4 | 0231A9C4 - R4700LCG5 Server |
| OCPNetwork Adapter | |
| 0231AKMH | UN-NIC-BCM957508-N2100G-3S-2P - 2-Port100Gb QSFP56optical interfaceBCM957508-N2100G OCP3.0Network Adapter(CTO&BTO) |
| 0231AEBU | UN-NIC-ETH360T-3S-4P - 4-Port1GEelectrical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AEBV | UN-NIC-ETH565T-3S-2P - 2-Port10GEelectrical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AEBX | 0231AEBX - R4700LCG5 Server |
| 0231AEBY | UN-NIC-ETH561F-3S-2P - 2-Port10GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231ABWF | UN-NIC-MCX4621A-ACAB-2*25G-M - 2-Port25G OCP3.0Network Adapter(MCX4621A-ACAB)(FIO) |
| 0231AEBW | UN-NIC-ETH640F-3S-2P - 2-Port25GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AFH3 | UN-NIC-ETH660F-3S-2P - 2-Port25GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AG96 | UN-NIC-ETH-MCX631432AN-ADAB-2P - 2-Port25Gb SFP28optical interfaceMCX631432AN OCP3.0Network Adapter(CTO&BTO) |
| 0231AGL9 | 0231AGL9 - R4700LCG5 Server |
| SSD Acceleration Card | |
| 0231AHWE | UN-SSD-3.2T-NVMe-PB6536-AIC - 3.2T NVMe SSD PB6 6536 SSD PCIe acceleration card module (CTO&BTO) |
| 0231AEY1 | UN-SSD-3.2T-NVME-PB926-AIC-M - 3.2T NVMe SSD MU PBlaze5 926 PCIe accelerator card (CMCTO) |
| 0231AJ64 | UN-SSD-6.4T-NVMe-PB6536-AIC - 6.4T NVMe SSD PB6 6536 SSD PCIe acceleration card module (CTO&BTO) |
| 0231AJWF | 0231AJWF - R4700LCG5 Server |
| 0231ABXU | 0231ABXU - R4700LCG5 Server |
| Security Hardware | |
| 0231AG60 | UN-TCM-SPI-A - H3C server platform trusted module SPI TCM (CTO&BTO) |
| 0231AG5Y | UN-TPM-SPI-A - H3C server series trusted platform module SPI TPM (CTO&BTO) |
| Optical Drive | |
| 0231A6R9 | 0231A6R9 - Mobile USB 2.0 interface read/write optical drive module (FIO) |
| Rack Rail | |
| 0231APX9 | UN-RL-G-G6 - G6 2U/1U Ball Screw Guide Rails (CTO & BTO) |
| 0231AFT2 | UN-RL-B-G5 - G5 2U/1U Standard Slides (CTO & BTO) |
| 0231AF5B | UN-RL-G-G5 - G5 2U/1U Ball-Bearings Slides (CTO & BTO) |
| Cable Management Tray | |
| 2150A0EF | CMA-1U-A - 1U Cable Management Rack |
| 0231AQCN | UN-CMA-1U-G6 - G6 1U Cable Management Rack (CTO & BTO) |
| Security Panel | |
| 0231AFLS | UN-SEC-Panel-1U-G5 - H3C Uni Server G5 1U intelligent security panel (CTO&BTO) |
| Ear Hook | |
| 0231AFLU | UN-EAR-QE-1U-LED-G5 - H3C Uni Server G5 1U ear handles (supports intelligent security panel) (CTO&BTO) |
| Liquid Leak Power-Off Policy | |
| CPULNEED | CPULNEED - R4700LCG5 Server |
| Is customization Required? | |
| CUSTNEED | CUSTNEED - R4700LCG5 Server |
| Customized module | |
| 0231A8A6 | UN-CTM-G3-F - H3C customer-specific customization module (1H) (FIO) |
| Installing Services | |
| 8814A0CP | SV-PS-UN - H3C server first basic installation service |
| Operating System Compatibility Verification | |
| BATJOSXX | BATJOSXX - R4700LCG5 Server |
| OSCHECKX | OSCHECKX - R4700LCG5 Server |
| Windows | |
| 2016R0HY | 2016R0HY - R4700LCG5 Server |
| 2019R0HY | 2019R0HY - R4700LCG5 Server |
| WNDS2016 | WNDS2016 - R4700LCG5 Server |
| 2019R0XX | 2019R0XX - R4700LCG5 Server |
| 2022R0XX | 2022R0XX - R4700LCG5 Server |
| linux | |
| ORACLN79 | ORACLN79 - R4700LCG5 Server |
| ORACLN82 | ORACLN82 - R4700LCG5 Server |
| ORACLN83 | ORACLN83 - R4700LCG5 Server |
| ORACLN84 | ORACLN84 - R4700LCG5 Server |
| 79ENTHAT | 79ENTHAT - R4700LCG5 Server |
| 82ENTHAT | 82ENTHAT - R4700LCG5 Server |
| 83ENTHAT | 83ENTHAT - R4700LCG5 Server |
| 84ENTHAT | 84ENTHAT - R4700LCG5 Server |
| 85ENTHAT | 85ENTHAT - R4700LCG5 Server |
| 86ENTHAT | 86ENTHAT - R4700LCG5 Server |
| 87ENTHAT | 87ENTHAT - R4700LCG5 Server |
| 88ENTHAT | 88ENTHAT - R4700LCG5 Server |
| 89ENTHAT | 89ENTHAT - R4700LCG5 Server |
| 90ENTHAT | 90ENTHAT - R4700LCG5 Server |
| 91ENTHAT | 91ENTHAT - R4700LCG5 Server |
| ROCKYL86 | ROCKYL86 - R4700LCG5 Server |
| ROCKYL87 | ROCKYL87 - R4700LCG5 Server |
| ROCKYL88 | ROCKYL88 - R4700LCG5 Server |
| ROCKYL89 | ROCKYL89 - R4700LCG5 Server |
| ROCKYL90 | ROCKYL90 - R4700LCG5 Server |
| ROCKYL91 | ROCKYL91 - R4700LCG5 Server |
| SLE15SP2 | SLE15SP2 - R4700LCG5 Server |
| SLE15SP3 | SLE15SP3 - R4700LCG5 Server |
| UB1845HK | UB1845HK - R4700LCG5 Server |
| UBSE204X | UBSE204X - R4700LCG5 Server |
| UBSE2041 | UBSE2041 - R4700LCG5 Server |
| UBSE2042 | UBSE2042 - R4700LCG5 Server |
| UBSE2044 | UBSE2044 - R4700LCG5 Server |
| UBSE2245 | UBSE2245 - R4700LCG5 Server |
| O2003S2B | O2003S2B - R4700LCG5 Server |
| HyperVisors | |
| CASE0706 | CASE0706 - R4700LCG5 Server |
| CTXS82XX | CTXS82XX - R4700LCG5 Server |
| VMES67U3 | VMES67U3 - R4700LCG5 Server |
| VMES70U2 | VMES70U2 - R4700LCG5 Server |
| VMES70U3 | VMES70U3 - R4700LCG5 Server |
| Community/Regional Enabled Oss | |
| CENTOS79 | CENTOS79 - R4700LCG5 Server |
| CENTOS82 | CENTOS82 - R4700LCG5 Server |
| CENTOS83 | CENTOS83 - R4700LCG5 Server |
| CENTOS84 | CENTOS84 - R4700LCG5 Server |
| CENTOS85 | CENTOS85 - R4700LCG5 Server |
| Zhongbiao Kylin | |
| HNQL32XX | HNQL32XX - R4700LCG5 Server |
| ZBQL10X1 | ZBQL10X1 - R4700LCG5 Server |
| ZBQL10X2 | ZBQL10X2 - R4700LCG5 Server |
| ZBQLGF76 | ZBQLGF76 - R4700LCG5 Server |
| Zhongke Hongqi | |
| ZKHQAS79 | ZKHQAS79 - R4700LCG5 Server |
| ZKHQA7U8 | ZKHQA7U8 - R4700LCG5 Server |
| ZKHQAS80 | ZKHQAS80 - R4700LCG5 Server |
| Other Operating Systems | |
| NINGV312 | NINGV312 - R4700LCG5 Server |
| OTHERSOS | OTHERSOS - R4700LCG5 Server |
| Product Identity | |
| Brand | H3C |
| Series | H3C R4700LC G5 rack server |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the Optical Drive specification for UN-R4700LC-G5-LFF-C?
UN-R4700LC-G5-LFF-C lists Optical Drive as Supports external optical drive. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Authentication specification for UN-R4700LC-G5-LFF-C?
UN-R4700LC-G5-LFF-C lists Authentication as Supports CCCetc. Authentication. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Model specification for UN-R4700LC-G5-LFF-C?
UN-R4700LC-G5-LFF-C lists Model as UN-R4700LC-G5-LFF-C. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Product Code specification for UN-R4700LC-G5-LFF-C?
UN-R4700LC-G5-LFF-C lists Product Code as 0235A4PF. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
