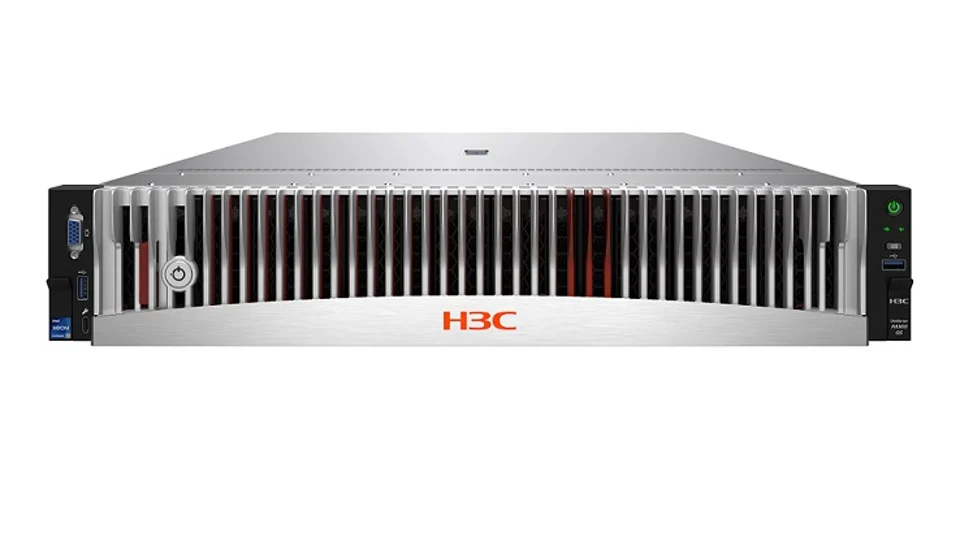

H3C UN-R4900-G5-SFF-C Uni Server R4900 G5 SFF CTOServers
Brand H3C
N/AVerified
H3C UN-R4900-G5-SFF-C
Model (MPN)
0235A2RA
Condition
Factory Sealed
Out of Stock
H3C UN-R4900-G5-SFF-C Uni Server R4900 G5 SFF CTOServers. GPU Support: Supports up to 4 dual-width GPU cards or 14 single-width GPU cards. Processor: Supports up to 2 Intel® Xeon® 3rd Gen Scalable family processors or Tyanxijun® Zhenye processor series, up to 40 cores per processor, maximum power 270W. Memory: Supports up to 32 DDR4 memory slots, speed up to 3200MT/s, supports RDIMM or LRDIMM; up to 16 Intel® Optane®
Key Specifications
DescriptionH3C Uni Server R4900 G5 SFF CTOServers
InterfaceStandard: 1 front VGA, 1 rear VGA, and 1 serial port; 6× USB 3.0 (2 front, 2 rear, 2 internal); 1 front dedicated management interface
Dimensions/Chassis Size2U chassis: 87.5mm (H) × 445.4mm (W) × 748mm (D) (excluding safety panel); 87.5mm (H) × 445.4mm (W) × 776mm (D) (including safety panel)
operating temperature5°C - 45°C (working temperature depends on different configurations; for details, refer to the detailed product technical documentation)
ProcessorSupports up to 2 Intel® Xeon® 3rd Gen Scalable family processors or Tyanxijun® Zhenye processor series, up to 40 cores per processor, maximum power 270W
ChipsetIntel® C621A
Your Price
Best Value
$157.10
List Price: $1,571.00Save 90%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C Uni Server R4900 G5 SFF CTOServers |
| Key Specifications | |
| Interface | Standard: 1 front VGA, 1 rear VGA, and 1 serial port; 6× USB 3.0 (2 front, 2 rear, 2 internal); 1 front dedicated management interface |
| Dimensions/Chassis Size | 2U chassis: 87.5mm (H) × 445.4mm (W) × 748mm (D) (excluding safety panel); 87.5mm (H) × 445.4mm (W) × 776mm (D) (including safety panel) |
| operating temperature | 5°C - 45°C (working temperature depends on different configurations; for details, refer to the detailed product technical documentation) |
| Processor | Supports up to 2 Intel® Xeon® 3rd Gen Scalable family processors or Tyanxijun® Zhenye processor series, up to 40 cores per processor, maximum power 270W |
| Chipset | Intel® C621A |
| Memory | Supports up to 32 DDR4 memory slots, speed up to 3200MT/s, supports RDIMM or LRDIMM; up to 16 Intel® Optane® Persistent Memory PMem 200 Series with a maximum capacity of 6TB per single-processor |
| Product Specifications | |
| Processor | Supports up to 2 Intel® Xeon® 3rd Gen Scalable family processors or Tyanxijun® Zhenye processor series, up to 40 cores per processor, maximum power 270W |
| Chipset | Intel® C621A |
| Memory | Supports up to 32 DDR4 memory slots, speed up to 3200MT/s, supports RDIMM or LRDIMM; up to 16 Intel® Optane® Persistent Memory PMem 200 Series with a maximum capacity of 6TB per single-processor |
| Storage Controller | Standard onboard array controller; supports SATA RAID 0/1/10/5; Optional HBA cards and array cards based on standard PCIe slots |
| FBWC | Optional support for up to 8GB cache; supports supercapacitor protection |
| Storage | Supports up to 41 drives (37x 2.5-inch drives, 4x 3.5-inch drives). Supports up to 20x 3.5-inch drives (12 front, 4 internal expansion, 4 rear expansion); supports up to 37x 2.5-inch drives (25 front, 8 internal expansion, 4 rear expansion). Supports SAS/SATA HDD/SSD. Supports front/internal NVMe drives, supports up to 32 NVMe drive slots. Supports PCIe NVMe storage acceleration cards. Supports SATA and PCIe M.2 options. Supports 2x Micro SD card kits |
| Network | 1 onboard 1Gbps dedicated management Ethernet port. Optional up to 2 OCP 3.0 network adapters; Optional expansion of 4×1GE electrical ports or 2×10GE electrical/optical ports or 2×25GE optical ports. Optional network adapters based on standard PCIe expansion slots; supports 1/10/25/40/100/200 GE network cards; IB cards |
| extended slot | Supports up to 14 PCIe 4.0 standard slots and 1 OCP 3.0 slot (PCIe 4.0 speeds) |
| Interface | Standard: 1 front VGA, 1 rear VGA, and 1 serial port; 6× USB 3.0 (2 front, 2 rear, 2 internal); 1 front dedicated management interface |
| GPU Support | Supports up to 4 dual-width GPU cards or 14 single-width GPU cards |
| Optical Drive | Supports external optical drive |
| Management | HDM agentless management tool (with a dedicated management port) and H3C Uni System management software; supports LCD touch intelligent management module; supports an Optional U-Center data center management platform with 64M local display memory |
| Security | Supports secure chassis, TCM/TPM security modules, and two-factor authentication |
| Power Supply and Cooling | Optional Platinum-grade 550W/800W/850W/1200W/1300W/1600W/2000W 1+1 redundant power supplies; Optional Titanium-grade power supplies. Optional 800W -48V/336V DC power Supply Module; supports 1+1 redundancy; hot-swappable redundant fans |
| Authentication | Supports CCC, SEPAetc.Authentication |
| operating temperature | 5°C - 45°C (working temperature depends on different configurations; for details, refer to the detailed product technical documentation) |
| Dimensions/Chassis Size | 2U chassis: 87.5mm (H) × 445.4mm (W) × 748mm (D) (excluding safety panel); 87.5mm (H) × 445.4mm (W) × 776mm (D) (including safety panel) |
| Warranty | 3 years, 5×9, Next Business Day (NBD) response |
| Ordering Information | |
| processors without heat sinks | |
| 0231AKS2 | 0231AKS2 - 4309Y (2.8GHz/8 cores/12MB/105W) CPU module (CTO&BTO) |
| 0231AKSW | 0231AKSW - 4310(2.1GHz/12 cores/18MB/120W)CPU module(ODM-T)(CTO&BTO) |
| 0231AKSY | 0231AKSY - 4310 (2.1GHz/12 cores/18MB/120W) CPU module (CTO&BTO) |
| 0231AL1S | 0231AL1S - 4310(2.1GHz/12 cores/18MB/120W)CPU module(ODM-B)(CTO&BTO) |
| 0231AKS8 | 0231AKS8 - 4314 (2.4GHz/16 cores/24MB/135W) CPU module (ODM-K) (CTO&BTO) |
| 0231AKT0 | UN-CPU-INTEL-4314 - 4314 (2.4GHz/16 cores/24MB/135W) CPU module (CTO & BTO) |
| 0231AKT4 | 0231AKT4 - 4314(2.4GHz/16 cores/24MB/135W)CPU module(ODM-Z)(CTO&BTO) |
| 0231AL19 | 0231AL19 - 4314(2.4GHz/16 cores/24MB/135W)CPU module(ODM-B)(CTO&BTO) |
| 0231ALJM | 0231ALJM - 4314 (2.4GHz/16 cores/24MB/135W) CPU module (ODM-T) (CTO&BTO) |
| 0231AKSA | 0231AKSA - 4316 (2.3GHz/20 cores/30MB/150W) CPU module (CTO&BTO) |
| 0231AKR4 | 0231AKR4 - 5315Y(3.2GHz/8 cores/12MB/140W)CPU module(CTO&BTO) |
| 0231AKSE | 0231AKSE - 5317(3.0GHz/12 cores/18MB/150W)CPU module(CTO&BTO) |
| 0231AKTJ | 0231AKTJ - 5318N(2.1GHz/24 cores/36MB/150W)CPU module(CTO&BTO) |
| 0231AKTQ | 0231AKTQ - R4900G5 Server |
| 0231AKSG | 0231AKSG - 5318Y(2.1GHz/24 cores/36MB/165W)CPU module(ODM-T)(CTO&BTO) |
| 0231AKTR | UN-CPU-INTEL-5318Y - 5318Y (2.1GHz/24-core/36MB/165W) CPU module (CTO&BTO) |
| 0231AL28 | 0231AL28 - 5318Y(2.1GHz/24 cores/36MB/165W)CPU module(ODM-B)(CTO&BTO) |
| 0231AKRM | UN-CPU-INTEL-5320 - 5320 (2.2GHz/26-core/39MB/185W) CPU module (CTO&BTO) |
| 0231AKTK | 0231AKTK - 5320T(2.3GHz/20c/30MB/150W)CPUModule(CTO&BTO) |
| 0231AKRP | UN-CPU-INTEL-6326 - 6326 (2.9GHz/16-core/24MB/185W) CPU module (CTO&BTO) |
| 0231AKTV | UN-CPU-INTEL-6330 - 6330 (2.0GHz/28-core/42MB/205W) CPU module (CTO&BTO) |
| 0231AKRJ | 0231AKRJ - 6330N(2.2GHz/28 cores/42MB/165W)CPU module(CTO&BTO) |
| 0231AKTU | 0231AKTU - 6334(3.6GHz/8-core/18MB/165W)CPU module(CTO&BTO) |
| 0231AKRQ | 0231AKRQ - 6336Y(2.4GHz/24-cores/36MB/185W)CPU module(CTO&BTO) |
| 0231ALJN | 0231ALJN - 6336Y (2.4GHz/24 cores/36MB/185W) CPU module (ODM-T) (CTO&BTO) |
| 0231AKT5 | 0231AKT5 - 6338(2.0GHz/32-core/48MB/205W)CPU module(CTO&BTO) |
| 0231AKRR | 0231AKRR - 6338N(2.2GHz/32c/48MB/185W)CPUModule(CTO&BTO) |
| 0231AKRU | 0231AKRU - 6338T(2.1GHz/24c/36MB/165W)CPUModule(CTO&BTO) |
| 0231AKT8 | 0231AKT8 - 6342(2.8GHz/24 cores/36MB/230W)CPU module(CTO&BTO) |
| 0231AL2E | 0231AL2E - R4900G5 Server |
| 0231AKT9 | 0231AKT9 - 6346(3.1GHz/16 cores/36MB/205W)CPU module(CTO&BTO) |
| 0231AL1T | 0231AL1T - R4900G5 Server |
| 0231AKSQ | UN-CPU-INTEL-6348 - 6348 (2.6GHz/28-core/42MB/235W) CPU module (CTO&BTO) |
| 0231AKST | 0231AKST - 6354(3.0GHz/18-core/39MB/205W)CPU module(CTO&BTO) |
| 0231AKTG | 0231AKTG - 8333B (2.6GHz/24 cores/36MB/205W) CPU module (ODM-T) (CTO&BTO) |
| 0231AKR0 | 0231AKR0 - R4900G5 Server |
| 0231AKS6 | 0231AKS6 - 8338C (2.6GHz/32 cores/48MB/230W) CPU module (ODM-J) (CTO&BTO) |
| 0231AKTF | 0231AKTF - R4900G5 Server |
| 0231AKRE | 0231AKRE - 8352M (2.3GHz/32 cores/48MB/185W) CPU module (CTO&BTO) |
| 0231AKTL | 0231AKTL - 8352S(2.2GHz/32c/48MB/205W)CPUModule(CTO&BTO) |
| 0231AKR9 | 0231AKR9 - 8352V (2.1GHz/36 cores/54MB/195W) CPU module (CTO&BTO) |
| 0231AKRB | 0231AKRB - 8352Y(2.2GHz/32-cores/48MB/205W)CPU module(CTO&BTO) |
| 0231AKS7 | 0231AKS7 - 8352Y(2.2GHz/32-core/48MB/205W)CPU module(ODM-K)(CTO&BTO) |
| 0231AKSS | 0231AKSS - 8358(2.6GHz/32-cores/48MB/250W)CPU module(CTO&BTO) |
| 0231AKRN | 0231AKRN - 8358P(2.6GHz/32-cores/48MB/240W)CPU module(CTO&BTO) |
| 0231AKSP | 0231AKSP - 8360Y(2.4GHz/36-cores/54MB/250W)CPU module(CTO&BTO) |
| 0231AKRX | 0231AKRX - 8362(2.8GHz/32-cores/48MB/265W)CPU module(CTO&BTO) |
| 0231AKS0 | 0231AKS0 - 8368(2.4GHz/38 cores/57MB/270W)CPU module (CTO&BTO) |
| 0231AL2A | 0231AL2A - 8368(2.4GHz/38-cores/57MB/270W)CPU module(ODM-B)(CTO&BTO) |
| 0231AKSR | 0231AKSR - 8368Q(2.6GHz/38c/57MB/270W)CPUModule(CTO&BTO) |
| 0231AKRD | 0231AKRD - 8372C(3.2GHz/28-core/42MB/270W)CPU module(ODM-T)(CTO&BTO) |
| 0231AKSF | 0231AKSF - 8374C(2.7GHz/36-core/54MB/270W)CPU module(ODM-T)(CTO&BTO) |
| 0231AMSR | 0231AMSR - 8374C(2.7GHz/36-core/54MB/270W)CPU module(H3C no maintenance coverage)(AVAP)(ODM-T)(CMCTO) |
| 0231AN4Q | 0231AN4Q - 8374C(2.7GHz/36-core/54MB/270W)CPU module(BS)(ODM-T)(CTO&BTO) |
| 0231AKR5 | 0231AKR5 - 8378A(3.0GHz/32-core/48MB/300W)CPU module(ODM-D)(CTO&BTO) |
| 0231ANJW | 0231ANJW - 8378A(3.0GHz/32-core/48MB/300W)CPU module(for cloud desktop project)(CTO&BTO) |
| 0231ANX8 | 0231ANX8 - 8378A(3.0GHz/32-core/48MB/300W)CPU module(AVAP)(ODM-Y)(CTO&BTO) |
| 0231AKR6 | 0231AKR6 - 8378C(2.8GHz/38-core/57MB/290W)CPU module(ODM-D)(CTO&BTO) |
| 0231AKT1 | 0231AKT1 - 8378C(2.8GHz/38-core/57MB/290W)CPU module(ODM-Y)(CTO&BTO) |
| 0231ANK6 | 0231ANK6 - 8378C(2.8GHz/38-core/57MB/290W)CPU module(for cloud desktop project)(CTO&BTO) |
| 0231AKS3 | 0231AKS3 - 8380(2.3GHz/40 cores/60MB/270W)CPU module (CTO&BTO) |
| 0231AKRC | 0231AKRC - C4310(2.1GHz/12 cores/18MB/120W)CPU module (CTO&BTO) |
| 0231AKRF | 0231AKRF - C4314(2.4GHz/16 cores/24MB/135W)CPU module (CTO&BTO) |
| 0231AKSD | 0231AKSD - R4900G5 Server |
| 0231AKSH | 0231AKSH - C5318Y(2.1GHz/24 cores/36MB/165W)CPU module (CTO&BTO) |
| 0231AKSK | 0231AKSK - C6326(2.9GHz/16c/24MB/185W)CPUModule(CTO&BTO) |
| 0231AKT6 | 0231AKT6 - C6330(2.0GHz/28 cores/42MB/205W)CPU module (CTO&BTO) |
| 0231AKT7 | 0231AKT7 - C6342(2.8GHz/24 cores/36MB/230W)CPU module (CTO&BTO) |
| 0231AKTB | 0231AKTB - R4900G5 Server |
| 0231AKR1 | 0231AKR1 - C6348(2.6GHz/28c/42MB/235W)CPUModule(CTO&BTO) |
| Processor | |
| 0231AGRY | 0231AGRY - H3C Uni Server R4900 G5 4309Y (2.8GHz/8-core/12MB/105W) CPU module (CTO&BTO) |
| 0231AGRP | 0231AGRP - H3C Uni Server R4900 G5 4310 (2.1GHz/12-core/18MB/120W) CPU module (CTO&BTO) |
| 0231AJ8B | 0231AJ8B - H3C Uni Server R4900 G5/R4300 G5 4310 (2.1GHz/12-core/18MB/120W) CPU module (ODM-T) (CTO&BTO) |
| 0231AGS6 | 0231AGS6 - H3C Uni Server R4900 G5 4314 (2.4GHz/16-core/24MB/135W) CPU module (CTO&BTO) |
| 0231AHA4 | 0231AHA4 - H3C Uni Server R4900 G5 4314 (2.4GHz/16-core/24MB/135W) CPU module (ODM-A) (CTO&BTO) |
| 0231AKX9 | 0231AKX9 - H3C Uni Server R4900 G5 4314 (2.4GHz/16-core/24MB/135W) CPU module (ODM-J) (CTO&BTO) |
| 0231AGRQ | 0231AGRQ - H3C Uni Server R4900 G5 4316 (2.3GHz/20-core/30MB/150W) CPU module (CTO&BTO) |
| 0231AHTC | 0231AHTC - H3C Uni Server R4900 G5 5315Y (3.2GHz/8-core/12MB/140W) CPU module (CTO&BTO) |
| 0231AGS5 | 0231AGS5 - H3C Uni Server R4900 G5 5317 (3.0GHz/12-core/18MB/150W) CPU module (CTO&BTO) |
| 0231AHT2 | 0231AHT2 - H3C Uni Server R4900 G5 5318N (2.1GHz/24-core/36MB/150W) CPU module (CTO&BTO) |
| 0231AH8W | 0231AH8W - H3C Uni Server R4900 G5 5318S(2.1GHz/24-core/36MB/165W) CPU module(CTO&BTO) |
| 0231AHAQ | 0231AHAQ - H3C Uni Server R4900 G5 5318Y (2.1GHz/24-core/36MB/165W) CPU module (ODM-A) (CTO&BTO) |
| 0231AJ8H | 0231AJ8H - H3C Uni Server R4900 G5/R4300 G5 5318Y (2.1GHz/24-core/36MB/165W) CPU module (ODM-T) (CTO&BTO) |
| 0231AGUC | 0231AGUC - H3C Uni Server R4900 G5 5320 (2.2GHz/26-core/39MB/185W) CPU module (CTO&BTO) |
| 0231AK40 | 0231AK40 - R4900G5 Server |
| 0231AGS2 | 0231AGS2 - H3C Uni Server R4900 G5 6326 (2.9GHz/16-core/24MB/185W) CPU module (CTO&BTO) |
| 0231AG83 | 0231AG83 - H3C Uni Server R4900 G5 6330 (2.0GHz/28-core/42MB/205W) CPU module (CTO&BTO) |
| 0231AK3X | 0231AK3X - R4900G5 Server |
| 0231AFVR | 0231AFVR - H3C Uni Server R4900 G5 6330N (2.2GHz/28-core/42MB/165W) CPU module (CTO&BTO) |
| 0231AHRP | 0231AHRP - H3C Uni Server R4900 G5 6334 (3.6GHz/8-core/18MB/165W) CPU module (CTO&BTO) |
| 0231AJDN | 0231AJDN - H3C Uni Server R4900 G5 6336Y (2.4GHz/24-core/36MB/185W) CPU module (CTO&BTO) |
| 0231AG81 | 0231AG81 - H3C Uni Server R4900 G5 6338 (2.0GHz/32-core/48MB/205W) CPU module (CTO&BTO) |
| 0231AHRS | 0231AHRS - H3C Uni Server R4900 G5 6342(2.8GHz/24 cores/36MB/230W)CPU module(CTO&BTO) |
| 0231AGM2 | 0231AGM2 - H3C Uni Server R4900 G5 6346(3.1GHz/16 cores/36MB/205W)CPU module(CTO&BTO) |
| 0231AG86 | 0231AG86 - H3C Uni Server R4900 G5 6348(2.6GHz/28-core/42MB/235W)CPU module(CTO&BTO) |
| 0231AHRQ | 0231AHRQ - H3C Uni Server R4900 G5 6354(3.0GHz/18-core/39MB/205W)CPU module(CTO&BTO) |
| 0231AHRM | 0231AHRM - H3C Uni Server R4900 G5 8331A(2.5GHz/24-core/36MB/185W) CPU module(ODM-A)(CTO&BTO) |
| 0231AGSU | 0231AGSU - H3C Uni Server R4900 G5 8331C(2.5GHz/24-core/36MB/185W)CPU module(ODM-A)(CTO&BTO) |
| 0231AJ6B | 0231AJ6B - H3C Uni Server R4900 G5 8333B(2.6GHz/24-core/36MB/205W)CPU module(ODM-T)(CTO&BTO) |
| 0231AJ2Y | 0231AJ2Y - H3C Uni Server R4900 G5 8336C(2.3GHz/32 cores/54MB/230W)CPU module(ODM-Z)(CTO&BTO) |
| 0231AG18 | 0231AG18 - R4900G5 Server |
| 0231AG9V | 0231AG9V - H3C Uni Server R4900 G5 8350C(2.6GHz/32-core/48MB/240W)CPU module(ODM-B)(CTO&BTO) |
| 0231AHTB | 0231AHTB - H3C Uni Server R4900 G5 8352V(2.1GHz/36-core/54MB/195W)CPU module(CTO&BTO) |
| 0231AG98 | 0231AG98 - H3C Uni Server R4900 G5 8352Y(2.2GHz/32 cores/48MB/205W)CPU module(CTO&BTO) |
| 0231AKDW | 0231AKDW - H3C Uni Server R4900 G5 8352Y(2.2GHz/32-core/48MB/205W)CPU module(ODM-K)(CTO&BTO) |
| 0231AGPX | 0231AGPX - H3C Uni Server R4900 G5 8358(2.6GHz/32 cores/48MB/250W)CPU module(CTO&BTO) |
| 0231AHB5 | 0231AHB5 - H3C Uni Server R4900 G5 8358(2.6GHz/32-core/48MB/250W) CPU module(ODM-A)(CTO&BTO) |
| 0231AFVT | 0231AFVT - H3C Uni Server R4900 G5 8358P(2.6GHz/32 cores/48MB/240W) CPU module(CTO&BTO) |
| 0231AFVW | 0231AFVW - H3C Uni Server R4900 G5 8360Y(2.4GHz/36 cores/54MB/250W) CPU module(CTO&BTO) |
| 0231AHSU | 0231AHSU - H3C Uni Server R4900 G5 8362(2.8GHz/32 cores/48MB/265W)CPU module(CTO&BTO) |
| 0231AHTP | 0231AHTP - H3C Uni Server R4900 G5 8368(2.4GHz/38-core/57MB/270W) CPU module(CTO&BTO) |
| 0231AGSW | 0231AGSW - H3C Uni Server R4900 G5 8369B(2.9GHz/32-core/48MB/270W) CPU module(ODM-A)(CTO&BTO) |
| 0231AHRT | 0231AHRT - H3C Uni Server R4900 G5 8369C(2.9GHz/32-core/48MB/270W) CPU module(ODM-A)(CTO&BTO) |
| 0231AJ6P | 0231AJ6P - H3C Uni Server R4900 G5 8372C(3.2GHz/28-core/42MB/270W) CPU module(ODM-T)(CTO&BTO) |
| 0231AJWQ | 0231AJWQ - H3C Uni Server R4900 G5 8374C(2.7GHz/36-core/54MB/270W) CPU module(ODM-T)(CTO&BTO) |
| 0231AJ2W | 0231AJ2W - H3C Uni Server R4900 G5 8378A(3.0GHz/32-core/48MB/300W) CPU module(ODM-D)(CTO&BTO) |
| 0231AJ6K | 0231AJ6K - H3C Uni Server R4900 G5 8378C(2.8GHz/38-core/57MB/290W) CPU module(ODM-D)(CTO&BTO) |
| 0231AK3V | 0231AK3V - H3C Uni Server R4900 G5 8378C(2.8GHz/38-core/57MB/290W) CPU module(ODM-Y)(CTO&BTO) |
| 0231AK59 | 0231AK59 - H3C Uni Server R4900 G5 8380(2.3GHz/40-core/60MB/270W) CPU module(CTO&BTO) |
| 0231AH10 | 0231AH10 - R4900G5 Server |
| 0231AJHK | 0231AJHK - R4900G5 Server |
| 0231AH15 | 0231AH15 - R4900G5 Server |
| 0231AH1K | 0231AH1K - R4900G5 Server |
| 0231AH16 | 0231AH16 - R4900G5 Server |
| 0231AJ24 | 0231AJ24 - R4900G5 Server |
| Memory | |
| 0231AF6N | 0231AF6N - R4900G5 Server |
| 0231AF6R | 0231AF6R - 16GB 2Rx8 DDR4-3200 CAS-22-22-22 RDIMMMemory Module(CTO&BTO) |
| 0231AGSJ | 0231AGSJ - R4900G5 Server |
| 0231AM1W | 0231AM1W - 16GB 2Rx8 DDR4-3200AA(CAS-22-22-22)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AM21 | 0231AM21 - R4900G5 Server |
| 0231AF76 | UN-DDR4-3200AA-32G-2Rx4-R - 32GB 2Rx4 DDR4-3200 CAS-22-22-22 RDIMMMemory Module(CTO&BTO) |
| 0231AFXU | UN-DDR4-3200AA-32G-2Rx8-R-U - 32GB 2Rx8 DDR4-3200 CAS-22-22-22 RDIMM UniICMemory Module(CTO&BTO) |
| 0231AG95 | UN-DDR4-3200AA-32G-2Rx8-R - 32GB 2Rx8 DDR4-3200 CAS-22-22-22 RDIMMMemory Module(CTO&BTO) |
| 0231AJQK | 0231AJQK - R4900G5 Server |
| 0231AJQU | 0231AJQU - R4900G5 Server |
| 0231AJQX | 0231AJQX - R4900G5 Server |
| 0231AJQY | 0231AJQY - R4900G5 Server |
| 0231AJWG | 0231AJWG - 32GB 2Rx4 DDR4-3200 CXMT RDIMMMemory Module(for SA)(CTO&BTO) |
| 0231AM1T | UN-DDR4-3200AA-32G-2Rx8-R-2 - 32GB 2Rx8 DDR4-3200AA(CAS-22-22-22)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AM25 | UN-DDR4-3200AA-32G-2Rx4-R-2 - 32GB 2Rx4 DDR4-3200AA(CAS-22-22-22)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AEWG | 0231AEWG - 64GB 2Rx4 DDR4-3200 CAS-22-22-22 SAMSUNG RDIMMMemory Module(ODM-T)(CMCTO) |
| 0231AEX7 | 0231AEX7 - R4900G5 Server |
| 0231AEXD | 0231AEXD - R4900G5 Server |
| 0231AFXK | UN-DDR4-3200AA-64G-2Rx4-R-U - 64GB 2Rx4 DDR4-3200 CAS-22-22-22 RDIMM UniICMemory Module(CTO&BTO) |
| 0231AH8U | 0231AH8U - R4900G5 Server |
| 0231AJQL | 0231AJQL - R4900G5 Server |
| 0231AJQQ | 0231AJQQ - R4900G5 Server |
| 0231AJQR | 0231AJQR - R4900G5 Server |
| 0231AJQV | 0231AJQV - R4900G5 Server |
| 0231ANG2 | 0231ANG2 - R4900G5 Server |
| 0231AJ2D | 0231AJ2D - 128GB 4Rx4 DDR4-3200 CAS-26-22-22 3DS SAMSUNG RDIMMMemory Module(CTO&BTO) |
| Front Hard Drive Backplane | |
| 0231AEYE | UN-PCA-BP-8SFF-2U-G5 - G5 8SFF hard drive backplane module (CTO & BTO) |
| 0231AEYM | UN-PCA-BP-25SFF-2U-G5 - G5 25SFF hard drive backplane module (CTO & BTO) |
| 0231AEYV | UN-PCA-BP-8UniBay-2U-G5 - G5 25SFF Uni Bay hard drive backplane module (CTO & BTO) |
| 0231AH02 | UN-PCA-BP-25SFF-2U-G5-1 - G5 25SFF hard drive backplane module (36 ports) (CTO & BTO) |
| 0231AHVU | UN-BP-25SFF-L36-G5 - G5 25SFF hard drive expansion module (CTO & BTO) |
| 0231ALK4 | UN-PCA-BP-8UniBay-2U-G5-2 - H3C Uni Server G5 2U front 8SFF Uni Bay Tri-Mode hard drive backplane module (CTO & BTO) |
| Rear Hard Drive Cage | |
| 0231AF55 | UN-HDDCage-2SFF-2UniBay-2U-G5 - G5 2U rear 2Uni Bay disk cage module (CTO&BTO) |
| 0231AF5C | UN-HDDCage-4SFF-4UniBay-2U-G5 - G5 2U rear 4x Uni Bay drive cage module (CTO & BTO) |
| 0231AF5F | UN-HDDCage-4SFF-2U-G5 - H3C Uni Server G5 2U rear 4SFF hard drive cage module (CTO&BTO) |
| 0231AF5K | UN-HDDCage-4LFF-2U-G5 - H3C Uni Server G5 2U rear 4x LFF drive cage module (CTO & BTO) |
| 0231AF5R | UN-HDDCage-2LFF-2U-G5 - G5 2U rear 2LFF disk cage module (CTO&BTO) |
| 0231AFT4 | UN-HDDCage-2UniBay-OCP-2U-G5 - H3C Uni Server G5 2U rear 2Uni Bay hard drive backplane and OCP 3.0 adapter module (CTO&BTO) |
| 0231AFTJ | UN-HDDCage-2SFF-2U-G5 - H3C Uni Server G5 2U rear 2x SFF drive cage module (CTO & BTO) |
| Maximum Cable Adjustment | |
| RDMBNUMA | RDMBNUMA - R4900G5 Server |
| EXPASATA | EXPASATA - R4900G5 Server |
| MBNVMEMX | MBNVMEMX - R4900G5 Server |
| MININVME | MININVME - R4900G5 Server |
| M.2 Adapter Card | |
| 0231AF5Q | UN-RC-2M2-G5 - G5 front 2*M.2 2280/22110 Riser module(CTO&BTO) |
| M.2 SSD | |
| 0231AGTA | 0231AGTA - R4900G5 Server |
| 0231ABTD | 0231ABTD - R4900G5 Server |
| 0231ABTE | 0231ABTE - R4900G5 Server |
| 0231AES4 | 0231AES4 - R4900G5 Server |
| 0231AES6 | 0231AES6 - R4900G5 Server |
| 0231AGD6 | 0231AGD6 - R4900G5 Server |
| 0231AHAT | 0231AHAT - R4900G5 Server |
| 0231AHCQ | UN-SSD-480G-SATA-S4520-M.2 - 480GB SATA RI S4520 M.2 SSDHard Drive Module(CTO&BTO) |
| 0231AK1R | 0231AK1R - 480GB 6G SATA RI 5400PRO M.2 SSDHard Drive Module(CTO&BTO) |
| 0231AL1B | 0231AL1B - R4900G5 Server |
| SD card | |
| 0231A6RC | UN-SD-32G-Micro-F - 32G microSD mainstream flash drive module (FIO) |
| 0231A7KC | 0231A7KC - R4900G5 Server |
| SD card expansion module | |
| 0231A8L1 | UN-DSD-EX-F1 - Dual SD card expansion module (CTO & BTO) |
| Fan | |
| 0231AF5E | UN-FAN-6038-2U-G5 - G5 2U 6038Fan Module(CTO&BTO) |
| 0231AF5G | UN-FAN-6056-2U-G5 - H3C Uni Server G5 2U 6056Fan Module(CTO&BTO) |
| Power Supply | |
| 0231A8KP | 0231A8KP - R4900G5 Server |
| 0231ALYS | UN-CRPS-1300W-AC-12V-94%-M2 - 1300W AC & 240V HVDC power supply (Platinum - light-load high efficiency) (CMCTO) |
| 0231AGUP | UN-GW-CRPS1300D3 - 1300W AC&240V HVDC power Module (GW-R1-Platinum-low load high efficiency) (CTO&BTO) |
| 0231AKDP | UN-PAC1K3D12-B2 - 1300W AC & 240V HVDC power Supply Module (HW-R1- Platinum) (CTO&BTO) |
| 0231AJYB | UN-PS-2132-5L5 - 1300W AC & 240V HVDC power Supply Module (LT-R1- Platinum - light-load high efficiency) (CTO&BTO) |
| 0231ACT9 | DPS-1300AB-6 R-M - 1300W AC & 240V High-Voltage DC power Supply Module (DT-R1-Platinum) (CMCTO) |
| 0231ACTG | FSP1600-20FH-M - 1600W 336V HVDC power Supply Module (dedicated power cable) (FP-R1- Platinum) (CMCTO) |
| 0231AHRV | UN-DD-2162-3L5 - 1600W 48V DC power Supply Module (LT-R1- Platinum) (CTO&BTO) |
| 0231AMKU | UN-GW-CRPS1600C2 - 1600W AC & 240V HVDC power Supply Module (GW-R1- Titanium) (CTO&BTO) |
| 0231AMPJ | UN-CRPS-1600W-AC-12V-94%-M - 1600W AC & 240V HVDC power supply (Platinum) (CMCTO) |
| 0231AGUN | UN-GW-CRPS1600D2 - 1600W AC & 240V HVDC power Supply Module (GW-R1- Platinum) (CTO&BTO) |
| 0231ACTA | DPS-1600AB-13 R-M - 1600W AC & 240V High-Voltage DC power Supply Module (DT-R1-Platinum) (CMCTO) |
| 0231A7KH | 0231A7KH - 1600W AC & 240V HVDC power Supply Module (FP-R1-Platinum) (CMCTO) |
| 0231AMQ7 | UN-CRPS-2000W-AC-12V-94%-M - 2000W AC & 240V HVDC power supply (Platinum - light-load high efficiency) (CMCTO) |
| 0231AFSS | UN-GW-CRPS2000D - 2000W AC & 240V HVDC power Supply Module (GW-R2- Platinum - light-load high efficiency) (CTO&BTO) |
| 0231AHRU | UN-PS-2202-11L - 2000W AC & 240V HVDC power Supply Module (LT-R1- Platinum - light-load high efficiency) (CTO&BTO) |
| 0231AFQB | UN-DPS-2400EB B - 2400W AC & 240V HVDC power Supply Module (DT-R1-Platinum) (CTO&BTO) |
| 0231AE25 | GW-CRPS550N-M - 550W AC & 240V HVDC power Module (GW-R1-platinum) (CMCTO) |
| 0231ACTH | 0231ACTH - 550W AC & 240V HVDC power Supply Module (LT-R1-Platinum) (CMCTO) |
| 0231A9CE | 0231A9CE - 550W AC & 240V HVDC power Supply Module (DT-R1-Platinum) (CMCTO) |
| 0231A8KX | 0231A8KX - R4900G5 Server |
| 0231AHNS | UN-PAC800D12-B2 - 800W AC & 240V HVDC power supply (HW-R1-Platinum-Light-load efficiency) (CTO & BTO) |
| 0231AKH8 | 0231AKH8 - R4900G5 Server |
| 0231AKH7 | 0231AKH7 - R4900G5 Server |
| 0231AMPQ | UN-CRPS-800W-AC-12V-94%-M - 800W AC & 240V HVDC power supply (Platinum) (CTO) |
| 0231AE22 | 0231AE22 - R4900G5 Server |
| 0231AGUQ | UN-GW-CRPS800N2 - 800W AC & 240V HVDC power Supply Module (GW-R2-Platinum-Efficient at Light Load) (CTO&BTO) |
| 0231A8L0 | 0231A8L0 - R4900G5 Server |
| 0231A6UG | PSR800-12AHD-FIO - 800W 336V HVDC power Supply Module (dedicated power cable) (FP-R1, Platinum) (CMCTO) |
| 0231A8AX | PSR850-12A-FIO - 850W AC & 240V HVDC power Supply Module (DT-R1- Titanium) (CMCTO) |
| 0231A9CJ | DPS-850W-12A-F - 850W AC & 240V High-Voltage DC power Module (DT-R1-Platinum) (CMCTO) |
| 0231A9CF | DPS-800W-12A-48V-F - 800W (-48V)-(-60V) DC power Supply Module (DT-R1, Gold) (CMCTO) |
| Power Supply Cable | |
| 0404A0X6 | CAB-DC PWR-3.0m-3V3 - (-48V) DC power cable-3.0m-(P3W-3V3 female connector)-(UL2464 12AWG/3C black)-(3*T2510 blue) |
| 0404A0K4 | CAB-PDU-2.0m-C14-C13-MUL-50598 - PDU Power Supply Cable - 2.0 m - 1.0 mm² - Black - (C14 Connector (3P) Straight Male 250V 10A) - (227 IEC 53 (RVV) & H05VV-F & SJT) - (C13) - Chinese Standard + U.S. Standard + European Standard + Korean Standard |
| 0404A19Y | CAB-AC Pwr-3m-C19-CHE - R4900G5 Server |
| 0404A06Q | CAB-AC Pwr CHI-1.8m - Wall-mounted AC power cord—1.8 m—3 × 0.75 mm²—black—(GB1002 plug (3P), straight male, 250 V, 10 A)—(227 IEC 53 (RVV))—(C13 connector (3P), straight female, 250 V, 10 A)—Chinese National Standard |
| 04040890 | CAB-AC Pwr EN&SI-3m - Wall power outlet AC power cable - 3.0m - 1.0mm^2 - black - (BS1363A plug (3P) right-angle male 250V13A) - (H05VV-F) - (C13 connector (3P) straight female 250V10A) - UK standard |
| 0404A0MW | CAB-AC-16A-PDU-3m-Eu - PDU Power Supply Cable - 3.0 m - 1.5 mm² - Black - (C20 Connector (3P) Straight Male 250 V 16 A) - (H05VV-F) - (C19 Connector (3P) Straight Female 250 V 16 A) - European Standard |
| Slot 1 & 2 Adapter Card | |
| 0231AF52 | UN-RC-3FHFL-2U-SW-G5 - G5 2U 3X16 Riser (slot 1/2) (supports 2 FHFL and 1 FHHL, supports 2x 150W GPU) (CTO&BTO) |
| 0231AF5A | UN-RC-3FHFL-2U-G5 - G5 2U X16X8X8 Riser (slot 1/2) (supports 2 FHFL and 1 FHHL, supports 1 300W GPU) (CTO&BTO) |
| 0231AFP0 | 0231AFP0 - H3C Uni Server R4950 G5 OCP2.0/FHHL adapter card (slot 1/2)(supports 1x X16 OCP and 1x X16 FHHL)(CTO&BTO) |
| 0231AFTN | UN-RC-8NVMe-2U-G5 - G5 2U 8-port NVMe expansion Riser card (slot 1/2) (supports 8 NVMe) (CTO&BTO) |
| Slot 3 Adapter Card | |
| 0231AF5L | UN-RC-2HHHL-R3-2U-G5 - G5 2U X8X8 Riser(Slot3)(Supports 2 x HHHL)(CTO&BTO) |
| 0231AFT9 | UN-RC-2FHFL-R3-2U-G5 - G5 2U X8X8 Riser card (slot 3) (supports 2 FHFL, supports 2x 150W GPU) (CTO&BTO) |
| 0231AFTD | UN-RC-4NVMe-R3-2U-G5 - G5 2U 4-port NVMe expansion Riser card (slot 3) (supports 4 NVMe) (CTO&BTO) |
| 0231AFTP | UN-RC-1FHFL-R3-2U-G5 - G5 2U X16 Riser card (slot 3) (supports 1 FHFL, supports 1x 300W GPU) (CTO&BTO) |
| 0231AFUD | UN-RC-2LP-SlimSAS-2U - SlimSAS LP adapter card (slot 3) (supports 2 x X8 HHHL) (CTO&BTO) |
| 4-Slot Adapter Card | |
| 0231AFTF | UN-RC-2HHHL-R4-2U-G5 - G5 2U 2 x 8 Riser card (slot 4) (supports 2x HHHL) (CTO&BTO) |
| 4GPUModule | |
| 0231AFT5 | UN-PCA-R4900-4GPU-G5 - H3C Uni Server G5 4GPUModule(CTO&BTO) |
| 3X16 Adapter Card Slot Confirmation | |
| AF52CHK1 | AF52CHK1 - R4900G5 Server |
| AF52CHK2 | AF52CHK2 - R4900G5 Server |
| RISSLCHK | RISSLCHK - R4900G5 Server |
| NVMe SSD expansion card module | |
| 0231AG5V | UN-RT-4NVMe-G5 - 4-port NVMe SSD expansion card module (supports 4x NVMe SSD) (CTO&BTO) |
| M.2 Array Card | |
| 0231AGT9 | UN-RAID-MARVELL-SANTACRUZ-LP-2i - MARVELL Santa Cruz M.2 RAID card (supports 2 M.2 NVMe Ports, PCIe) (CTO&BTO) |
| 0231AKB0 | UN-RAID-MARVELL-M.2 - MARVELL SATA M.2 RAID card (supports 2 M.2 SATA Ports, supports M.2 hot-swap, PCIe) (CTO&BTO) |
| Standard Control Card (PCIe Standard Card) | |
| 0231A8JY | 0231A8JY - LSI 9361-8i 12G SAS RAID card module (supports 8 x SAS Ports, with 1GB cache, PCIe, excluding power-loss protection module) (CMCTO) |
| 0231A8K4 | 0231A8K4 - LSI 9361-8i 12G SAS RAID card module (supports 8 x SAS Ports, with 2GB cache, PCIe, excluding power-loss protection module) (CMCTO) |
| 0231AK8J | UN-RAID-P9560-3S-8i-4GB - P9560-8i 12G SAS RAID card module (supports 8x SAS ports, with 4GB cache, excluding supercapacitor) (CTO&BTO) |
| 0231A8KA | UN-HBA-LSI-9300-8i-A1 - LSI 9300-8i 12G SAS HBA card module (supports 8 x SAS Ports, PCIe) (CMCTO) |
| 0231AB06 | UN-HBA-LSI-9311-8i-F - LSI 9311-8i 12G SAS HBA card module (supports 8 x SAS Ports, PCIe) (CMCTO) |
| 0231A8AY | UN-RAID-LSI-9460-8i(4G)-F - LSI 9460-8i 12G SAS RAID controller module (supports 8 x SAS Ports, includes 4GB cache, PCIe, excluding supercapacitor) (CMCTO) |
| 0231A8B5 | UN-RAID-LSI-9460-8i(2G)-F - LSI 9460-8i 12G SAS RAID card module (supports 8 SAS Ports, with 2GB cache, PCIe, without supercapacitor) (CMCTO) |
| 0231A8B0 | UN-HBA-LSI-9440-8i-F - LSI 9440-8i 12G SAS HBA card module (supports 8 x SAS Ports, PCIe) (CMCTO) |
| 0231AG62 | UN-RAID-LSI-9560-LP-8i-4GB - LSI 9560-8i 12G SAS RAID card module (supports 8 SAS Ports, with 4GB cache, PCIe, without supercapacitor) (CTO&BTO) |
| 0231AJ69 | UN-HBA-LSI-9540-LP-8i - LSI 9540-8i 12G SAS HBA card module (supports 8 SAS Ports, PCIe) (CTO&BTO) |
| 0231AJ6E | UN-HBA-LSI-9500-LP-8i - LSI 9500-8i 12G SAS HBA card module (supports 8x SAS Ports, PCIe) (CTO&BTO) |
| 0231A7HB | UN-RAID-LSI-9460-16i(4G)-F - LSI 9460-16i 12G SAS RAID card module (supports 16 SAS Ports, with 4GB cache, PCIe, excludes supercapacitors) (CMCTO) |
| 0231AE6E | UN-HBA-LSI-9400-16i-M - LSI 9400-16i 12G SAS HBA card module (supports 16 SAS Ports, PCIe) (CMCTO) |
| 0231AEVL | UN-RAID-LSI-9560-LP-16i-8GB-M - LSI 9560-16i 12G SAS RAID card module (supports 16x SAS Ports, with 8GB cache, PCIe, excludes supercapacitor) (CMCTO) |
| 0231AJ6M | UN-HBA-LSI-9500-LP-16i - LSI 9500-16i 12G SAS HBA card module (supports 16x SAS Ports, PCIe) (CTO&BTO) |
| 0231A8P1 | UN-RAID-P460-B4-F - P460-B4 12G SAS RAID card module (supports 8 SAS Ports, with 4GB cache, excluding supercapacitor) (CMCTO) |
| 0231AAUF | 0231AAUF - P460-B2 12G SAS RAID card module (supports 8 SAS ports, with 2GB cache, excluding supercapacitor) (CMCTO) |
| 0231A8ND | UN-HBA-H460-B1-F - H460-B1 12G SAS HBA card module (supports 8 SAS ports, PCIe) (CMCTO) |
| Battery | |
| 0231AEYS | UN-BAT-LSI-G2-A - LSI G2 supercapacitor module (CTO&BTO) |
| 0231AEYR | UN-BAT-LSI-G3-A - LSI G3 supercapacitor module (CTO&BTO) |
| 0231AFA4 | UN-BAT-PMC-G3-2U - PMC G3 Supercapacitor Module (for 2U Standard Chassis) (CTO & BTO) |
| VROCModule(Supports NVMe Hard DriveRAID) | |
| 0231A6R6 | UN-NVMe-VROC-Key-S-F - Intel NVMe VROC module - Standard edition (FIO) |
| 0231A6R8 | UN-NVMe-VROC-Key-P-F - Intel NVMe VROC module - Advanced edition (FIO) |
| 0231A7LJ | UN-NVMe-VROC-Key-i-F - Intel NVMe VROC module - Intel edition (FIO) |
| Graphics Card | |
| 0231AKMW | 0231AKMW - CAMBRICON MLU270-V4K 16G GPUModule(CTO&BTO) |
| 0231AJSK | UN-GPU-MLU370-S4-24G-LP - CAMBRICON MLU370-S4 24G GPUModule(CTO&BTO) |
| 0231AHX3 | 0231AHX3 - CAMBRICON MLU370-X4 24G GPUModule(CTO&BTO) |
| 0231AGGQ | 0231AGGQ - R4900G5 Server |
| 0231AFJE | 0231AFJE - R4900G5 Server |
| 0231AHAL | 0231AHAL - R4900G5 Server |
| 0231AH39 | 0231AH39 - R4900G5 Server |
| 0231AJFS | UN-GPU-A16-64G-DW - NVIDIA A16 64G GPUModule(CTO&BTO) |
| 0231AHRC | 0231AHRC - NVIDIA A2 16G GPUModule(CTO&BTO) |
| 0231AGPS | 0231AGPS - R4900G5 Server |
| 0231AKCL | 0231AKCL - R4900G5 Server |
| 0231ANF4 | UN-GPU-48GB-DW - NVIDIA 48G PCIe4.0 X16 FHFL GPUModule(CTO&BTO) |
| 0231ALL7 | 0231ALL7 - R4900G5 Server |
| 0231AEC5 | 0231AEC5 - R4900G5 Server |
| 0231AG9X | UN-GPU-A10-24G - NVIDIA Tesla A10 24G GPUModule(Non-CEC)(CTO&BTO) |
| 0231AGSV | 0231AGSV - R4900G5 Server |
| 0231AE6C | 0231AE6C - NVIDIA Tesla T4 16G GPUModule(ODM-A)(CMCTO) |
| 0231AEDK | 0231AEDK - R4900G5 Server |
| 0231ANMC | 0231ANMC - Nvidia L2 24G PCIe4.0 X16 HHHL GPUModule(CTO&BTO) |
| 0231AJWB | 0231AJWB - Nvidia Quadro A6000 48GB GPUModule(CTO&BTO) |
| 0231AJHY | 0231AJHY - R4900G5 Server |
| 0231AJWA | UN-GPU-A2-16GB-NoCEC - Nvidia Tesla A2 16GB Non-CEC GPUModule(CTO&BTO) |
| 0231AK45 | 0231AK45 - R4900G5 Server |
| 0231AJWD | 0231AJWD - R4900G5 Server |
| 0231ABT8 | UN-GPU-T4-F - T4 Display Acceleration Card (FIO) |
| 0231AFRH | UN-GPU-XG310-32GB-FHFL-F - XG310 32GB GPUModule(CMCTO) |
| 0231AKMR | UN-GPU-MLU370-X8-48GB - Cambricon MLU370-X8 48G GPU module (CTO&BTO) |
| 0231ANQ0 | UN-GPU-MTT-S3000-32GB-DW - Moore Threads MTT S3000 32G PCIe5.0 x16 DW GPU module (CTO&BTO) |
| 0231AJU3 | UN-GPU-R200-16GB-DW - Kunlunxin R200 16G DW GPU module (CTO&BTO) |
| 0231AMY3 | 0231AMY3 - Horizon Semiconductor VA1 16GB PCIe4.0 x16 LP GPU module (for SA) (CTO&BTO) |
| 0231AMSC | 0231AMSC - Horizon Semiconductor VA1L 64GB PCIe4.0 x16 LP GPU module (for SA) (CTO&BTO) |
| 0231AQMC | 0231AQMC - R4900G5 Server |
| T4 GPU Customer Validation | |
| T4GCHECK | T4GCHECK - R4900G5 Server |
| Network Adapter | |
| 0231A7GL | 0231A7GL - R4900G5 Server |
| 0231A7GM | 0231A7GM - R4900G5 Server |
| Optical Module | |
| 0231AFUN | UN-CAB-IB-DAC-MCP1600-E003E26-3m - Mellanox 3m EDR 100G DAC Cable (CTO&BTO) |
| 0231AC16 | QSFP-100G-SR4-MM850-CM - 100G QSFP28 optical module (850nm, 100m OM4, SR4, MPO) (FIO) |
| 0231A9VY | 0231A9VY - R4900G5 Server |
| 0231AEC7 | 0231AEC7 - 1-port 100Gb QSFP28 Optical Interface MCX515A-CCAT Ethernet NIC (CMCTO) |
| 0231AE3E | QSFP-100G-SR4-MM850-B-CM - 100G QSFP28 optical module (850nm, 100m OM4, SR4, MPO) (FIO) |
| 0231AFR5 | 0231AFR5 - 1-port 100G QSFP28 Optical Interface MCX515A-CCUT Ethernet card (CTO&BTO) |
| 0231AFUR | 0231AFUR - R4900G5 Server |
| 0231AFUP | UN-CAB-IB-DAC-MCP7H50-V002R26-2m - Mellanox 2m HDR100 100G DAC breakout cable (CTO&BTO) |
| 0231ADWS | 0231ADWS - 2-Port100GEoptical interface Network Adapter(QSFP28)(CTO&BTO) |
| 0231AEC8 | UN-NIC-ETH-MCX516A-CCAT-2P-M - 100Gb 2-Port QSFP28 Optical Interface MCX516A-CCAT Ethernet Card (CMCTO) |
| 0231AF89 | 0231AF89 - R4900G5 Server |
| 0231AFUS | UN-IB-MCX653106A-ECAT-100Gb-2P - 100Gb 2-Port Infiniband HDR/Ethernet Adapter Card (Supports QSFP56 Optical Modules) (CTO&BTO) |
| 0231AGJA | UN-NIC-ETH-MCX623106AN-CDAT-2P - 2-Port100Gb QSFP56optical interfaceMCX623106AN-CDATNetwork Adapter(CTO&BTO) |
| 0231AC0U | QSFP-40G-SR4-MM850-CM - QSFP+ 40G optical module (850nm, 100m, SR4, supports 1 to 4) (FIO) |
| 0231AGPY | 0231AGPY - R4900G5 Server |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231AH2Y | UN-NIC-BCM957508-P2100G-2P - 2-port 100Gb QSFP56 Optical Interface BCM957508-P2100G Ethernet card (CTO&BTO) |
| 0231AJR8 | 0231AJR8 - R4900G5 Server |
| 0231A7PW | UN-NIC-BCM957412-F-B-10Gb-2P-F - 2-Port10GEoptical interface Network Adapter(BCM957412)(FIO) |
| 0231A8KB | UN-SFP-XG-SX-MM850-E1 - SFP+ 10GModule(850nm,300m,LC) |
| 0231AC0T | SFP-XG-LX-SM1310-CM - SFP+ 10GModule(1310nm,10km,LC)(FIO) |
| 0231A7Q0 | 0231A7Q0 - R4900G5 Server |
| 0231A8K2 | UN-CNA-10GE-2P-560F-B2-1 - 2-Port10Goptical interface Network Adapter(SFP+)-560F-B2 |
| 0231AC0Y | SFP-GE-SX-MM850-CM - Optical module - SFP-GE-multimode optical module (850nm, 0.55km, LC) (FIO) |
| 0231A8K9 | UN-NIC-10GE-2P-530F-B2-1 - 2-Port10Goptical interface Network Adapter(SFP+)-530F-B2 |
| 0231A9AU | UN-NIC-X710DA2-F-B-10Gb-2P-F2 - 2-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231A9B7 | UN-NIC-X520DA2-F-B-10Gb-2P-F - 2-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231AABV | 0231AABV - R4900G5 Server |
| 0231AES1 | 0231AES1 - R4900G5 Server |
| 0231AFH4 | 0231AFH4 - R4900G5 Server |
| 0231AFRV | UN-NIC-ETH531F-LP-2P - 2-Port10GEoptical interface Network Adapter(CTO&BTO) |
| 0231ANJD | UN-NIC-ETH-RP1000P2SFP-LP-2P - 2-Port10GEoptical interface Network Adapter(RP1000P2SFP)(CTO&BTO) |
| 0231A7WC | UN-NIC-X710DA4-F-B-10Gb-4P-F - 4-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231A7NA | UN-CNA-560T-B2-10Gb-2P-1 - 2-Port10Gbelectrical interface Network Adapter-560T-B2 |
| 0231A7PX | UN-NIC-BCM957416-T-B-10Gb-2P-F - 2-Port10GEelectrical interface Network Adapter(BCM957416)(FIO) |
| 0231A8K1 | UN-NIC-GE-4P-360T-B2-1 - 4-Port Gigabitelectrical interface Network Adapter-360T-B2 |
| 0231AB04 | 0231AB04 - R4900G5 Server |
| 0231AJG0 | UN-NIC-BCM95719A1904AC-LP-4P - R4900G5 Server |
| 0231AJWJ | UN-NIC-X550T2G1P5-LP-2P - 2-Port10GEelectrical interface Network Adapter(X550T2)(for SA)(CTO&BTO) |
| 0231AK5Y | UN-NIC-ETH330T-LP-4P - 4-PortGEelectrical interface Network Adapter(CTO&BTO) |
| 0231ANJJ | UN-NIC-ETH-SF400T-LP-4P-GE - 4-Port1GEelectrical interface Network Adapter(SF400T)(CTO&BTO) |
| 0231AFN8 | UN-IB-MCX653105A-HDAT-200Gb-1P - 200Gb 1-Port Infini Band HDR/Ethernet Adapter Card (Supports QSFP56 Optical Modules) (CTO&BTO) |
| 0231AM5N | UN-IB-MCX75310AAS-HEAT-200Gb-1P - 1-port 200Gb Infiniband NDR/Ethernet adapter card (supports OSFP optical modules) (CTO&BTO) |
| 0231A7G6 | UN-NIC-MCX4121A-F-B-25Gb-2P-F - 2-Port25Gboptical interface Network Adapter(SFP28)(FIO) |
| 0231A7N6 | SFP-25G-SR-MM850-1 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231A7GN | 0231A7GN - 2-Port25GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231A7NH | UN-NIC-620F-B2-25Gb-2P-1 - 2-Port25Gboptical interface Network Adapter(SFP+)-620F-B2 |
| 0231A7Q2 | UN-NIC-BCM957414-F-B-25Gb-2P-F - 2-Port25GEoptical interface Network Adapter(BCM957414)(FIO) |
| 0231AB5W | UN-NIC-MCX512A-ACAT-F-2*25Gb-F - 2-Port25Gboptical interface Network Adapter(SFP28)(MCX512A-ACAT)(FIO) |
| 0231ACRC | 0231ACRC - 2-Port25Gboptical interface Network Adapter(SFP28)(MCX4121A-ACAT)(ODM-T)(CMCTO) |
| 0231ACTW | 0231ACTW - R4900G5 Server |
| 0231AF8A | UN-NIC-X2522-25Gb-2P-M - 2-port 25Gb SFP28 Optical Interface X2522-25G-PLUS low-latency network card (CTO&BTO) |
| 0231AFGV | 0231AFGV - R4900G5 Server |
| 0231AFH5 | UN-NIC-ETH630F-LP-2P - 2-Port25GEoptical interface Network Adapter (ETH630F)(CTO&BTO) |
| 0231AFKA | 0231AFKA - R4900G5 Server |
| 0231AFUG | UN-NIC-ETH-MCX631102AN-ADAT - 2-port 25Gb SFP28 Optical Interface MCX631102AN-ADAT Ethernet card (CTO&BTO) |
| 0231AG88 | UN-NIC-ETH-E810XXVDA2G1P5-2P - 2-port 25Gb SFP28 Optical Interface E810XXVDA2G1P5 Ethernet card (CTO&BTO) |
| 0231AJFN | 0231AJFN - Dual-port 25Gb Optical Interface Bluefield2 smart NIC (SFP56) (MBF2H512C-AESOT) (for SA) (CTO&BTO) |
| 0231AJFW | 0231AJFW - 2-Port 25Gb Optical Interface Blue Field2 Smart Network Card (SFP56) (MBF2H512C-AESOT) (ODM-B) (CTO&BTO) |
| 0231AJU1 | 0231AJU1 - R4900G5 Server |
| 0231ALXR | UN-NIC-ETH641F-LP-2P - 2-Port25GEoptical interface Network Adapter (ETH641F)(CTO&BTO) |
| 0231AB60 | 0231AB60 - R4900G5 Server |
| 0231AB61 | 0231AB61 - R4900G5 Server |
| 0231A9C4 | 0231A9C4 - R4900G5 Server |
| 0231ALF3 | 0231ALF3 - 1-port 40G QSFP Optical Interface EXL710QDA1 AIC Ethernet adapter card (CTO&BTO) |
| 0231AFST | 0231AFST - R4900G5 Server |
| 0231AFWV | 0231AFWV - R4900G5 Server |
| 0231AG69 | 0231AG69 - R4900G5 Server |
| 0231AG6A | 0231AG6A - R4900G5 Server |
| 0231AG6B | 0231AG6B - R4900G5 Server |
| 0231AG6C | 0231AG6C - R4900G5 Server |
| OCPNetwork Adapter | |
| 0231AGFL | UN-NIC-ETH-MCX623436AN-CDAB-2P - 2-Port100Gb optical interfaceMCX623436AN-CDAB OCP3.0Network Adapter(CTO&BTO) |
| 0231AKMH | UN-NIC-BCM957508-N2100G-3S-2P - 2-Port100Gb QSFP56optical interfaceBCM957508-N2100G OCP3.0Network Adapter(CTO&BTO) |
| 0231AEBU | UN-NIC-ETH360T-3S-4P - 4-Port1GEelectrical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AEBV | UN-NIC-ETH565T-3S-2P - 2-Port10GEelectrical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AEBX | 0231AEBX - R4900G5 Server |
| 0231AEBY | UN-NIC-ETH561F-3S-2P - 2-Port10GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AN1D | UN-NIC-ETH531F-3S-2P - 2-Port10GEoptical interfaceOCP3.0Network Adapter (ETH531F)(CTO&BTO) |
| 0231ANSH | UN-NIC-ETH-SF400T-C201-3S-4P - 4-Port1GEelectrical interfaceOCP3.0Network AdapterSF400T-C201(for SA)(CTO&BTO) |
| 0231ABWF | UN-NIC-MCX4621A-ACAB-2*25G-M - 2-Port25G OCP3.0Network Adapter(MCX4621A-ACAB)(FIO) |
| 0231AEBW | UN-NIC-ETH640F-3S-2P - 2-Port25GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AEM5 | 0231AEM5 - Mellanox 562A-ACAB 2*25G optical ports OCP3.0 card (for SA) (CMCTO) |
| 0231AEUJ | 0231AEUJ - R4900G5 Server |
| 0231AEUL | 0231AEUL - R4900G5 Server |
| 0231AFH3 | UN-NIC-ETH660F-3S-2P - 2-Port25GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AG96 | UN-NIC-ETH-MCX631432AN-ADAB-2P - 2-Port25Gb SFP28optical interfaceMCX631432AN OCP3.0Network Adapter(CTO&BTO) |
| 0231AGL9 | 0231AGL9 - R4900G5 Server |
| 0231AHVM | 0231AHVM - R4900G5 Server |
| 0231AMBC | UN-NIC-BCM957414N4140C-3S-2P - 2-Port 25G PCIe3.0 x8 SFP28 Optical Interface BCM957414N4140C OCP3.0 Ethernet Network Adapter Card (CTO&BTO) |
| Fibre Channel controller | |
| 0231A7LG | UN-FC-HBA-LPe32000-32Gb-1P - 1-port 32Gb Fibre Channel HBA card (with one SFP+ optical module) |
| 0231A7LN | UN-FC-HBA-LPe32002-32Gb-2P - 2-port 32Gb optical fiber channel HBA card (with two SFP+ optical modules) |
| 0231A7NB | UN-HBA-16Gb-LPe31000-1P-1 - 1-port 16Gb Fibre Channel HBA card (with one SFP+ module) |
| 0231A7NF | UN-HBA-16Gb-LPe31002-2P-1 - 2-port 16Gb Fibre Channel HBA card (with two SFP+ modules) |
| 0231A7PV | UN-FC-HBA-QLE2742-32Gb-2P-F - 32Gb-2-port-PCIe Fibre Channel HBA card (with two SFP+ optical modules) (FIO) |
| 0231A7Q1 | UN-FC-HBA-QLE2740-32Gb-1P-F - 32Gb-1-port-PCIe optical fiber channel HBA card (with one SFP+ optical module) (FIO) |
| 0231A8JQ | UN-FC-HBA-QLE2690-16Gb-1P-1 - 1-port 16Gb Fibre Channel HBA card (with one SFP+ module) |
| 0231A8JR | 0231A8JR - R4900G5 Server |
| 0231A8JU | 0231A8JU - R4900G5 Server |
| 0231A8JV | UN-FC-HBA-QLE2692-16Gb-2P-1 - 2-port 16Gb Fibre Channel HBA card (with two SFP+ modules) |
| 0231AGHH | UN-FC-HBA-LPe35000-LP-32Gb-1P - 1-port 32Gb Optical Interface LPe35000 AIC FC HBA card (PCIe 4.0) (comes with one SFP+ optical module) (CTO&BTO) |
| 0231AGHJ | UN-FC-HBA-LPe35002-LP-32Gb-2P - 2-port 32Gb Optical Interface LPe35002 AIC FC HBA card (PCIe 4.0) (comes with two SFP+ optical modules) (CTO&BTO) |
| 0231AM7K | UN-FC-HBA-LPe31000-LP-16G-1P - 1-port 16Gb Optical Interface LPe31000 FC HBA card (PCIe 3.0) (with one SFP+ optical module) (CTO&BTO) |
| 0231AM7L | UN-FC-HBA-LPe31002-LP-16G-2P - 2-port 16Gb Optical Interface LPe31002 FC HBA card (PCIe 3.0) (with two SFP+ optical modules) (CTO&BTO) |
| 0231AMKF | UN-FC-HBA-QLe2770-LP-32G-1P - 1-port 32Gb PCIe4.0 X8 SFP+ Optical Interface QLe2770 LP FC HBA card (with one SFP+ optical module) (CTO&BTO) |
| 0231AMKP | UN-FC-HBA-QLe2772-LP-32G-2P - 2-port 32Gb PCIe4.0 X8 SFP+ Optical Interface QLe2772 LP FC HBA card (with two SFP+ optical modules) (CTO&BTO) |
| 0231ANQ1 | UN-FC-HBA-LPe36002-LP-64G-2P - 2-port 64Gb PCIe4.0 X8 SFP+ Optical Interface LPe36002 LP FC HBA card (with two SFP+ optical modules) (CTO&BTO) |
| 0231ANQ2 | UN-FC-HBA-LPe36000-LP-64G-1P - 1-port 64Gb PCIe4.0 X8 SFP+ Optical Interface LPe36000 LP FC HBA card (with one SFP+ optical module) (CTO&BTO) |
| SSD Acceleration Card | |
| 0231AHWE | UN-SSD-3.2T-NVMe-PB6536-AIC - 3.2T NVMe SSD PB6 6536 SSD PCIe acceleration card module (CTO&BTO) |
| 0231AEY1 | UN-SSD-3.2T-NVME-PB926-AIC-M - 3.2T NVMe SSD MU PBlaze5 926 PCIe accelerator card (CMCTO) |
| 0231AN26 | UN-SSD-3.2T-NVMe-PB6537-AIC - 3.2TB NVMe SSD MU PB6 6537 SSD PCIe acceleration card module (CTO&BTO) |
| 0231AJ64 | UN-SSD-6.4T-NVMe-PB6536-AIC - 6.4T NVMe SSD PB6 6536 SSD PCIe acceleration card module (CTO&BTO) |
| 0231AN23 | UN-SSD-6.4T-NVMe-PB6537-AIC - 6.4TB NVMe SSD MU PB6 6537 SSD PCIe acceleration card module (CTO&BTO) |
| 0231AJWF | 0231AJWF - R4900G5 Server |
| 0231ABXU | 0231ABXU - R4900G5 Server |
| Diagnostic Modules | |
| 0231AE9Y | UN-SID-LCD-SFF-M - SFF LCD panel module (CMCTO) |
| GPU Airflow Shroud | |
| 0231AF51 | UN-FAN-COVER-GPU-G5 - H3C Uni Server G5 GPU dedicated airflow shroud module (CTO&BTO) |
| Security Hardware | |
| 0231AG60 | UN-TCM-SPI-A - H3C server platform trusted module SPI TCM (CTO&BTO) |
| 0231AG5Y | UN-TPM-SPI-A - H3C server series trusted platform module SPI TPM (CTO&BTO) |
| Optical Drive | |
| 0231A6R9 | 0231A6R9 - Mobile USB 2.0 interface read/write optical drive module (FIO) |
| Rack Rail | |
| 0231APX9 | UN-RL-G-G6 - G6 2U/1U Ball Screw Guide Rails (CTO & BTO) |
| 0231AFT2 | UN-RL-B-G5 - G5 2U/1U Standard Slides (CTO & BTO) |
| 0231AF5B | UN-RL-G-G5 - G5 2U/1U Ball-Bearings Slides (CTO & BTO) |
| Cable Management Tray | |
| 2150A0EE | CMA-2U-A - 2U Cable Management Rack |
| 0231AQCE | UN-CMA-2U-G6 - G6 2U Cable Management Rack (CTO & BTO) |
| Security Panel | |
| 0231AFTB | UN-SEC-Panel-2U-G5 - H3C Uni Server G5 2U intelligent security panel (CTO&BTO) |
| Ear Hook | |
| 0231AFTC | UN-EAR-QE-2U-LED-G5 - H3C Uni Server G5 2U rack ears (supports smart security panel) (CTO&BTO) |
| Tag | |
| 0231AGWU | UN-Label-Shock&Tilt Monitor - Anti-tilt label and 37G anti-vibration label (CTO&BTO) |
| Is customization Required? | |
| CUSTNEED | CUSTNEED - R4900G5 Server |
| Customized module | |
| 0231A8A6 | UN-CTM-G3-F - H3C customer-specific customization module (1H) (FIO) |
| Installing Services | |
| 8814A0KV | SV-PS-US-INST - H3C Server first-time basic installation service - for overseas business only |
| Operating System Compatibility Verification | |
| BATJOSXX | BATJOSXX - R4900G5 Server |
| OSCHECKX | OSCHECKX - R4900G5 Server |
| Distributed storage software | |
| ONESTOS3 | ONESTOS3 - R4900G5 Server |
| ONESTOS5 | ONESTOS5 - R4900G5 Server |
| Cloud and intelligent software | |
| CAS7XXXX | CAS7XXXX - R4900G5 Server |
| CLDSTOR3 | CLDSTOR3 - R4900G5 Server |
| CLDSTOR5 | CLDSTOR5 - R4900G5 Server |
| UIS7XXXX | UIS7XXXX - R4900G5 Server |
| UIS8XXXX | UIS8XXXX - R4900G5 Server |
| WKSPACE5 | WKSPACE5 - R4900G5 Server |
| Windows | |
| 2016R0HY | 2016R0HY - R4900G5 Server |
| 2019R0HY | 2019R0HY - R4900G5 Server |
| WNDS2016 | WNDS2016 - R4900G5 Server |
| 2019R0XX | 2019R0XX - R4900G5 Server |
| 2022R0XX | 2022R0XX - R4900G5 Server |
| linux | |
| ALIOS7U2 | ALIOS7U2 - R4900G5 Server |
| BGCLE211 | BGCLE211 - R4900G5 Server |
| BGCLE221 | BGCLE221 - R4900G5 Server |
| ORACLN79 | ORACLN79 - R4900G5 Server |
| ORACLN82 | ORACLN82 - R4900G5 Server |
| ORACLN83 | ORACLN83 - R4900G5 Server |
| ORACLN84 | ORACLN84 - R4900G5 Server |
| ORACLN85 | ORACLN85 - R4900G5 Server |
| ORACLN86 | ORACLN86 - R4900G5 Server |
| ORACLN89 | ORACLN89 - R4900G5 Server |
| ORACLN90 | ORACLN90 - R4900G5 Server |
| 79ENTHAT | 79ENTHAT - R4900G5 Server |
| 810ENHAT | 810ENHAT - R4900G5 Server |
| 82ENTHAT | 82ENTHAT - R4900G5 Server |
| 83ENTHAT | 83ENTHAT - R4900G5 Server |
| 84ENTHAT | 84ENTHAT - R4900G5 Server |
| 85ENTHAT | 85ENTHAT - R4900G5 Server |
| 86ENTHAT | 86ENTHAT - R4900G5 Server |
| 87ENTHAT | 87ENTHAT - R4900G5 Server |
| 88ENTHAT | 88ENTHAT - R4900G5 Server |
| 89ENTHAT | 89ENTHAT - R4900G5 Server |
| 90ENTHAT | 90ENTHAT - R4900G5 Server |
| 91ENTHAT | 91ENTHAT - R4900G5 Server |
| 92ENTHAT | 92ENTHAT - R4900G5 Server |
| 94ENTHAT | 94ENTHAT - R4900G5 Server |
| ROCKYL84 | ROCKYL84 - R4900G5 Server |
| ROCKYL86 | ROCKYL86 - R4900G5 Server |
| ROCKYL87 | ROCKYL87 - R4900G5 Server |
| ROCKYL88 | ROCKYL88 - R4900G5 Server |
| ROCKYL89 | ROCKYL89 - R4900G5 Server |
| ROCKYL90 | ROCKYL90 - R4900G5 Server |
| ROCKYL91 | ROCKYL91 - R4900G5 Server |
| ROCKYL92 | ROCKYL92 - R4900G5 Server |
| ROCKYL94 | ROCKYL94 - R4900G5 Server |
| SLE12SP5 | SLE12SP5 - R4900G5 Server |
| SLE15SP2 | SLE15SP2 - R4900G5 Server |
| SLE15SP3 | SLE15SP3 - R4900G5 Server |
| UB1845HK | UB1845HK - R4900G5 Server |
| UB1846HK | UB1846HK - R4900G5 Server |
| UBSE204X | UBSE204X - R4900G5 Server |
| UBSE2041 | UBSE2041 - R4900G5 Server |
| UBSE2042 | UBSE2042 - R4900G5 Server |
| UBSE2044 | UBSE2044 - R4900G5 Server |
| UBSE2046 | UBSE2046 - R4900G5 Server |
| UBSE2245 | UBSE2245 - R4900G5 Server |
| UBS2404L | UBS2404L - R4900G5 Server |
| O2003S2X | O2003S2X - R4900G5 Server |
| O2003S2B | O2003S2B - R4900G5 Server |
| HyperVisors | |
| CASE0706 | CASE0706 - R4900G5 Server |
| CTXS82XX | CTXS82XX - R4900G5 Server |
| VMES67U3 | VMES67U3 - R4900G5 Server |
| VMES70U2 | VMES70U2 - R4900G5 Server |
| VMES70U3 | VMES70U3 - R4900G5 Server |
| VMES8064 | VMES8064 - R4900G5 Server |
| VMES80U1 | VMES80U1 - R4900G5 Server |
| VMES80U2 | VMES80U2 - R4900G5 Server |
| Community/Regional Enabled Oss | |
| CENTOS79 | CENTOS79 - R4900G5 Server |
| CENTOS82 | CENTOS82 - R4900G5 Server |
| CENTOS83 | CENTOS83 - R4900G5 Server |
| CENTOS84 | CENTOS84 - R4900G5 Server |
| CENTOS85 | CENTOS85 - R4900G5 Server |
| Zhongbiao Kylin | |
| HNQL32XX | HNQL32XX - R4900G5 Server |
| ZBQL10X1 | ZBQL10X1 - R4900G5 Server |
| ZBQL10X2 | ZBQL10X2 - R4900G5 Server |
| ZBQLGF76 | ZBQLGF76 - R4900G5 Server |
| Zhongke Hongqi | |
| ZKHQAS79 | ZKHQAS79 - R4900G5 Server |
| ZKHQA7U8 | ZKHQA7U8 - R4900G5 Server |
| ZKHQAS80 | ZKHQAS80 - R4900G5 Server |
| Other Operating Systems | |
| NINGV312 | NINGV312 - R4900G5 Server |
| OTHERSOS | OTHERSOS - R4900G5 Server |
| Product Identity | |
| Brand | H3C |
| Series | H3C R4900 G5 rack server |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the GPU Support specification for UN-R4900-G5-SFF-C?
UN-R4900-G5-SFF-C lists GPU Support as Supports up to 4 double-width GPU cards or 14 single-width GPU cards. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Chipset specification for UN-R4900-G5-SFF-C?
UN-R4900-G5-SFF-C lists Chipset as Intel® C621A. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Optical Drive specification for UN-R4900-G5-SFF-C?
UN-R4900-G5-SFF-C lists Optical Drive as Supports external optical drive. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Security specification for UN-R4900-G5-SFF-C?
UN-R4900-G5-SFF-C lists Security as Supports secure chassis, TCM/TPM security modules, and two-factor authentication. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
