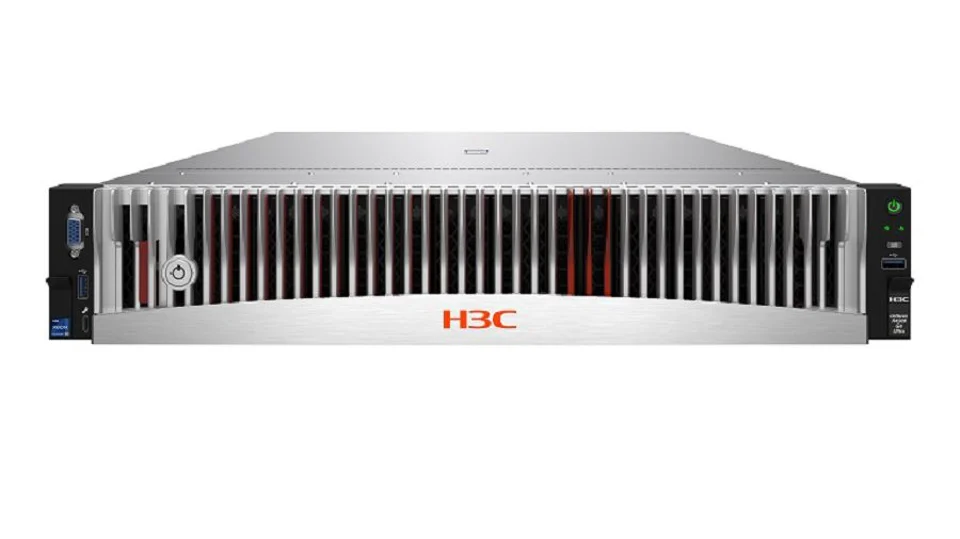

H3C UN-R4900-G7-MAL0-C Uni Server R4900 G7 SP LFF air-cooled CTO server
Brand H3C
N/AVerified
H3C UN-R4900-G7-MAL0-C
Model (MPN)
0235A51K
Condition
Factory Sealed
Out of Stock
H3C UN-R4900-G7-MAL0-C Uni Server R4900 G7 SP LFF air-cooled CTO server. GPU Support: Supports 6 x dual-width GPU acceleration cards1 or 18 x single-width GPU acceleration cards1. CPU: Supports 1 to 2 Intel® Xeon® 6 SP and AP platform processors. Storage Controller: Supports RAID 0/1/5/6/10/50/60 and others1; Optional 8GB cache; supports supercapacitor protection
Key Specifications
DescriptionH3C Uni Server R4900 G7 SP LFF air-cooled CTO server
operating temperature5℃ - 45℃
CPUSupports 1 to 2 Intel® Xeon® 6 SP and AP platform processors
Storage ControllerSupports RAID 0/1/5/6/10/50/60 and others1; Optional 8GB cache; supports supercapacitor protection
StorageSupports 45 x 2.5-inch SAS/SATA hard drives1; supports 20 x 3.5-inch SAS/SATA hard drives1; supports 40 x NVMe U.2 drives1; supports 40 x E3.S/E1.S drives1; Optional SATA/NVMe M.2 options, DSD module
extended slotSupports 21 PCIe expansion slots1; supports 18 x PCIe 5.0 standard slots1, 2 x hot-swappable OCP 3.0 slots, and 1 x dedicated Mezz slot; supports CXL 2.0
Your Price
Best Value
$157.10
List Price: $1,571.00Save 90%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C Uni Server R4900 G7 SP LFF air-cooled CTO server |
| Key Specifications | |
| operating temperature | 5℃ - 45℃ |
| CPU | Supports 1 to 2 Intel® Xeon® 6 SP and AP platform processors |
| Storage Controller | Supports RAID 0/1/5/6/10/50/60 and others1; Optional 8GB cache; supports supercapacitor protection |
| Storage | Supports 45 x 2.5-inch SAS/SATA hard drives1; supports 20 x 3.5-inch SAS/SATA hard drives1; supports 40 x NVMe U.2 drives1; supports 40 x E3.S/E1.S drives1; Optional SATA/NVMe M.2 options, DSD module |
| extended slot | Supports 21 PCIe expansion slots1; supports 18 x PCIe 5.0 standard slots1, 2 x hot-swappable OCP 3.0 slots, and 1 x dedicated Mezz slot; supports CXL 2.0 |
| GPU Support | Supports 6 x dual-width GPU acceleration cards1 or 18 x single-width GPU acceleration cards1 |
| Product Specifications | |
| CPU | Supports 1 to 2 Intel® Xeon® 6 SP and AP platform processors |
| Memory | Supports 32 memory slots. SP platform: supports 32 x DDR5 RDIMM, speed up to 6400MT/s; supports 16 x MRDIMM, speed up to 8000MT/s. AP platform: supports 24 x DDR5 RDIMM, speed up to 6400MT/s; supports 24 x MRDIMM, speed up to 8800MT/s; supports CXL to additionally expand 32 memory expansion slots1 |
| Storage Controller | Supports RAID 0/1/5/6/10/50/60 and others1; Optional 8GB cache; supports supercapacitor protection |
| Storage | Supports 45 x 2.5-inch SAS/SATA hard drives1; supports 20 x 3.5-inch SAS/SATA hard drives1; supports 40 x NVMe U.2 drives1; supports 40 x E3.S/E1.S drives1; Optional SATA/NVMe M.2 options, DSD module |
| Network | 1 onboard 1Gbps dedicated management Ethernet port; Optional OCP 3.0 network card; supports Optional selection as needed; supports hot-swap; supports PCIe 5.0 Optional standard PCIe slot NICs; supports Optional selection as needed; supports Ethernet cards, Infini Band cards, and smart NICs |
| extended slot | Supports 21 PCIe expansion slots1; supports 18 x PCIe 5.0 standard slots1, 2 x hot-swappable OCP 3.0 slots, and 1 x dedicated Mezz slot; supports CXL 2.0 |
| GPU Support | Supports 6 x dual-width GPU acceleration cards1 or 18 x single-width GPU acceleration cards1 |
| IO | Standard includes 1 rear VGA; 4 USB interfaces (1 front, 1 internal, 2 rear). Optional smart ear brackets; supports 1 serial port + 1 VGA + 1 USB interface; Optional 1 front-dedicated management Ethernet port |
| Fan Module | Supports hot-swappable fans, N+1 redundancy |
| Optical Drive | Supports external optical drive |
| Cooling method | Supported air cooling and liquid cooling |
| Power Supply | Optional 800W/1300W/1600W/2000W/2400W/2700W/3200W power supplies; supports 1+1 redundancy; Optional -48V/336V DC power Supply Module; supports 1+1 redundancy; Optional Platinum-level/Titanium-level; CQC31-461288 certification, level V power supply |
| Authentication | Supports CCC, UL, CEetc.Authentication |
| operating temperature | 5℃ - 45℃ |
| SPcompatible Chassis | 2U standard chassis: 87.5mm (H) × 445.4mm (W) × 800mm (D) (excluding safety panel)/87.5mm (H) × 445.4mm (W) × 828mm (D) (including safety panel) |
| Front acceleration card chassis | 2U standard chassis: 87.5mm (H) × 445.4mm (W) × 900mm (D) (excluding safety panel)/87.5mm (H) × 445.4mm (W) × 928mm (D) (including safety panel) |
| APcompatible Chassis | 2U standard chassis: 87.5mm (H) × 445.4mm (W) × 850mm (D) (excluding safety panel)/87.5mm (H) × 445.4mm (W) × 878mm (D) (including safety panel) |
| Management | HDM3 agentless management tool (with dedicated management port) and H3C Uni System management software; supports LCD touch intelligent management module; Optional U-Center data center management platform |
| Security | Supports security chassis and TCM/TPM security module |
| Warranty | 3 years, 5×9; next business day (NBD) response |
| Ordering Information | |
| Processor | |
| 0231AR0R | UN-CPU-INTEL-6730P - R4900 G7 Servers |
| 0231AR0Q | UN-CPU-INTEL-6740P - R4900 G7 Servers |
| 0231AR0M | UN-CPU-INTEL-6741P - R4900 G7 Servers |
| 0231AR0K | UN-CPU-INTEL-6747P - R4900 G7 Servers |
| 0231AR0P | UN-CPU-INTEL-6760P - R4900 G7 Servers |
| 0231AR0S | UN-CPU-INTEL-6761P - R4900 G7 Servers |
| 0231AR0U | UN-CPU-INTEL-6767P - R4900 G7 Servers |
| 0231AR0L | UN-CPU-INTEL-6781P - R4900 G7 Servers |
| 0231AR0N | UN-CPU-INTEL-6787P - R4900 G7 Servers |
| 0231APL1 | UN-CPU-INTEL-6710E - 6710E(2.4GHz/64 cores/96MB/205W) CPU module (CTO&BTO) |
| 0231APL0 | UN-CPU-INTEL-6731E - 6731E(2.2GHz/96 cores/96MB/250W) CPU module (CTO&BTO) |
| 0231APKY | UN-CPU-INTEL-6740E - 6740E(2.4GHz/96 cores/96MB/250W) CPU module (CTO&BTO) |
| 0231APL5 | UN-CPU-INTEL-6746E - 6746E(2.0GHz/112 cores/96MB/250W) CPU module (CTO&BTO) |
| 0231APL4 | UN-CPU-INTEL-6756E - 6756E(1.8GHz/128 cores/96MB/225W) CPU module (CTO&BTO) |
| 0231APL3 | UN-CPU-INTEL-6766E - 6766E(1.9GHz/144 cores/108MB/250W) CPU module (CTO&BTO) |
| 0231APL2 | UN-CPU-INTEL-6780E - 6780E(2.2GHz/144 cores/108MB/330W) CPU module (CTO&BTO) |
| Memory | |
| 0231AP5N | 0231AP5N - R4900 G7 Servers |
| 0231AP5P | UN-DDR5-6400B-32G-1Rx4-R - 32GB 1RX4 DDR5-6400B RDIMMMemory Module(CTO&BTO) |
| 0231AP5Y | UN-DDR5-6400B-32G-2Rx8-R - 32GB 2RX8 DDR5-6400B RDIMMMemory Module(CTO&BTO) |
| 0231AP60 | UN-DDR5-6400B-64G-2Rx4-R - 64GB 2RX4 DDR5-6400B RDIMMMemory Module(CTO&BTO) |
| 0231AP61 | UN-DDR5-6400B-96G-2Rx4-R - 96GB 2RX4 DDR5-6400B RDIMMMemory Module(CTO&BTO) |
| 0231AP69 | UN-DDR5-6400B-128G-2Rx4-R - R4900 G7 Servers |
| 0231AP6B | 0231AP6B - R4900 G7 Servers |
| 0231AP6A | 0231AP6A - R4900 G7 Servers |
| Dummy Memory | |
| 0231AK76 | UN-DUMMY-DIMM-DDR5-M - DDR5 dummy memory module (CMCTO) |
| Front Hard Drive Backplane | |
| 0231AK7A | UN-PCA-BP-8LFF-2U-G6 - G6 2U front 8LFF backplane module(CTO&BTO) |
| 0231AN9V | UN-PCA-BP-8LFF-UniBay-2U-G6 - G6 2U front 8LFF Uni Bay hard disk backplane module (CTO&BTO) |
| 0231AJPN | UN-PCA-BP-12LFF-4NVMe-2U-G6 - G6 2U front 12LFF supports 4NVMe hard disk backplane module (CTO&BTO) |
| 0231AJPR | UN-PCA-BP-12LFF-2U-G6 - G6 2U front 12LFF backplane module(CTO&BTO) |
| 0231AJQ8 | UN-PCA-BP-12LFF-UniBay-2U-G6 - G6 2U front 12LFF Uni Bay hard disk backplane module (CTO&BTO) |
| 0231AK78 | UN-PCA-BP-12LFF-EXP-2U-G6 - G6 2U front 12LFF backplane module with Expander drive bay (CTO&BTO) |
| 0231AMP9 | UN-PCA-BP-12LFF-P36-G6 - G6 2U front 12LFF backplane module with Expander drive bay (CTO&BTO) |
| Rear Hard Drive Cage | |
| 0231AK88 | UN-HDDCage-2SFF-2U-G6 - G6 2U rear 2SFF drive cage module(CTO&BTO) |
| 0231AK8A | UN-HDDCage-2UniBay-2U-G6 - G6 2U rear 2SFF Uni Bay hard disk cage module (CTO&BTO) |
| 0231AKEN | UN-PCA-BP-2UniBay-OCP-2U-G6 - G6 2U Rear 2SFF Uni Bay Disk Backplane and OCP 3.0 Adapter Module (CTO&BTO) |
| 0231AK83 | UN-HDDCage-4UniBay-2U-G6 - G6 2U Rear 4SFF Uni Bay Drive Cage Module (CTO&BTO) |
| 0231AK86 | UN-HDDCage-4SFF-2U-G6 - G6 2U rear 4SFF drive cage module(CTO&BTO) |
| 0231AMPE | UN-HDDCage-2E3S16-2SFF-G6 - G6 2U rear 2E3S16+2SFF drive cage module (CTO&BTO) |
| 0231AKES | UN-HDDCage-8E1S-2U-G6 - G6 2U rear 8E1.S hard disk cage module (CTO&BTO) |
| Backplane CPU connection method | |
| VBPCPU02 | VBPCPU02 - R4900 G7 Servers |
| VBPCPU01 | VBPCPU01 - R4900 G7 Servers |
| Backplane specification confirmation | |
| MBNVMEMX | MBNVMEMX - R4900 G7 Servers |
| MBSATAMX | MBSATAMX - R4900 G7 Servers |
| MININVME | MININVME - R4900 G7 Servers |
| M.2 Adapter Card | |
| 0231AP6H | UN-RC-2M2-G7 - R4900 G7 Servers |
| M.2 SSD | |
| 0231AHCQ | UN-SSD-480G-SATA-S4520-M.2 - 480GB SATA RI S4520 M.2 SSDHard Drive Module(CTO&BTO) |
| 0231AK1R | 0231AK1R - 480GB 6G SATA RI 5400PRO M.2 SSDHard Drive Module(CTO&BTO) |
| SD card | |
| 0231A6RC | UN-SD-32G-Micro-F - 32G microSD mainstream flash drive module (FIO) |
| SD card expansion module | |
| 0231AJQE | UN-RC-DSD-UART-G6 - G6 serial port & DSD interface board (CTO&BTO) |
| Fan | |
| 0231AP65 | UN-FAN-8038-2U-G7 - G7 2U 8038Fan Module(CTO&BTO) |
| 0231AP6D | UN-FAN-8056-2U-G7-R - G7 2U 8056Fan Module(CTO&BTO) |
| Power Supply | |
| 0231ALYS | UN-CRPS-1300W-AC-12V-94%-M2 - 1300W AC & 240V HVDC power supply (Platinum - light-load high efficiency) (CMCTO) |
| 0231AGUP | UN-GW-CRPS1300D3 - 1300W AC&240V HVDC power Module (GW-R1-Platinum-low load high efficiency) (CTO&BTO) |
| 0231AKDP | UN-PAC1K3D12-B2 - 1300W AC & 240V HVDC power Supply Module (HW-R1- Platinum) (CTO&BTO) |
| 0231AJYB | UN-PS-2132-5L5 - 1300W AC & 240V HVDC power Supply Module (LT-R1- Platinum - light-load high efficiency) (CTO&BTO) |
| 0231ACTG | FSP1600-20FH-M - 1600W 336V HVDC power Supply Module (dedicated power cable) (FP-R1- Platinum) (CMCTO) |
| 0231AHRV | UN-DD-2162-3L5 - 1600W 48V DC power Supply Module (LT-R1- Platinum) (CTO&BTO) |
| 0231AMKU | UN-GW-CRPS1600C2 - 1600W AC & 240V HVDC power Supply Module (GW-R1- Titanium) (CTO&BTO) |
| 0231AMPJ | UN-CRPS-1600W-AC-12V-94%-M - 1600W AC & 240V HVDC power supply (Platinum) (CMCTO) |
| 0231ANVG | UN-CRPS1600-AC12-Ti-B1-M - 1600W AC & 240V HVDC power supply (Titanium) (CMCTO) |
| 0231AGUN | UN-GW-CRPS1600D2 - 1600W AC & 240V HVDC power Supply Module (GW-R1- Platinum) (CTO&BTO) |
| 0231ACTA | DPS-1600AB-13 R-M - 1600W AC & 240V High-Voltage DC power Supply Module (DT-R1-Platinum) (CMCTO) |
| 0231AMQ7 | UN-CRPS-2000W-AC-12V-94%-M - 2000W AC & 240V HVDC power supply (Platinum - light-load high efficiency) (CMCTO) |
| 0231AFSS | UN-GW-CRPS2000D - 2000W AC & 240V HVDC power Supply Module (GW-R2- Platinum - light-load high efficiency) (CTO&BTO) |
| 0231AHRU | UN-PS-2202-11L - 2000W AC & 240V HVDC power Supply Module (LT-R1- Platinum - light-load high efficiency) (CTO&BTO) |
| 0231ANVF | UN-CRPS3200-AC12-Ti-B1-GW - 3200W AC & 240V HVDC power Module (GW-R1-Titanium) (CTO&BTO) |
| 0231AHNS | UN-PAC800D12-B2 - 800W AC & 240V HVDC power supply (HW-R1-Platinum-Light-load efficiency) (CTO & BTO) |
| 0231AMPQ | UN-CRPS-800W-AC-12V-94%-M - 800W AC & 240V HVDC power supply (Platinum) (CTO) |
| 0231AGUQ | UN-GW-CRPS800N2 - 800W AC & 240V HVDC power Supply Module (GW-R2-Platinum-Efficient at Light Load) (CTO&BTO) |
| Power Supply Cable | |
| 0404A0K4 | CAB-PDU-2.0m-C14-C13-MUL-50598 - PDU Power Supply Cable - 2.0 m - 1.0 mm² - Black - (C14 Connector (3P) Straight Male 250V 10A) - (227 IEC 53 (RVV) & H05VV-F & SJT) - (C13) - Chinese Standard + U.S. Standard + European Standard + Korean Standard |
| 0404A06Q | CAB-AC Pwr CHI-1.8m - Wall-mounted AC power cord—1.8 m—3 × 0.75 mm²—black—(GB1002 plug (3P), straight male, 250 V, 10 A)—(227 IEC 53 (RVV))—(C13 connector (3P), straight female, 250 V, 10 A)—Chinese National Standard |
| 04040890 | CAB-AC Pwr EN&SI-3m - Wall power outlet AC power cable - 3.0m - 1.0mm^2 - black - (BS1363A plug (3P) right-angle male 250V13A) - (H05VV-F) - (C13 connector (3P) straight female 250V10A) - UK standard |
| 0404A0MW | CAB-AC-16A-PDU-3m-Eu - PDU Power Supply Cable - 3.0 m - 1.5 mm² - Black - (C20 Connector (3P) Straight Male 250 V 16 A) - (H05VV-F) - (C19 Connector (3P) Straight Female 250 V 16 A) - European Standard |
| Slot 1 interposer card | |
| 0231AJQ9 | UN-RC-3FHHL-2U-G6 - G6 2U Riser1/Riser2 X16X8X8 Riser (supports 3x 75W GPU) (CTO&BTO) |
| 0231AK6U | UN-RC-2FHHL-2U-G6 - G6 2U Riser1/Riser2 2X8 Riser(supports 2x FHHL modules)(CTO&BTO) |
| 0231AN9X | UN-RC-3FHFL-2U-G6-1 - G6 2U Riser1/Riser2 3X16 Riser module (supports 2x 150W GPUs and 1x FHHL) (CTO&BTO) |
| Riser1 specification confirmation | |
| AJQ9CHK4 | AJQ9CHK4 - R4900 G7 Servers |
| AN9XCHK2 | AN9XCHK2 - R4900 G7 Servers |
| Slot 2 Adapter Card | |
| Riser2 specification confirmation | |
| AJQ9CHK5 | AJQ9CHK5 - R4900 G7 Servers |
| AN9XCHK3 | AN9XCHK3 - R4900 G7 Servers |
| Slot 3 Adapter Card | |
| 0231AJPW | UN-RC-2HHHL-R3-2U-G6 - G6 2U Riser3 2X8 Riser (supports 2 HHHL modules) (CTO&BTO) |
| 0231AJQ7 | UN-RC-2FHFL-R3-2U-G6 - G6 2U Riser3 2X8 Riser (supports 2 FHFL modules) (CTO&BTO) |
| 0231AJQA | UN-RC-1FHFL-R3-2U-G6 - G6 2U Riser3 X16 Riser (Supports 1x 300W GPU) (CTO&BTO) |
| 0231AKED | UN-RC-2HHHL-R3-2U-G6-2 - G6 Riser3 X16X16 to Adapter Card (supports 2 HHHL modules) (CTO&BTO) |
| 4GPUModule | |
| 0231APMG | UN-PCA-R4900-4GPU-G7 - G7 2U 4GPUModule(CTO&BTO) |
| Control card module | |
| 0231AK8J | UN-RAID-P9560-3S-8i-4GB - P9560-8i 12G SAS RAID card module (supports 8x SAS ports, with 4GB cache, excluding supercapacitor) (CTO&BTO) |
| 0231AP6L | UN-RAID-E1316-Mr1-16i - G7 4-port MEZZ card module (supports 16 SATA ports) (CTO&BTO) |
| 0231AG62 | UN-RAID-LSI-9560-LP-8i-4GB - LSI 9560-8i 12G SAS RAID card module (supports 8 SAS Ports, with 4GB cache, PCIe, without supercapacitor) (CTO&BTO) |
| 0231AJ6E | UN-HBA-LSI-9500-LP-8i - LSI 9500-8i 12G SAS HBA card module (supports 8x SAS Ports, PCIe) (CTO&BTO) |
| 0231AEVL | UN-RAID-LSI-9560-LP-16i-8GB-M - LSI 9560-16i 12G SAS RAID card module (supports 16x SAS Ports, with 8GB cache, PCIe, excludes supercapacitor) (CMCTO) |
| 0231AJ6M | UN-HBA-LSI-9500-LP-16i - LSI 9500-16i 12G SAS HBA card module (supports 16x SAS Ports, PCIe) (CTO&BTO) |
| 0231A8P1 | UN-RAID-P460-B4-F - P460-B4 12G SAS RAID card module (supports 8 SAS Ports, with 4GB cache, excluding supercapacitor) (CMCTO) |
| 0231A8ND | UN-HBA-H460-B1-F - H460-B1 12G SAS HBA card module (supports 8 SAS ports, PCIe) (CMCTO) |
| Battery | |
| 0231AEYR | UN-BAT-LSI-G3-A - LSI G3 supercapacitor module (CTO&BTO) |
| 0231AFA4 | UN-BAT-PMC-G3-2U - PMC G3 Supercapacitor Module (for 2U Standard Chassis) (CTO & BTO) |
| VROCModule(Supports NVMe Hard DriveRAID) | |
| 0231A6R6 | UN-NVMe-VROC-Key-S-F - Intel NVMe VROC module - Standard edition (FIO) |
| 0231A6R8 | UN-NVMe-VROC-Key-P-F - Intel NVMe VROC module - Advanced edition (FIO) |
| Graphics Card | |
| 0231AJSK | UN-GPU-MLU370-S4-24G-LP - CAMBRICON MLU370-S4 24G GPUModule(CTO&BTO) |
| 0231AHX3 | 0231AHX3 - CAMBRICON MLU370-X4 24G GPUModule(CTO&BTO) |
| 0231AJFS | UN-GPU-A16-64G-DW - NVIDIA A16 64G GPUModule(CTO&BTO) |
| 0231ANF4 | UN-GPU-48GB-DW - NVIDIA 48G PCIe4.0 X16 FHFL GPUModule(CTO&BTO) |
| 0231AG9X | UN-GPU-A10-24G - NVIDIA Tesla A10 24G GPUModule(Non-CEC)(CTO&BTO) |
| 0231ANMC | 0231ANMC - Nvidia L2 24G PCIe4.0 X16 HHHL GPUModule(CTO&BTO) |
| 0231AJWA | UN-GPU-A2-16GB-NoCEC - Nvidia Tesla A2 16GB Non-CEC GPUModule(CTO&BTO) |
| 0231AKMR | UN-GPU-MLU370-X8-48GB - Cambricon MLU370-X8 48G GPU module (CTO&BTO) |
| Network Adapter | |
| 0231AFUR | 0231AFUR - R4900 G7 Servers |
| Optical Module | |
| 0231AC16 | QSFP-100G-SR4-MM850-CM - 100G QSFP28 optical module (850nm, 100m OM4, SR4, MPO) (FIO) |
| 0231ADWS | 0231ADWS - 2-Port100GEoptical interface Network Adapter(QSFP28)(CTO&BTO) |
| 0231AFUS | UN-IB-MCX653106A-ECAT-100Gb-2P - 100Gb 2-Port Infiniband HDR/Ethernet Adapter Card (Supports QSFP56 Optical Modules) (CTO&BTO) |
| 0231AGJA | UN-NIC-ETH-MCX623106AN-CDAT-2P - 2-Port100Gb QSFP56optical interfaceMCX623106AN-CDATNetwork Adapter(CTO&BTO) |
| 0231AH2Y | UN-NIC-BCM957508-P2100G-2P - 2-port 100Gb QSFP56 Optical Interface BCM957508-P2100G Ethernet card (CTO&BTO) |
| 0231A7PW | UN-NIC-BCM957412-F-B-10Gb-2P-F - 2-Port10GEoptical interface Network Adapter(BCM957412)(FIO) |
| 0231A8KB | UN-SFP-XG-SX-MM850-E1 - SFP+ 10GModule(850nm,300m,LC) |
| 0231AC0T | SFP-XG-LX-SM1310-CM - SFP+ 10GModule(1310nm,10km,LC)(FIO) |
| 0231A8K2 | UN-CNA-10GE-2P-560F-B2-1 - 2-Port10Goptical interface Network Adapter(SFP+)-560F-B2 |
| 0231AC0Y | SFP-GE-SX-MM850-CM - Optical module - SFP-GE-multimode optical module (850nm, 0.55km, LC) (FIO) |
| 0231A9AU | UN-NIC-X710DA2-F-B-10Gb-2P-F2 - 2-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231AFRV | UN-NIC-ETH531F-LP-2P - 2-Port10GEoptical interface Network Adapter(CTO&BTO) |
| 0231ANJD | UN-NIC-ETH-RP1000P2SFP-LP-2P - 2-Port10GEoptical interface Network Adapter(RP1000P2SFP)(CTO&BTO) |
| 0231A7WC | UN-NIC-X710DA4-F-B-10Gb-4P-F - 4-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231A7NA | UN-CNA-560T-B2-10Gb-2P-1 - 2-Port10Gbelectrical interface Network Adapter-560T-B2 |
| 0231A7PX | UN-NIC-BCM957416-T-B-10Gb-2P-F - 2-Port10GEelectrical interface Network Adapter(BCM957416)(FIO) |
| 0231A8K1 | UN-NIC-GE-4P-360T-B2-1 - 4-Port Gigabitelectrical interface Network Adapter-360T-B2 |
| 0231AK5Y | UN-NIC-ETH330T-LP-4P - 4-PortGEelectrical interface Network Adapter(CTO&BTO) |
| 0231ANJJ | UN-NIC-ETH-SF400T-LP-4P-GE - 4-Port1GEelectrical interface Network Adapter(SF400T)(CTO&BTO) |
| 0231AFN6 | UN-NIC-ETH-MCX623105AN-VDAT-1P - 1-port 200Gb QSFP56 Optical Interface MCX623105AN-VDAT Ethernet network adapter (CTO&BTO) |
| 0231AFN8 | UN-IB-MCX653105A-HDAT-200Gb-1P - 200Gb 1-Port Infini Band HDR/Ethernet Adapter Card (Supports QSFP56 Optical Modules) (CTO&BTO) |
| 0231AM5N | UN-IB-MCX75310AAS-HEAT-200Gb-1P - 1-port 200Gb Infiniband NDR/Ethernet adapter card (supports OSFP optical modules) (CTO&BTO) |
| 0231AM5P | UN-IB-MCX755106AS-HEAT-200Gb-2P - 2-port 200Gb Infiniband NDR/Ethernet adapter card (supports QSFP112 optical modules) (CTO&BTO) |
| 0231A7NH | UN-NIC-620F-B2-25Gb-2P-1 - 2-Port25Gboptical interface Network Adapter(SFP+)-620F-B2 |
| 0231A7N6 | SFP-25G-SR-MM850-1 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231A7Q2 | UN-NIC-BCM957414-F-B-25Gb-2P-F - 2-Port25GEoptical interface Network Adapter(BCM957414)(FIO) |
| 0231AF8A | UN-NIC-X2522-25Gb-2P-M - 2-port 25Gb SFP28 Optical Interface X2522-25G-PLUS low-latency network card (CTO&BTO) |
| 0231AFH5 | UN-NIC-ETH630F-LP-2P - 2-Port25GEoptical interface Network Adapter (ETH630F)(CTO&BTO) |
| 0231AFUG | UN-NIC-ETH-MCX631102AN-ADAT - 2-port 25Gb SFP28 Optical Interface MCX631102AN-ADAT Ethernet card (CTO&BTO) |
| 0231AG88 | UN-NIC-ETH-E810XXVDA2G1P5-2P - 2-port 25Gb SFP28 Optical Interface E810XXVDA2G1P5 Ethernet card (CTO&BTO) |
| 0231ALXR | UN-NIC-ETH641F-LP-2P - 2-Port25GEoptical interface Network Adapter (ETH641F)(CTO&BTO) |
| 0231ALPQ | UN-IB-MCX75310AAS-NEAT-400Gb-1P - 1-port 400Gb Infiniband NDR/Ethernet adapter card (supports OSFP optical modules) (CTO&BTO) |
| OCPNetwork Adapter | |
| 0231AGFL | UN-NIC-ETH-MCX623436AN-CDAB-2P - 2-Port100Gb optical interfaceMCX623436AN-CDAB OCP3.0Network Adapter(CTO&BTO) |
| 0231AEBU | UN-NIC-ETH360T-3S-4P - 4-Port1GEelectrical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AEBV | UN-NIC-ETH565T-3S-2P - 2-Port10GEelectrical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AEBY | UN-NIC-ETH561F-3S-2P - 2-Port10GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AN1D | UN-NIC-ETH531F-3S-2P - 2-Port10GEoptical interfaceOCP3.0Network Adapter (ETH531F)(CTO&BTO) |
| 0231AN1E | UN-NIC-ETH330T-3S-4P - 4-Port1GEelectrical interfaceOCP3.0Network Adapter (ETH330T)(CTO&BTO) |
| 0231AEBW | UN-NIC-ETH640F-3S-2P - 2-Port25GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AFH3 | UN-NIC-ETH660F-3S-2P - 2-Port25GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AG96 | UN-NIC-ETH-MCX631432AN-ADAB-2P - 2-Port25Gb SFP28optical interfaceMCX631432AN OCP3.0Network Adapter(CTO&BTO) |
| Fibre Channel controller | |
| 0231A7LG | UN-FC-HBA-LPe32000-32Gb-1P - 1-port 32Gb Fibre Channel HBA card (with one SFP+ optical module) |
| 0231A7LN | UN-FC-HBA-LPe32002-32Gb-2P - 2-port 32Gb optical fiber channel HBA card (with two SFP+ optical modules) |
| 0231A7NB | UN-HBA-16Gb-LPe31000-1P-1 - 1-port 16Gb Fibre Channel HBA card (with one SFP+ module) |
| 0231A7NF | UN-HBA-16Gb-LPe31002-2P-1 - 2-port 16Gb Fibre Channel HBA card (with two SFP+ modules) |
| 0231A8JQ | UN-FC-HBA-QLE2690-16Gb-1P-1 - 1-port 16Gb Fibre Channel HBA card (with one SFP+ module) |
| 0231A8JV | UN-FC-HBA-QLE2692-16Gb-2P-1 - 2-port 16Gb Fibre Channel HBA card (with two SFP+ modules) |
| 0231AGHH | UN-FC-HBA-LPe35000-LP-32Gb-1P - 1-port 32Gb Optical Interface LPe35000 AIC FC HBA card (PCIe 4.0) (comes with one SFP+ optical module) (CTO&BTO) |
| 0231AGHJ | UN-FC-HBA-LPe35002-LP-32Gb-2P - 2-port 32Gb Optical Interface LPe35002 AIC FC HBA card (PCIe 4.0) (comes with two SFP+ optical modules) (CTO&BTO) |
| 0231AMKF | UN-FC-HBA-QLe2770-LP-32G-1P - 1-port 32Gb PCIe4.0 X8 SFP+ Optical Interface QLe2770 LP FC HBA card (with one SFP+ optical module) (CTO&BTO) |
| 0231AMKP | UN-FC-HBA-QLe2772-LP-32G-2P - 2-port 32Gb PCIe4.0 X8 SFP+ Optical Interface QLe2772 LP FC HBA card (with two SFP+ optical modules) (CTO&BTO) |
| 0231ANQ1 | UN-FC-HBA-LPe36002-LP-64G-2P - 2-port 64Gb PCIe4.0 X8 SFP+ Optical Interface LPe36002 LP FC HBA card (with two SFP+ optical modules) (CTO&BTO) |
| 0231ANQ2 | UN-FC-HBA-LPe36000-LP-64G-1P - 1-port 64Gb PCIe4.0 X8 SFP+ Optical Interface LPe36000 LP FC HBA card (with one SFP+ optical module) (CTO&BTO) |
| BMC Module | |
| 0231AP5S | UN-PCA-BMC-G7 - G7 BMC management board module (CTO&BTO) |
| i Fist Module | |
| 0231AJQ5 | UN-IFIST-EX-G6 - G6 iFISTModule(CTO&BTO) |
| Diagnostic Modules | |
| 0231AG61 | UN-SID-LCD-LFF - LFF LCD panel module (CTO&BTO) |
| Security Hardware | |
| 0231AKEY | UN-TCM-SPI-B - H3C server platform trusted module SPI TCM (CTO&BTO) |
| 0231AKEX | UN-TPM-SPI-B - H3C server series trusted platform module SPI TPM (CTO&BTO) |
| Optical Drive | |
| 0231A6R9 | 0231A6R9 - Mobile USB 2.0 interface read/write optical drive module (FIO) |
| Rack Rail | |
| 0231AKEB | UN-BB-2U-G6 - G6 2U/1U Ball Screw Guide Rails (CTO & BTO) |
| Cable Management Tray | |
| 0231AQCE | UN-CMA-2U-G6 - G6 2U Cable Management Rack (CTO & BTO) |
| Security Panel | |
| 0231AFTB | UN-SEC-Panel-2U-G5 - H3C Uni Server G5 2U intelligent security panel (CTO&BTO) |
| Ear Hook | |
| 0231AP5T | UN-EAR-QE-2U-LED-G7 - R4900 G7 Servers |
| GPU Airflow Shroud | |
| 0231AP6F | UN-FAN-COVER-3GPU-G7 - R4900 G7 Servers |
| Tag | |
| 0231AGWU | UN-Label-Shock&Tilt Monitor - Anti-tilt label and 37G anti-vibration label (CTO&BTO) |
| Is customization Required? | |
| CUSTNEED | CUSTNEED - R4900 G7 Servers |
| Customized module | |
| 0231A8A6 | UN-CTM-G3-F - H3C customer-specific customization module (1H) (FIO) |
| Installing Services | |
| 8814A0KV | SV-PS-US-INST - H3C Server first-time basic installation service - for overseas business only |
| License Fees | |
| 3130A66X | LIS-HDM-FORMAL-SERVER - H3C advanced feature license fee (CTO&BTO) |
| Product Identity | |
| Brand | H3C |
| Series | H3C R4900 G7 SP rack server |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the GPU Support specification for UN-R4900-G7-MAL0-C?
UN-R4900-G7-MAL0-C lists GPU Support as Supports 6 double-width GPU accelerator cards 1 or 18 single-width GPU accelerator cards 1. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Fan Module specification for UN-R4900-G7-MAL0-C?
UN-R4900-G7-MAL0-C lists Fan Module as Supports hot-swappable fans and N+1 redundancy. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Optical Drive specification for UN-R4900-G7-MAL0-C?
UN-R4900-G7-MAL0-C lists Optical Drive as Supports external optical drive. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Cooling method specification for UN-R4900-G7-MAL0-C?
UN-R4900-G7-MAL0-C lists Cooling method as Supports air cooling and liquid cooling. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
