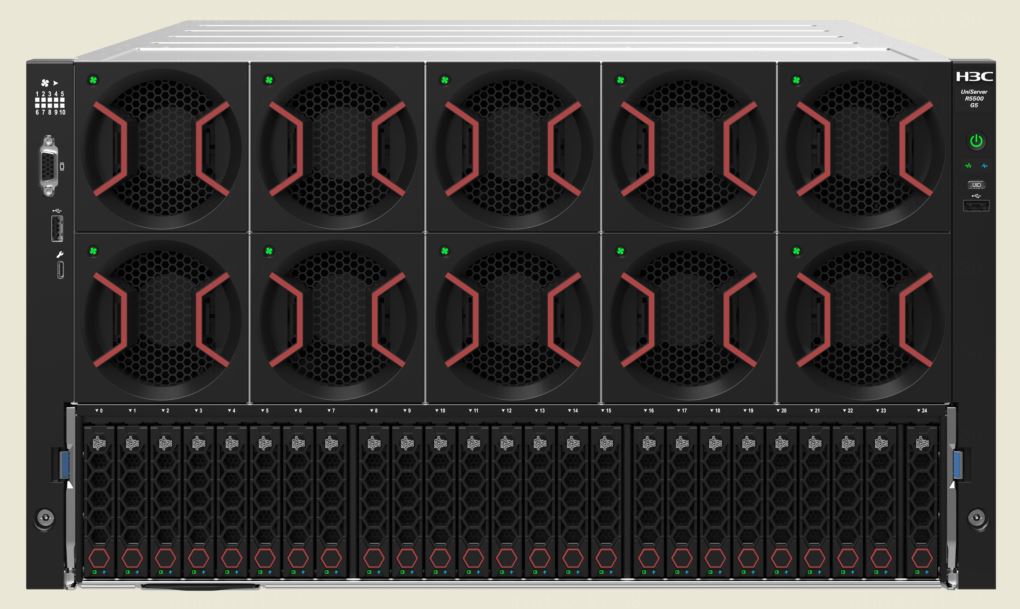

H3C UN-R5500-G5-Hygon-C Uni Server R5500 G5 CTOServers(Hygon)
Brand H3C
N/AVerified
H3C UN-R5500-G5-Hygon-C
Model (MPN)
0235A4R6
Condition
Factory Sealed
Out of Stock
H3C UN-R5500-G5-Hygon-C Uni Server R5500 G5 CTOServers(Hygon). Processor: Supports up to 2 AMD EPYC Rome/Milan/Milan-X processors, up to 64 cores per CPU, maximum power 280W; supports up to 2 Intel® Xeon® 3rd Gen Scalable Family processors or Intel® Sapphire Rapids? series processors, up to 40 cores per CPU, maximum power 270W. Memory: Supports up to 32 DDR4 memory slots, speeds up to 3200MT/s, supports RDIMM or LRDI
Key Specifications
DescriptionH3C Uni Server R5500 G5 CTOServers(Hygon)
Interface2x USB 3.0 + 1x VGA + 1x TypeC Debug port (front panel); 2x USB 3.0 (internal); 2x USB 3.0 + 1x VGA + 1x serial port + 1x HDM management network port (rear panel)
Dimensions/Chassis Size6U chassis: 263.7mm (height) × 482.6mm (width) × 847mm (depth)
Power SupplySupports 4x 3000W + 2x 2400W/2000W Platinum power supplies; supports N+N redundancy
operating temperature5°C to 35°C (Operating temperature varies depending on configuration; please refer to the detailed product technology documentation for specifics)
GPU Compute Modules8-GPU Module
Your Price
Best Value
$785.70
List Price: $7,857.00Save 90%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C Uni Server R5500 G5 CTOServers(Hygon) |
| Key Specifications | |
| Interface | 2x USB 3.0 + 1x VGA + 1x TypeC Debug port (front panel); 2x USB 3.0 (internal); 2x USB 3.0 + 1x VGA + 1x serial port + 1x HDM management network port (rear panel) |
| Dimensions/Chassis Size | 6U chassis: 263.7mm (height) × 482.6mm (width) × 847mm (depth) |
| Power Supply | Supports 4x 3000W + 2x 2400W/2000W Platinum power supplies; supports N+N redundancy |
| operating temperature | 5°C to 35°C (Operating temperature varies depending on configuration; please refer to the detailed product technology documentation for specifics) |
| GPU Compute Modules | 8-GPU Module |
| CPU compute module | AMD compute node Intel compute node |
| Product Specifications | |
| GPU Compute Modules | 8-GPU Module |
| CPU compute module | AMD compute node Intel compute node |
| Processor | Supports up to 2 AMD EPYC Rome/Milan/Milan-X processors, up to 64 cores per CPU, maximum power 280W; supports up to 2 Intel® Xeon® 3rd Gen Scalable Family processors or Intel® Sapphire Rapids? series processors, up to 40 cores per CPU, maximum power 270W |
| Memory | Supports up to 32 DDR4 memory slots, speeds up to 3200MT/s, supports RDIMM or LRDIMM. Supports up to 32 DDR4 memory slots, speeds up to 3200MT/s, supports RDIMM or LRDIMM, capacity up to 12TB; supports up to 16 Intel® Optane® persistent memory PMem 200 series. |
| Storage Controller | Optional configuration of high-performance RAID controller, supporting RAID0/1/10/5/6/50/60 |
| PCIe slots | Supports up to 10 PCIe 4.0 standard expansion slots + 1 OCP 3.0 network card dedicated slot |
| Hard Drive | System SAS/SATA/NVMe drive configuration: 25×2.5-inch SAS/SATA/NVMe (can support 12×NVMe); 8×2.5-inch SAS/SATA/NVMe (can support 8×NVMe) |
| Network | Optional OCP 3.0 network card; Optional 1/10/25/40/50/100/200GE PCIe standard network cards |
| Fan | 10 high-performance fans, supports N+1 redundancy |
| Management Software | HDM agentless management tool (with dedicated management port) and H3C Uni System management software |
| Interface | 2x USB 3.0 + 1x VGA + 1x TypeC Debug port (front panel); 2x USB 3.0 (internal); 2x USB 3.0 + 1x VGA + 1x serial port + 1x HDM management network port (rear panel) |
| Power Supply | Supports 4x 3000W + 2x 2400W/2000W Platinum power supplies; supports N+N redundancy |
| operating temperature | 5°C to 35°C (Operating temperature varies depending on configuration; please refer to the detailed product technology documentation for specifics) |
| Dimensions/Chassis Size | 6U chassis: 263.7mm (height) × 482.6mm (width) × 847mm (depth) |
| Warranty | 3 years, 5×9; next business day (NBD) response |
| Ordering Information | |
| Processor | |
| 0231ALMT | UN-CPU-HYGON-7360 - Hygon C86-3G 7360 (2.2GHz/24 cores/64MB/180W) CPU module (CTO&BTO) |
| 0231ALMV | UN-CPU-HYGON-7380 - Hygon C86-3G 7380 (2.2GHz/32 cores/64MB/220W) CPU module (CTO&BTO) |
| 0231ALN1 | UN-CPU-HYGON-7375 - Hygon C86-3G 7375 (2.0GHz/32 cores/64MB/208W) CPU module (CTO&BTO) |
| 0231ANND | 0231ANND - Hygon C86-3G 7390 D0 (2.7GHz/32 cores/64MB/225W) CPU module (CTO&BTO) |
| Memory | |
| 0231AF6R | 0231AF6R - 16GB 2Rx8 DDR4-3200 CAS-22-22-22 RDIMMMemory Module(CTO&BTO) |
| 0231AF76 | UN-DDR4-3200AA-32G-2Rx4-R - 32GB 2Rx4 DDR4-3200 CAS-22-22-22 RDIMMMemory Module(CTO&BTO) |
| 0231AG95 | UN-DDR4-3200AA-32G-2Rx8-R - 32GB 2Rx8 DDR4-3200 CAS-22-22-22 RDIMMMemory Module(CTO&BTO) |
| Power node | |
| 0231AFAS | UN-PSU-R5500-G5 - H3C Uni Server R5500 G5 power node module (CTO&BTO) |
| GPU Compute Modules | |
| 0231AMD8 | UN-PCA-R480-R5500-G5 - H3C Uni Server R480 MEZZ carrier board module (CTO&BTO) |
| Expansion Module | |
| 0231AMQP | UN-BP-25SFF-R5500-G5-VB - H3C Uni Server R5500 G5 25SFF disk expansion module (backplane interconnect VB version) (CTO&BTO) |
| 0231AMQM | UN-BP-8SFF-R5500-G5-VB - H3C Uni Server R5500 G5 8SFF disk expansion module (backplane interconnect VB version) (CTO&BTO) |
| M.2 Adapter Card | |
| 0231A8EU | UN-RC-M2-C-F - M.2 Adapter Module (SATA Interface) (FIO) |
| Power node Power Supply Module | |
| 0231AFNN | UN-DPS-3000AB-23 A - 3000W AC & 240V HVDC power Supply Module (DT-R1-Platinum) (CTO&BTO) |
| 0231AFAD | 0231AFAD - 3000W AC & 240V HVDC power Supply Module (GW-R1-Platinum) (CTO&BTO) |
| 0231AMPS | UN-CRPS-3000W-AC-54V-94%-M - 3000W AC & 240V HVDC power supply (Platinum) (CMCTO) |
| Compute node Power Supply Module | |
| 0231AFSS | UN-GW-CRPS2000D - 2000W AC & 240V HVDC power Supply Module (GW-R2- Platinum - light-load high efficiency) (CTO&BTO) |
| 0231ABWE | UN-DPS-2000AB-2 G-M - 2000W AC & 240V HVDC power Supply Module (DT-R1-platinum) (CMCTO) |
| 0231AFQB | UN-DPS-2400EB B - 2400W AC & 240V HVDC power Supply Module (DT-R1-Platinum) (CTO&BTO) |
| Fan | |
| 0231AFA7 | UN-FAN-R5500-G5 - H3C Uni Server R5500 G5 Fan Module(CMCTO) |
| Adapter Card | |
| 0231AFAR | UN-NIC-R5500-G5 - H3C Uni Server R5500 G5 LP interconnect card (CTO&BTO) |
| PCIE RAID Cards(on Riser) | |
| 0231A8K4 | 0231A8K4 - LSI 9361-8i 12G SAS RAID card module (supports 8 x SAS Ports, with 2GB cache, PCIe, excluding power-loss protection module) (CMCTO) |
| 0231A8ND | UN-HBA-H460-B1-F - H460-B1 12G SAS HBA card module (supports 8 SAS ports, PCIe) (CMCTO) |
| 0231A8P1 | UN-RAID-P460-B4-F - P460-B4 12G SAS RAID card module (supports 8 SAS Ports, with 4GB cache, excluding supercapacitor) (CMCTO) |
| 0231AAUF | 0231AAUF - P460-B2 12G SAS RAID card module (supports 8 SAS ports, with 2GB cache, excluding supercapacitor) (CMCTO) |
| 0231AG62 | UN-RAID-LSI-9560-LP-8i-4GB - LSI 9560-8i 12G SAS RAID card module (supports 8 SAS Ports, with 4GB cache, PCIe, without supercapacitor) (CTO&BTO) |
| 0231AJ6E | UN-HBA-LSI-9500-LP-8i - LSI 9500-8i 12G SAS HBA card module (supports 8x SAS Ports, PCIe) (CTO&BTO) |
| Battery | |
| 0231AEYS | UN-BAT-LSI-G2-A - LSI G2 supercapacitor module (CTO&BTO) |
| 0231AEYR | UN-BAT-LSI-G3-A - LSI G3 supercapacitor module (CTO&BTO) |
| 0231AFA4 | UN-BAT-PMC-G3-2U - PMC G3 Supercapacitor Module (for 2U Standard Chassis) (CTO & BTO) |
| Fibre Channel controller | |
| 0231A7LN | UN-FC-HBA-LPe32002-32Gb-2P - 2-port 32Gb optical fiber channel HBA card (with two SFP+ optical modules) |
| Network Adapter | |
| 0231A7GN | 0231A7GN - 2-Port25GEoptical interface Network Adapter(SFP+)(FIO) |
| Optical Module | |
| 0231A8KB | UN-SFP-XG-SX-MM850-E1 - SFP+ 10GModule(850nm,300m,LC) |
| 0231A7N6 | SFP-25G-SR-MM850-1 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231A8K1 | UN-NIC-GE-4P-360T-B2-1 - 4-Port Gigabitelectrical interface Network Adapter-360T-B2 |
| 0231A8K2 | UN-CNA-10GE-2P-560F-B2-1 - 2-Port10Goptical interface Network Adapter(SFP+)-560F-B2 |
| 0231AC0T | SFP-XG-LX-SM1310-CM - SFP+ 10GModule(1310nm,10km,LC)(FIO) |
| 0231A8K9 | UN-NIC-10GE-2P-530F-B2-1 - 2-Port10Goptical interface Network Adapter(SFP+)-530F-B2 |
| 0231AEC7 | 0231AEC7 - 1-port 100Gb QSFP28 Optical Interface MCX515A-CCAT Ethernet NIC (CMCTO) |
| 0231AC16 | QSFP-100G-SR4-MM850-CM - 100G QSFP28 optical module (850nm, 100m OM4, SR4, MPO) (FIO) |
| 0231AEC8 | UN-NIC-ETH-MCX516A-CCAT-2P-M - 100Gb 2-Port QSFP28 Optical Interface MCX516A-CCAT Ethernet Card (CMCTO) |
| 0231AFN6 | UN-NIC-ETH-MCX623105AN-VDAT-1P - 1-port 200Gb QSFP56 Optical Interface MCX623105AN-VDAT Ethernet network adapter (CTO&BTO) |
| 0231AFN8 | UN-IB-MCX653105A-HDAT-200Gb-1P - 200Gb 1-Port Infini Band HDR/Ethernet Adapter Card (Supports QSFP56 Optical Modules) (CTO&BTO) |
| 0231AFUS | UN-IB-MCX653106A-ECAT-100Gb-2P - 100Gb 2-Port Infiniband HDR/Ethernet Adapter Card (Supports QSFP56 Optical Modules) (CTO&BTO) |
| 0231AGJA | UN-NIC-ETH-MCX623106AN-CDAT-2P - 2-Port100Gb QSFP56optical interfaceMCX623106AN-CDATNetwork Adapter(CTO&BTO) |
| Dedicated Slot OCP Network Card | |
| 0231AEBU | UN-NIC-ETH360T-3S-4P - 4-Port1GEelectrical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AEBW | UN-NIC-ETH640F-3S-2P - 2-Port25GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AEBY | UN-NIC-ETH561F-3S-2P - 2-Port10GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| Security Hardware | |
| 0231A8K8 | 0231A8K8 - R5500G5 Server |
| 0231A8KD | UN-TCM-1 - Server series trusted platform module (TCM) |
| Rails/cable management rack | |
| 0231A4EK | LSXM1BSR - 1U Adjustable Rack Rail—630 mm to 900 mm |
| 0231AAH2 | RL-12U-F - Adjustable Sliding Rail (FIO) |
| Installing Services | |
| 8814A0CP | SV-PS-UN - H3C server first basic installation service |
| Operating System Compatibility Verification | |
| BATJOSXX | BATJOSXX - R5500G5 Server |
| OSCHECKX | OSCHECKX - R5500G5 Server |
| linux | |
| 82ENTHAT | 82ENTHAT - R5500G5 Server |
| UBSE204X | UBSE204X - R5500G5 Server |
| UBSE224X | UBSE224X - R5500G5 Server |
| UBSE2243 | UBSE2243 - R5500G5 Server |
| Community/Regional Enabled Oss | |
| CENTOS76 | CENTOS76 - R5500G5 Server |
| CENTOS83 | CENTOS83 - R5500G5 Server |
| Other Operating Systems | |
| NINGV312 | NINGV312 - R5500G5 Server |
| OTHERSOS | OTHERSOS - R5500G5 Server |
| Product Identity | |
| Brand | H3C |
| Series | H3C R5500 G5 GPUServers |
