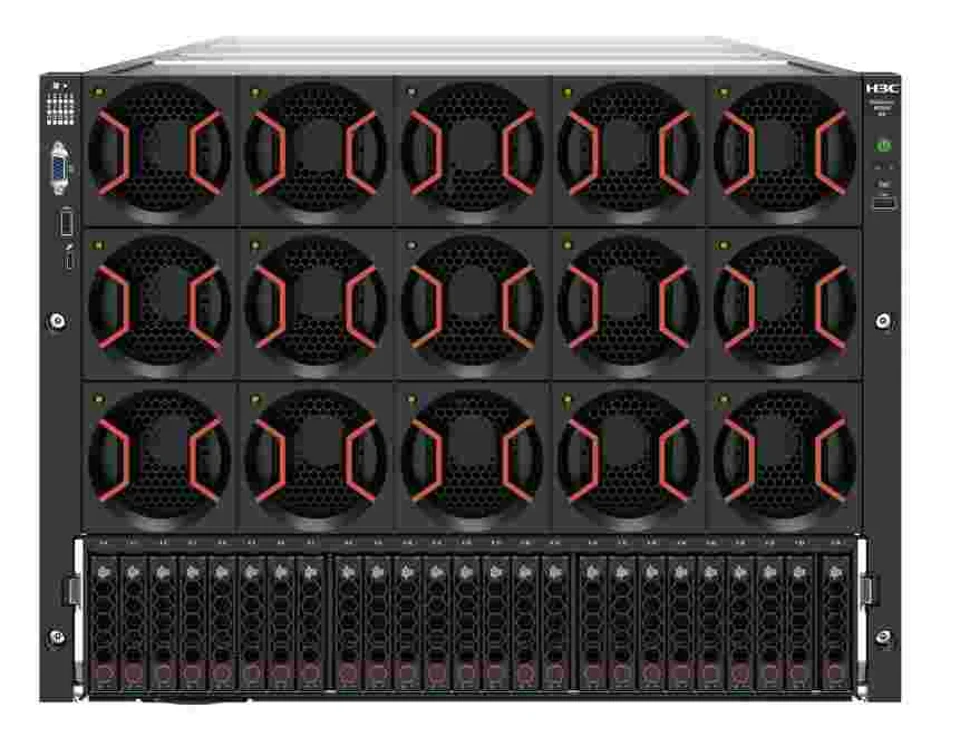

H3C UN-R5500-G6-LC-C Uni Server R5500 G6 CTO 8U liquid-cooled server
Brand H3C
N/AVerified
H3C UN-R5500-G6-LC-C
Model (MPN)
0235A4SQ
Condition
Factory Sealed
Out of Stock
H3C UN-R5500-G6-LC-C Uni Server R5500 G6 CTO 8U liquid-cooled server. CPU Compute Nodes: H3C Uni Server C550 Compute Node H3C Uni Server C500 Compute Node. Storage Controller: Optional high-performance RAID controller supporting RAID 0/1/10/5/6/50/60/Tri-Mode*. Dimensions/Chassis Size: 8U Chassis: 352.1 mm (H) × 447 mm (W) × 847 mm (depth)
Key Specifications
DescriptionH3C Uni Server R5500 G6 CTO 8U liquid-cooled server
Interface1 x USB 3.0 + 1 x USB 2.0 + 1 x VGA + 1 x Type-C debug port (front panel), 1 x USB 3.0 (internal), 2 x USB 3.0 + 1 x VGA + 1 x HDMI management port (rear panel); Optional serial port*
Dimensions/Chassis Size8U Chassis: 352.1 mm (H) × 447 mm (W) × 847 mm (depth)
operating temperature5°C to 35°C (Operating temperature varies depending on configuration; please refer to the detailed product technology documentation for specifics)
GPU Compute Modules8-GPU Module
CPU Compute NodesH3C Uni Server C550 Compute Node H3C Uni Server C500 Compute Node
Your Price
Best Value
$214.20
List Price: $2,142.00Save 90%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | H3C Uni Server R5500 G6 CTO 8U liquid-cooled server |
| Key Specifications | |
| Interface | 1 x USB 3.0 + 1 x USB 2.0 + 1 x VGA + 1 x Type-C debug port (front panel), 1 x USB 3.0 (internal), 2 x USB 3.0 + 1 x VGA + 1 x HDMI management port (rear panel); Optional serial port* |
| Dimensions/Chassis Size | 8U Chassis: 352.1 mm (H) × 447 mm (W) × 847 mm (depth) |
| operating temperature | 5°C to 35°C (Operating temperature varies depending on configuration; please refer to the detailed product technology documentation for specifics) |
| GPU Compute Modules | 8-GPU Module |
| CPU Compute Nodes | H3C Uni Server C550 Compute Node H3C Uni Server C500 Compute Node |
| Storage Controller | Optional high-performance RAID controller supporting RAID 0/1/10/5/6/50/60/Tri-Mode* |
| Product Specifications | |
| GPU Compute Modules | 8-GPU Module |
| CPU Compute Nodes | H3C Uni Server C550 Compute Node H3C Uni Server C500 Compute Node |
| Processor | Supports 2 AMD EPYC 9004 Series processors, with up to 128 cores per processor and a maximum power consumption of 400W. Supports up to 2 Intel® Xeon® 4th/5th Generation Scalable processors, with up to 64 cores per processor and a maximum power consumption of 385W |
| Memory | Supports up to 24 DDR5 memory slots, with a maximum speed of 4800MT/s; supports RDIMM or LRDIMM; memory capacity up to 6TB. Supports up to 32 DDR5 memory slots, with a maximum speed of 5600MT/s; supports RDIMM or LRDIMM; maximum capacity for a dual-processor system is 12TB |
| Storage Controller | Optional high-performance RAID controller supporting RAID 0/1/10/5/6/50/60/Tri-Mode* |
| PCIe slots | Supports up to 12 PCIe 5.0 standard slots + 1 dedicated OCP 3.0 network card slot |
| Hard Drive | System SAS/SATA/NVMe Drive Configuration: ● 29 2.5-inch drives: Supports SATA/SAS/NVMe, including 12 NVMe drives ● 20 2.5-inch drives: Supports SATA/SAS/NVMe, including 12 NVMe drives; supports 2 onboard M.2 slots ● 12 2.5-inch drives: Supports SATA/SAS/NVMe, including 12 NVMe drives; supports 2 onboard M.2 slots ● Rear panel supports 4 2.5-inch NVMe drives |
| Network | Optional OCP 3.0 network cards; Optional 1/10/25/40/50/100/200/400GE PCIe standard network cards |
| Fan | 15 high-performance fans, supporting N+1 redundancy |
| Management Software | HDM agentless management tool (with dedicated management port) and H3C Uni System Management software; supports 64M of local video memory; Optional U-Center data center management platform |
| Security | Dedicated security processor integrated into the CPU; two-factor authentication; supports Intel PFR 3.0 and SGX 2.0 security technologies; supports TCM/TPM security modules |
| Interface | 1 x USB 3.0 + 1 x USB 2.0 + 1 x VGA + 1 x Type-C debug port (front panel), 1 x USB 3.0 (internal), 2 x USB 3.0 + 1 x VGA + 1 x HDMI management port (rear panel); Optional serial port* |
| Power Supply | GPU Computing Module Power Supply Plane: Supports 6 x 3000W 54V Platinum Power Supplies or 6 x 3200W 54V Titanium Power Supplies; supports N+N/N+M/N+1 redundancy. CPU Computing Node Power Supply Plane: Supports 2 x 2000W/2400W 12V Platinum power supplies or 2 x 1600W 12V Titanium power supplies; supports 1+1 redundancy |
| operating temperature | 5°C to 35°C (Operating temperature varies depending on configuration; please refer to the detailed product technology documentation for specifics) |
| Dimensions/Chassis Size | 8U Chassis: 352.1 mm (H) × 447 mm (W) × 847 mm (depth) |
| Warranty | 3-year 5x9 support, next business day response (NBD) |
| Ordering Information | |
| computing node module | |
| 0231AMU4 | UN-C500-G6-Intel-LC-M - H3C Uni Server C500 G6 Intel liquid-cooled computing node module (CMCTO) |
| Port Type | |
| MODEPORT | MODEPORT - R5500G6 Server |
| Processor | |
| 0231AK80 | UN-CPU-INTEL-6430 - 6430 (2.1GHz/32 cores/60MB/270W) CPU module (CTO&BTO) |
| 0231AK82 | 0231AK82 - 8460Y+(2.0GHz/40 cores/105MB/300W) CPU module (CTO&BTO) |
| 0231AK87 | 0231AK87 - 8490H(1.9GHz/60 cores/112.5MB/350W) CPU module (CTO&BTO) |
| 0231AKB8 | UN-CPU-AMD-9654 - AMD Genoa 9654 (2.4GHz/96 cores/384MB/360W) CPU module (CTO&BTO) |
| 0231AKB9 | UN-CPU-AMD-9174F - AMD Genoa 9174F (4.1GHz/16-core/256MB/320W) CPU module (CTO&BTO) |
| 0231AKDN | UN-CPU-AMD-9224 - AMD Genoa 9224 (2.5GHz/24-core/64MB/200W) CPU module (CTO&BTO) |
| 0231AKYE | 0231AKYE - 8462Y+(2.8GHz/32 cores/60MB/300W) CPU module (CTO&BTO) |
| 0231AKYG | 0231AKYG - 8458P(2.7GHz/44 cores/82.5MB/350W) CPU module (CTO&BTO) |
| 0231AKYJ | UN-CPU-INTEL-8480+ - 8480+ (2.0GHz/56 cores/105MB/350W) CPU module (CTO&BTO) |
| 0231AKYK | 0231AKYK - 6448Y(2.1GHz/32-core/60MB/225W)CPU module(CTO&BTO) |
| 0231AKYU | 0231AKYU - 8452Y(2.0GHz/36 cores/67.5MB/300W) CPU module (CTO&BTO) |
| 0231AL01 | 0231AL01 - 8470(2.0GHz/52 cores/105MB/350W) CPU module (CTO&BTO) |
| 0231AL09 | 0231AL09 - 8468V(2.4GHz/48 cores/97.5MB/330W) CPU module (CTO&BTO) |
| 0231AL0B | 0231AL0B - 6442Y(2.6GHz/24-core/60MB/225W)CPU module(CTO&BTO) |
| 0231AL0D | 0231AL0D - 8468(2.1GHz/48 cores/105MB/350W) CPU module (CTO&BTO) |
| 0231AL0P | 0231AL0P - 6448H(2.4GHz/32-core/60MB/250W)CPU module (CTO&BTO) |
| 0231AL0V | 0231AL0V - 8463B (2.6GHz/48 cores/105MB/350W) CPU module (ODM-B) (CTO&BTO) |
| 0231ALDQ | 0231ALDQ - AMD Genoa 9534 (2.45GHz/64 cores/256MB/280W) CPU module (CTO&BTO) |
| 0231ALDR | UN-CPU-AMD-9554 - AMD Genoa 9554 (3.1GHz/64-core/256MB/360W) CPU module (CTO&BTO) |
| 0231ALJA | 0231ALJA - 9480 (1.9GHz/56 cores/112.5MB/350W) CPU module (CTO&BTO) |
| 0231ALJD | 0231ALJD - 9462 (2.7GHz/32 cores/75MB/350W) CPU module (CTO&BTO) |
| 0231ALK6 | UN-CPU-AMD-9274F - AMD Genoa 9274F (4.05GHz/24-core/256MB/320W) CPU module (CTO&BTO) |
| 0231ALK7 | UN-CPU-AMD-9374F - AMD Genoa 9374F (3.85GHz/32-core/256MB/320W) CPU module (CTO&BTO) |
| 0231AM54 | 0231AM54 - 8468V (2.4GHz/48 cores/97.5MB/330W) CPU module (AVAP)(ODM-J)(CTO&BTO) |
| 0231AM96 | UN-CPU-AMD-9754 - AMD Bergamo 9754 (2.25GHz/128 cores/256MB/360W) CPU module (CTO&BTO) |
| 0231AM9U | 0231AM9U - 8468V (2.4GHz/48 cores/97.5MB/330W) CPU module (XCC) (AVAP) (ODM-K) (CTO&BTO) |
| 0231AMA2 | 0231AMA2 - 8457C (2.6GHz/48 cores/97.5MB/350W) CPU module (AVAP)(ODM-Z)(CTO&BTO) |
| 0231AMA8 | 0231AMA8 - 8476C (2.6GHz/48 cores/97.5MB/350W) CPU module (AVAP)(ODM-T)(CTO&BTO) |
| 0231AMLE | UN-CPU-INTEL-8558 - 8558 (2.1GHz/48-core/260MB/330W) CPU module (CTO&BTO) |
| 0231AMLN | UN-CPU-INTEL-8558P - 8558P (2.7GHz/48 cores/260MB/350W) CPU module (CTO&BTO) |
| 0231AMLP | UN-CPU-INTEL-8580 - 8580 (2.0GHz/60 cores/300MB/350W) CPU module (CTO&BTO) |
| 0231AMLR | UN-CPU-INTEL-8568Y+ - 8568Y+ (2.3GHz/48 cores/300MB/350W) CPU module (CTO&BTO) |
| 0231AMLU | UN-CPU-INTEL-6548Y+ - 6548Y+ (2.5GHz/32-core/60MB/250W) CPU module (CTO&BTO) |
| 0231AMLX | UN-CPU-INTEL-6526Y - 6526Y (2.8GHz/16-core/37.5MB/195W) CPU module (CTO&BTO) |
| 0231AMMB | UN-CPU-INTEL-6530 - 6530 (2.1GHz/32-core/160MB/270W) CPU module (CTO&BTO) |
| 0231AMMH | UN-CPU-INTEL-8592+ - 8592+ (1.9GHz/64 cores/320MB/350W) CPU module (CTO&BTO) |
| 0231AMMK | UN-CPU-INTEL-8570 - 8570 (2.1GHz/56 cores/300MB/350W) CPU module (CTO&BTO) |
| 0231AMMN | UN-CPU-INTEL-8562Y+ - 8562Y+ (2.8GHz/32 cores/60MB/300W) CPU module (CTO&BTO) |
| 0231AMMP | UN-CPU-INTEL-6542Y - 6542Y (2.9GHz/24-core/60MB/250W) CPU module (CTO&BTO) |
| 0231ANDY | 0231ANDY - 8457C (2.6GHz/48 cores/97.5MB/350W) CPU module (BS)(ODM-Z)(CTO&BTO) |
| Heat Sink | |
| 0231AK7H | UN-ME-HeatSink-2UbY-M - 2U T-type heat pipe heat dissipation radiator module (CMCTO) |
| 0231AK7U | UN-ME-HeatSink-2Ub-M - 2U heat-pipe heat dissipation radiator module (CMCTO) |
| 0231AKL2 | UN-ME-HeatSink-2Ub-R4950G6-M - H3C Uni Server R4950 G6 2U heat pipe cooling unit module (CMCTO) |
| 0231AKL3 | UN-ME-HeatSink-2UbY-R4950G6-M - H3C Uni Server R4950 G6 2U T-type heat pipe heatsink module (CMCTO) |
| 0231AMDQ | UN-R5500-G6-LC-GPU - H3C Uni Server R5500 G6 GPU liquid-cooling heat dissipation module (CTO&BTO) |
| 0231AQUB | UN-R5500-G6-Intel-LC-CPU - H3C Uni Server R5500 G6 Intel CPU liquid-cooling heat dissipation module (CTO&BTO) |
| Memory | |
| 0231AK7X | 0231AK7X - 64GB 2RX4 DDR5-4800 RDIMMMemory Module(CTO&BTO) |
| 0231AM1X | UN-DDR5-4800B-64G-2Rx4-R-2 - 64GB 2Rx4 DDR5-4800B(CAS-40-39-39)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AM4C | UN-DDR5-4800B-96G-2Rx4-R-2 - 96GB 2RX4 DDR5-4800B CAS-40-39-39 SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AM4E | UN-DDR5-4800B-96G-2Rx4-R - 96GB 2RX4 DDR5-4800B CAS-40-39-39 RDIMMMemory Module(CTO&BTO) |
| 0231AMLD | UN-DDR5-5600B-32G-1Rx4-R - 32GB 1Rx4 DDR5-5600B(CAS-46-45-45)RDIMMMemory Module(CTO&BTO) |
| 0231AMM1 | UN-DDR5-5600B-32G-2Rx8-R-2 - 32GB 2Rx8 DDR5-5600B(CAS-46-45-45)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AMMS | UN-DDR5-5600B-32G-2Rx8-R - 32GB 2Rx8 DDR5-5600B(CAS-46-45-45)RDIMMMemory Module(CTO&BTO) |
| 0231AMMU | UN-DDR5-5600B-32G-1Rx4-R-2 - 32GB 1Rx4 DDR5-5600B(CAS-46-45-45)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AMLJ | UN-DDR5-5600B-64G-2Rx4-R-2 - 64GB 2Rx4 DDR5-5600B(CAS-46-45-45)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AMLY | UN-DDR5-5600B-64G-2Rx4-R - 64GB 2Rx4 DDR5-5600B(CAS-46-45-45)RDIMMMemory Module(CTO&BTO) |
| 0231AMME | UN-DDR5-5600B-96G-2Rx4-R-2 - 96GB 2Rx4 DDR5-5600B(CAS-46-45-45)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AMMT | UN-DDR5-5600B-96G-2Rx4-R - 96GB 2Rx4 DDR5-5600B(CAS-46-45-45)RDIMMMemory Module(CTO&BTO) |
| Dummy Memory | |
| 0231AK76 | UN-DUMMY-DIMM-DDR5-M - DDR5 dummy memory module (CMCTO) |
| GPU and power node | |
| 0231AMH1 | UN-GPU-Biren106M 8-GPU-32GB-M - H3C Uni Server R5500 G6 Biren106M 8-GPU 32GB GPUModule(CMCTO) |
| 0231AMH4 | 0231AMH4 - H3C Uni Server R5500 G6 Gaudi2 HL-225C 8-GPU 96GB GPUModule(CMCTO) |
| 0231APYX | UN-GPU-Gaudi2 HL-225D 8GPU-96G-M - H3C Uni Server R5500 G6 Gaudi2 HL-225D 8-GPU 96GB GPUModule(CMCTO) |
| 0231ANJ3 | UN-GPU-HGX 8-GPU-96GB-M - H3C Uni Server R5500 G6 HGX 8-GPU 96GB PCIe 5.0 x16 GPUModule(CMCTO) |
| 0231ANJ1 | 0231ANJ1 - H3C Uni Server R5500 G6 HGX 8-GPU 96GB PCIe 5.0 x16 GPUModule(ODM-B)(CMCTO) |
| 0231AMDP | 0231AMDP - R5500G6 Server |
| 0231AM5K | 0231AM5K - R5500G6 Server |
| 0231AM5F | 0231AM5F - R5500G6 Server |
| 0231AM57 | 0231AM57 - R5500G6 Server |
| 0231AM5A | 0231AM5A - R5500G6 Server |
| 0231AQHC | 0231AQHC - R5500G6 Server |
| 0231ANMV | UN-GPU-P800 8-GPU-M - H3C Uni Server R5500 G6 KUNLUNXIN P800 8-GPU GPUModule(CMCTO) |
| 0231AQ2W | UN-GPU-AMD MI308X 8GPU-192GB-M - R5500G6 Server |
| 0231AN8Q | 0231AN8Q - H3C Uni Server R5500 G6 Muxi MXC550 8-GPU 64GB GPU module (CMCTO) |
| Front Hard Drive Cage | |
| 0231ALDY | UN-BP-8UniBay-R5500-G6 - H3C Uni Server R5500 G6 8x Uni Bay Hard Drive Expansion Module (CTO&BTO) |
| 0231ALEB | UN-BP-16SFF-R5500-G6 - H3C Uni Server R5500 G6 16x SFF Hard Drive Expansion Module (CTO&BTO) |
| 0231ALEM | UN-BP-25SFF-R5500-G6 - H3C Uni Server R5500 G6 25x SFF Hard Drive Expansion Module (CTO&BTO) |
| Rear Hard Drive Cage | |
| 0231ALDT | UN-HDDCage-4UniBay-R5500G6 - H3C Uni Server R5500 G6 Rear 4x Uni Bay Hard Drive Cage Module (for Intel 4/8-Port, AMD 4-Port) (CTO&BTO) |
| 0231ALE6 | UN-HDDCage-4UniBay-AMD-8PORT - H3C Uni Server R5500 G6 rear 4 x Uni Bay hard drive cage module (compatible with AMD 8-Port) (CTO&BTO) |
| M.2Hard Drive | |
| 0231AM8G | 0231AM8G - R5500G6 Server |
| 0231AHCQ | UN-SSD-480G-SATA-S4520-M.2 - 480GB SATA RI S4520 M.2 SSDHard Drive Module(CTO&BTO) |
| 0231AES4 | 0231AES4 - R5500G6 Server |
| GPU node Power Module | |
| 0231AFAD | 0231AFAD - 3000W AC & 240V HVDC power Supply Module (GW-R1-Platinum) (CTO&BTO) |
| 0231AMPS | UN-CRPS-3000W-AC-54V-94%-M - 3000W AC & 240V HVDC power supply (Platinum) (CMCTO) |
| 0231AMKT | UN-GW-CRPS3200CL5 - 3200W AC & 240V HVDC power Module (GW-R1-Titanium) (CTO&BTO) |
| CPU node Power Supply Module | |
| 0231AMKU | UN-GW-CRPS1600C2 - 1600W AC & 240V HVDC power Supply Module (GW-R1- Titanium) (CTO&BTO) |
| 0231AFSS | UN-GW-CRPS2000D - 2000W AC & 240V HVDC power Supply Module (GW-R2- Platinum - light-load high efficiency) (CTO&BTO) |
| 0231ABWE | UN-DPS-2000AB-2 G-M - 2000W AC & 240V HVDC power Supply Module (DT-R1-platinum) (CMCTO) |
| 0231AFQB | UN-DPS-2400EB B - 2400W AC & 240V HVDC power Supply Module (DT-R1-Platinum) (CTO&BTO) |
| Power Supply Cable | |
| 0404A0C2 | CAB-AC Pwr 3C-3m-PDU - PDU Power Supply Cable—3.0 m—3 × 1.5 mm²—Black—(C20 Connector (3P) Straight Male, 250 V, 16 A)—(227 IEC 53 (RVV))—(C19 Connector (3P) Straight Female, 250 V, 16 A)—GB Standard |
| 04043396 | CAB-AC Pwr CHI-3m - Wall-Mount AC power Cable - 3.0 m - 3 × 1.5 mm² - Black - (GB1002 Plug (3P), Angled Male, 250 V, 16 A) - (227 IEC 53 (RVV)) - (C19 Connector (3P), Straight Female, 250 V, 16 A) - National Standard |
| Fan | |
| 0231ALDX | UN-FAN-R5500-G6 - H3C Uni Server R5500 G6 Fan Module(CTO&BTO) |
| Riser Slot 1 | |
| 0231ALDV | UN-RC-2FHFL-R5500-G6 - H3C Uni Server R5500 G6 Riser1/Riser2 2X16 Riser (supports 2 x FHHL) (compatible with Intel 4/8-Port, AMD 4-Port) (CTO&BTO) |
| 0231ALEJ | UN-RC-2FHFL-R5500-G6-AMD-8PORT - H3C Uni Server R5500 G6 Riser1/Riser2 2X16 Riser supports 2 x FHHL (compatible with AMD 8-Port) (CTO&BTO) |
| 0231ANP1 | UN-RC-2FHFL-R5500-G6-BF3 - H3C Uni Server R5500 G6 Riser1/Riser2 2X16 Riser (supports 2 x FHHL) (compatible with Intel 4/8-Port, AMD 4-Port, BF3) (CTO&BTO) |
| 0231ANP2 | UN-RC-2FHFL-R5500G6-AMD-8P-BF3 - H3C Uni Server R5500 G6 Riser1/Riser2 2X16 Riser supports 2 x FHHL (compatible with AMD 8-Port, BF3) (CTO&BTO) |
| Riser Slot 2 | |
| Network Adapter Module | |
| 0231ALE7 | UN-4NIC-R5500-G6 - H3C Uni Server R5500 G6 4-card network interface module (CTO&BTO) |
| 0231ALEH | UN-8NIC-R5500-G6 - H3C Uni Server R5500 G6 8-card network interface module (CTO&BTO) |
| OCP Adapter Board | |
| 0231AKDU | UN-OCP-R5500-G6 - H3C Uni Server R5500 G6 OCP adapter board (for Intel 4/8-Port, AMD 4-Port) (CTO&BTO) |
| 0231ALE0 | UN-OCP-R5500-G6-AMD-8 Port - H3C Uni Server R5500 G6 OCP adapter board (compatible with AMD 8-Port) (CTO&BTO) |
| Battery | |
| 0231AEYR | UN-BAT-LSI-G3-A - LSI G3 supercapacitor module (CTO&BTO) |
| 0231AFA4 | UN-BAT-PMC-G3-2U - PMC G3 Supercapacitor Module (for 2U Standard Chassis) (CTO & BTO) |
| VROCModule(Supports NVMe Hard DriveRAID) | |
| 0231A6R6 | UN-NVMe-VROC-Key-S-F - Intel NVMe VROC module - Standard edition (FIO) |
| 0231A6R8 | UN-NVMe-VROC-Key-P-F - Intel NVMe VROC module - Advanced edition (FIO) |
| Network Adapter | |
| 0231A7G6 | UN-NIC-MCX4121A-F-B-25Gb-2P-F - 2-Port25Gboptical interface Network Adapter(SFP28)(FIO) |
| Optical Module | |
| 0231A8KB | UN-SFP-XG-SX-MM850-E1 - SFP+ 10GModule(850nm,300m,LC) |
| 0231A7N6 | SFP-25G-SR-MM850-1 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231A7NA | UN-CNA-560T-B2-10Gb-2P-1 - 2-Port10Gbelectrical interface Network Adapter-560T-B2 |
| 0231A7NH | UN-NIC-620F-B2-25Gb-2P-1 - 2-Port25Gboptical interface Network Adapter(SFP+)-620F-B2 |
| 0231AC0T | SFP-XG-LX-SM1310-CM - SFP+ 10GModule(1310nm,10km,LC)(FIO) |
| 0231A7PW | UN-NIC-BCM957412-F-B-10Gb-2P-F - 2-Port10GEoptical interface Network Adapter(BCM957412)(FIO) |
| 0231A8K6 | 0231A8K6 - 2-Port10GEoptical interface Network Adapter(BCM957412)(FIO) |
| 0231A7Q0 | 0231A7Q0 - R5500G6 Server |
| 0231A8K6 | 0231A8K6 - 2-Port10GEoptical interface Network Adapter(MCX4121A)(FIO) |
| 0231A7Q2 | UN-NIC-BCM957414-F-B-25Gb-2P-F - 2-Port25GEoptical interface Network Adapter(BCM957414)(FIO) |
| 0231A7WC | UN-NIC-X710DA4-F-B-10Gb-4P-F - 4-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231A8K6 | 0231A8K6 - 4-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231A8K1 | UN-NIC-GE-4P-360T-B2-1 - 4-Port Gigabitelectrical interface Network Adapter-360T-B2 |
| 0231A9AU | UN-NIC-X710DA2-F-B-10Gb-2P-F2 - 2-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231A8K6 | 0231A8K6 - 2-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231A9VY | 0231A9VY - R5500G6 Server |
| 0231AC16 | QSFP-100G-SR4-MM850-CM - 100G QSFP28 optical module (850nm, 100m OM4, SR4, MPO) (FIO) |
| 0231AB5W | UN-NIC-MCX512A-ACAT-F-2*25Gb-F - 2-Port25Gboptical interface Network Adapter(SFP28)(MCX512A-ACAT)(FIO) |
| 0231ACTW | 0231ACTW - R5500G6 Server |
| 0231AEC8 | UN-NIC-ETH-MCX516A-CCAT-2P-M - 100Gb 2-Port QSFP28 Optical Interface MCX516A-CCAT Ethernet Card (CMCTO) |
| 0231AFN6 | UN-NIC-ETH-MCX623105AN-VDAT-1P - 1-port 200Gb QSFP56 Optical Interface MCX623105AN-VDAT Ethernet network adapter (CTO&BTO) |
| 0231AQHF | UN-QSFP56-200G-SR4-MM850-M - 200G QSFP56 multi-mode optical transceiver module (850nm, 100m OM4, 70m OM3, SR4, MPO12/UPC) (CMCTO) |
| 0231AFN8 | UN-IB-MCX653105A-HDAT-200Gb-1P - 200Gb 1-Port Infini Band HDR/Ethernet Adapter Card (Supports QSFP56 Optical Modules) (CTO&BTO) |
| 0231AJHS | QSFP56-200G-SR4-MM850 - 200G QSFP56 Multimode Optical Module (850 nm, 100 m OM4, 70 m OM3, SR4, MPO12/UPC) |
| 0231AFUG | UN-NIC-ETH-MCX631102AN-ADAT - 2-port 25Gb SFP28 Optical Interface MCX631102AN-ADAT Ethernet card (CTO&BTO) |
| 0231AFUR | 0231AFUR - R5500G6 Server |
| 0231AFUS | UN-IB-MCX653106A-ECAT-100Gb-2P - 100Gb 2-Port Infiniband HDR/Ethernet Adapter Card (Supports QSFP56 Optical Modules) (CTO&BTO) |
| 0231AGJA | UN-NIC-ETH-MCX623106AN-CDAT-2P - 2-Port100Gb QSFP56optical interfaceMCX623106AN-CDATNetwork Adapter(CTO&BTO) |
| 0231AH2Y | UN-NIC-BCM957508-P2100G-2P - 2-port 100Gb QSFP56 Optical Interface BCM957508-P2100G Ethernet card (CTO&BTO) |
| 0231ALPQ | UN-IB-MCX75310AAS-NEAT-400Gb-1P - 1-port 400Gb Infiniband NDR/Ethernet adapter card (supports OSFP optical modules) (CTO&BTO) |
| 0231ANGH | UN-OSFP-RHS-400G-VR4-MM850 - 400G OSFP RHS optical module (850nm, 50m OM4, VR4, MPO12/APC) |
| 0231AM5N | UN-IB-MCX75310AAS-HEAT-200Gb-1P - 1-port 200Gb Infiniband NDR/Ethernet adapter card (supports OSFP optical modules) (CTO&BTO) |
| 0231AM5P | UN-IB-MCX755106AS-HEAT-200Gb-2P - 2-port 200Gb Infiniband NDR/Ethernet adapter card (supports QSFP112 optical modules) (CTO&BTO) |
| 0231AQHG | UN-QSFP112-400G-VR4-MM850-M - 400G QSFP112 multi-mode optical transceiver module (850nm, 50m OM4, 30m OM3, VR4, MPO12/APC, supports 1-to-2 split) (CMCTO) |
| 0231AMXF | UN-NIC-iETH-B3220-2P - 2-port 200G PCIe5.0 X16 NDR200 Optical Interface B3220 Bluefield3 intelligent network card (CTO&BTO) |
| 0231ANMP | UN-NIC-iETH-B3140H-1P - 1-port 400G PCIe5.0 X16 NDR400 Optical Interface B3140H Bluefield3 smart network card (CTO&BTO) |
| 0231APW2 | 0231APW2 - R5500G6 Server |
| 0231APWU | UN-NIC-metaScale-200S-200Gb-1P - Cloud Engine 1-port 200G PCIe 4.0 X16 QSFP56 Optical Interface meta Scale-200S HHHL Ethernet card (for SA) (CTO&BTO) |
| 0231APWV | UN-NIC-BCM957608-P2200G-200G-2P - Broadcom 2-port 200G PCIe 5.0 X16 QSFP112 Optical Interface BCM957608-P2200GQF00 Ethernet card (CTO&BTO) |
| 0231AQT7 | UN-NIC-BCM957608-P1400GD-400G-1P - Broadcom 1-port 400G PCIe 5.0 X16 QSFP-DD Optical Interface BCM957608-P1400GDF00 Ethernet card (CTO&BTO) |
| 0231A8K6 | 0231A8K6 - R5500G6 Server |
| i Fist Module | |
| 0231AJQ5 | UN-IFIST-EX-G6 - G6 iFISTModule(CTO&BTO) |
| Optical Drive | |
| 0231A6R9 | 0231A6R9 - Mobile USB 2.0 interface read/write optical drive module (FIO) |
| Security Hardware | |
| 0231AG60 | UN-TCM-SPI-A - H3C server platform trusted module SPI TCM (CTO&BTO) |
| 0231AG5Y | UN-TPM-SPI-A - H3C server series trusted platform module SPI TPM (CTO&BTO) |
| Rails/cable management rack | |
| 0231A4EK | LSXM1BSR - 1U Adjustable Rack Rail—630 mm to 900 mm |
| 0231AAH2 | RL-12U-F - Adjustable Sliding Rail (FIO) |
| Is customization Required? | |
| CUSTNEED | CUSTNEED - R5500G6 Server |
| Customized module | |
| 0231A8A6 | UN-CTM-G3-F - H3C customer-specific customization module (1H) (FIO) |
| Tag | |
| 0231AGWU | UN-Label-Shock&Tilt Monitor - Anti-tilt label and 37G anti-vibration label (CTO&BTO) |
| Installing Services | |
| 8814A0CP | SV-PS-UN - H3C server first basic installation service |
| Operating System Compatibility Verification | |
| BATJOSXX | BATJOSXX - R5500G6 Server |
| OSCHECKX | OSCHECKX - R5500G6 Server |
| linux | |
| 810ENHAT | 810ENHAT - R5500G6 Server |
| 85ENTHAT | 85ENTHAT - R5500G6 Server |
| 86ENTHAT | 86ENTHAT - R5500G6 Server |
| 88ENTHAT | 88ENTHAT - R5500G6 Server |
| 90ENTHAT | 90ENTHAT - R5500G6 Server |
| 92ENTHAT | 92ENTHAT - R5500G6 Server |
| ROCKYL86 | ROCKYL86 - R5500G6 Server |
| ROCKYL90 | ROCKYL90 - R5500G6 Server |
| ROCKYL92 | ROCKYL92 - R5500G6 Server |
| SLE15SP4 | SLE15SP4 - R5500G6 Server |
| UOS2050E | UOS2050E - R5500G6 Server |
| UBSE2045 | UBSE2045 - R5500G6 Server |
| UBSE224X | UBSE224X - R5500G6 Server |
| UBSE2245 | UBSE2245 - R5500G6 Server |
| UBS22042 | UBS22042 - R5500G6 Server |
| UBSE2243 | UBSE2243 - R5500G6 Server |
| UBSE2244 | UBSE2244 - R5500G6 Server |
| O2003S2B | O2003S2B - R5500G6 Server |
| Zhongbiao Kylin | |
| ZBQL10X2 | ZBQL10X2 - R5500G6 Server |
| ZBQL1023 | ZBQL1023 - R5500G6 Server |
| Other Operating Systems | |
| NINGV312 | NINGV312 - R5500G6 Server |
| OTHERSOS | OTHERSOS - R5500G6 Server |
| license certificate | |
| 3130A66X | LIS-HDM-FORMAL-SERVER - H3C advanced feature license fee (CTO&BTO) |
| Product Identity | |
| Brand | H3C |
| Series | H3C R5500 G6 GPUServers |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the Warranty specification for UN-R5500-G6-LC-C?
UN-R5500-G6-LC-C lists Warranty as 3-year 5x9 support, next business day response (NBD). Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Model specification for UN-R5500-G6-LC-C?
UN-R5500-G6-LC-C lists Model as UN-R5500-G6-LC-C. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Product Code specification for UN-R5500-G6-LC-C?
UN-R5500-G6-LC-C lists Product Code as 0235A4SQ. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Product Type specification for UN-R5500-G6-LC-C?
UN-R5500-G6-LC-C lists Product Type as Server. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
