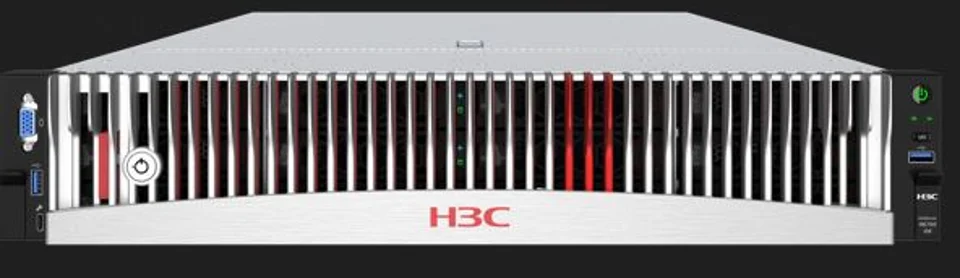

H3C UN-R6700-G6-SFF-C Server. H3C UniServer R6700 G6 Air-Cooled CTO Server.
Our CCIE certified engineers can help you verify compatibility.
Global logistics network aiming for same-day handover.
Every unit undergoes rigorous 38-point inspection test.
Trusted by enterprise clients across 6 continents.
Certified network engineers ready to assist with configuration.
H3C UN-R6700-G6-SFF-C Server is H3C UniServer R6700 G6 Air-Cooled CTO Server.
Compatible and optional SKUs are listed in the ordering information, including 0231AKEQ UN-4P-G6-D2C8S, 0231AKF2 UN-MID-MEZZ-G6, 0231AL07 0231AL07, 0231AKYC 0231AKYC, 0231AL0Q 0231AL0Q.
| Key Specifications | |
|---|---|
| GPU Support | Supports up to 10 single-width GPU cards* |
| Memory | 64 DDR5 memory modules, with a maximum speed of 4800 MT/s |
| Chipset | Intel® C741 |
| FBWC cache | Supports up to 8 GB of cache and supercapacitor protection |
| Optical Drive | Supports external optical drive |
| Authentication | Supports CCC, eco-label, and other certifications |
| Product Specifications | |
| GPU Support | Supports up to 10 single-width GPU cards* |
| Memory | 64 DDR5 memory modules, with a maximum speed of 4800 MT/s |
| Chipset | Intel® C741 |
| FBWC cache | Supports up to 8 GB of cache and supercapacitor protection |
| Optical Drive | Supports external optical drive |
| Authentication | Supports CCC, eco-label, and other certifications |
| Product Specifications | |
| Chipset | Intel® C741 |
| Memory | 64 DDR5 memory modules, with a maximum speed of 4800 MT/s |
| Storage Controller | Optional HBA and array cards based on standard PCIe slots; supports a dual M.2 configuration in RAID 1 for the operating system drive; supports SD cards as boot drives |
| FBWC cache | Supports up to 8 GB of cache and supercapacitor protection |
| Storage | Supports 27 SAS/SATA HDDs/SSDs; supports 26 NVMe drives; supports PCIe NVMe storage accelerator cards; Optional dual M.2 slots |
| Network | Features one onboard 1 Gbps dedicated management Ethernet port. Optionally expandable via the OCP 3.0 x16 open interface to add 4 × 1 GE copper ports, 2 × 10 GE copper/fiber ports, or 2 × 25 GE fiber ports. Supports 1 Gb, 10 Gb, 25 Gb, 40 Gb, or 100 Gb Ethernet cards, or 100 Gb and 200 Gb IB cards. |
| extended slot | Supports up to 8 x16 PCIe 5.0 slots, up to 10 x8 PCIe 5.0 slots, and up to 3 OCP 3.0 slots |
| Interface | Right bracket: 1 USB 3.0 port, Power button, UID; Left bracket: 1 USB 2.0 port, 1 Type-C port, 1 VGA port; Motherboard: 2 USB 2.0 ports; Rear panel: 1 VGA port, 1 serial port, 2 USB 3.0 ports, 1 dedicated BMC management Ethernet port; Supports UID button/indicator lights |
| GPU Support | Supports up to 10 single-width GPU cards* |
| Optical Drive | Supports external optical drive |
| Management | HDM agentless management tool (with dedicated management port) and H3C Uni System management software; supports LCD touchscreen smart management modules; supports Optional 64M local video memory; U-Center data center management platform |
| Security | Supports secure chassis, TCM/TPM security modules, Optional Trusted Silicon Root firmware protection modules, two-factor authentication, and secure decommissioning capabilities |
| Power Supply and Cooling | Up to four Platinum-rated power supplies can be installed, supporting 850/1300/1600/2000/2400W models, with N+N redundancy. Supports four N+1 hot-swappable redundant fans; choose between 8038 or 8056 fans as needed. |
| Authentication | Supports CCC, eco-label, and other certifications |
| operating temperature | 5°C to 45°C (Supported operating temperatures vary depending on the configuration; please refer to the detailed product technical documentation for more information) |
| Dimensions (H × W × D) | With safety panel: 87.5 mm × 447 mm × 857.5 mm; Without safety panel: 87.5 mm × 447 mm × 829.4 mm |
| Warranty | 5×9 for three years, Next Business Day (NBD) response |
| Catalog Description | |
| Description | H3C UniServer R6700 G6 Air-Cooled CTO Server |
| Key Features | |
| Feature 1 | H3C UniServer R6700 G6 Air-Cooled CTO Server |
| Feature 2 | Part of the UniServer family |
| Ordering Information | |
| Configuration Options | |
| 0231AKEQ | UN-4P-G6-D2C8S |
| 0231AKF2 | UN-MID-MEZZ-G6; 4PG6 UPI Mezzmodule (CTO&BTO) |
| 0231AL0P | UN-CPU-INTEL-6448H |
| 0231AL05 | UN-CPU-INTEL-8444H |
| 0231AK7X | UN-DDR5-4800-64G-2Rx4-R |
| 0231AM1X | UN-DDR5-4800B-64G-2Rx4-R-2 |
| 0231AM4C | UN-DDR5-4800B-96G-2Rx4-R-2 |
| 0231AM4E | UN-DDR5-4800B-96G-2Rx4-R |
| 0231ALV9 | UN-DDR5-4800B-128G-4Rx4-R |
| 0231AMLD | UN-DDR5-5600B-32G-1Rx4-R |
| 0231AMM1 | UN-DDR5-5600B-32G-2Rx8-R-2 |
| 0231AMMS | UN-DDR5-5600B-32G-2Rx8-R |
| 0231AMMU | UN-DDR5-5600B-32G-1Rx4-R-2 |
| 0231AMLJ | UN-DDR5-5600B-64G-2Rx4-R-2 |
| 0231AMLY | UN-DDR5-5600B-64G-2Rx4-R |
| 0231AMME | UN-DDR5-5600B-96G-2Rx4-R-2 |
| 0231AMMT | UN-DDR5-5600B-96G-2Rx4-R |
| BMC module | |
| 0231AJQD | UN-PCA-BMC-G6; Type: BMC module |
| Configuration Options | |
| 0231AJPU | UN-PCA-BP-8SFF-2U-G6 |
| 0231AJQC | UN-PCA-BP-8Uni Bay-2U-G6 |
| 0231AJQ4 | UN-PCA-BP-25SFF-2U-G6 |
| 0231AK8A | UN-HDD Cage-2Uni Bay-2U-G6 |
| 0231AKES | UN-HDD Cage-8E1S-2U-G6 |
| CPU4NVME | R6700G6 Server |
| MININVME | R6700G6 Server |
| 0231AF5Q | UN-RC-2M2-G5 |
| 0231A6RC | UN-SD-32G-Micro-F |
| 0231AJQE | UN-RC-DSD-UART-G6 |
| Fan Module | |
| 0231AJPX | UN-FAN-8038-2U-G6; G6 2U 8038Fan Module (CTO&BTO); Type: Fan Module |
| 0231AJPT | UN-FAN-8056-2U-G6; G6 2U 8056Fan Module (CTO&BTO); Type: Fan Module |
| Configuration Options | |
| 0231AKFA | UN-Cage-PWR-2U-G6 |
| Power Supply Module | |
| 0231AGUP | UN-GW-CRPS1300D3; Type: Power Supply Module |
| 0231AJYB | UN-PS-2132-5L5; Type: Power Supply Module |
| 0231ACTG | FSP1600-20FH-M; Type: Power Supply Module |
| 0231AHRV | UN-DD-2162-3L5; Type: Power Supply Module |
| 0231AMKU | UN-GW-CRPS1600C2; Type: Power Supply Module |
| 0231AMPJ | UN-CRPS-1600W-AC-12V-94%-M; Type: Power Supply Module |
| 0231AGUN | UN-GW-CRPS1600D2; Type: Power Supply Module |
| 0231ACTA | DPS-1600AB-13 R-M; Type: Power Supply Module |
| 0231AMQ7 | UN-CRPS-2000W-AC-12V-94%-M; Type: Power Supply Module |
| 0231AFSS | UN-GW-CRPS2000D; Type: Power Supply Module |
| 0231AHRU | UN-PS-2202-11L; Type: Power Supply Module |
| 0231AFQB | UN-DPS-2400EB B; Type: Power Supply Module |
| 0231A8AX | PSR850-12A-FIO; Type: Power Supply Module |
| Configuration Options | |
| 0231AJQ9 | UN-RC-3FHHL-2U-G6 |
| 0231AJQF | UN-RC-3FHFL-2U-G6 |
| 0231AKED | UN-RC-2HHHL-R3-2U-G6-2 |
| 0231AKF3 | UN-RC-2HHHL-R3-2U-G6-1 |
| 0231AJPS | UN-RC-2HHHL-R4-2U-G6 |
| 0231AGT9 | UN-RAID-MARVELL-SANTACRUZ-LP-2i |
| 0231AG62 | UN-RAID-LSI-9560-LP-8i-4GB |
| 0231AJ69 | UN-HBA-LSI-9540-LP-8i |
| 0231AJ6E | UN-HBA-LSI-9500-LP-8i |
| 0231AEVL | UN-RAID-LSI-9560-LP-16i-8GB-M |
| 0231AJ6M | UN-HBA-LSI-9500-LP-16i |
| 0231A8P1 | UN-RAID-P460-B4-F |
| 0231A8ND | UN-HBA-H460-B1-F |
| 0231AEYR | UN-BAT-LSI-G3-A |
| 0231AKEC | UN-SCAP-LSI-G6-2U |
| 0231AFA4 | UN-BAT-PMC-G3-2U |
| 0231A6R6 | UN-NV Me-VROC-Key-S-F |
| 0231A6R8 | UN-NV Me-VROC-Key-P-F |
| 0231A7LJ | UN-NV Me-VROC-Key-i-F |
| 0231ANMC | Nvidia L2 24G PC Ie4.0 X16 HHHL GP Umodule (CTO&BTO) |
| 0231AJWA | UN-GPU-A2-16GB-NoCEC; Nvidia Tesla A2 16GB Non-CEC GP Umodule (CTO&BTO) |
| optical transceiver | |
| 0231AE3E | QSFP-100G-SR4-MM850-B-CM; 100G QSFP28 optical transceiver (850nm, 100m OM4, SR4, MPO)(FIO); Type: optical transceiver |
| 0231AC16 | QSFP-100G-SR4-MM850-CM; 100G QSFP28 optical transceiver (850nm, 100m OM4, SR4, MPO)(FIO); Type: optical transceiver |
| 0231AFUP | UN-CAB-IB-DAC-MCP7H50-V002R26-2m; Type: optical transceiver |
| Configuration Options | |
| 0231AFUR | R6700G6 Server |
| 0231AEC8 | UN-NIC-ETH-MCX516A-CCAT-2P-M |
| 0231AFUS | UN-IB-MCX653106A-ECAT-100Gb-2P |
| optical transceiver | |
| 0231AC0U | QSFP-40G-SR4-MM850-CM; Type: optical transceiver |
| Configuration Options | |
| 0231AGJA | UN-NIC-ETH-MCX623106AN-CDAT-2P |
| 0231AH2Y | UN-NIC-BCM957508-P2100G-2P |
| optical transceiver | |
| 0231A8KB | UN-SFP-XG-SX-MM850-E1; SFP+ 10GbE optical transceiver (850nm, 300m, LC); Type: optical transceiver |
| 0231AC0T | SFP-XG-LX-SM1310-CM; SFP+ 10GbE optical transceiver (1310nm, 10km, LC)(FIO); Type: optical transceiver |
| Configuration Options | |
| 0231A7PW | UN-NIC-BCM957412-F-B-10Gb-2P-F |
| 0231A9AU | UN-NIC-X710DA2-F-B-10Gb-2P-F2 |
| 0231AFH4 | R6700G6 Server |
| 0231AFRV | UN-NIC-ETH531F-LP-2P |
| 0231A7WC | UN-NIC-X710DA4-F-B-10Gb-4P-F |
| 0231A7PX | UN-NIC-BCM957416-T-B-10Gb-2P-F |
| 0231A8K1 | UN-NIC-GE-4P-360T-B2-1 |
| 0231AJG0 | UN-NIC-BCM95719A1904AC-LP-4P; R6700G6 Server |
| 0231AM5N | UN-IB-MCX75310AAS-HEAT-200Gb-1P |
| 0231AM5P | UN-IB-MCX755106AS-HEAT-200Gb-2P |
| optical transceiver | |
| 0231A7N6 | SFP-25G-SR-MM850-1; 25G SFP28 optical transceiver (850nm, 100m, SR, MM, LC); Type: optical transceiver |
| Configuration Options | |
| 0231A7G6 | UN-NIC-MCX4121A-F-B-25Gb-2P-F |
| 0231A7NH | UN-NIC-620F-B2-25Gb-2P-1 |
| 0231A7Q2 | UN-NIC-BCM957414-F-B-25Gb-2P-F |
| 0231AB5W | UN-NIC-MCX512A-ACAT-F-2*25Gb-F |
| 0231AF8A | UN-NIC-X2522-25Gb-2P-M |
| 0231AFGV | R6700G6 Server |
| 0231AFH5 | UN-NIC-ETH630F-LP-2P |
| 0231AFUG | UN-NIC-ETH-MCX631102AN-ADAT |
| 0231AG88 | UN-NIC-ETH-E810XXVDA2G1P5-2P |
| 0231ALXR | UN-NIC-ETH641F-LP-2P |
| 0231ALPQ | UN-IB-MCX75310AAS-NEAT-400Gb-1P |
| 0231AGFL | UN-NIC-ETH-MCX623436AN-CDAB-2P |
| 0231AEBU | UN-NIC-ETH360T-3S-4P |
| 0231AEBV | UN-NIC-ETH565T-3S-2P |
| 0231AEBY | UN-NIC-ETH561F-3S-2P |
| 0231AN1D | UN-NIC-ETH531F-3S-2P |
| 0231AEBW | UN-NIC-ETH640F-3S-2P |
| 0231AG96 | UN-NIC-ETH-MCX631432AN-ADAB-2P |
| optical transceiver | |
| 0231AC0Y | SFP-GE-SX-MM850-CM; optical transceiver-SFP-GE-multimodeoptical transceiver (850nm, 0.55km, LC)(FIO); Type: optical transceiver |
| Configuration Options | |
| 0231A7LG | UN-FC-HBA-L Pe32000-32Gb-1P |
| 0231A7LN | UN-FC-HBA-L Pe32002-32Gb-2P |
| 0231A7NB | UN-HBA-16Gb-L Pe31000-1P-1 |
| 0231A7NF | UN-HBA-16Gb-L Pe31002-2P-1 |
| 0231A7PV | UN-FC-HBA-QLE2742-32Gb-2P-F |
| 0231A7Q1 | UN-FC-HBA-QLE2740-32Gb-1P-F |
| 0231A8JQ | UN-FC-HBA-QLE2690-16Gb-1P-1 |
| 0231A8JV | UN-FC-HBA-QLE2692-16Gb-2P-1 |
| 0231AGHH | UN-FC-HBA-L Pe35000-LP-32Gb-1P |
| 0231AGHJ | UN-FC-HBA-L Pe35002-LP-32Gb-2P |
| 0231AM7K | UN-FC-HBA-L Pe31000-LP-16G-1P |
| 0231AM7L | UN-FC-HBA-L Pe31002-LP-16G-2P |
| 0231AMKF | UN-FC-HBA-Q Le2770-LP-32G-1P |
| 0231AMKP | UN-FC-HBA-Q Le2772-LP-32G-2P |
| 0231ANQ1 | UN-FC-HBA-L Pe36002-LP-64G-2P |
| 0231ANQ2 | UN-FC-HBA-L Pe36000-LP-64G-1P |
| 0231AHWE | UN-SSD-3.2T-NV Me-PB6536-AIC |
| 0231AJ64 | UN-SSD-6.4T-NV Me-PB6536-AIC |
| i Fistmodule | |
| 0231AJQ5 | UN-IFIST-EX-G6; G6 iFIS Tmodule (CTO&BTO); Type: I Fistmodule |
| Configuration Options | |
| 0231AE9Y | UN-SID-LCD-SFF-M |
| Rail Kit | |
| 0231AKEB | UN-BB-2U-G6; Type: Rail Kit |
| Configuration Options | |
| 0231AQCE | UN-CMA-2U-G6 |
| 0231AFTB | UN-SEC-Panel-2U-G5 |
| 0231AKEY | UN-TCM-SPI-B |
| 0231AKEX | UN-TPM-SPI-B |
| CUSTNEED | R6700G6 Server |
| 0231A8A6 | UN-CTM-G3-F |
| 8814A0KV | SV-PS-US-INST |
| 3130A66X | LIS-HDM-FORMAL-SERVER |
| BATJOSXX | R6700G6 Server |
| OSCHECKX | R6700G6 Server |
| Windows | |
| 2019R0HY | R6700G6 Server; Type: Windows |
| 2019R0XX | R6700G6 Server; Type: Windows |
| 2022R0XX | R6700G6 Server; Type: Windows |
| linux | |
| H3LX202S | R6700G6 Server; Type: Linux |
| ORACLN86 | R6700G6 Server; Type: Linux |
| ORACLN88 | R6700G6 Server; Type: Linux |
| ORACLN89 | R6700G6 Server; Type: Linux |
| ORACLN90 | R6700G6 Server; Type: Linux |
| ORACLN92 | R6700G6 Server; Type: Linux |
| ORACLN93 | R6700G6 Server; Type: Linux |
| 86ENTHAT | R6700G6 Server; Type: Linux |
| 87ENTHAT | R6700G6 Server; Type: Linux |
| 89ENTHAT | R6700G6 Server; Type: Linux |
| 90ENTHAT | R6700G6 Server; Type: Linux |
| 91ENTHAT | R6700G6 Server; Type: Linux |
| ROCKYL86 | R6700G6 Server; Type: Linux |
| ROCKYL87 | R6700G6 Server; Type: Linux |
| ROCKYL89 | R6700G6 Server; Type: Linux |
| ROCKYL90 | R6700G6 Server; Type: Linux |
| ROCKYL91 | R6700G6 Server; Type: Linux |
| ROCKYL93 | R6700G6 Server; Type: Linux |
| SLE15SP4 | R6700G6 Server; Type: Linux |
| UB2045HK | R6700G6 Server; Type: Linux |
| UBSEH246 | R6700G6 Server; Type: Linux |
| UBSE224X | R6700G6 Server; Type: Linux |
| UBSE2245 | R6700G6 Server; Type: Linux |
| Hyper Visors | |
| CTXS82XX | R6700G6 Server; Type: Hyper Visors |
| VMES70U3 | R6700G6 Server; Type: Hyper Visors |
| VMES8064 | R6700G6 Server; Type: Hyper Visors |
| VMES80U2 | R6700G6 Server; Type: Hyper Visors |
| Configuration Options | |
| NINGV312 | R6700G6 Server |
| OTHERSOS | R6700G6 Server |
| Base Configuration | |
| 0235A4J6 | UN-R6700-G6-SFF-C |
| Product Identity | |
| Brand | H3C |
| Series | H3C R6700 G6 Rack Servers |
No reviews yet
Be the first to review this enterprise product.
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
Still have questions?
