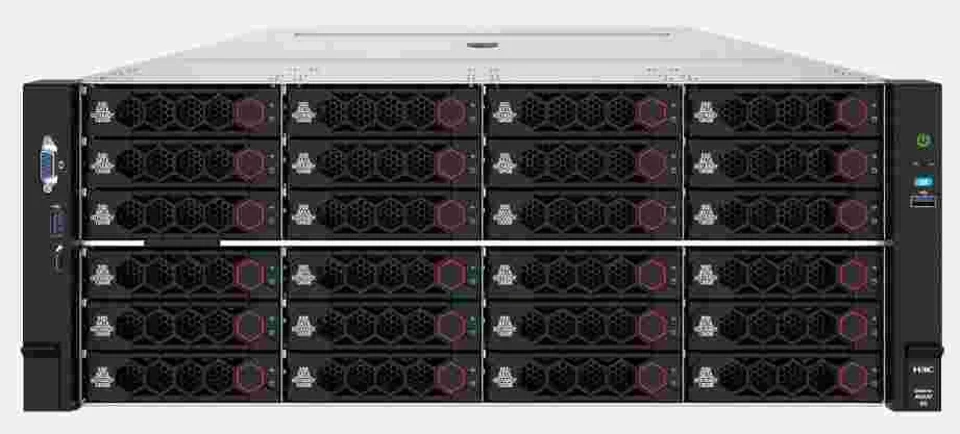

H3C UNIS-U4330-G5-H3-C UNIS U4330 G5 H3 Chassis

H3C UNIS-U4330-G5-H3-C
H3C UNIS-U4330-G5-H3-C UNIS U4330 G5 H3 Chassis
Key Specifications
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Fast Dispatch
Global logistics network aiming for same-day handover.
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
Global Reach
Trusted by enterprise clients across 6 continents.
Expert Support
Certified network engineers ready to assist with configuration.
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | UNIS U4330 G5 H3 Chassis |
| Ordering Information | |
| Use Cases | |
| PZCQYDZY | PZCQYDZY - U4330 G5 H3 Server |
| Processor | |
| 0231AJH9 | 0231AJH9 - Hygon C86-3G 7360 (2.2GHz/24 cores/64MB/180W) CPU module (CTO&BTO) |
| 0231AJHD | 0231AJHD - Hygon C86-3G 7380 (2.2GHz/32 cores/64MB/220W) CPU module (CTO&BTO) |
| 0231AKKX | 0231AKKX - Hygon C86-3G 7375 (2.0GHz/32 cores/64MB/208W) CPU module (CTO&BTO) |
| Memory | |
| 0231AF6R | 0231AF6R - 16GB 2Rx8 DDR4-3200 CAS-22-22-22 RDIMMMemory Module(CTO&BTO) |
| 0231AFXJ | 0231AFXJ - 16GB 1Rx8 DDR4-3200 CAS-22-22-22 RDIMM UniICMemory Module(CTO&BTO) |
| 0231AFXK | UN-DDR4-3200AA-64G-2Rx4-R-U - 64GB 2Rx4 DDR4-3200 CAS-22-22-22 RDIMM UniICMemory Module(CTO&BTO) |
| 0231AFXU | UN-DDR4-3200AA-32G-2Rx8-R-U - 32GB 2Rx8 DDR4-3200 CAS-22-22-22 RDIMM UniICMemory Module(CTO&BTO) |
| 0231AM1W | 0231AM1W - 16GB 2Rx8 DDR4-3200AA(CAS-22-22-22)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AM25 | UN-DDR4-3200AA-32G-2Rx4-R-2 - 32GB 2Rx4 DDR4-3200AA(CAS-22-22-22)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AM6A | UN-DDR4-3200AA-64G-2Rx4-R-ns - 64GB 2Rx4 DDR4-3200 CAS-22-22-22 RDIMM HYGON dedicated memory module (CTO&BTO) |
| Front Hard Drive Cage | |
| 0231AJET | 0231AJET - U4330 G5 H3 Server |
| 0231AJER | 0231AJER - U4330 G5 H3 Server |
| 0231AJEQ | UN-BP-24LFF-P36-HG-G5 - G5 24LFF hard disk expansion module HG (CTO&BTO) |
| 0231AJCY | UN-BP-24LFF-P68-G5 - G5 24LFF disk expansion module (CTO&BTO) |
| Rear Hard Drive Cage | |
| 0231AF5R | UN-HDDCage-2LFF-2U-G5 - G5 2U rear 2LFF disk cage module (CTO&BTO) |
| 0231AF55 | UN-HDDCage-2SFF-2UniBay-2U-G5 - G5 2U rear 2Uni Bay disk cage module (CTO&BTO) |
| 0231AF5C | UN-HDDCage-4SFF-4UniBay-2U-G5 - G5 2U rear 4x Uni Bay drive cage module (CTO & BTO) |
| 0231AGHX | UN-PCA-BP-12LFF-R4300G5 - H3C Uni Server R4300 G5 12LFF disk expansion module (CTO&BTO) |
| M.2 SSD | |
| 0231AK1R | 0231AK1R - 480GB 6G SATA RI 5400PRO M.2 SSDHard Drive Module(CTO&BTO) |
| 0231AES6 | 0231AES6 - U4330 G5 H3 Server |
| 0231AHCQ | UN-SSD-480G-SATA-S4520-M.2 - 480GB SATA RI S4520 M.2 SSDHard Drive Module(CTO&BTO) |
| M.2 Adapter Card | |
| 0231AKB0 | UN-RAID-MARVELL-M.2 - MARVELL SATA M.2 RAID card (supports 2 M.2 SATA Ports, supports M.2 hot-swap, PCIe) (CTO&BTO) |
| 0231AF5Q | UN-RC-2M2-G5 - G5 front 2*M.2 2280/22110 Riser module(CTO&BTO) |
| PCIe Adapter Card | |
| 0231AF5A | UN-RC-3FHFL-2U-G5 - G5 2U X16X8X8 Riser (slot 1/2) (supports 2 FHFL and 1 FHHL, supports 1 300W GPU) (CTO&BTO) |
| 0231AF5L | UN-RC-2HHHL-R3-2U-G5 - G5 2U X8X8 Riser(Slot3)(Supports 2 x HHHL)(CTO&BTO) |
| 0231AFUD | UN-RC-2LP-SlimSAS-2U - SlimSAS LP adapter card (slot 3) (supports 2 x X8 HHHL) (CTO&BTO) |
| 0231AGHB | UN-RC-3FHFL-PCIE3-2U-G5 - G5 2U X8X16X8 PCIE3 Riser(Slot1/2)Module(CTO&BTO) |
| Hard Disk Array Controller Card (Requires a PCIe Adapter Card) | |
| 0231A7HB | UN-RAID-LSI-9460-16i(4G)-F - LSI 9460-16i 12G SAS RAID card module (supports 16 SAS Ports, with 4GB cache, PCIe, excludes supercapacitors) (CMCTO) |
| 0231A8AY | UN-RAID-LSI-9460-8i(4G)-F - LSI 9460-8i 12G SAS RAID controller module (supports 8 x SAS Ports, includes 4GB cache, PCIe, excluding supercapacitor) (CMCTO) |
| 0231A8B0 | UN-HBA-LSI-9440-8i-F - LSI 9440-8i 12G SAS HBA card module (supports 8 x SAS Ports, PCIe) (CMCTO) |
| 0231A8B5 | UN-RAID-LSI-9460-8i(2G)-F - LSI 9460-8i 12G SAS RAID card module (supports 8 SAS Ports, with 2GB cache, PCIe, without supercapacitor) (CMCTO) |
| 0231A8JY | 0231A8JY - LSI 9361-8i 12G SAS RAID card module (supports 8 x SAS Ports, with 1GB cache, PCIe, excluding power-loss protection module) (CMCTO) |
| 0231A8K4 | 0231A8K4 - LSI 9361-8i 12G SAS RAID card module (supports 8 x SAS Ports, with 2GB cache, PCIe, excluding power-loss protection module) (CMCTO) |
| 0231A8ND | UN-HBA-H460-B1-F - H460-B1 12G SAS HBA card module (supports 8 SAS ports, PCIe) (CMCTO) |
| 0231A8P1 | UN-RAID-P460-B4-F - P460-B4 12G SAS RAID card module (supports 8 SAS Ports, with 4GB cache, excluding supercapacitor) (CMCTO) |
| 0231AAUF | 0231AAUF - P460-B2 12G SAS RAID card module (supports 8 SAS ports, with 2GB cache, excluding supercapacitor) (CMCTO) |
| 0231AE6E | UN-HBA-LSI-9400-16i-M - LSI 9400-16i 12G SAS HBA card module (supports 16 SAS Ports, PCIe) (CMCTO) |
| 0231AEVL | UN-RAID-LSI-9560-LP-16i-8GB-M - LSI 9560-16i 12G SAS RAID card module (supports 16x SAS Ports, with 8GB cache, PCIe, excludes supercapacitor) (CMCTO) |
| 0231AG62 | UN-RAID-LSI-9560-LP-8i-4GB - LSI 9560-8i 12G SAS RAID card module (supports 8 SAS Ports, with 4GB cache, PCIe, without supercapacitor) (CTO&BTO) |
| 0231AJ69 | UN-HBA-LSI-9540-LP-8i - LSI 9540-8i 12G SAS HBA card module (supports 8 SAS Ports, PCIe) (CTO&BTO) |
| 0231AJ6E | UN-HBA-LSI-9500-LP-8i - LSI 9500-8i 12G SAS HBA card module (supports 8x SAS Ports, PCIe) (CTO&BTO) |
| Battery | |
| 0231AEYS | UN-BAT-LSI-G2-A - LSI G2 supercapacitor module (CTO&BTO) |
| 0231AEYR | UN-BAT-LSI-G3-A - LSI G3 supercapacitor module (CTO&BTO) |
| 0231AFA4 | UN-BAT-PMC-G3-2U - PMC G3 Supercapacitor Module (for 2U Standard Chassis) (CTO & BTO) |
| OCP3.0 Network Adapter | |
| 0231AEBV | UN-NIC-ETH565T-3S-2P - 2-Port10GEelectrical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AEBW | UN-NIC-ETH640F-3S-2P - 2-Port25GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| Optical Module | |
| 0231A8KB | UN-SFP-XG-SX-MM850-E1 - SFP+ 10GModule(850nm,300m,LC) |
| 0231A7N6 | SFP-25G-SR-MM850-1 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231AEBY | UN-NIC-ETH561F-3S-2P - 2-Port10GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AC0T | SFP-XG-LX-SM1310-CM - SFP+ 10GModule(1310nm,10km,LC)(FIO) |
| Network Card (Requires PCIe Adapter Card) | |
| 0231A7G6 | UN-NIC-MCX4121A-F-B-25Gb-2P-F - 2-Port25Gboptical interface Network Adapter(SFP28)(FIO) |
| 0231A7NA | UN-CNA-560T-B2-10Gb-2P-1 - 2-Port10Gbelectrical interface Network Adapter-560T-B2 |
| 0231A7NH | UN-NIC-620F-B2-25Gb-2P-1 - 2-Port25Gboptical interface Network Adapter(SFP+)-620F-B2 |
| 0231A7PW | UN-NIC-BCM957412-F-B-10Gb-2P-F - 2-Port10GEoptical interface Network Adapter(BCM957412)(FIO) |
| 0231A7Q2 | UN-NIC-BCM957414-F-B-25Gb-2P-F - 2-Port25GEoptical interface Network Adapter(BCM957414)(FIO) |
| 0231A7WC | UN-NIC-X710DA4-F-B-10Gb-4P-F - 4-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231A8K2 | UN-CNA-10GE-2P-560F-B2-1 - 2-Port10Goptical interface Network Adapter(SFP+)-560F-B2 |
| 0231AC0Y | SFP-GE-SX-MM850-CM - Optical module - SFP-GE-multimode optical module (850nm, 0.55km, LC) (FIO) |
| 0231A9AU | UN-NIC-X710DA2-F-B-10Gb-2P-F2 - 2-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231AABV | 0231AABV - U4330 G5 H3 Server |
| 0231AB5W | UN-NIC-MCX512A-ACAT-F-2*25Gb-F - 2-Port25Gboptical interface Network Adapter(SFP28)(MCX512A-ACAT)(FIO) |
| 0231AF8A | UN-NIC-X2522-25Gb-2P-M - 2-port 25Gb SFP28 Optical Interface X2522-25G-PLUS low-latency network card (CTO&BTO) |
| 0231AFH4 | 0231AFH4 - U4330 G5 H3 Server |
| 0231AFH5 | UN-NIC-ETH630F-LP-2P - 2-Port25GEoptical interface Network Adapter (ETH630F)(CTO&BTO) |
| 0231AFR5 | 0231AFR5 - 1-port 100G QSFP28 Optical Interface MCX515A-CCUT Ethernet card (CTO&BTO) |
| 0231AC16 | QSFP-100G-SR4-MM850-CM - 100G QSFP28 optical module (850nm, 100m OM4, SR4, MPO) (FIO) |
| 0231AG88 | UN-NIC-ETH-E810XXVDA2G1P5-2P - 2-port 25Gb SFP28 Optical Interface E810XXVDA2G1P5 Ethernet card (CTO&BTO) |
| 0231AGJA | UN-NIC-ETH-MCX623106AN-CDAT-2P - 2-Port100Gb QSFP56optical interfaceMCX623106AN-CDATNetwork Adapter(CTO&BTO) |
| 0231ANJD | UN-NIC-ETH-RP1000P2SFP-LP-2P - 2-Port10GEoptical interface Network Adapter(RP1000P2SFP)(CTO&BTO) |
| SSD Acceleration Card (Requires a PCIe Adapter Card) | |
| 0231AHWE | UN-SSD-3.2T-NVMe-PB6536-AIC - 3.2T NVMe SSD PB6 6536 SSD PCIe acceleration card module (CTO&BTO) |
| 0231AN26 | UN-SSD-3.2T-NVMe-PB6537-AIC - 3.2TB NVMe SSD MU PB6 6537 SSD PCIe acceleration card module (CTO&BTO) |
| 0231AJ64 | UN-SSD-6.4T-NVMe-PB6536-AIC - 6.4T NVMe SSD PB6 6536 SSD PCIe acceleration card module (CTO&BTO) |
| 0231AN23 | UN-SSD-6.4T-NVMe-PB6537-AIC - 6.4TB NVMe SSD MU PB6 6537 SSD PCIe acceleration card module (CTO&BTO) |
| Fiber Channel HBA card (requires PCIe adapter card) | |
| 0231A7LG | UN-FC-HBA-LPe32000-32Gb-1P - 1-port 32Gb Fibre Channel HBA card (with one SFP+ optical module) |
| 0231A7LN | UN-FC-HBA-LPe32002-32Gb-2P - 2-port 32Gb optical fiber channel HBA card (with two SFP+ optical modules) |
| 0231A7NB | UN-HBA-16Gb-LPe31000-1P-1 - 1-port 16Gb Fibre Channel HBA card (with one SFP+ module) |
| 0231A7PV | UN-FC-HBA-QLE2742-32Gb-2P-F - 32Gb-2-port-PCIe Fibre Channel HBA card (with two SFP+ optical modules) (FIO) |
| 0231A8JV | UN-FC-HBA-QLE2692-16Gb-2P-1 - 2-port 16Gb Fibre Channel HBA card (with two SFP+ modules) |
| 0231AMKF | UN-FC-HBA-QLe2770-LP-32G-1P - 1-port 32Gb PCIe4.0 X8 SFP+ Optical Interface QLe2770 LP FC HBA card (with one SFP+ optical module) (CTO&BTO) |
| 0231AMKP | UN-FC-HBA-QLe2772-LP-32G-2P - 2-port 32Gb PCIe4.0 X8 SFP+ Optical Interface QLe2772 LP FC HBA card (with two SFP+ optical modules) (CTO&BTO) |
| SD card | |
| 0231A6RC | UN-SD-32G-Micro-F - 32G microSD mainstream flash drive module (FIO) |
| SD card expansion module | |
| 0231A8L1 | UN-DSD-EX-F1 - Dual SD card expansion module (CTO & BTO) |
| Power Supply | |
| 0231A8KP | 0231A8KP - U4330 G5 H3 Server |
| 0231AGUP | UN-GW-CRPS1300D3 - 1300W AC&240V HVDC power Module (GW-R1-Platinum-low load high efficiency) (CTO&BTO) |
| 0231AGUN | UN-GW-CRPS1600D2 - 1600W AC & 240V HVDC power Supply Module (GW-R1- Platinum) (CTO&BTO) |
| 0231A6UG | PSR800-12AHD-FIO - 800W 336V HVDC power Supply Module (dedicated power cable) (FP-R1, Platinum) (CMCTO) |
| 0231A9CF | DPS-800W-12A-48V-F - 800W (-48V)-(-60V) DC power Supply Module (DT-R1, Gold) (CMCTO) |
| Fan | |
| 0231AGYV | UN-FAN-L-4UG5-M - G5 4U standard fan module (CTO & BTO) |
| 0231AGYW | UN-FAN-H-4UG5-M - H3C Uni Server G5 high-performance fan module (CTO&BTO) |
| Optical Drive | |
| 0231AFUB | 0231AFUB - U4330 G5 H3 Server |
| Security Hardware | |
| 0231A8K8 | 0231A8K8 - U4330 G5 H3 Server |
| 0231A8KD | UN-TCM-1 - Server series trusted platform module (TCM) |
| Rack Rail | |
| 0231AEYD | UN-BB-4U-B - 4U Ball-Bearings Slides (CTO & BTO) |
| 2150A0JT | SL-4U-BB-S - 4U-S Ball-Bearings Slides |
| Cable Management Tray | |
| 0231AB0E | UN-CMA-4U - H3C Uni Server R4300 G3 4U cable management rack (FIO) |
| Tag | |
| 0231AGWU | UN-Label-Shock&Tilt Monitor - Anti-tilt label and 37G anti-vibration label (CTO&BTO) |
| Is customization Required? | |
| CUSTNEED | CUSTNEED - U4330 G5 H3 Server |
| Customized module | |
| 0231A8A6 | UN-CTM-G3-F - H3C customer-specific customization module (1H) (FIO) |
| Installing Services | |
| 8814A0VA | SV-PS-OEM-SERV-ISS - OEM server initial basic installation service |
| Operating System Compatibility Verification | |
| BATJOSXX | BATJOSXX - U4330 G5 H3 Server |
| OSCHECKX | OSCHECKX - U4330 G5 H3 Server |
| Windows | |
| 2019R0XX | 2019R0XX - U4330 G5 H3 Server |
| linux | |
| ANOS86Q1 | ANOS86Q1 - U4330 G5 H3 Server |
| ALIN88K5 | ALIN88K5 - U4330 G5 H3 Server |
| ALIN89K5 | ALIN89K5 - U4330 G5 H3 Server |
| H3LX202S | H3LX202S - U4330 G5 H3 Server |
| H3LXV202 | H3LXV202 - U4330 G5 H3 Server |
| ROCKYL90 | ROCKYL90 - U4330 G5 H3 Server |
| ROCKYL93 | ROCKYL93 - U4330 G5 H3 Server |
| SLE12SP5 | SLE12SP5 - U4330 G5 H3 Server |
| SLE15SP2 | SLE15SP2 - U4330 G5 H3 Server |
| UOS2050D | UOS2050D - U4330 G5 H3 Server |
| UOS2050E | UOS2050E - U4330 G5 H3 Server |
| UOSSVV20 | UOSSVV20 - U4330 G5 H3 Server |
| UOS2020E | UOS2020E - U4330 G5 H3 Server |
| UOS2040D | UOS2040D - U4330 G5 H3 Server |
| UBSE204X | UBSE204X - U4330 G5 H3 Server |
| UBSE224X | UBSE224X - U4330 G5 H3 Server |
| O2003LTS | O2003LTS - U4330 G5 H3 Server |
| O203LTS3 | O203LTS3 - U4330 G5 H3 Server |
| O2003SP4 | O2003SP4 - U4330 G5 H3 Server |
| O2203LTS | O2203LTS - U4330 G5 H3 Server |
| O223LTS1 | O223LTS1 - U4330 G5 H3 Server |
| O223LTS3 | O223LTS3 - U4330 G5 H3 Server |
| UOS206AK | UOS206AK - U4330 G5 H3 Server |
| UOS207AK | UOS207AK - U4330 G5 H3 Server |
| UOS2070K | UOS2070K - U4330 G5 H3 Server |
| HyperVisors | |
| CASE0706 | CASE0706 - U4330 G5 H3 Server |
| CASE0760 | CASE0760 - U4330 G5 H3 Server |
| CASE0780 | CASE0780 - U4330 G5 H3 Server |
| Community/Regional Enabled Oss | |
| CENTOS76 | CENTOS76 - U4330 G5 H3 Server |
| CENTOS78 | CENTOS78 - U4330 G5 H3 Server |
| CENTOS79 | CENTOS79 - U4330 G5 H3 Server |
| CENTOS82 | CENTOS82 - U4330 G5 H3 Server |
| CENTOS83 | CENTOS83 - U4330 G5 H3 Server |
| Zhongbiao Kylin | |
| HNQL336B | HNQL336B - U4330 G5 H3 Server |
| NSAQ6060 | NSAQ6060 - U4330 G5 H3 Server |
| NSPS6080 | NSPS6080 - U4330 G5 H3 Server |
| ZBQLGF10 | ZBQLGF10 - U4330 G5 H3 Server |
| ZBQL10X1 | ZBQL10X1 - U4330 G5 H3 Server |
| ZBQL10X2 | ZBQL10X2 - U4330 G5 H3 Server |
| ZBQLGF76 | ZBQLGF76 - U4330 G5 H3 Server |
| NSAQ6010 | NSAQ6010 - U4330 G5 H3 Server |
| ZBQL10X3 | ZBQL10X3 - U4330 G5 H3 Server |
| ZBQL1023 | ZBQL1023 - U4330 G5 H3 Server |
| ZBQL10S3 | ZBQL10S3 - U4330 G5 H3 Server |
| Other Operating Systems | |
| NINGV312 | NINGV312 - U4330 G5 H3 Server |
| OTHERSOS | OTHERSOS - U4330 G5 H3 Server |
| Product Identity | |
| Brand | H3C |
| Series | UNIS U4330 G5 H3 rack server (Hi Silicon) |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
FAQ
What is the Model specification for UNIS-U4330-G5-H3-C?
What is the Product Code specification for UNIS-U4330-G5-H3-C?
What is the Product Type specification for UNIS-U4330-G5-H3-C?
What is the Series specification for UNIS-U4330-G5-H3-C?
Is this product Brand New?
What is the warranty period?
Do you offer volume discounts?
How fast can you ship?
Still have questions?
