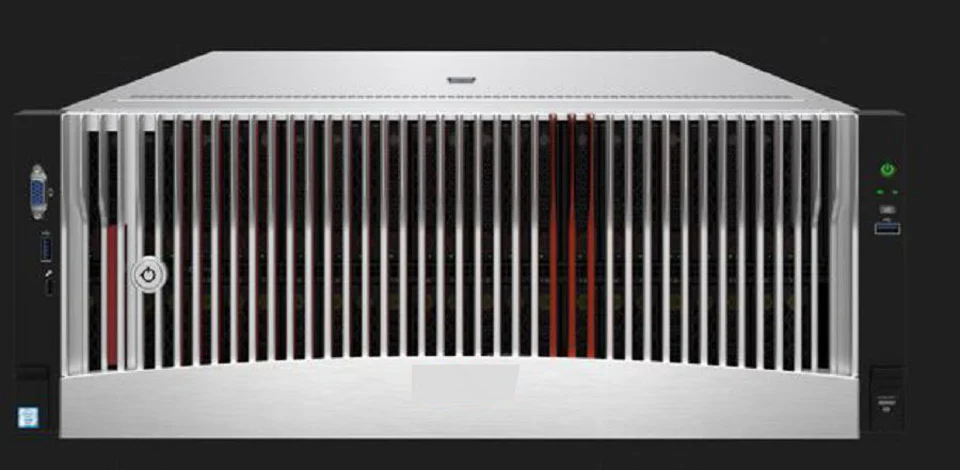

H3C WB-R6900-G6-SFF-C WB R6900 G6 air-cooled CTO server
Brand H3C
N/AVerified
H3C WB-R6900-G6-SFF-C
Model (MPN)
0235A4TH
Condition
Factory Sealed
Out of Stock
H3C WB-R6900-G6-SFF-C WB R6900 G6 air-cooled CTO server
Key Specifications
DescriptionWB R6900 G6 air-cooled CTO server
CPU heat spreader
0231AKEQUN-4P-G6-D2C8S - H3C Uni Server 4P G6 dual-CPU riser module (CTO & BTO)
0231AKF2UN-MID-MEZZ-G6 - 4PG6 UPI Mezz Module(CTO&BTO)
Processor
0231AL07UN-CPU-INTEL-6416H - 6416H (2.2GHz/18 cores/45MB/165W) CPU module (CTO&BTO)
Your Price
Best Value
$188.56
List Price: $2,357.00Save 92%
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Catalog Description | |
|---|---|
| Description | WB R6900 G6 air-cooled CTO server |
| Ordering Information | |
| CPU heat spreader | |
| 0231AKEQ | UN-4P-G6-D2C8S - H3C Uni Server 4P G6 dual-CPU riser module (CTO & BTO) |
| 0231AKF2 | UN-MID-MEZZ-G6 - 4PG6 UPI Mezz Module(CTO&BTO) |
| Processor | |
| 0231AL07 | UN-CPU-INTEL-6416H - 6416H (2.2GHz/18 cores/45MB/165W) CPU module (CTO&BTO) |
| 0231AKYC | UN-CPU-INTEL-6418H - 6418H (2.1GHz/24 cores/60MB/185W) CPU module (CTO&BTO) |
| 0231AL0Q | 0231AL0Q - 6434H(3.7GHz/8-core/22.5MB/195W)CPU module (CTO&BTO) |
| 0231AL0P | 0231AL0P - 6448H(2.4GHz/32-core/60MB/250W)CPU module (CTO&BTO) |
| 0231AL05 | 0231AL05 - 8444H(2.9GHz/16-core/45MB/270W)CPU module (CTO&BTO) |
| 0231AKYB | 0231AKYB - 8450H(2.0GHz/28-core/75MB/250W)CPU module (CTO&BTO) |
| 0231AL0N | 0231AL0N - 8454H(2.1GHz/32 cores/82.5MB/270W) CPU module (CTO&BTO) |
| 0231AKYV | 0231AKYV - 8460H(2.2GHz/40 cores/105MB/330W) CPU module (CTO&BTO) |
| 0231AKY9 | 0231AKY9 - 8468H(2.1GHz/48 cores/105MB/330W) CPU module (CTO&BTO) |
| 0231AK87 | 0231AK87 - 8490H(1.9GHz/60 cores/112.5MB/350W) CPU module (CTO&BTO) |
| Memory | |
| 0231AK7X | 0231AK7X - 64GB 2RX4 DDR5-4800 RDIMMMemory Module(CTO&BTO) |
| 0231AM1X | UN-DDR5-4800B-64G-2Rx4-R-2 - 64GB 2Rx4 DDR5-4800B(CAS-40-39-39)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AM4C | UN-DDR5-4800B-96G-2Rx4-R-2 - 96GB 2RX4 DDR5-4800B CAS-40-39-39 SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AM4E | UN-DDR5-4800B-96G-2Rx4-R - 96GB 2RX4 DDR5-4800B CAS-40-39-39 RDIMMMemory Module(CTO&BTO) |
| 0231ALV9 | UN-DDR5-4800B-128G-4Rx4-R - 128GB 4Rx4 DDR5-4800B 3DS CAS-46-39-39 RDIMMMemory Module(CTO&BTO) |
| 0231AMLD | UN-DDR5-5600B-32G-1Rx4-R - 32GB 1Rx4 DDR5-5600B(CAS-46-45-45)RDIMMMemory Module(CTO&BTO) |
| 0231AMM1 | UN-DDR5-5600B-32G-2Rx8-R-2 - 32GB 2Rx8 DDR5-5600B(CAS-46-45-45)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AMMS | UN-DDR5-5600B-32G-2Rx8-R - 32GB 2Rx8 DDR5-5600B(CAS-46-45-45)RDIMMMemory Module(CTO&BTO) |
| 0231AMMU | UN-DDR5-5600B-32G-1Rx4-R-2 - 32GB 1Rx4 DDR5-5600B(CAS-46-45-45)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AMLJ | UN-DDR5-5600B-64G-2Rx4-R-2 - 64GB 2Rx4 DDR5-5600B(CAS-46-45-45)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AMLY | UN-DDR5-5600B-64G-2Rx4-R - 64GB 2Rx4 DDR5-5600B(CAS-46-45-45)RDIMMMemory Module(CTO&BTO) |
| 0231AMME | UN-DDR5-5600B-96G-2Rx4-R-2 - 96GB 2Rx4 DDR5-5600B(CAS-46-45-45)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AMMT | UN-DDR5-5600B-96G-2Rx4-R - 96GB 2Rx4 DDR5-5600B(CAS-46-45-45)RDIMMMemory Module(CTO&BTO) |
| Front Hard Drive Backplane | |
| 0231AJPU | UN-PCA-BP-8SFF-2U-G6 - G6 2U front 8SFF hard drive backplane module (CTO&BTO) |
| 0231AJQC | UN-PCA-BP-8UniBay-2U-G6 - G6 2U Front 8SFF Uni Bay Drive Backplane Module (CTO&BTO) |
| 0231AJQ4 | UN-PCA-BP-25SFF-2U-G6 - G6 2U front 25SFF hard drive backplane module (CTO&BTO) |
| Rear Hard Drive Cage | |
| 0231AKES | UN-HDDCage-8E1S-2U-G6 - G6 2U rear 8E1.S hard disk cage module (CTO&BTO) |
| Backplane CPU connection method | |
| CPU4NVME | CPU4NVME - R6900G6 Server |
| M.2 Adapter Card | |
| 0231AF5Q | UN-RC-2M2-G5 - G5 front 2*M.2 2280/22110 Riser module(CTO&BTO) |
| M.2 SSD | |
| 0231AHCQ | UN-SSD-480G-SATA-S4520-M.2 - 480GB SATA RI S4520 M.2 SSDHard Drive Module(CTO&BTO) |
| SD card | |
| 0231A6RC | UN-SD-32G-Micro-F - 32G microSD mainstream flash drive module (FIO) |
| SD card expansion module | |
| 0231AJQE | UN-RC-DSD-UART-G6 - G6 serial port & DSD interface board (CTO&BTO) |
| Fan | |
| 0231AKF5 | UN-FAN-8038-4U-G6 - 4U 8038Fan Module(CTO&BTO) |
| 0231AKEW | UN-FAN-8056-4U-G6 - 4U 8056Fan Module(CTO&BTO) |
| Power Supply | |
| 0231AGUP | UN-GW-CRPS1300D3 - 1300W AC&240V HVDC power Module (GW-R1-Platinum-low load high efficiency) (CTO&BTO) |
| 0231ACTG | FSP1600-20FH-M - 1600W 336V HVDC power Supply Module (dedicated power cable) (FP-R1- Platinum) (CMCTO) |
| 0231AHRV | UN-DD-2162-3L5 - 1600W 48V DC power Supply Module (LT-R1- Platinum) (CTO&BTO) |
| 0231AMPJ | UN-CRPS-1600W-AC-12V-94%-M - 1600W AC & 240V HVDC power supply (Platinum) (CMCTO) |
| 0231AGUN | UN-GW-CRPS1600D2 - 1600W AC & 240V HVDC power Supply Module (GW-R1- Platinum) (CTO&BTO) |
| 0231ACTA | DPS-1600AB-13 R-M - 1600W AC & 240V High-Voltage DC power Supply Module (DT-R1-Platinum) (CMCTO) |
| 0231AMQ7 | UN-CRPS-2000W-AC-12V-94%-M - 2000W AC & 240V HVDC power supply (Platinum - light-load high efficiency) (CMCTO) |
| 0231AFSS | UN-GW-CRPS2000D - 2000W AC & 240V HVDC power Supply Module (GW-R2- Platinum - light-load high efficiency) (CTO&BTO) |
| 0231AHRU | UN-PS-2202-11L - 2000W AC & 240V HVDC power Supply Module (LT-R1- Platinum - light-load high efficiency) (CTO&BTO) |
| 0231AFQB | UN-DPS-2400EB B - 2400W AC & 240V HVDC power Supply Module (DT-R1-Platinum) (CTO&BTO) |
| 0231AGUQ | UN-GW-CRPS800N2 - 800W AC & 240V HVDC power Supply Module (GW-R2-Platinum-Efficient at Light Load) (CTO&BTO) |
| 0231A8AX | PSR850-12A-FIO - 850W AC & 240V HVDC power Supply Module (DT-R1- Titanium) (CMCTO) |
| Slot 1 & 2 Adapter Card | |
| 0231AKEG | UN-RC-7FHHL-4U-G6 - G6 Riser1/Riser2 1X16+6X8 Adapter Card (CTO & BTO) |
| 0231AKEH | UN-RC-3FHHL/1FHFL-4U-G6 - G6 Riser1/Riser2 4X16 backplane adapter card supports 1 FHFL module (CTO&BTO) |
| M.2 Array Card | |
| 0231AGT9 | UN-RAID-MARVELL-SANTACRUZ-LP-2i - MARVELL Santa Cruz M.2 RAID card (supports 2 M.2 NVMe Ports, PCIe) (CTO&BTO) |
| Standard Control Card (PCIe Standard Card) | |
| 0231AG62 | UN-RAID-LSI-9560-LP-8i-4GB - LSI 9560-8i 12G SAS RAID card module (supports 8 SAS Ports, with 4GB cache, PCIe, without supercapacitor) (CTO&BTO) |
| 0231AJ69 | UN-HBA-LSI-9540-LP-8i - LSI 9540-8i 12G SAS HBA card module (supports 8 SAS Ports, PCIe) (CTO&BTO) |
| 0231AJ6E | UN-HBA-LSI-9500-LP-8i - LSI 9500-8i 12G SAS HBA card module (supports 8x SAS Ports, PCIe) (CTO&BTO) |
| 0231AEVL | UN-RAID-LSI-9560-LP-16i-8GB-M - LSI 9560-16i 12G SAS RAID card module (supports 16x SAS Ports, with 8GB cache, PCIe, excludes supercapacitor) (CMCTO) |
| 0231AJ6M | UN-HBA-LSI-9500-LP-16i - LSI 9500-16i 12G SAS HBA card module (supports 16x SAS Ports, PCIe) (CTO&BTO) |
| 0231A8P1 | UN-RAID-P460-B4-F - P460-B4 12G SAS RAID card module (supports 8 SAS Ports, with 4GB cache, excluding supercapacitor) (CMCTO) |
| 0231A8ND | UN-HBA-H460-B1-F - H460-B1 12G SAS HBA card module (supports 8 SAS ports, PCIe) (CMCTO) |
| Battery | |
| 0231AEYR | UN-BAT-LSI-G3-A - LSI G3 supercapacitor module (CTO&BTO) |
| 0231AFA4 | UN-BAT-PMC-G3-2U - PMC G3 Supercapacitor Module (for 2U Standard Chassis) (CTO & BTO) |
| VROCModule(Supports NVMe Hard DriveRAID) | |
| 0231A6R6 | UN-NVMe-VROC-Key-S-F - Intel NVMe VROC module - Standard edition (FIO) |
| 0231A6R8 | UN-NVMe-VROC-Key-P-F - Intel NVMe VROC module - Advanced edition (FIO) |
| 0231A7LJ | UN-NVMe-VROC-Key-i-F - Intel NVMe VROC module - Intel edition (FIO) |
| Graphics Card | |
| 0231AJFS | UN-GPU-A16-64G-DW - NVIDIA A16 64G GPUModule(CTO&BTO) |
| 0231AKCL | 0231AKCL - R6900G6 Server |
| 0231ANF4 | UN-GPU-48GB-DW - NVIDIA 48G PCIe4.0 X16 FHFL GPUModule(CTO&BTO) |
| 0231ANMC | 0231ANMC - Nvidia L2 24G PCIe4.0 X16 HHHL GPUModule(CTO&BTO) |
| 0231AJWA | UN-GPU-A2-16GB-NoCEC - Nvidia Tesla A2 16GB Non-CEC GPUModule(CTO&BTO) |
| 0231AK45 | 0231AK45 - R6900G6 Server |
| 0231AJWD | 0231AJWD - R6900G6 Server |
| Network Adapter | |
| 0231AEC7 | 0231AEC7 - 1-port 100Gb QSFP28 Optical Interface MCX515A-CCAT Ethernet NIC (CMCTO) |
| Optical Module | |
| 0231AE3E | QSFP-100G-SR4-MM850-B-CM - 100G QSFP28 optical module (850nm, 100m OM4, SR4, MPO) (FIO) |
| 0231AC16 | QSFP-100G-SR4-MM850-CM - 100G QSFP28 optical module (850nm, 100m OM4, SR4, MPO) (FIO) |
| 0231AFUR | 0231AFUR - R6900G6 Server |
| 0231AFUP | UN-CAB-IB-DAC-MCP7H50-V002R26-2m - Mellanox 2m HDR100 100G DAC breakout cable (CTO&BTO) |
| 0231AEC8 | UN-NIC-ETH-MCX516A-CCAT-2P-M - 100Gb 2-Port QSFP28 Optical Interface MCX516A-CCAT Ethernet Card (CMCTO) |
| 0231AFUS | UN-IB-MCX653106A-ECAT-100Gb-2P - 100Gb 2-Port Infiniband HDR/Ethernet Adapter Card (Supports QSFP56 Optical Modules) (CTO&BTO) |
| 0231AGJA | UN-NIC-ETH-MCX623106AN-CDAT-2P - 2-Port100Gb QSFP56optical interfaceMCX623106AN-CDATNetwork Adapter(CTO&BTO) |
| 0231AC0U | QSFP-40G-SR4-MM850-CM - QSFP+ 40G optical module (850nm, 100m, SR4, supports 1 to 4) (FIO) |
| 0231AH2Y | UN-NIC-BCM957508-P2100G-2P - 2-port 100Gb QSFP56 Optical Interface BCM957508-P2100G Ethernet card (CTO&BTO) |
| 0231A7PW | UN-NIC-BCM957412-F-B-10Gb-2P-F - 2-Port10GEoptical interface Network Adapter(BCM957412)(FIO) |
| 0231A8KB | UN-SFP-XG-SX-MM850-E1 - SFP+ 10GModule(850nm,300m,LC) |
| 0231AC0T | SFP-XG-LX-SM1310-CM - SFP+ 10GModule(1310nm,10km,LC)(FIO) |
| 0231A9AU | UN-NIC-X710DA2-F-B-10Gb-2P-F2 - 2-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231AFRV | UN-NIC-ETH531F-LP-2P - 2-Port10GEoptical interface Network Adapter(CTO&BTO) |
| 0231A7WC | UN-NIC-X710DA4-F-B-10Gb-4P-F - 4-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231A7NA | UN-CNA-560T-B2-10Gb-2P-1 - 2-Port10Gbelectrical interface Network Adapter-560T-B2 |
| 0231A7PX | UN-NIC-BCM957416-T-B-10Gb-2P-F - 2-Port10GEelectrical interface Network Adapter(BCM957416)(FIO) |
| 0231A8K1 | UN-NIC-GE-4P-360T-B2-1 - 4-Port Gigabitelectrical interface Network Adapter-360T-B2 |
| 0231AJG0 | UN-NIC-BCM95719A1904AC-LP-4P - R6900G6 Server |
| 0231AM5N | UN-IB-MCX75310AAS-HEAT-200Gb-1P - 1-port 200Gb Infiniband NDR/Ethernet adapter card (supports OSFP optical modules) (CTO&BTO) |
| 0231AM5P | UN-IB-MCX755106AS-HEAT-200Gb-2P - 2-port 200Gb Infiniband NDR/Ethernet adapter card (supports QSFP112 optical modules) (CTO&BTO) |
| 0231A7G6 | UN-NIC-MCX4121A-F-B-25Gb-2P-F - 2-Port25Gboptical interface Network Adapter(SFP28)(FIO) |
| 0231A7N6 | SFP-25G-SR-MM850-1 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231A7GN | 0231A7GN - 2-Port25GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231A7NH | UN-NIC-620F-B2-25Gb-2P-1 - 2-Port25Gboptical interface Network Adapter(SFP+)-620F-B2 |
| 0231A7Q2 | UN-NIC-BCM957414-F-B-25Gb-2P-F - 2-Port25GEoptical interface Network Adapter(BCM957414)(FIO) |
| 0231AB5W | UN-NIC-MCX512A-ACAT-F-2*25Gb-F - 2-Port25Gboptical interface Network Adapter(SFP28)(MCX512A-ACAT)(FIO) |
| 0231AF8A | UN-NIC-X2522-25Gb-2P-M - 2-port 25Gb SFP28 Optical Interface X2522-25G-PLUS low-latency network card (CTO&BTO) |
| 0231AFGV | 0231AFGV - R6900G6 Server |
| 0231AFH5 | UN-NIC-ETH630F-LP-2P - 2-Port25GEoptical interface Network Adapter (ETH630F)(CTO&BTO) |
| 0231AFUG | UN-NIC-ETH-MCX631102AN-ADAT - 2-port 25Gb SFP28 Optical Interface MCX631102AN-ADAT Ethernet card (CTO&BTO) |
| 0231AG88 | UN-NIC-ETH-E810XXVDA2G1P5-2P - 2-port 25Gb SFP28 Optical Interface E810XXVDA2G1P5 Ethernet card (CTO&BTO) |
| 0231ALXR | UN-NIC-ETH641F-LP-2P - 2-Port25GEoptical interface Network Adapter (ETH641F)(CTO&BTO) |
| 0231ALPQ | UN-IB-MCX75310AAS-NEAT-400Gb-1P - 1-port 400Gb Infiniband NDR/Ethernet adapter card (supports OSFP optical modules) (CTO&BTO) |
| OCPNetwork Adapter | |
| 0231AGFL | UN-NIC-ETH-MCX623436AN-CDAB-2P - 2-Port100Gb optical interfaceMCX623436AN-CDAB OCP3.0Network Adapter(CTO&BTO) |
| 0231AEBU | UN-NIC-ETH360T-3S-4P - 4-Port1GEelectrical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AEBV | UN-NIC-ETH565T-3S-2P - 2-Port10GEelectrical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AEBY | UN-NIC-ETH561F-3S-2P - 2-Port10GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AN1D | UN-NIC-ETH531F-3S-2P - 2-Port10GEoptical interfaceOCP3.0Network Adapter (ETH531F)(CTO&BTO) |
| 0231AEBW | UN-NIC-ETH640F-3S-2P - 2-Port25GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AG96 | UN-NIC-ETH-MCX631432AN-ADAB-2P - 2-Port25Gb SFP28optical interfaceMCX631432AN OCP3.0Network Adapter(CTO&BTO) |
| 0231AC0Y | SFP-GE-SX-MM850-CM - Optical module - SFP-GE-multimode optical module (850nm, 0.55km, LC) (FIO) |
| Fibre Channel controller | |
| 0231A7LG | UN-FC-HBA-LPe32000-32Gb-1P - 1-port 32Gb Fibre Channel HBA card (with one SFP+ optical module) |
| 0231A7LN | UN-FC-HBA-LPe32002-32Gb-2P - 2-port 32Gb optical fiber channel HBA card (with two SFP+ optical modules) |
| 0231A7NB | UN-HBA-16Gb-LPe31000-1P-1 - 1-port 16Gb Fibre Channel HBA card (with one SFP+ module) |
| 0231A7NF | UN-HBA-16Gb-LPe31002-2P-1 - 2-port 16Gb Fibre Channel HBA card (with two SFP+ modules) |
| 0231A7PV | UN-FC-HBA-QLE2742-32Gb-2P-F - 32Gb-2-port-PCIe Fibre Channel HBA card (with two SFP+ optical modules) (FIO) |
| 0231A7Q1 | UN-FC-HBA-QLE2740-32Gb-1P-F - 32Gb-1-port-PCIe optical fiber channel HBA card (with one SFP+ optical module) (FIO) |
| 0231A8JQ | UN-FC-HBA-QLE2690-16Gb-1P-1 - 1-port 16Gb Fibre Channel HBA card (with one SFP+ module) |
| 0231A8JV | UN-FC-HBA-QLE2692-16Gb-2P-1 - 2-port 16Gb Fibre Channel HBA card (with two SFP+ modules) |
| 0231AGHH | UN-FC-HBA-LPe35000-LP-32Gb-1P - 1-port 32Gb Optical Interface LPe35000 AIC FC HBA card (PCIe 4.0) (comes with one SFP+ optical module) (CTO&BTO) |
| 0231AGHJ | UN-FC-HBA-LPe35002-LP-32Gb-2P - 2-port 32Gb Optical Interface LPe35002 AIC FC HBA card (PCIe 4.0) (comes with two SFP+ optical modules) (CTO&BTO) |
| 0231AM7K | UN-FC-HBA-LPe31000-LP-16G-1P - 1-port 16Gb Optical Interface LPe31000 FC HBA card (PCIe 3.0) (with one SFP+ optical module) (CTO&BTO) |
| 0231AM7L | UN-FC-HBA-LPe31002-LP-16G-2P - 2-port 16Gb Optical Interface LPe31002 FC HBA card (PCIe 3.0) (with two SFP+ optical modules) (CTO&BTO) |
| 0231AMKF | UN-FC-HBA-QLe2770-LP-32G-1P - 1-port 32Gb PCIe4.0 X8 SFP+ Optical Interface QLe2770 LP FC HBA card (with one SFP+ optical module) (CTO&BTO) |
| 0231AMKP | UN-FC-HBA-QLe2772-LP-32G-2P - 2-port 32Gb PCIe4.0 X8 SFP+ Optical Interface QLe2772 LP FC HBA card (with two SFP+ optical modules) (CTO&BTO) |
| 0231ANQ1 | UN-FC-HBA-LPe36002-LP-64G-2P - 2-port 64Gb PCIe4.0 X8 SFP+ Optical Interface LPe36002 LP FC HBA card (with two SFP+ optical modules) (CTO&BTO) |
| 0231ANQ2 | UN-FC-HBA-LPe36000-LP-64G-1P - 1-port 64Gb PCIe4.0 X8 SFP+ Optical Interface LPe36000 LP FC HBA card (with one SFP+ optical module) (CTO&BTO) |
| SSD Acceleration Card | |
| 0231AHWE | UN-SSD-3.2T-NVMe-PB6536-AIC - 3.2T NVMe SSD PB6 6536 SSD PCIe acceleration card module (CTO&BTO) |
| 0231AJ64 | UN-SSD-6.4T-NVMe-PB6536-AIC - 6.4T NVMe SSD PB6 6536 SSD PCIe acceleration card module (CTO&BTO) |
| i Fist Module | |
| 0231AJQ5 | UN-IFIST-EX-G6 - G6 iFISTModule(CTO&BTO) |
| Diagnostic Modules | |
| 0231AE9Y | UN-SID-LCD-SFF-M - SFF LCD panel module (CMCTO) |
| Optical Drive | |
| 0231A6R9 | 0231A6R9 - Mobile USB 2.0 interface read/write optical drive module (FIO) |
| Rack Rail | |
| 0231AKEF | UN-BB-4U-G6 - G6 4U Ball Screw Guide (CTO & BTO) |
| Cable Management Tray | |
| 0231AQCE | UN-CMA-2U-G6 - G6 2U Cable Management Rack (CTO & BTO) |
| Maximum GPU Specifications | |
| DWGPUMAX | DWGPUMAX - R6900G6 Server |
| Security Hardware | |
| 0231AKEY | UN-TCM-SPI-B - H3C server platform trusted module SPI TCM (CTO&BTO) |
| 0231AKEX | UN-TPM-SPI-B - H3C server series trusted platform module SPI TPM (CTO&BTO) |
| Is customization Required? | |
| CUSTNEED | CUSTNEED - R6900G6 Server |
| Customized module | |
| 0231A8A6 | UN-CTM-G3-F - H3C customer-specific customization module (1H) (FIO) |
| Installing Services | |
| 8814A0VA | SV-PS-OEM-SERV-ISS - OEM server initial basic installation service |
| Operating System Compatibility Verification | |
| BATJOSXX | BATJOSXX - R6900G6 Server |
| OSCHECKX | OSCHECKX - R6900G6 Server |
| Windows | |
| 2019R0HY | 2019R0HY - R6900G6 Server |
| 2019R0XX | 2019R0XX - R6900G6 Server |
| 2022R0XX | 2022R0XX - R6900G6 Server |
| linux | |
| H3LX202S | H3LX202S - R6900G6 Server |
| ORACLN86 | ORACLN86 - R6900G6 Server |
| ORACLN88 | ORACLN88 - R6900G6 Server |
| ORACLN89 | ORACLN89 - R6900G6 Server |
| ORACLN90 | ORACLN90 - R6900G6 Server |
| ORACLN92 | ORACLN92 - R6900G6 Server |
| ORACLN93 | ORACLN93 - R6900G6 Server |
| 86ENTHAT | 86ENTHAT - R6900G6 Server |
| 87ENTHAT | 87ENTHAT - R6900G6 Server |
| 89ENTHAT | 89ENTHAT - R6900G6 Server |
| 90ENTHAT | 90ENTHAT - R6900G6 Server |
| 91ENTHAT | 91ENTHAT - R6900G6 Server |
| ROCKYL86 | ROCKYL86 - R6900G6 Server |
| ROCKYL87 | ROCKYL87 - R6900G6 Server |
| ROCKYL89 | ROCKYL89 - R6900G6 Server |
| ROCKYL90 | ROCKYL90 - R6900G6 Server |
| ROCKYL91 | ROCKYL91 - R6900G6 Server |
| ROCKYL93 | ROCKYL93 - R6900G6 Server |
| SLE15SP4 | SLE15SP4 - R6900G6 Server |
| UB2045HK | UB2045HK - R6900G6 Server |
| UBSE224X | UBSE224X - R6900G6 Server |
| UBSE2245 | UBSE2245 - R6900G6 Server |
| HyperVisors | |
| VMES70U3 | VMES70U3 - R6900G6 Server |
| VMES8064 | VMES8064 - R6900G6 Server |
| VMES80U2 | VMES80U2 - R6900G6 Server |
| Other Operating Systems | |
| NINGV312 | NINGV312 - R6900G6 Server |
| OTHERSOS | OTHERSOS - R6900G6 Server |
| Product Identity | |
| Brand | H3C |
| Series | WB R6900 G6 rack server |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the Model specification for WB-R6900-G6-SFF-C?
WB-R6900-G6-SFF-C lists Model as WB-R6900-G6-SFF-C. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Product Code specification for WB-R6900-G6-SFF-C?
WB-R6900-G6-SFF-C lists Product Code as 0235A4TH. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Product Type specification for WB-R6900-G6-SFF-C?
WB-R6900-G6-SFF-C lists Product Type as Server. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Series specification for WB-R6900-G6-SFF-C?
WB-R6900-G6-SFF-C lists Series as WB Standard Server. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
