Small-size, compact, fanless quiet design, suitable for industries with limited device storage space such as apartments and hotels
Highlight Features
- Small size and personalized design, flexible deployment in small space
- No fan, natural heat dissipation, quiet and energy saving
- Various security protection policies, stable and reliable operation of equipment
- Unified management on the cloud platform, simpler and easier O&M
- Comparison
XS-S1930J-8GT2SFP
Wired ports：8 × 1000M Ethernet ports,2 × 1000M fiber port, console port
PoE power supply：-
Switching capacity：20 Gbps
Packet forwarding rate：15 Mpps
Fan：Fanless design
Built-in power supply：100 V AC to 240 V AC
management：Ruijie cloud management and web management
MTBF：above 200,000 hours
Dimensions：220 mm × 150 mm × 44 mm
Net weight：≤ 1.1 kg
Operating environment：Temperature: -5°C to +55°C，10% to 90% RH
Max. power：Humidity: ≤ 8 W
Warranty period：3 years
Certification：VCCI Class A, RoHS Compliance, EEE Compliance

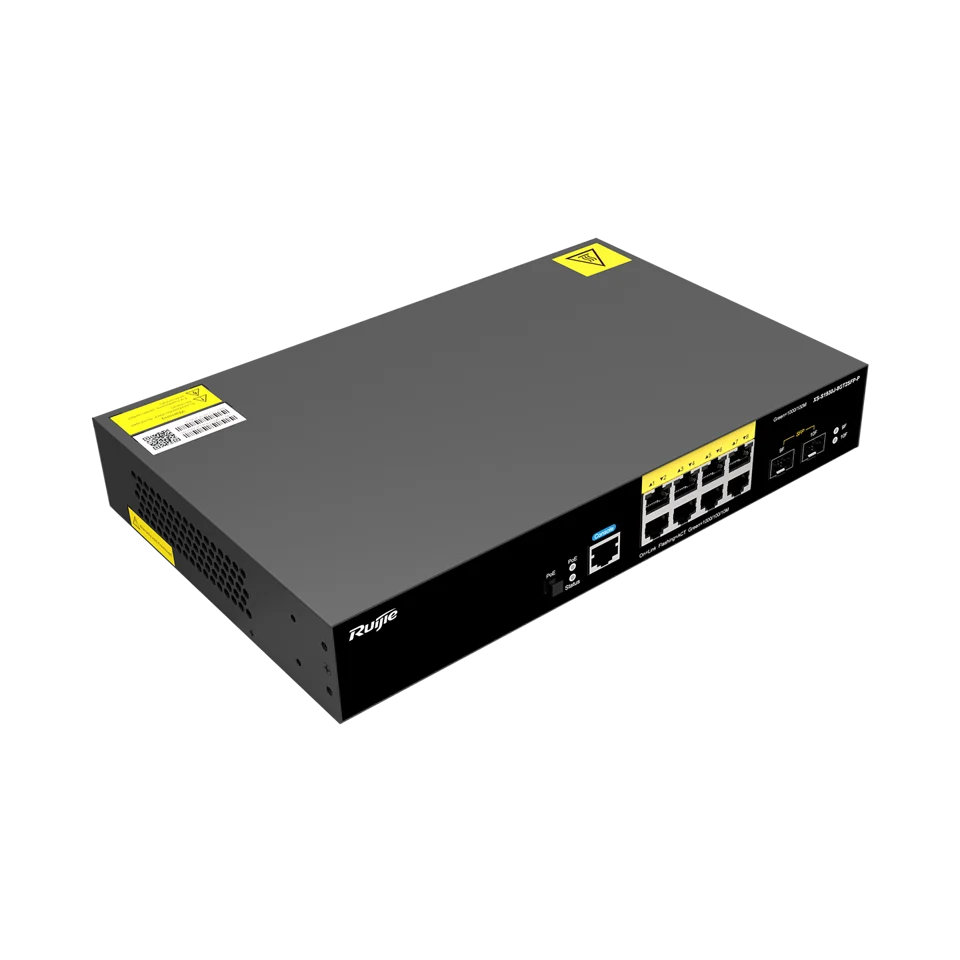

XS-S1930J-8GT2SFP-P
Wired ports：8 × 1000M Ethernet ports(8 PoE/PoE+ ports)，2 × 1000M fiber port, console port
PoE power supply：up to 125 W
Switching capacity：20 Gbps
Packet forwarding rate：15 Mpps
Fan：Fanless design
Built-in power supply：100 V AC to 240 V AC
management：Ruijie cloud management and web management
MTBF：above 200,000 hours
Dimensions：280 mm × 180 mm × 44 mm
Net weight：≤ 1.7 kg
Operating environment：Temperature: -5°C to +50°C，10% to 90% RH
Max. power：Humidity: ≤ 150 W
Warranty period：3 years
Certification：VCCI Class A, RoHS Compliance, EEE Compliance
XS-S1930J-18GT2SFP
Wired ports：18 × 1000M Ethernet ports(16 PoE/PoE+ ports), 2 × 1000M fiber port, console port
PoE power supply：up to 200 W
Switching capacity：40 Gbps
Packet forwarding rate：30 Mpps
Fan：Fanless design
Built-in power supply：100 V AC to 240 V AC
management：Ruijie cloud management and web management
MTBF：above 200,000 hours
Dimensions：340 mm × 200 mm × 44 mm
Net weight：≤ 2.5 kg
Operating environment：Temperature: -5°C to +50°C，10% to 90% RH
Max. power：Humidity: ≤ 250 W
Warranty period：3 years
Certification：VCCI Class A, RoHS Compliance, EEE Compliance
Wired ports：24 × 1000M Ethernet ports，4 × 1000M fiber port (2 combo ports), console port
PoE power supply：-
Switching capacity：56 Gbps
Packet forwarding rate：42 Mpps
Fan：Fanless design
Built-in power supply：100 V AC to 240 V AC
management：Ruijie cloud management and web management
MTBF：above 200,000 hours
Dimensions：440 mm × 187 mm × 44 mm
Net weight：≤ 2.5 kg
Operating environment：Temperature: -5°C to +55°C，10% to 90% RH
Max. power：Humidity: ≤ 17 W
Warranty period：3 years
Certification：VCCI Class A, RoHS Compliance, EEE Compliance
Wired ports：24 × 1000M Ethernet ports (24 PoE/PoE+ ports), 4 × 1000M fiber port (2 combo ports)
PoE power supply：up to 120 W
Switching capacity：56 Gbps
Packet forwarding rate：42 Mpps
Fan：Fanless design
Built-in power supply：100 V AC to 240 V AC
management：Ruijie cloud management and web management
MTBF：above 200,000 hours
Dimensions：440 mm × 208 mm × 44 mm
Net weight：≤ 3.3 kg
Operating environment：Temperature: -5°C to +55°C，10% to 90% RH
Max. power：Humidity: ≤ 430 W
Warranty period：3 years
Certification：VCCI Class A, RoHS Compliance, EEE Compliance
Wired ports：48 × 1000M Ethernet ports, 4 × 1000M fiber port, console port
PoE power supply：-
Switching capacity：104 Gbps
Packet forwarding rate：78 Mpps
Fan：Fanless design
Built-in power supply：100 V AC to 240 V AC
management：Ruijie cloud management and web management
MTBF：above 200,000 hours
Dimensions：440 mm × 208 mm × 44 mm
Net weight：≤ 2.8 kg
Operating environment：Temperature: -5°C to +50°C，10% to 90% RH
Max. power：Humidity: ≤ 40 W
Warranty period：3 years
Certification：VCCI Class A, RoHS Compliance, EEE Compliance
