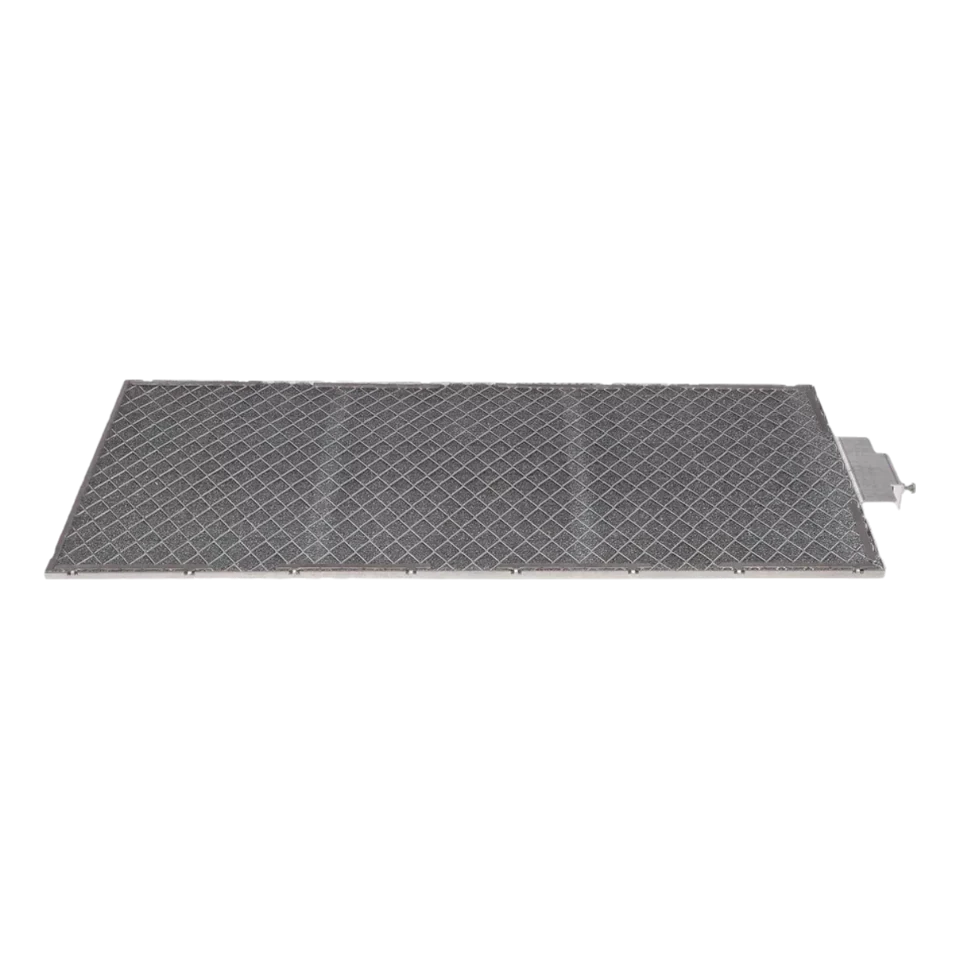

The ASR-9006-FILTER is a product provided by CISCO. This filter is designed to protect and improve the performance of the ASR-9006 router. The ASR-9006 is a high-performance router that requires unique and high-quality filters to function correctly.The ASR-9006-FILTER helps to block particles, debris, and other contaminants that could otherwise enter the ASR-9006 and damage it. This filter also helps to improve the air quality inside the router, which leads to better performance.The ASR-9006-FILTER is an essential product for anyone who owns or manages the ASR-9006 router. It is easy to install and replace, and it helps to prolong the lifespan of the router. Furthermore, the ASR-9006-FILTER functions silently and does not generate any vibrations, which makes it an ideal solution for noise-sensitive environments.
Cisco ASR 9906 and ASR 9910
|
Specification |
Model |
|
|
Cisco ASR 9906 |
Cisco ASR 9910 |
|
|
Categories |
||
|
Physical specifications |
Height: 24.39 in.(619.50mm) (14RU) Width: 17.60 in. (447.04 mm) Depth: 31.45 in. (798.83 mm) Weight: ● 131.5 lb (59.65 kg) (Chassis with 1 PEM)
● 212.5 lb (96.4 kg) (2 Fan Trays, 2 RSP, 5 Fabric Cards, 1 PEM)
|
Height: 36.69 in.(931.9mm) (21RU) Width: 17.60 in. (447.04 mm) Depth: ● With Air Reflector: 39.63 in. (1006.6mm)
● Without Air Reflector: 30.41 in. (772.4mm)
Weight: ● 170 lb (77.27 kg) (Chassis with 2 PEMs)
● 302.25 lb (137.38 kg) (2 Fan Trays, 2 RSP, 5 Fabric Cards, 2 PEMs)
|
|
Slot orientation |
Vertical |
Vertical |
|
Cisco ASR 9000 Series RSP |
Dual redundant RSPs with integrated fabric in 2 slots |
Dual redundant RSPs with integrated fabric in 2 slots |
|
Fabric |
6 + 1 redundant fabrics (2 located on the RSP, 5 on dedicated switch fabric cards) |
6 + 1 redundant fabrics (2 located on the RSP, 5 on dedicated switch fabric cards) |
|
Cisco ASR 9000 Series line cards |
4 line-card slots |
8 line-card slots |
|
“Commons” components |
2 RSPs 5 fabric cards 2 fan trays 1 PEM (either DC or AC) 1 fan filter |
2 RSPs 5 fabric cards 2 fan trays 2 PEMs (either DC or AC) 1 fan filter |
|
Reliability and availability |
Fabric redundancy Fan redundancy Feed redundancy Power-supply redundancy Route processor redundancy Software redundancy |
Fabric redundancy Fan redundancy Feed redundancy Power-supply redundancy Route processor redundancy Software redundancy |
|
Rack mounting |
19-in. 21- and 23-in. adapters available Slide rails available for 4 post racks |
19-in. 21- and 23-in. adapters available Slide rails available for 4 post racks |
|
Cabinet mounting |
Yes |
Yes |
|
Wall mounting |
No |
No |
|
Airflow |
Front-to-back |
Front-to-back |
|
Performance |
||
|
Fabric |
One per RSP and five dedicated switch fabric card slots: ● Support for 6 + 1 redundancy
● Operate in active/active nonblocking mode
● Built-in service-intelligence and traffic-prioritization capability
|
One per RSP and five dedicated switch fabric card slots: ● Support for 6 + 1 redundancy
● Operate in active/active nonblocking mode
● Built-in service-intelligence and traffic-prioritization capability
|
|
Thermal |
Two fan trays: ● 7 high-efficiency fans per tray
● Variable-speed fans for optimal thermal performance
● No single point of failure
|
Two fan trays: ● 12 high-efficiency fans per tray
● Variable-speed fans for optimal thermal performance
● No single point of failure
|
|
Power |
||
|
Modularity |
Pay-as-you-grow power for future scalability, available in AC and DC. Multiple power module types: ● 6 kW AC power modules
● 4.4 kW DC power modules
Note: Mixing of AC and DC modules is not supported |
Pay-as-you-grow power for future scalability, available in AC and DC. Multiple power module types: ● 6 kW AC power modules
● 4.4 kW DC power modules
Note: Mixing of AC and DC modules is not supported |
|
Redundancy |
● AC: N+N redundancy
● DC: N+1 redundancy
● Power module redundancy
● A/B Feed redundancy
● PEM redundancy
|
● AC: N+N redundancy
● DC: N+1 redundancy
● Power module redundancy
● A/B Feed redundancy
● PEM redundancy
|
|
Power zones |
No power zone restrictions Fully load-sharing power infrastructure |
No power zone restrictions Fully load-sharing power infrastructure |
|
Power input |
Worldwide ranging AC (200-240V; 50-60 Hz; 16A maximum) Worldwide ranging DC (-40 to -72V; 50A nominal, 60A maximum) |
Worldwide ranging AC (200-240V; 50-60 Hz; 16A maximum) Worldwide ranging DC (-40 to -72V; 50A nominal, 60A maximum) |
|
Power module airflow |
Front-to-back |
Front-to-back |
|
Environmental Specifications (All Entries Applicable to Cisco ASR 9906 and ASR 9910) |
||
|
Operating temperature (nominal) |
41 to 104°F (5 to 40°C) |
|
|
Operating temperature (short‑term) |
23 to 131°F (-5 to 55°C) for ASR 9906 23 to 122°F (-5 to 50°C) for ASR 9910 |
|
|
Operating humidity (nominal) (relative humidity) |
5 to 90% |
|
|
Storage temperature |
-40 to 158°F (-40 to 70°C) |
|
|
Storage (relative humidity) |
5 to 93% |
|
|
Operating altitude |
-60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements) |
|
|
Regulatory Compliance (All Entries Applicable to Cisco ASR 9906 and ASR 9910) |
||
|
Network Equipment Building Standards (NEBS) |
Cisco ASR 9906 and ASR 9910 Routers are designed to meet: ● SR-3580: NEBS Criteria Levels (Level 3)
● GR-1089-CORE: NEBS EMC and Safety
● GR-63-CORE: NEBS Physical Protection
● VZ.TPR.9205: Verizon TEEER
|
|
|
ETSI standards |
Cisco ASR 9906 and ASR 9910 Routers are designed to meet (qualification in progress): ● EN300 386: Telecommunications Network Equipment (EMC)
● ETSI 300 019 Storage Class 1.1
● ETSI 300 019 Transportation Class 2.3
● ETSI 300 019 Stationary Use Class 3.1
|
|
|
EMC standards emission |
Cisco ASR 9906 and ASR 9910 Routers are designed to meet: ● FCC Class 47CFR15 A
● ICES 003 Class A
● AS/NZS CISRP22 Class A
● CISPR 22 (EN55022) Class A
● VCCI Class A
● BSMI Class A
● IEC/EN 61000-3-12: Power Line Harmonics
● IEC/EN 61000-3-11: Voltage Fluctuations and Flicker
● EN55022: Information Technology Equipment (Emissions)
● EN 50121-4: Railway EMC
|
|
|
EMC standards immunity |
Cisco ASR 9906 and ASR 9910 Routers are designed to meet: ● IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)
● IEC/EN-61000-4-3: Radiated Immunity (10V/m)
● IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)
● IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)
● IEC/EN-61000-4-5: Signal Surge Ports (1kV)
● IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM)
● IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
● IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
● IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
● EN55024: Information Technology Equipment (Immunity)
● EN50082-1/EN-61000-6-1: Generic Immunity Standard
● EN 50121-4: Railway EMC
|
|
|
Safety |
Cisco ASR 9906 and ASR 9910 Routers are designed to meet: ● UL/CSA/IEC/EN 60950-1
● IEC/EN 60825 Laser Safety
● ACA TS001
● AS/NZS 60950
● FDA Code of Federal Regulations Laser Safety
|
|
