200GE access switch (one 200GE port split into two 100GE ports), and 400GE ZR/ZR+ optical modules for interconnection at the maximum distance of 120 km
Highlight Features
- Various ports – 24 x 200GE QSPF56 ports and 8 x 400GE QSPF-DD ports, allowing flexible networking
- Hardware-level redundancy, ensuring service continuity
- Communication at the maximum distance of 120 km and easy DCI
- Lossless Ethernet, ensuring zero packet loss during RDMA E2E communication
- Telemetry-based network monitoring and automated O&M, making management simple and efficient
Hardware Specifications
| System Specifications | RG-S6580-24DC8QC | |
| Ports | 24 × 200GE ports (QSFP56) + 8 × 400GE ports (QSFP-DD) | |
| Expansion Modules | Not supported | |
| Expansion Module Slots | Two power supply module slots (1+1 redundancy)
Six fan module slots (5+1 redundancy; the system needs at least 5 fan modules) |
|
| Management Port | One management port, one console port, and one USB port, compliant with the USB2.0 standard | |
| Switching Capacity | 16.0 Tbps | |
| Packet Forwarding Rate | 5350 Mpps | |
| 802.1Q VLAN | 4094 | |
| Dimensions | RG-S6580-24DC8QC | |
| Dimensions (W × D × H) | 442 mm × 670.8 mm × 43.6 mm, 1 RU | |
| Weight | About 11 kg (including six fan modules and two power supply modules) | |
| Power Supply and Consumption | RG-S6580-24DC8QC | |
| Power Input | AC input:
Rated voltage range: 200 VAC to 240 VAC Maximum voltage range: 90 VAC to 264 VAC Frequency: 50 Hz to 60 Hz Rated input current: 8 A HVDC input: Input voltage range: 192 VDC to 288 VDC Rated input current: 6.5 A |
|
| Maximum Power Consumption | 850W | |
| Environment and Reliability | RG-S6580-24DC8QC | |
| Temperature Alarm | Temperature alarms and overheat protection | |
| Operating Temperature | 0ºC to 40ºC (32ºF to 104ºF) | |
| Storage Temperature | –40°C to 70°C (-40 °F to 158 °F) | |
| Operating Humidity | 10% to 90% RH (non-condensing) | |
| Storage humidity | 5% to 95% RH (non-condensing) | |
| Working altitude | Operating altitude: up to 5000 m (16,404.20 ft.)
Storage altitude: up to 5000 m (16,404.20 ft.) |
|
Software Specifications
| Software Specifications | RG-S6580-24DC8QC | |
| L2 Protocols | IEEE 802.3x, IEEE 802.3ad (Link Aggregation Control Protocol), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), Jumbo Frame (9 KB) | |
| L3 Protocols (IPv4) | BGP4, OSPFv2, RIPv1, RIPv2, LPM routing, Policy-based Routing (PBR), route-policy, Equal-Cost Multi-Path Routing (ECMP), WCMP, VRRP | |
| IPv6 Basic Protocols | Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS | |
| IPv6 Features | Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+ | |
| ACL | ACL80、ACL-based redirection、IPv6 ACL、Extended/Standard IP ACL、Extended MAC ACL、Time-based ACL、Global ACL、Resource sharing in the case of applying an ACL on different physical ports or SVIs、ACL counter、ACL counter only、ACL logging、Displaying ACL resource usage、ACL-based re-marking、Expert-level ACL、IPv4 user-defined function(UDF) ACL、Configuring ACL counter-only globally、ACL matching against the inner 5-tuple of VXLAN packets、IPv6 UDF ACL、ACL matching against the inner 5-tuple of packets passing through the VXLAN | |
| Data Center Features | PFC, ECN, and other data center features
RDMA |
|
| Visualization | gRPC
sFlow sampling |
|
| QoS | Mapping of IEEE 802.1p, DSCP, and ToS priorities ACL-based traffic classification Priority marking/remarking Multiple queue scheduling mechanisms, including SP, WRR, WFQ, DRR, SP+WRR, SP+WFQ, and SP+DRR Congestion avoidance mechanisms such as WRED and tail discarding |
|
| HA Design | GR for RIP/OSPF/BGP, BFD, DLDP, REUP dual-link fast switching, RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swapping for all cards and power supply modules | |
| Security Features | Network foundation protection policy (NFPP), CPP, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, broadcast packet suppression, hierarchical user management | |
| Management Mode | SNMP v1/v2c/v3, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP, syslog, SPAN/RSPAN/ERSPAN, ZTP, NETCONF, Python, fan and power alarm, and temperature alarm | |
| Other Protocols | DHCP client, DHCP relay, DHCP server, DNS client, ARP proxy, and Syslog | |
Safety and Regulatory Compliance
| Specifications | RG-S6580-24DC8QC | |
| Safety | ● GB 4943.1 | |
| Electromagnetic Compatibility (EMC) | ● GB/T 9254.1
● VCCI-CISPR 32:2016 |
|
| Environment | ● 2011/65/EU EN 50581
● 2012/19/EU EN 50419 ● (EC) No.1907/2006 ● GB/T 26572 |
|
*For more country-specific regulatory information and approvals, contact your local sales agency.
Order Information
The configuration procedure for RG-S6580 series switches is as follows:
● Select the switch (installed with all fan and power supply modules).
● Select optical transceivers based on port requirements.
Chassis, Fan Module
| Product Model | Description |
| RG-S6580-24DC8QC | 24 × 200GE QSFP56 ports + 8 × 400GE QSFP-DD ports

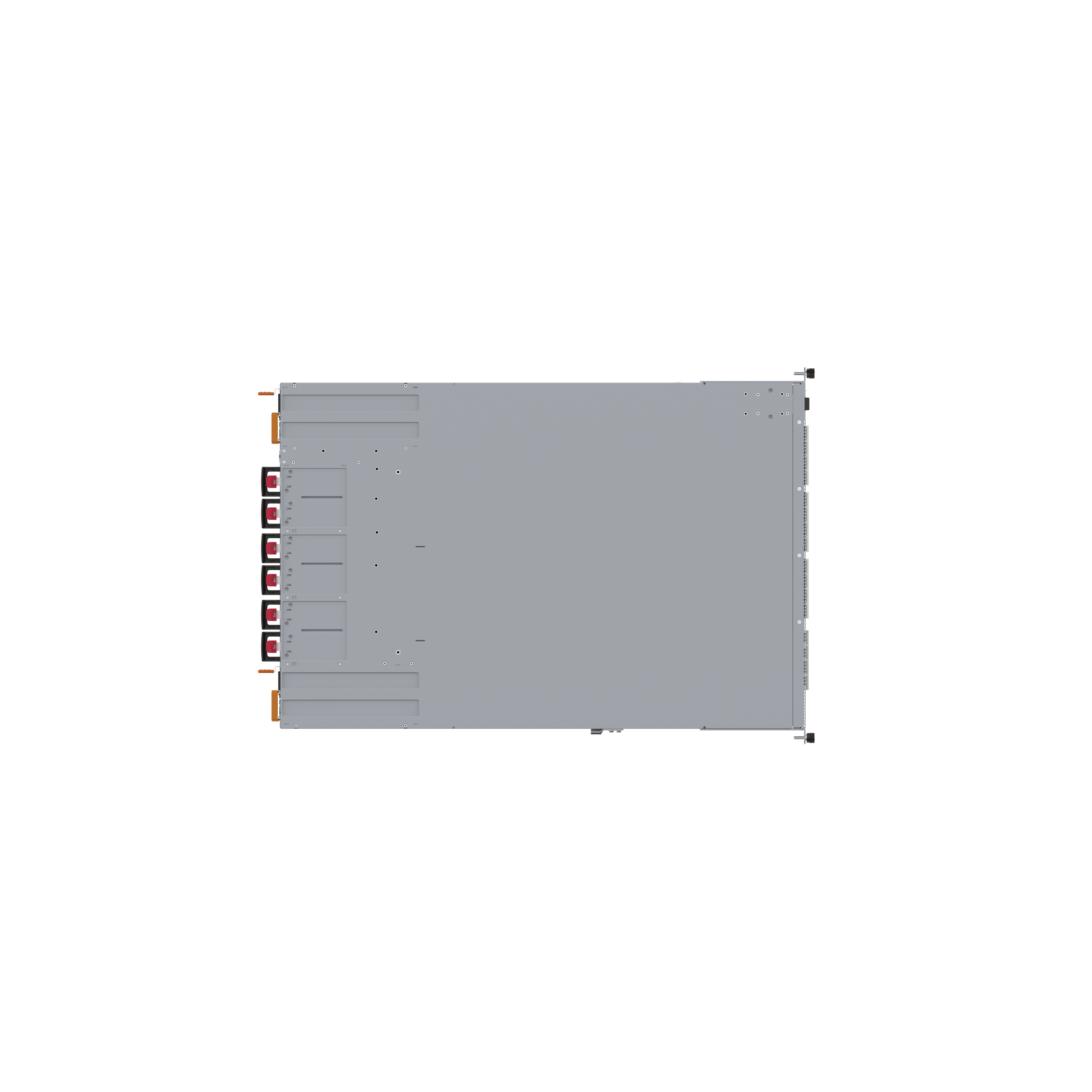

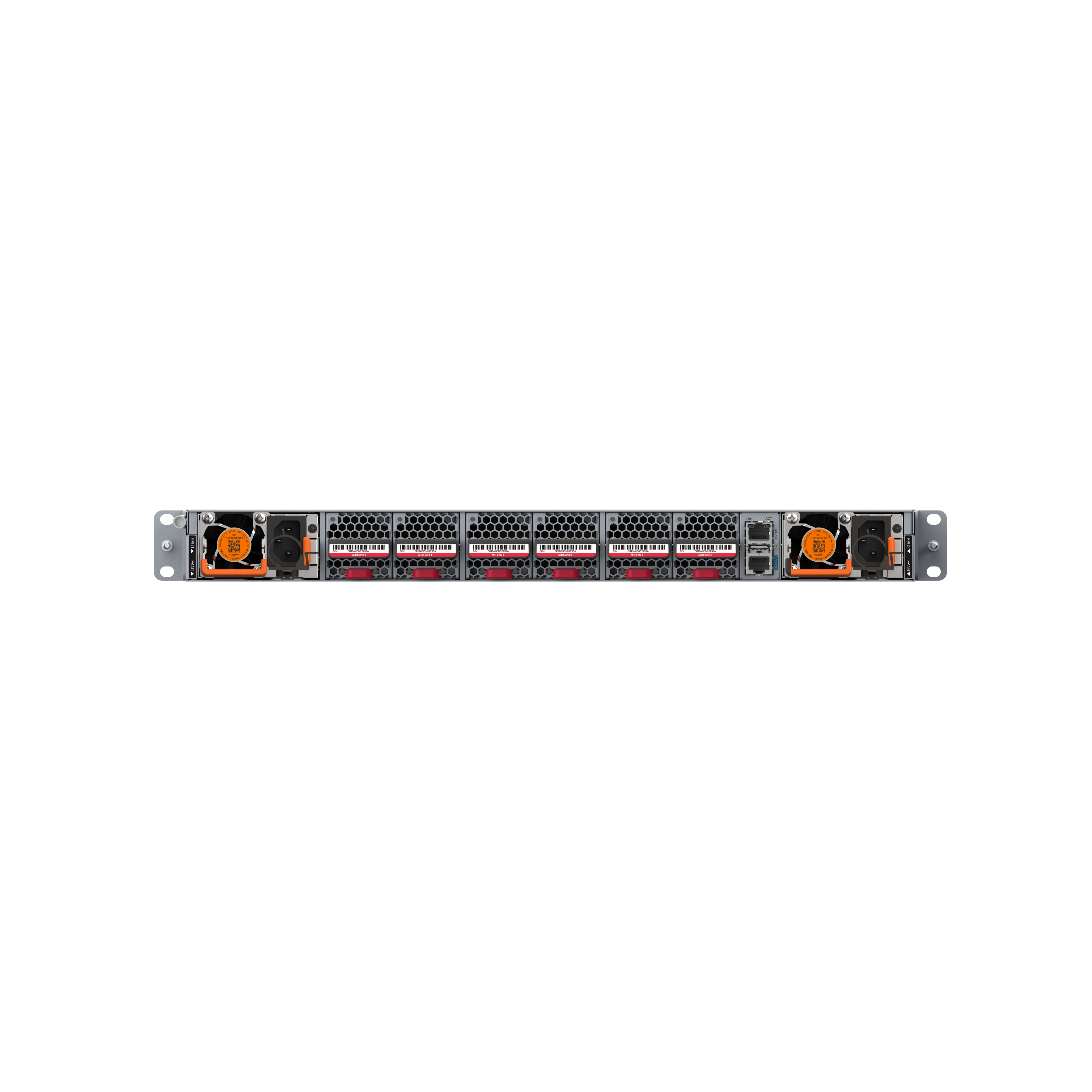

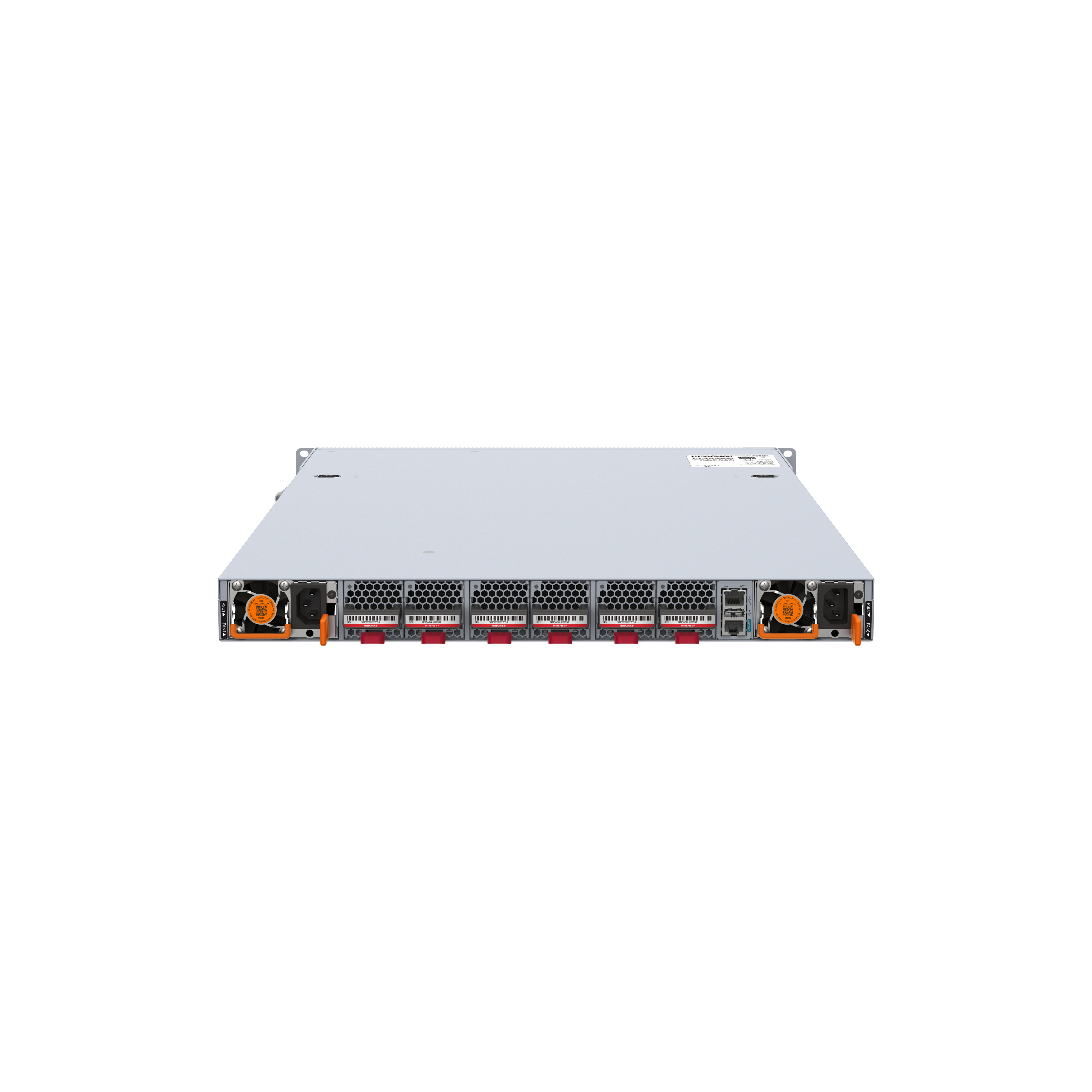

Two power slots and six fan slots The chassis is installed with two RG-PA1200I-F modules and six M1HFAN II-F fan modules. |
Power Supply Module
| Product Model | Description |
| RG-PA1200I-F | 1200 W AC module (AC/240 V HVDC) |
Fan Module
| Product Model | Description |
| M1HFAN II-F | Fan module (front-to-rear ventilation) |
400GBASE Series Optical Modules
| Product Model | Description |
| 400G-QDD-SR8-MM850 | 400G SR8 module, QSFP-DD form factor, MPO-16 APC, 850 nm, 100 m (328.08 ft.) over MMF |
| 400G-QDD-DR4-SM1310 | 400G DR4 module, QSFP-DD form factor, MPO-12 APC, 1310 nm, 500 m (1,640.42 ft.) over SMF |
| 400G-QDD-FR4-SM1310 | 400G FR4 module, QSFP-DD form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF |
100GBASE Series Optical Modules
| Product Model | Description |
| 100G-AOC-5M | 100G QSFP28 AOC cable, 5 m (16.40 ft.) |
| 100G-AOC-10M | 100G QSFP28 AOC cable, 10 m (32.81 ft.) |
| 100G-QSFP-SR-MM850 | 100G SR module, QSFP28 form factor, MPO, 850 nm, 100 m (328.08 ft.) over MMF |
| 100G-QSFP-iLR4-SM1310 | 100G iLR4 module, QSFP28 form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF |
| 100G-QSFP-LR4-SM1310 | 100G LR4 module, QSFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF |
| 100G-QSFP-ER4-SM1310 | 100G ER4 module, QSFP28 form factor, Duplex LC, 1310 nm, 40 km (131,233.59 ft.) over SMF |
