Overview
The HPE Storage Fibre Channel Switch C-Series SN6730C (MDS 9396V) is a next-generation 96-port, 64Gbps Fibre Channel switch that provides high-speed Fibre Channel connectivity between servers and storage. It supports small, medium and large enterprises that are rapidly deploying cloud-class applications, offering the benefits of greater bandwidth, scale and consolidation. The switch allows for a seamless transition to Fibre Channel Non-Volatile Memory Express (NVMe/FC) workloads.
The HPE Storage Fibre Channel Switch C-Series SN6730C can be configured, managed, monitored, and troubleshooted using the Nexus Dashboard Fabric Controller (NDFC), formerly known as Data Centre Network Manager (DCNM), which now manages the entire Cisco Data Centre product suite. It is powered by the C-Series MDS 9000 NX-OS software, which includes storage networking features and functionality, and works in conjunction with the C-Series SN8700C (MDS 9700) family of multilayer guides, the C-Series SN6010C (MDS 9148S) multilayer fibre optic switch, the C-Series SN6610C (MDS 9132T), the C-Series SN6620C (MDS 9148T) Multilayer Fibre Switch, Series C SN6630C (MDS 9396T) Multilayer Fibre Switch, Series C SN6710C (MDS 9124V) Multilayer Fibre Switch, Series C SN6720C (MDS 9148V), and Series C SN6640C (MDS 9220i) Multiservice Fibre Switches are compatible to offer at the core edge transparent end-to-end service delivery deployment at the core edge.

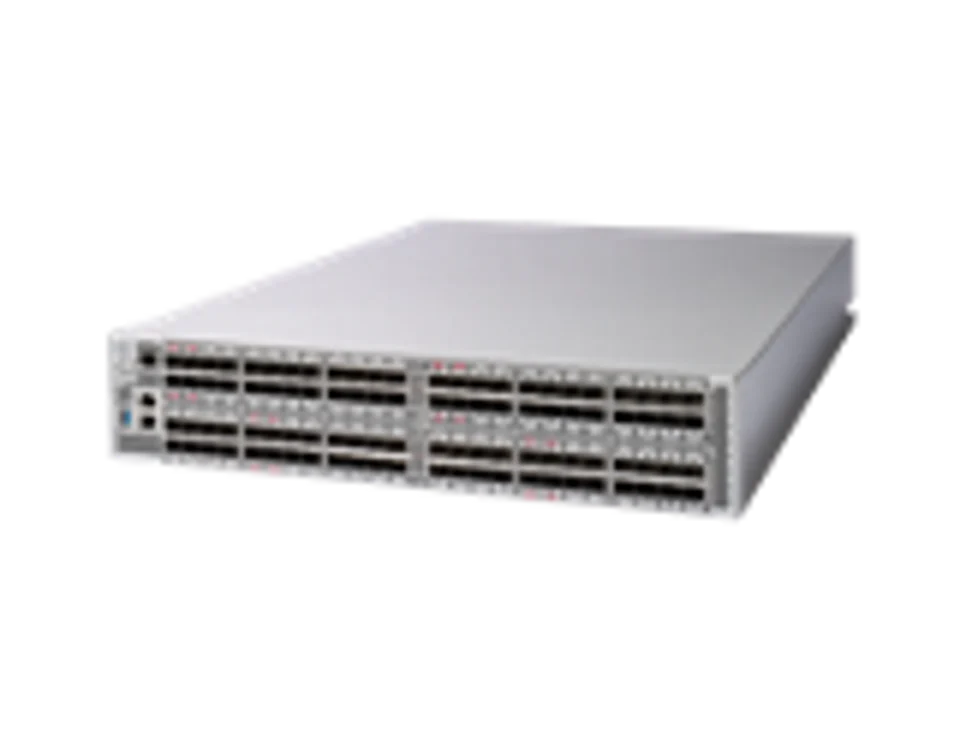

HPE Storage Fibre Channel Switch C-Series SN6730C
| Family Information | ||||||||||||||||||||||||||||||||||||||||
|
Performance and port configuration
- Port speed: 64, 32, 16 and 8 Gbps autosensing with 64 Gbps of dedicated bandwidth per port
- Buffer credits: Up to 24000 for a group of 24 ports, with a default of 1000 buffer credits per port and a maximum of 16000 buffer credits for a single port in the group
- Ports per chassis: Up to 96 64-Gbps ports
- Base configuration of 48 ports; additional configurations up to 96 ports
Environmental
- Physical dimensions (H x W x D) of 2RU: (3.4 x 17.4 x 23.9 in [8.64 x44.23 x 60.73cm]. excluding Power Supply Unit (PSU) and fan-tray handles)
- Weight of fully configured chassis: 44 lb. (20 kg)
- Ambient operating temperature: 32 to 104°F (0 to 40°C)
- Ambient non-operating temperature: -40 to 158°F (-40 to 70°C)
- Humidity (RH), ambient (noncondensing) operating: 10 to 90%
- Humidity (RH), ambient (noncondensing) non-operating and storage: 5 to 95%
- Operating altitude: -197 to 6500 ft (-60 to 2000 m)
Power and Cooling
- Power supplies (1400W AC) (2 per switch)
- AC Input:
– 1400W PSU AC Low Line Input: 90V to 140V (+/-10% for full range)
– 1400W PSU AC High Line Input: 180V to 264V (+/-10% for full range)
- Frequency: 50 to 60 Hz nominal (+/-3 Hz for full range)
- Typical power consumption:
– 420W for 96-Port switch in idle status with no optics modules
– 540W for 96-Port switch with 48 64G SW optics modules at 50% line rate
– 650W for 96-Port switch with 96 64G SW optics modules at 50% line rate
– Airflow: Rear to front (toward ports)
- HPE recommends maintaining a minimum air space of 2.5 in. (6.4 cm) between walls and chassis air vents and a minimum horizontal separation of 6 in. (15.2 cm) between two chassis to prevent overheating
Configuration Information
| Description | SKU |
| HPE Storage 64Gb 96/48 Fibre Channel Switch C-series SN6730C | S2S03A |
| · 96-Port Fabric Switch with 48 active ports, Dual Power Supplies, Power Cords (configurable by ship-to country) and 3 Fans, VSANs, PortChannels, firmware, accessory kit and documentation. | |
| HPE Storage 64Gb 96/48 32Gb Short Wave SFP+ Fibre Channel Premier Switch C-series SN6730C | S2R99A |
| · 96-Port Fabric Switch with 48 active ports with 48x32Gb SW SFP+, 3-year Premier License, Dual Power Supplies, Power Cords (configurable by ship-to country) and 3 Fans, VSANs, PortChannels, firmware, accessory kit and documentation. | |
| HPE Storage 64Gb 96/48 64Gb Short Wave SFP+ Fibre Channel Premier Switch C-series SN6730C | S2S00A |
| · 96-Port Fabric Switch with 48 active ports with 48x64Gb SW SFP+, 3-year Premier License, Dual Power Supplies, Power Cords (configurable by ship-to country) and 3 Fans, VSANs, PortChannels, firmware, accessory kit and documentation. | |
| HPE Storage 64Gb 96/96 32Gb Short Wave SFP+ Fibre Channel Premier Switch C-series SN6730C | S2S01A |
| · 96-Port Fabric Switch with 96 active ports with 96x32Gb SW SFP+, 3-year Premier License, Dual Power Supplies, Power Cords (configurable by ship-to country) and 3 Fans, VSANs, PortChannels, firmware, accessory kit, and documentation. | |
| HPE Storage 64Gb 96/96 64Gb Short Wave SFP+ Fibre Channel Premier Switch C-series SN6730C | S2S02A |
| · 96-Port Fabric Switch with 96 active ports with 96x64Gb SW SFP+, 3-year Premier License, Dual Power Supplies, Power Cords (configurable by ship-to country) and 3 Fans, VSANs, PortChannels, firmware, accessory kit, and documentation. | |
