- Hybrid cable connection for power and optical transmission, supporting Ruijie Networks PoF Solution for simplified network deployment
- Compact size and flexible installation, adapting to various scenarios
- Fanless design, low noise and energy consumption
- Built-in temperature sensor chip for intelligent temperature control and over-temperature protection, guaranteeing device stability and security
- INC-based intelligent O&M, enabling efficient management and secure, reliable networks
Hardware Specifications
| Model (PoE) | RG-PF2920U-4GT1MS-P | RG-PF2920-DPBOX-P |
| Fixed ports | 4 x 10M/100M/1000M auto-negotiation electrical ports
1 x 1000M/2.5G SFP port |
1 x 10M/100M/1000M auto-negotiation electrical port
1 x GE SFP port |
| Switching capacity | 13 Gbps | N/A |
| Packet forwarding rate | 9.7 Mpps | N/A |
| SFP port | 2500Base-X and 1000Base-X supported | 1000Base-X supported |
| Power supply | Powered by a hybrid cable from the PoF switch
Maximum voltage range: 42 V DC to 57 V DC Rated voltage range: 44 V DC to 56 V DC Rated current: 1.3 A |
Powered by a hybrid cable from the PoF switch
Rated voltage: 44 V DC to 57 V DC Rated current: 0.75 A |
| Leakage current to ground | ≤ 3.5 mA | N/A |
| EEE | Supported | Not supported |
| PoE | Ethernet electrical ports 1–4 support PoE.
Max. overall PoE output power: 60 W The maximum number of PoE devices supported by the switch is determined by the PoE output power of the switch and the actual power of the PoE devices. |
1 x downlink POE/POE+ port |
| Overall power consumption | Without PoE load: ≤ 15 W
With PoE full load: ≤ 75 W |
Without PoE load: ≤ 3 W
Overall power (PoE+) ≤ 33 W |
| Operating temperature | Installed in a rack or unconfined space: 0ºC to 45ºC (32ºF to 113ºF) at a height below 1,800 m (1.12 miles) above the sea level
Installed on a workbench or in an ELV box: 0ºC to 40ºC (32ºF to 104ºF) at a height below 1,800 m (1.12 miles) above the sea level Note: At a height ranging from 1800 m (1.12 miles) to 5000 m (3.11 miles) above the sea level, the maximum operating temperature decreases by 1°C (1.8°F) for every increase in altitude of 220 m (721.78 ft.). |
Installed in a rack or unconfined space: 0ºC to 45ºC (32ºF to 113ºF) at a height below 1,800 m (1.12 miles) above the sea level
Installed on a workbench or in an ELV box: 0ºC to 40ºC (32ºF to 104ºF) at a height below 1,800 m (1.12 miles) above the sea level Note: At a height ranging from 1800 m (1.12 miles) to 5000 m (3.11 miles) above the sea level, the maximum operating temperature decreases by 1°C (1.8°F) for every increase in altitude of 220 m (721.78 ft.). |
| Storage temperature | –40°C to +70°C (–40ºF to +158ºF) | –40°C to +70°C (–40ºF to +158ºF) |
| Operating humidity | 10% to 90% RH | 10% to 90% RH |
| Storage humidity | 5% to 90% RH | 5% to 95% RH |
| Fan | Fanless design, natural cooling | Fanless design, natural cooling |
| Intelligent temperature control | The temperature alarm and overheat protection functions are supported. | Not supported |
| Electromagnetic compatibility (EMC) | GB/T9254.1 | GB/T9254.1 |
| Safety standard | GB 4943.1 | GB 4943.1 |
| Dimension (W x D x H) | 200 mm x 170 mm x 55 mm (7.87 in. x 6.69 in. x 2.17 in.) | 120 mm x 25 mm x 40 mm (4.72 in. x 0.98 in. x 1.57 in.) |
| Weight | 1.5 kg (3.30 lbs, including the package) | 0.2 kg (0.44 lbs, including the package) |
Software Specifications
| Model (PoE) | RG-PF2920U-4GT1MS-P | RG-PF2920-DPBOX-P |
| 802.1Q VLAN | 4K IEEE 802.1Q VLANs
Port-based VLAN |
Not supported |
| DHCP | DHCP client | Not supported |
| Security | Filtering of invalid MAC addresses
Broadcast storm suppression Password protection CPP Port protection |
Not supported |
| EEE | APD port sleeping | Not supported |
| Management | CLI-based configuration and management not required, visualized Web management
IoT MQTT Syslog/Debug and SNTP |
Not supported |
| Model | Description |

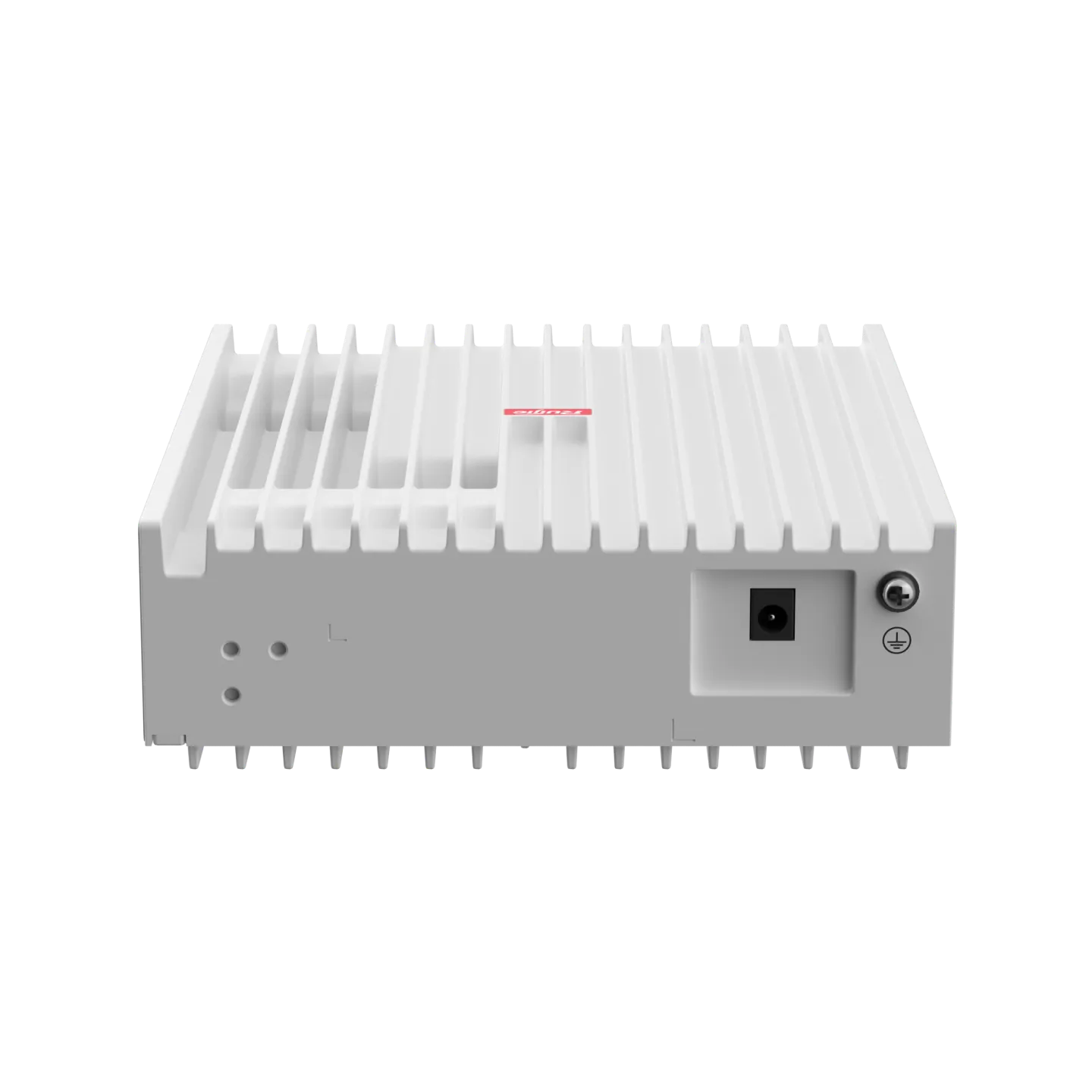

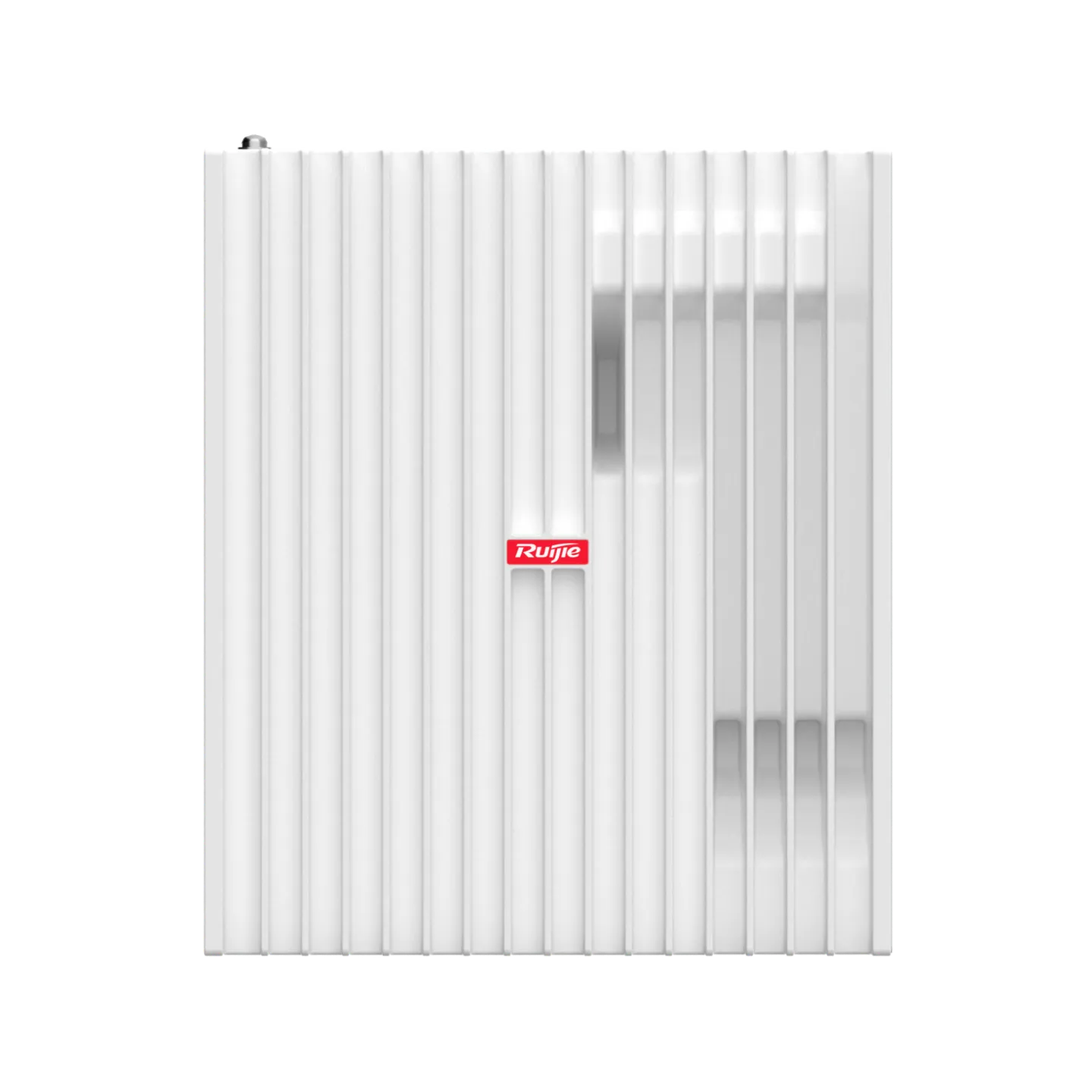

| RG-PF2920U-4GT1MS-P | The 4-port PoE/PoE+ switch provides 1 x uplink GE optical port and 4 x downlink 10M/100M/1000M auto-negotiation electrical ports, and is connected to the hybrid cable (1 x GE/2.5GE SFP port and a round DC plug). The switch supports PoE/POE+ power supply of 4 x 15 W (or 2 x 30 W). A fanless design is adopted, and an optical link fault LED is provided. |
| RG-PF2920-DPBOX-P | The single-port media converter is connected to a hybrid cable in the uplink direction (GE SFP port + circular DC socket) and provides a PoE/PoE+ port in the downlink direction. |
