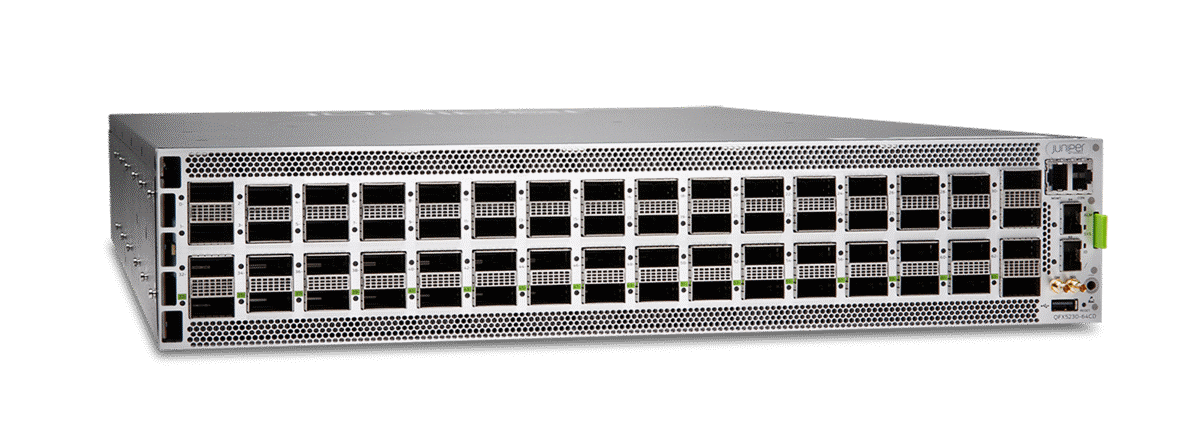

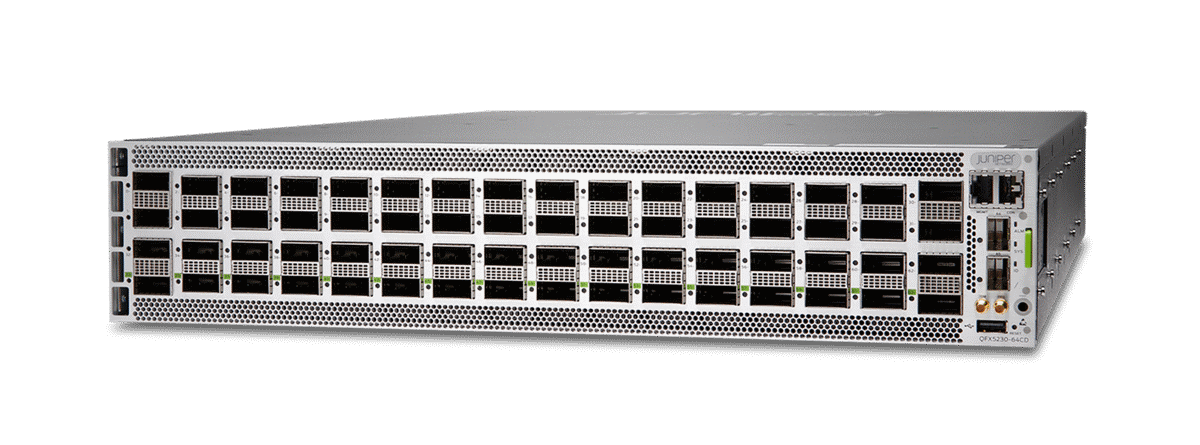

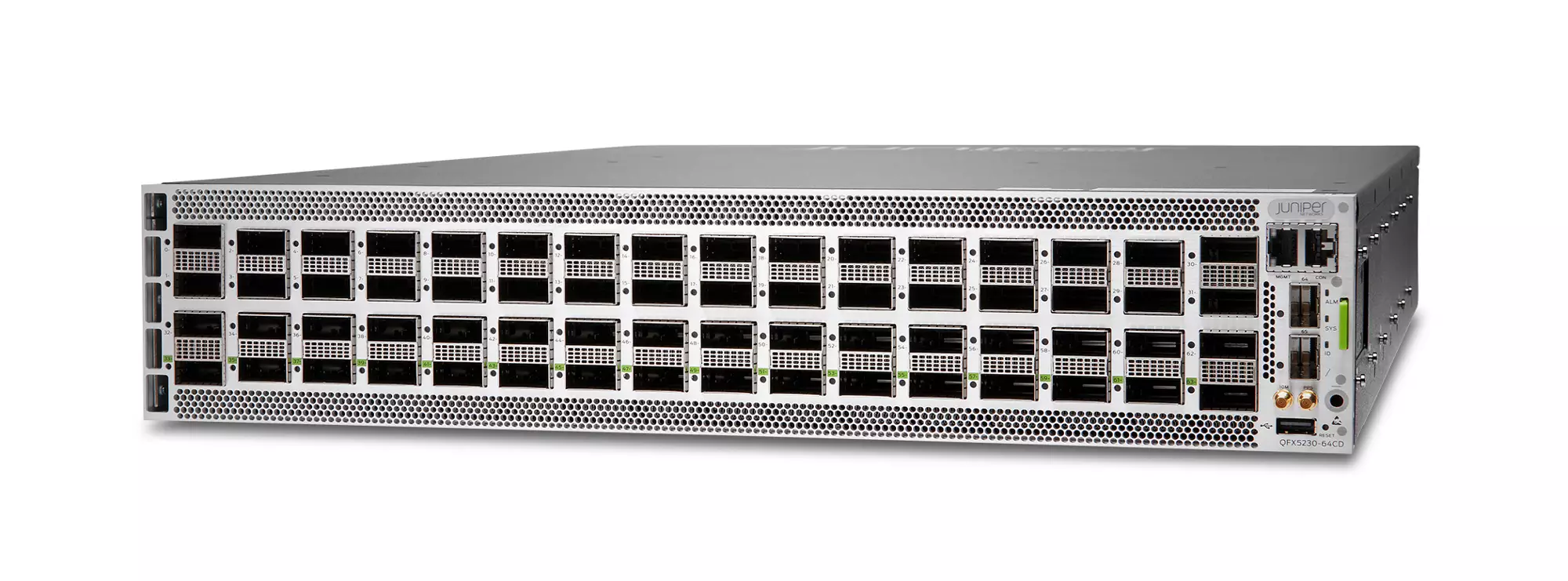

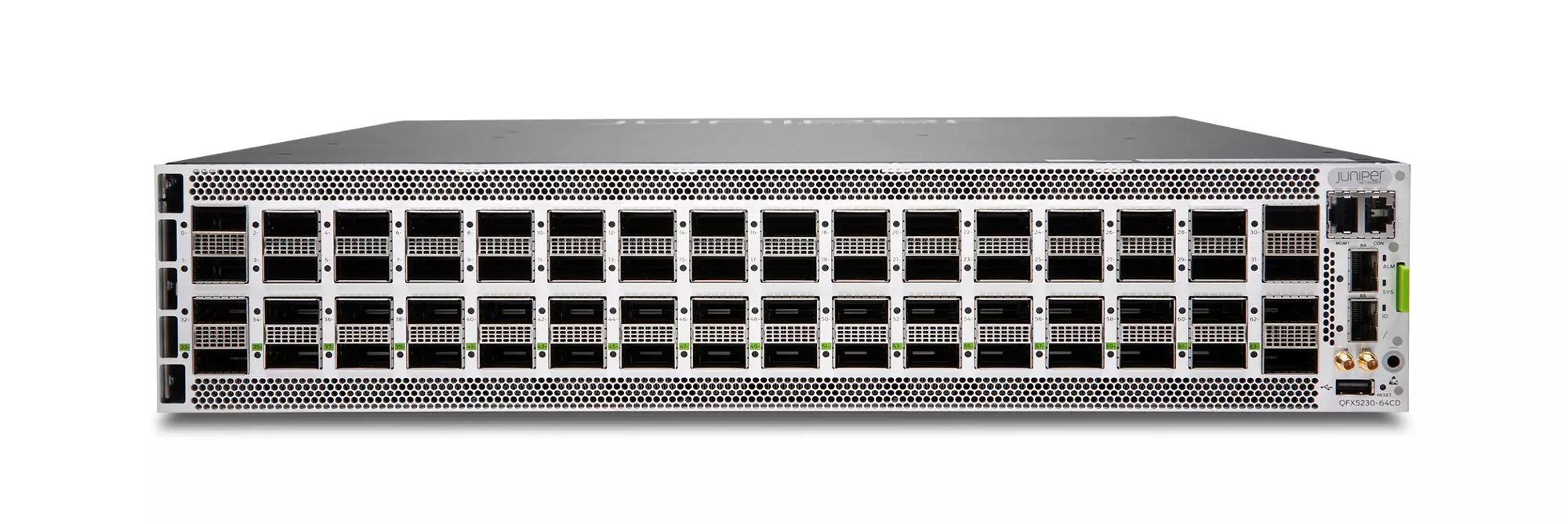

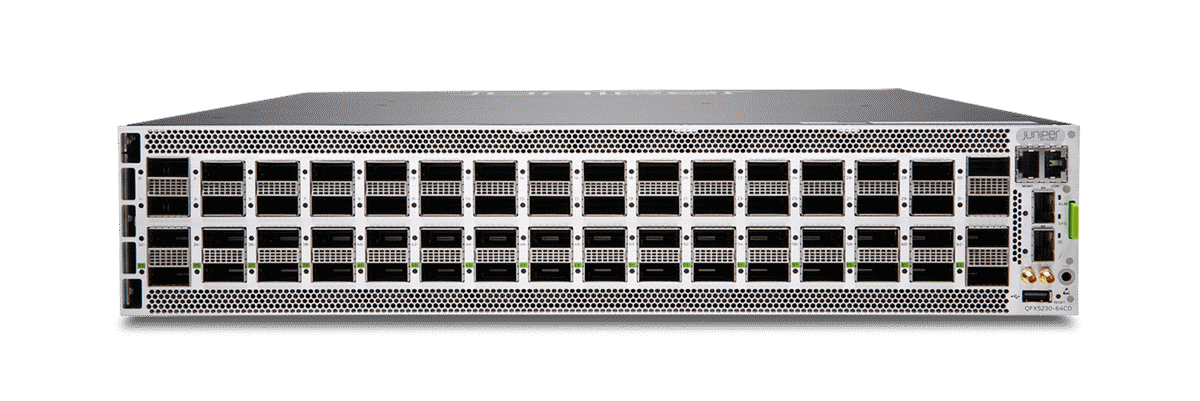

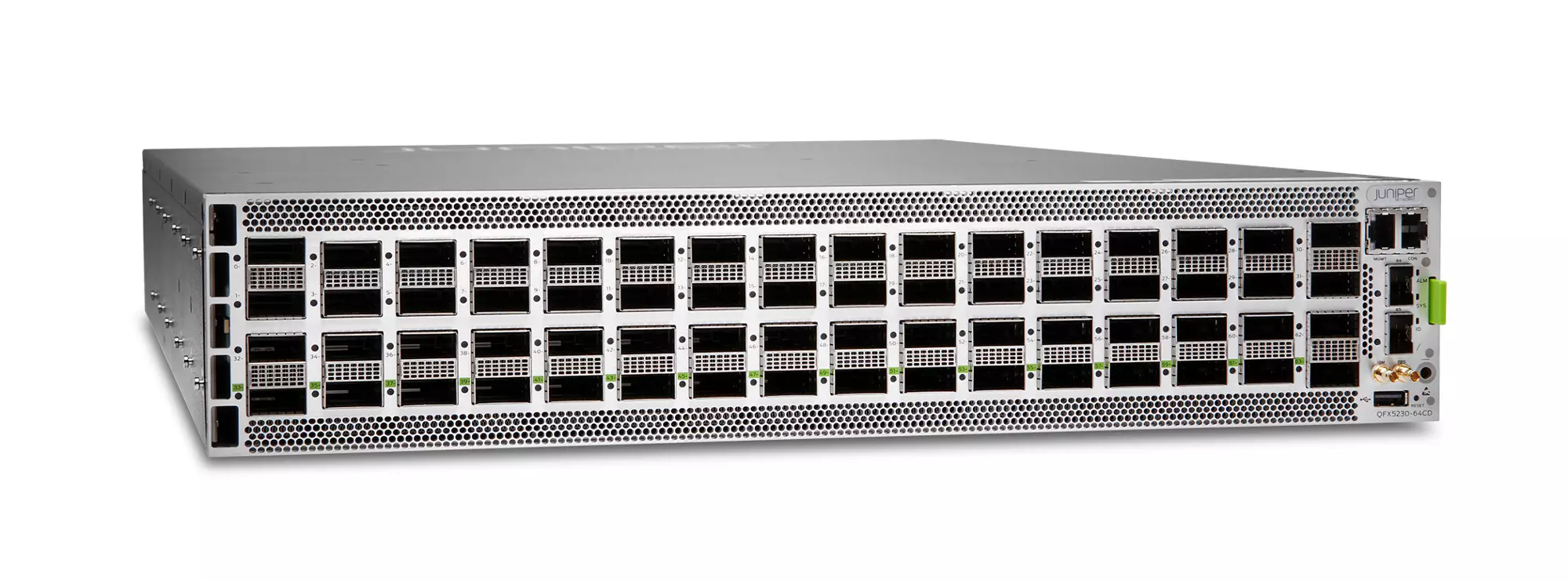

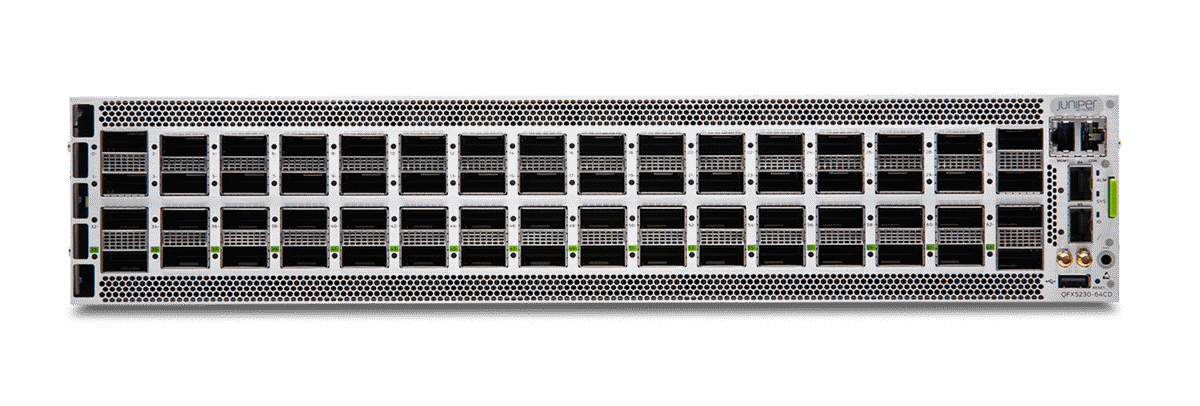

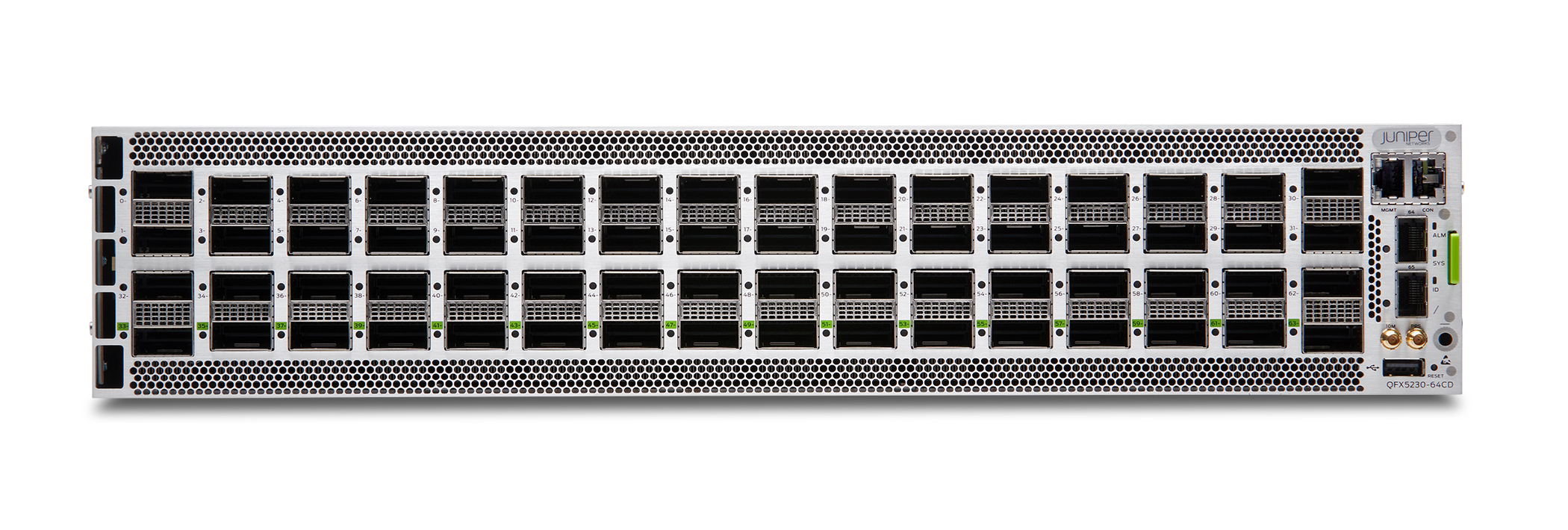

QFX5230-64CD-AFO
Brand Juniper
4.9Verified

QFX5230-64CD-AFO

Model (MPN)
QFX5230-64CD-AFO
Condition
Factory Sealed
Original Packaging (NIB)
Out of Stock

Volume & Framework Pricing

B2B Only
QuantityUnit PriceEst. Savings
1 Unit$272.20-
2 - 9 UnitsRequest Quote5 - 10%
10+ / ProjectFramework Match Tier-1 Access
Global Framework Support AvailableGet Global Discount

Key Specifications

Full Product NameQFX5230-64CD Switch
OS SupportedJunos OS Evolved
Fixed/Modular Chassis?Fixed
Form Factor2 U
Chassis Height3.43 in / 8.7122 cm
Chassis Width17.4 in / 44.196 cm
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock

Need configuration help?

Our CCIE certified engineers can help you verify compatibility.

Secure Payment
VISA
Pay
WIRE

Fast Dispatch

Global logistics network aiming for same-day handover.

48hrs
Avg. Shipping
99%
On-Time

Guaranteed Quality

Every unit undergoes rigorous 38-point inspection test.

3Year
Warranty
0.1%
RMA Rate

Global Reach

Trusted by enterprise clients across 6 continents.

85+
Countries
20k+
Clients

Expert Support

Certified network engineers ready to assist with configuration.

24/7
Assistance
CCIE
Certified

Overview

Product Overview

The QFX5230-64CD-AFO Switch offers up to 400GbE interfaces to support high-speed, high-density, spine-and-leaf IP fabrics. Prime use cases include AI data center networks with AI/ML workloads where scalability, performance, and low latency are critical. This front-to-back airflow (AFO) model features 64 QSFP56-DD ports and 2 SFP+ ports in a fixed 2RU chassis.

Hardware Highlights

Fixed 2U form factor with dimensions 3.43 in (H) x 17.4 in (W) x 25.6 in (D), weighing 55 lb fully loaded. Dual hot-swap PSUs (1+1 redundancy) with JNP-3000W-AC-AFO, max power 1396 W (avg 498 W). Four hot-swap fans (QFX5230-64CD-FANAO) providing 495 CFM front-to-back airflow.

Architecture & Performance

Delivers 51.2 Tbps bidirectional throughput (25.6 Tbps unidirectional), 10.53 Bpps forwarding. Supports 720K IPv4 FIB prefixes, 366K IPv6 FIB, 128K MAC addresses, 4K VLANs, 32K ARP entries, 128 LAGs (64 ports/LAG). Packet buffer 112 MB, jumbo frames to 9216 bytes. Powered by Intel 6-core Hewitt Lake D-1637 CPU with 32 GB DRAM and 200 GB SSD storage. Runs Junos OS Evolved.

Port & Scale Details

64x QSFP56-DD ports (channelization supported), 2x SFP+, 1x RJ-45 console, 1x RJ-45 management, 1x USB Type A, 10 MHz and PPS ports. ACL scales: Ingress 768 VLAN/3000 Port/3000 Routed, Egress 512 VLAN/2000 Port/2000 Routed. Mirroring: 8 sessions, 4 VLAN/4 port destinations. QoS: 8 unicast / 2 multicast queues per port.

Environmental & Compliance

Operating temp 0° to 40°C, altitude to 6000 ft / 1828 m, RH 5-90% non-condensing, seismic Zone 4.

Ordering Information

Main Unit: QFX5230-64CD-AFO

Chassis: QFX5230-64CD-CHAS

Fan Modules: QFX5230-64CD-FANAO (x4)

Power Supplies: JNP-3000W-AC-AFO (x2)

Rack Mount Kit: QFX5230-2RU-4PRMK

Specifications

Overview
Full Product NameQFX5230-64CD Switch
OS SupportedJunos OS Evolved
Chassis
Fixed/Modular Chassis?Fixed
Form Factor2 U
Chassis Height3.43 in / 8.7122 cm
Chassis Width17.4 in / 44.196 cm
Chassis Depth25.6 in / 65.024 cm
Chassis Weight (Fully Loaded With All Components)55 lb / 24.94 kg
Chassis Model NumberQFX5230-64CD-CHAS

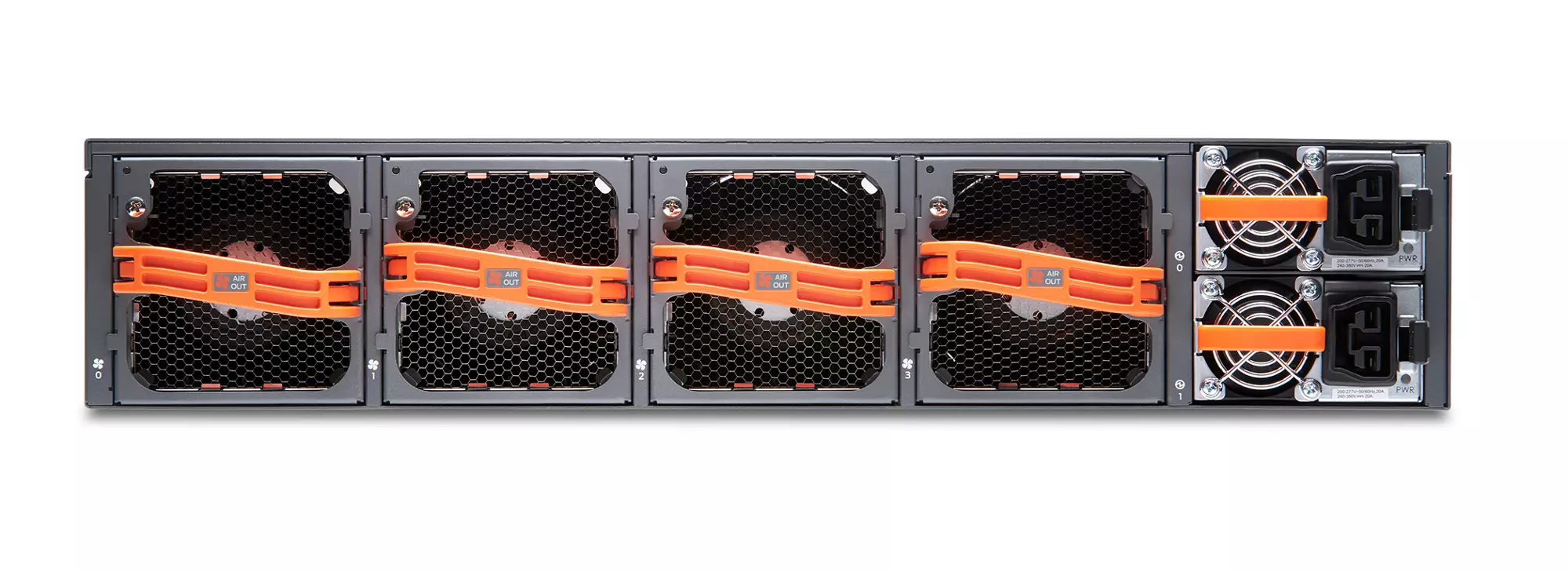

Cooling System
Airflow DirectionFront-to-back
AFO/AFI?AFO
Airflow Volume495 CFM
Fan Module Model NumberQFX5230-64CD-FANAO
Fan Module Count4
Fan Module Hot-Removable And Hot-Insertable?Y
Environmental Specifications
Operating Altitude6000 ft / 1828 m
Operating Temperature32° through 104° F / 0° through 40° C
Storage Temperature-40° through 158° F / -40° through 70° C
Relative Humidity, Noncondensing (Operating)5% through 90%
Relative Humidity, Noncondensing (Nonoperating)5% through 90%
Seismic ToleranceZone 4
Maintenance Clearance30 in / 76.2 cm
Built-in Network Ports
SFP+ Port Count2
QSFP56-DD Port Count64
QSFP56-DD Port ChannelizationY
Other Port Configuration
Console Port Count1
Console Port TypeRJ-45
Management Port Count1
Management Port TypeRJ-45
USB Port Count1
USB Port TypeType A
10 MHz PortY
PPS PortY
Performance (Routing/Switching)
Throughput (Bidirectional)51200 Gbps
Throughput (Unidirectional)25600 Gbps
Forwarding Capacity10.53 Bpps
IPv4 Unicast Host Routes (Thousands)720
IPv4 Unicast Routes Prefixes (RIB) (Thousands)2000
IPv4 Unicast Routes Prefixes (FIB) (Thousands)720
IPv6 Unicast Host Routes (Thousands)366
IPv6 Unicast Routes Prefixes (RIB) (Thousands)2000
IPv6 Unicast Routes Prefixes (FIB) (Thousands)366
Egress VLAN ACL512
Egress Port ACL2000
Egress Routed ACL2000
Ingress VLAN ACL768
Ingress Port ACL3000
Ingress Routed ACL3000
ARP Entries (Thousands)32
LAGs Count128
Ports Per LAG64
MAC Addresses Per System (Thousands)128
Maximum Mirroring Sessions8
Traffic Mirroring Destination VLANs4
Traffic Mirroring Destination Ports4
VLAN IDs Count4000
Jumbo Frame9216 bytes
Total Packet Buffer112 MB
QoS Hardware Queues Per Port (Multicast)2
QoS Hardware Queues Per Port (Unicast)8
Processor
CPUIntel 6-core Intel Hewitt Lake D-1637
DRAM32 GB
Power System
PSU Count2
PSU Redundancy1+1
PSU Airflow DirectionFront-to-back
PSU Hot-Removable And Hot-Insertable?Y
AC PSU Model NumberJNP-3000W-AC-AFO
AC Max Power Consumption1396 W
AC Average Power Consumption498 W
Grounding Cable Lug TypePanduit LCD4-14A-L
Grounding Cable Temperature Rating90° C / 194° F
Grounding Cable Wire Gauge4 AWG
Storage
Internal Storage Size200 (100+100) GB
Internal Storage TypeSSD
Supported Transceivers
EX-QSFP-40GE-DAC-50CMQSFP+ 40 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable) for 50cm Transmission
EX-SFP-10GE-DAC-7MSFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 7M
EX-SFP-10GE-ERSFP+ 10GBase-ER 10 Gigabit Ethernet Optics Module, 1550nm for 40Km Transmission
EX-SFP-10GE-LRSmall Form Factor Pluggable 10 Gigabit Ethernet (SFP+) LR Optics
EX-SFP-10GE-SRSmall Form Factor Pluggable 10 Gigabit Ethernet (SFP+) SR Optics
JNP-100G-2X50G-1M100G DAC Breakout into 2x50G 1M
JNP-100G-2X50G-2M100G DAC Breakout into 2x50G 2M
JNP-100G-2X50G-3M100G DAC Breakout into 2x50G 3M
JNP-100G-2X50G-5M100G DAC Breakout into 2x50G 5M
JNP-100G-4X25G-1M100G QSFP28 to SFP28 4x25G Direct Attach Copper Breakout (twinax copper cable) 1m
JNP-100G-4X25G-3M100G QSFP28 to SFP28 4x25G Direct Attach Copper Breakout (twinax copper cable) 3m
JNP-100G-4X25G-5M100G QFP28 to SFP28 4x25G Direct Attach Copper Breakout (twinax copper cable) 5m
JNP-100G-AOC-10MQSFP28 100G active optical cable for 10M
JNP-100G-AOC-15MQSFP28 100G active optical cable for 15M
JNP-100G-AOC-1MQSFP28 100G active optical cable for 1M
JNP-100G-AOC-20MQSFP28 100G active optical cable for 20M
JNP-100G-AOC-30MQSFP28 100G active optical cable for 30M
JNP-100G-AOC-3MQSFP28 100G active optical cable for 3M
JNP-100G-AOC-5MQSFP28 100G active optical cable for 5M
JNP-100G-AOC-7MQSFP28 100G active optical cable for 7M
JNP-100G-AOCBO-10M100GE-AOC OM3 10m 850nm 70C
JNP-100G-AOCBO-15M100GE-AOC OM3 15m 850nm 70C
JNP-100G-AOCBO-1M100GE-AOC OM3 1m 850nm 70C
JNP-100G-AOCBO-20M100GE-AOC OM3 20m 850nm 70C
JNP-100G-AOCBO-30M100GE-AOC OM3 30m 850nm 70C
JNP-100G-AOCBO-3M100GE-AOC OM3 3m 850nm 70C
JNP-100G-AOCBO-5M100GE-AOC OM3 5m 850nm 70C
JNP-100G-AOCBO-7M100GE-AOC OM3 7m 850nm 70C
JNP-100G-DAC-1M100G DAC Twinax Copper Cable 1M
JNP-100G-DAC-3M100G DAC Twinax Copper Cable 3M
JNP-100G-DAC-5M100G DAC Twinax Copper Cable 5M
JNP-10G-AOC-10M10G SFP+ AOC, 10 Meters
JNP-10G-AOC-15M10G SFP+ AOC, 15 Meters
JNP-10G-AOC-1M10G SFP+ AOC, 1 Meter
JNP-10G-AOC-20M10G SFP+ AOC, 20 Meters
JNP-10G-AOC-30M10G SFP+ AOC, 30 Meters
JNP-10G-AOC-3M10G SFP+ AOC, 3 Meters
JNP-10G-AOC-5M10G SFP+ AOC, 5 Meters
JNP-10G-AOC-7M10G SFP+ AOC, 7 Meters
JNP-40G-AOC-10M40G active optical cable for 10M
JNP-40G-AOC-15M40G active optical cable for 15M
JNP-40G-AOC-1M40G active optical cable for 1M
JNP-40G-AOC-20M40G active optical cable for 20M
JNP-40G-AOC-30M40G active optical cable for 30M
JNP-40G-AOC-5M40G active optical cable for 5M
JNP-40G-AOC-7M40G active optical cable for 7M
JNP-QSFP-100G-BXSR100GBASE-BXSR OM4 100m 850nm 70C
JNP-QSFP-100G-CWDM100G CWDM4 optics
JNP-QSFP-100G-LR4QSFP28 100GBase-LR4 Optics for up to 10km transmission over serial SMF
JNP-QSFP-100G-PSM4QSFP28 100G base PSM4 optics for up to 500 m transmission over parallel SMF
JNP-QSFP-100G-SR4QSFP28 100GBase-SR4 Optics for up to 100m transmission over parallel MMF
JNP-QSFP-40G-LR4QSFP+ 40GBase-LR4 40 Gigabit Optics for up to 10km transmission on SMF
JNP-QSFP-40G-LX4QSFP+ 40GBASE-LX4 40 Gigabit Optics for up to 150m transmission with OM4 over duplex MMF
JNP-QSFP-4X10GE-IRQSFP+ 40GBASE optics, up to 1.4 km transmission on parallel single mode (4X10GbE long reach up to 1.4 km)
JNP-QSFP-4X10GE-LRQSFP+ 40G breakout into 4x10GBASE LR up to 10km SMF, MPO-12 APC Receptacle
JNP-QSFP-AOCBO-10M40G active optical breakout cable for 10M
JNP-QSFP-AOCBO-1M40G active optical breakout cable for 1M
JNP-QSFP-AOCBO-3M40G active optical breakout cable for 3M
JNP-QSFP-AOCBO-7M40G active optical breakout cable for 7M
JNP-QSFP-DAC-5MQSFP+ 40GBase Direct Attach Copper Cable 5-meter, passive
JNP-QSFPP-40G-BXSR40GBASE-BXSR OM3 100m 850nm 70C
JNP-SFP-DAC-2MSFP+ 10GBase Direct Attach Copper Cable 2-meter
QDD-2X100G-1M200G DAC Breakout into 2x100G, 1M
QDD-2X100G-3M200G DAC Breakout into 2x100G, 3M
QDD-2X100G-LR4QSFP28-DD 2x100GBASE-LR4 Standard Temperature (0 through 70°C)
QDD-2X100G-SR4QSFP28-DD 2x100GBASE-SR4 and 8x25GBASE-SR Standard Temperature (0 through 70°C)
QDD-2X200G-1M400G DAC Breakout into 2X200G, 1m
QDD-2X200G-2M400G DAC Breakout into 2X200G, 2m
QDD-2X200G-2P5M400G DAC Breakout into 2X200G, 2.5m
QDD-2X200G-AOC-10MQSFP56-DD to QSFP56 AOCBO 10M
QDD-2X200G-AOC-15MQSFP56-DD to QSFP56 AOCBO 15M
QDD-2X200G-AOC-1MQSFP56-DD to QSFP56 AOCBO 1M
QDD-2X200G-AOC-20MQSFP56-DD to QSFP56 AOCBO 20M
QDD-2X200G-AOC-30MQSFP56-DD to QSFP56 AOCBO 30M
QDD-2X200G-AOC-3MQSFP56-DD to QSFP56 AOCBO 3M
QDD-2X200G-AOC-5MQSFP56-DD to QSFP56 AOCBO 5M
QDD-2X200G-AOC-7MQSFP56-DD to QSFP56 AOCBO 7M
QDD-400G-AOC-10M400GE QSFP-DD AOC OM4 10m 850nm 70C
QDD-400G-AOC-15M400GE QSFP-DD AOC OM4 15m 850nm 70C
QDD-400G-AOC-1M400GE QSFP-DD AOC OM4 1m 850nm 70C
QDD-400G-AOC-20M400GE QSFP-DD AOC OM4 20m 850nm 70C
QDD-400G-AOC-30M400GE QSFP-DD AOC OM4 30m 850nm 70C
QDD-400G-AOC-3M400GE QSFP-DD AOC OM4 3m 850nm 70C
QDD-400G-AOC-5M400GE QSFP-DD AOC OM4 5m 850nm 70C
QDD-400G-AOC-7M400GE QSFP-DD AOC OM4 7m 850nm 70C
QDD-400G-DAC-1MQSFP56-DD 400G DAC 1m
QDD-400G-DAC-2P5MQSFP56-DD 400G DAC 2.5m
QDD-400G-DR4QSFP-DD 400GBASE-DR4/4X100GBASE-DR, SMF 500 m; Standard Temperature (0 through 70°C); MPO-12 connector
QDD-400G-FR4QSFP-DD 400G-FR4/400GBASE-FR4, SMF 2 km; Standard Temperature (0 through 70°C); Duplex LC connector
QDD-400G-LR4-10QSFP-DD 400G-LR4-10, SMF 10 km; Standard Temperature (0 through 70°C); Duplex LC/PC Receptacle
QDD-400G-SR4P2QSFP-DD, 400GBASE-SR4.2/4x100GE BiDi, 0~70C
QDD-400G-SR8QSFP56-DD 400G SR8 transceiver
QDD-400G-VR4QSFP-DD, 400GBASE-VR4, 15°C through 70°C, OM4 50 m, MPO-12/APC receptacle
QDD-400G-ZR-MOpenZR+ MSA compliant 400GE coherent optical module
QDD-4X100G-1M400G DAC Breakout into 4x100G, 1m
QDD-4X100G-2M400G DAC Breakout into 4x100G, 2m
QDD-4X100G-2P5M400G DAC Breakout into 4x100G, 2.5m
QDD-4X100G-AOC-10MQSFP56-DD 4x100G AOC 10M
QDD-4X100G-AOC-15MQSFP56-DD 4x100G AOC 15M
QDD-4X100G-AOC-1MQSFP56-DD 4x100G AOC 1M
QDD-4X100G-AOC-20MQSFP56-DD 4x100G AOC 20M
QDD-4X100G-AOC-30MQSFP56-DD 4x100G AOC 30M
QDD-4X100G-AOC-3MQSFP56-DD 4x100G AOC 3M
QDD-4X100G-AOC-5MQSFP56-DD 4x100G AOC 5M
QDD-4X100G-AOC-7MQSFP56-DD 4x100G AOC 7M
QDD-4X100G-FRQSFP-DD 4x100G-FR, SMF 2 km; Standard Temperature (0 through 70°C); MPO-12 APC Receptacle
QDD-4X100G-LRQSFP-DD 4x100G-LR, SMF 10 km; Standard Temperature (0 through 70°C); MPO-12/APC Receptacle
QFX-QSFP-40G-SR4QSFP+ 40GBase-SR4 40 Gigabit Optics, 850nm for up to 150m transmission on MMF
QFX-QSFP-DAC-1MQSFP+ Cable Assy, 1m, 30AWG, Passive, Programmable ID
QFX-QSFP-DAC-3MQSFP+ Cable Assy, 3m, 30AWG, Passive, Programmable ID
QFX-QSFP-DACBO-1MQSFP+ to SFP+ 10 Gigabit Ethernet Direct Attach Break out Copper (twinax copper cable) 1m
QFX-QSFP-DACBO-3MQSFP+ to SFP+ 10 Gigabit Ethernet Direct Attach Break out Copper (twinax copper cable) 3m
QFX-SFP-10GE-ERSFP+ 10GBase-ER 10 Gigabit Ethernet Optics, 1550nm for 40km transmission on SMF
QFX-SFP-10GE-LRSFP+ 10GBase-LR 10 Gigabit Ethernet Optics, 1310nm for 10km transmission on SMF
QFX-SFP-10GE-SRSFP+ 10GBase-SR 10 Gigabit Ethernet Optics, 850nm for up to 300m transmission on MMF
QFX-SFP-10GE-USRSFP+ 10 Gigabit Ethernet Ultra Short Reach Optics, 850 nm for 10m on OM1, 20m on OM2, 100m on OM3 Multi-Mode Fiber
QFX-SFP-DAC-1MSFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 1m
QFX-SFP-DAC-3MSFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 3m
QFX-SFP-DAC-5MSFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 5m
QSFP-100G-CWDM-CQSFP-28, 100G-CWDM4 Transceiver
QSFP-100G-CWDM-T2QSFP-28, 100G-CWDM4 Transceiver
QSFP-100G-CWDM4-ITQSFP28 100G-CWDM4 2km 1310nm
QSFP-100G-DRQSFP28 100GBASE-DR; Media-Side RS (544,514) FEC enabled, Host-side CAUI-4 no FEC; SMF 500 m; Standard Temperature (0 through 70°C); Duplex LC connector
QSFP-100G-ER4LQSFP28 100G-ER4 Lite Ethernet only module
QSFP-100G-FRQSFP28 100G-FR/100GBASE-FR1; Media-Side RS (544,514) FEC enabled, Host-side CAUI-4 no FEC; SMF 2 km; Standard Temperature (0 through 70°C); Duplex LC connector
QSFP-100G-LRQSFP28 100G-LR/100GBASE-LR1; Media-Side RS (544,514) FEC enabled, Host-side CAUI-4 no FEC; SMF 10 km; Standard Temperature (0 through 70°C); Duplex LC connector
QSFP-100G-LR4-CQSFP-28, 100G-LR4 Transceiver
QSFP-100G-LR4-ITQSFP28 100GE-LR4 10km 1310nm Blue Pull
QSFP-100G-LR4-T2100G-LR4 Ethernet only QSFP28 Module T2
QSFP-100G-PSM4-T2QSFP28 100G base PSM4 optics for up to 500 m transmission over parallel SMF
QSFP-100G-SR1P2QSFP28 100G SR BiDi Transceiver
QSFP-100G-SR4-CQSFP-28, 100G-SR4 Transceiver
QSFP-100G-SR4-ETQSFP28 100GE-SR4 OM4 100m Beige Pull MPO
QSFP-100G-SR4-T2100G-SR4 Ethernet only QSFP28 Module T2
QSFP-100G-ZR4QSFP28 100G ZR4 Transceiver
QSFP-100GBASE-CWDMQSFP28, 100GBASE-CWDM4
QSFP-100GBASE-LR4100GBASE-LR4 QSFP28 pluggable module, support only Ethernet rate
QSFP-100GBASE-SR4100GBASE-SR4 QSFP28 pluggable module, support only Ethernet rate
QSFP-4X25G-LRQSFP28 4x25G LR Transceiver
QSFPP-40G-LR4-CQSFP+ 40GBase-LR4 40 Gigabit Optics for up to 10km transmission on SMF
QSFPP-40G-LX4QSFP+ 40GBase-LX4 40 Gigabit Optics, 100m(150m) with OM3(OM4) duplex MMF fiber
QSFPP-40GBASE-LR440GE QSFP+ LR4 Pluggable Optics module
QSFPP-40GBASE-SR440GE QSFP+ SR4 Pluggable Optics module
QSFPP-4X10GE-LR40G QSFP+ breakout into 4x10GBASE LR Ethernet module
SFPP-10G-ER-CSFP+, 10G-ER Transceiver
SFPP-10G-LR-CSFP+, 10G-LR Transceiver
SFPP-10G-LRT2-CSFP+, 10G-LR Transceiver type 2
SFPP-10G-SR-CSFP+, 10G-SR Transceiver
SFPP-10G-SR-ET-CSFP+ 10GE-SR MMF 1.0W Beige Bail
SFPP-10GE-ER10 Gigabit Ethernet Extended Reach SFP+
SFPP-10GE-ER-ITSFP+ 10GE-ER SMF 40km
SFPP-10GE-ER-XT40km SFP Plus optical module supporting an extended range of operating temperature up to 85C
SFPP-10GE-LR10 Gigabit Ethernet Long Reach SFP+
SFPP-10GE-LR-ITSFP+ 10GE-LR SMF 10km 1310nm Blue Bail
SFPP-10GE-SR10 Gigabit Ethernet Short Reach SFP+
SFPP-10GE-SR-ITSFP+ 10GE-SR MMF 1.0W Beige Bail
SRX-QSFP-40G-LR440GE QSFP+ Optical Transceiver, LR4,10km
SRX-QSFP-40G-SR440-Gigabit Ethernet multi-mode optic module
SRX-SFP-10GE-ERSFP+ 10GBase-ER 10 Gigabit Ethernet Optics Module, 1550nm for 40Km transmission
SRX-SFP-10GE-LRSmall Form Factor Pluggable 10 Gigabit Ethernet (SFP+) LR Optics
SRX-SFP-10GE-SRSmall Form Factor Pluggable 10 Gigabit Ethernet (SFP+) SR Optics
SRX-SFPP-10G-LR10GE SFP+ Optical Transceiver,LR,10km
Power Supply Modules (PSM)
JNP-2400W-DC-AFIJuniper DC Power Supply, 2400W, back-to-front airflow (Part: 740-155850)
JNP-2700W-AC-AFIJuniper AC Power Supply, 2700W, back-to-front airflow (Part: 740-155849)
JNP-3000W-AC-AFOPTX10000 2700 W AC power supply (Part: 740-073765)
JNP-3000W-DC-AFOPTX10000 2700 W AC power supply (Part: 740-073766)
Power Cords/Cables
CBL-JNP-SG4-316P6WPower Cord, AC, Continental Europe, IEC309-316P6W, SAF-D-GRID 400, 16A/250V, 4.5m, Straight plug VIIG
CBL-JNP-SG4-ARPower Cord, AC, Argentina, IRAM to SAF-D-GRID 400, 16A/250V, 4.5m, Straight Plug
CBL-JNP-SG4-BRPower Cord, AC, Brazil, NBR 14136 to SAF-D-GRID 400, 16A/250V, 4.5m, Straight Plug
CBL-JNP-SG4-C20Power Cord, AC, SAF-D-GRID 400 to IEC320-C20, 300V 20A 4.5m (Part: 740-078938)
CBL-JNP-SG4-CHPower Cord, AC, China, SAF-D-GRID 400, 16A/250V, 4.5m, Straight plug to Straight SAF-D-GRID 400
CBL-JNP-SG4-HVACPower Cord, AC, HVAC, SAF-D-GRID 400 to L7-20P Plug, 16A/277V, 4.5m, Straight
CBL-JNP-SG4-ILPower Cord, AC, Israel, SAF-D-GRID 400, 16A/250V, 4.5m, RA Plug
CBL-JNP-SG4-ITPower Cord, AC, Italy, SAF-D-GRID 400, 16A/250V, 4.5m, Straight
CBL-JNP-SG4-JPLPower Cord, AC, Japan, 20A/250V, 50C, 4.5m, Straight, SAF-D-Grid 400 to NEMA L6-20
CBL-JNP-SG4-SAPower Cord, AC, South Africa/India, SAF-D-GRID 400, 16A/250V, 4.5m, RA Plug
CBL-JNP-SG4-SKPower Cord, AC, South Korea, Straight plug, Straight SDG to RA Korean Plug
CBL-JNP-SG4-SZPower Cord, AC, Switzerland, SAF-D-GRID 400, 16A/250V, 4.5m, Straight
CG_CBL-APP-400-01
Rack Mounting Kits
QFX5230-2RU-4PRMKTool-less 4post RMK for 2RU QFX5230-64CD (Part: 760-158367)

Reviews

No reviews yet

Be the first to review this enterprise product.

Warranty

Standard Warranty Policy

All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.

  • 1-Year Advance Replacement (RMA)
  • 3-Year Free Repair Service
  • Full coverage for functionality defects
Hassle-Free RMA Process

We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.

  • 30-Day satisfaction guarantee return window
  • Automated RMA portal access for instant tracking
  • Restocking fee waived for functionality issues
Certified Engineering Support

Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.

  • Free pre-sales topology consultation
  • Remote troubleshooting & firmware advice
  • Simulation lab testing before dispatch
Global Logistics & Packaging

We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.

  • Double-walled boxes with customer molded foam
  • Blind shipping support for channel partners
  • Real-time tracking via FedEx / DHL / UPS

Resources

Datasheet

Common Questions

What is the switching capacity of QFX5230-64CD-AFO?
51.2 Tbps bidirectional (25.6 Tbps unidirectional), with 10.53 Bpps forwarding capacity.
Does QFX5230-64CD-AFO support EVPN-VXLAN?
Yes, as a QFX Series switch running Junos OS Evolved, it supports EVPN-VXLAN for data center fabrics.
What airflow does the QFX5230-64CD-AFO have?
Front-to-back (AFO) airflow with 495 CFM.
What are the port configurations?
64x QSFP56-DD ports (channelization supported) and 2x SFP+ ports.
What is the power consumption?
AC Max 1396 W, Average 498 W with dual JNP-3000W-AC-AFO PSUs (1+1 redundancy).
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.

Still have questions?
